CTA Tools 8650M Wheel Bearing & Hub Master Kit

CTA Tools 8650M Wheel Bearing & Hub Master Kit

• Master kit services Rear Wheel Hubs & Bearings on European vehicles, plus Front Wheel Hubs & Bearings on US, Asian & European vehicles.
• Includes all necessary Adapter Shoes, Installer Adapters, Adapter Sleeves, Support Disc, Spacers, etc.

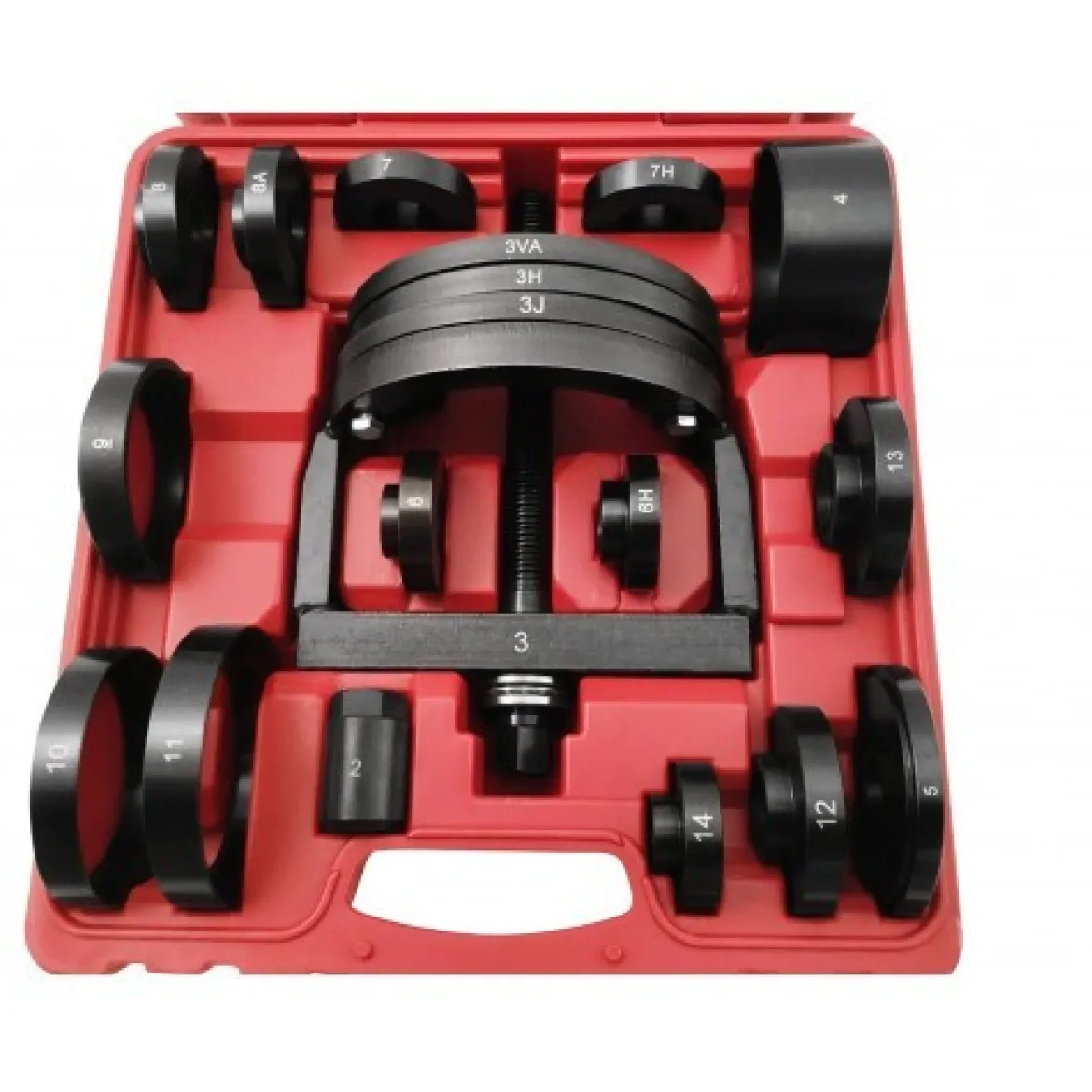

• Packed in a blow mold case
• Includes the following components:
  • 8651 – Center Screw & Thrust bearing Assembly(A & B)
    • 8651×01 – Center Screw (A)
    • 8651×02 – Thrust Bearing Assembly (B)
  • 8652 – Elongated Nut (G)
  • 8653 – Bracket Assembly (C)
  • 8654 – Horseshoe Adapter – 42.3mm Wide End (D)
  • 8655 – Horseshoe Adapter – 28mm Wide End (E)
  • 8656 – Horseshoe Adapter – 37mm Wide End with Notch (F)
  • 8657 – Spacer (U)
  • 8658 – Support Disc (H)
  • 8659 – Installer Washer – 33mm / 63mm OD (P)
  • 8660 – Installer Washer – 37mm / 59mm OD (Q)
  • 8661 – Installer Washer – 38mm / 66mm OD (J)
  • 8662 – Installer Washer – 34mm / 65.3mm OD (K)
  • 8663 – Installer Washer- 41mm / 73mm OD (L)
  • 8664 – Installer Washer – 37mm / 71.3mm OD (M)
  • 8665 – Adapter Sleeve – 95mm OD (T)
  • 8666 – Adapter Sleeve- 100mm OD (S)
  • 8667 – Adapter Sleeve – 109mm (R)
  • 8668 – Installer Washer – 41mm / 78mm OD (N)
  • 8669 – Installer Washer – 43.75mm / 82mm OD (O)
  • 8670 – Installer Washer – 29mm / 53.4mm OD (I)
  • 8672 – BMW Washer Adapter – 45mm
  • 45MM OD Adapter services BMW’s with Smaller hub diameters

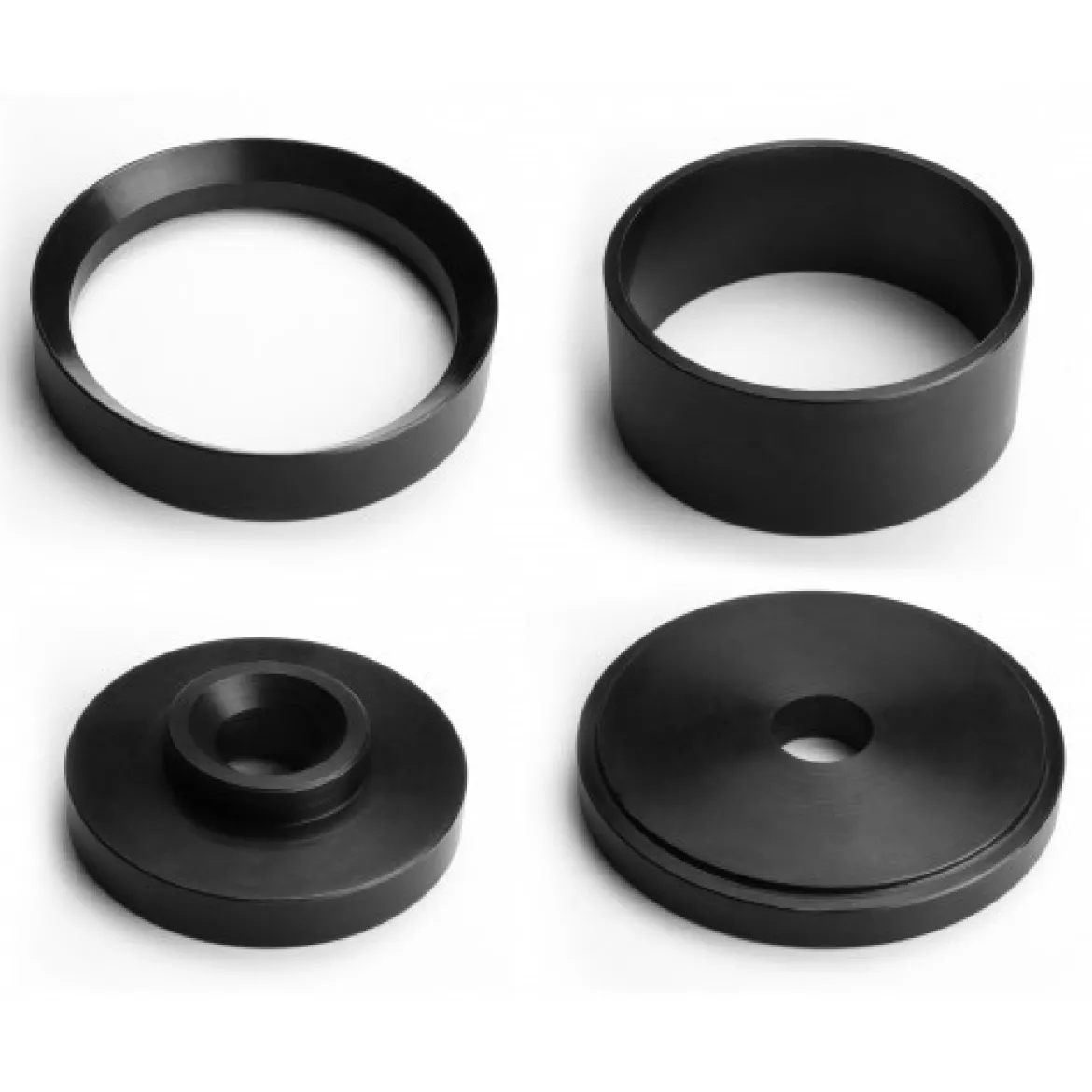

  • 8675 – 4 Pc. Large Bearing Upgrade Kit
    • ?Designed for R&R of big wheel bearings
    • Service 89mm to 99mm O.D.
