Brandmotion 7″DVR Monitor Wireless Observation System (BRMAHDS-7810V2)

The Brandmotion 7″ DVR Monitor Wireless Observation System (BRMAHDS-7810V2) is engineered to provide drivers of large vehicles, RVs, and trailers with a comprehensive view of their surroundings, effectively addressing poor rear and side visibility. This system pairs a high-definition wireless camera with a 7-inch DVR-enabled monitor, ensuring real-time, clear visual feedback for safer driving, backing, and parking maneuvers. Its innovative technology is centered on high-resolution video and extremely low latency, minimizing image lag between the camera and the monitor. The robust design and wide operating temperature range ensure reliable performance across various conditions and environments.

KEY FEATURES AND BENEFITS:

• Wireless High-Definition Video: The camera transmits a 1080p video signal (1936H×1096V resolution) to the 7-inch monitor, providing clear, high-quality images essential for safe operation.
• Extremely Low Latency: Experience a minimal delay between the live camera feed and the monitor display, ensuring a virtually immediate and accurate view of surrounding activity.
• Built-in Digital Video Recording (DVR): The monitor features a DVR that supports multi-camera recording to an SD card (up to 128GB max), allowing you to record and review your trips.

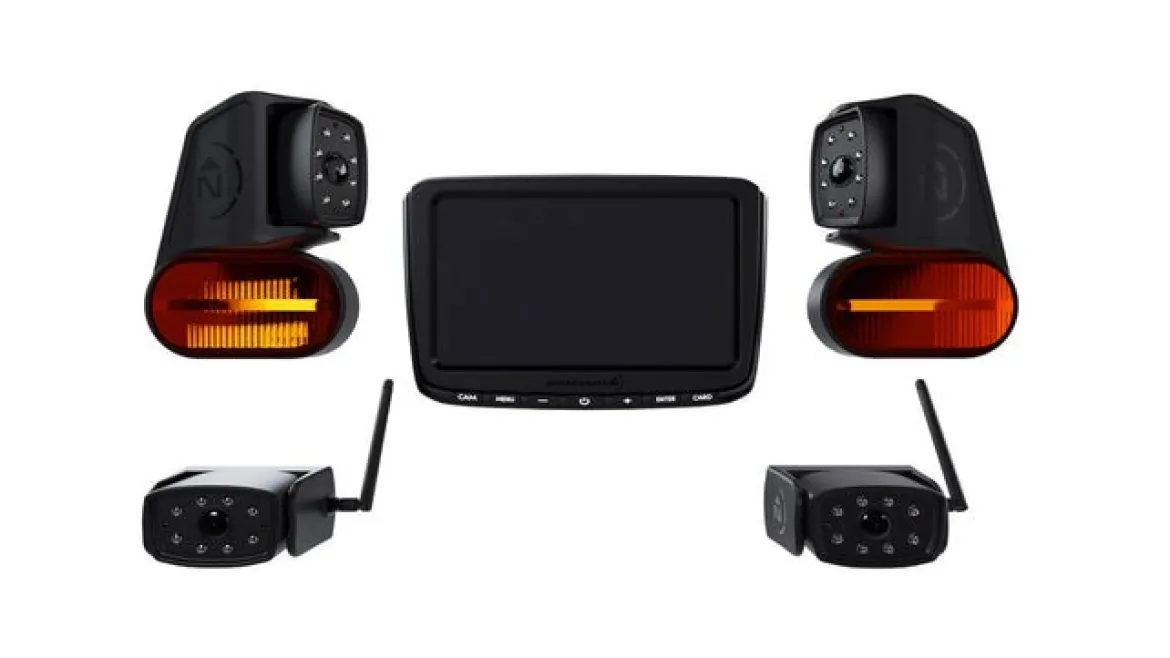

• Expansive Multi-Camera Support: The system can be expanded to connect and quickly sync up to four total cameras on a single monitor, providing complete observation around a long vehicle or trailer.
• All-Weather Performance: The camera is IP68 waterproof rated, offering superior protection against dust and water for powerful and reliable performance in extreme weather conditions.
• Enhanced Night Vision: Includes both built-in IRs and enhanced color night vision technology to dynamically improve color and clarity in low-light environments.
• Wide Operating Voltage: The system is compatible with both DC 12V and DC 24V power sources, making it suitable for a broad range of vehicles, from personal RVs to commercial trucks.

SPECIFICATIONS:

• Camera Resolution: 1936H×1096V
• Field of View (H/V): 110° / 80°
• Low Light Sensitivity: 0.2 LUX
• Waterproof Rating: IP68
• Operating Voltage: DC 12V & DC 24V
• Working Temperature: −20°C to 70°C
• Storage Temperature: −30°C to 80°C
• Monitor Screen Size: 7 inches (Diagonal)
• Monitor Resolution: 1024×600
• Aspect Ratio: 16:9
• Display Brightness: 700cd
• Max Camera Connections: 4 Wireless Cameras
• DVR Memory Support: Max 128GB SD card
• Operating Voltage (Monitor): DC 12V & DC 24V
• Power Consumption: Less than 5W
• Monitor Working Temperature: −20°C to 70°C
• Monitor Storage Temperature: −30°C to 80°C

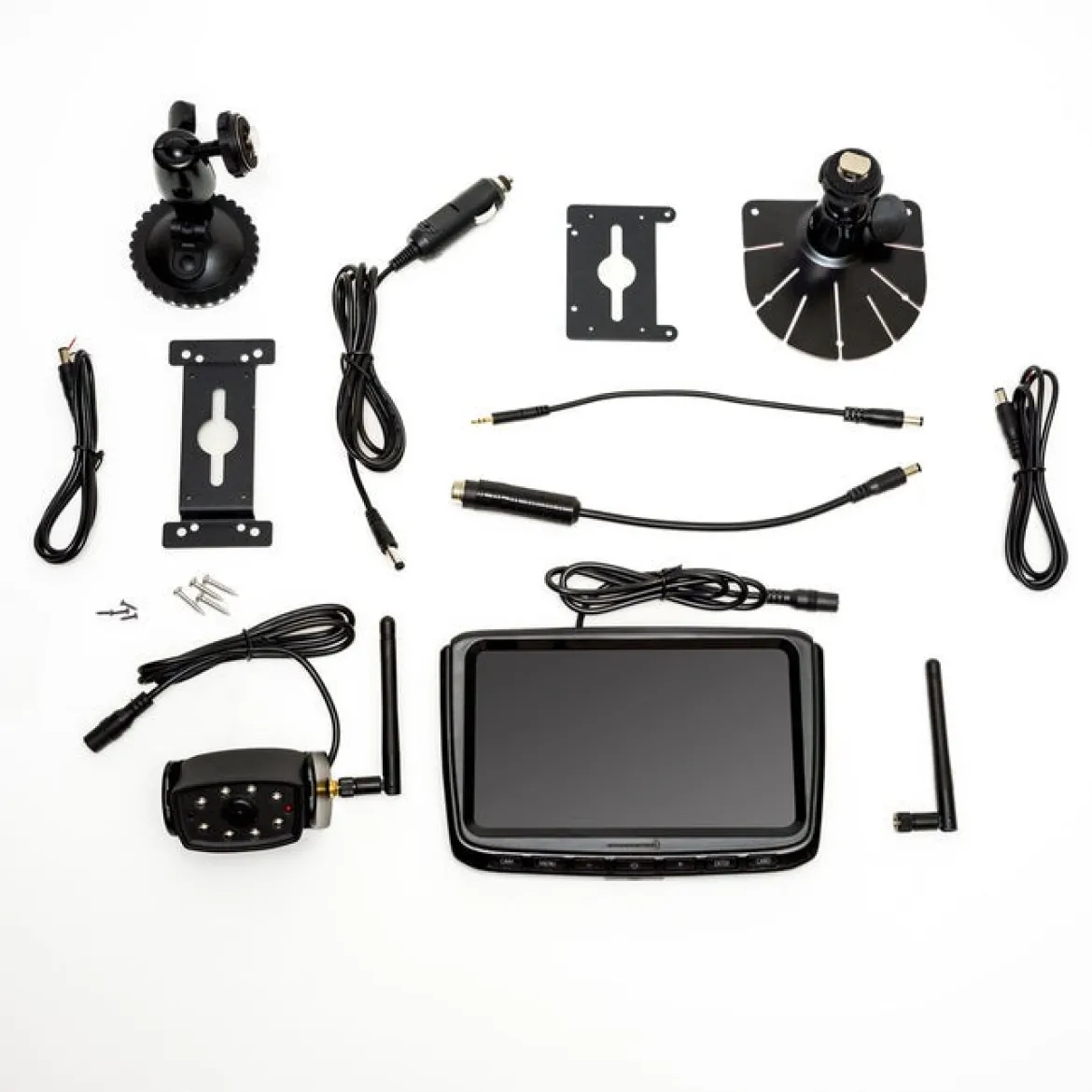

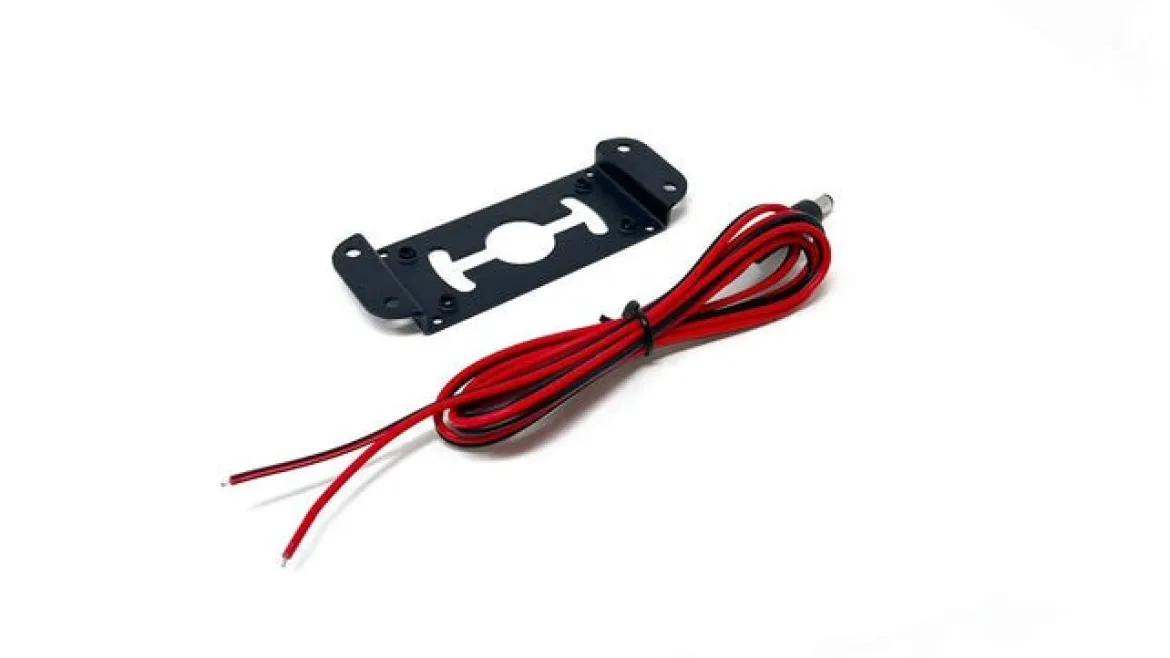

• Included in Kit: 7-inch DVR Monitor, 1080p HD Wireless Camera, Monitor Suction Cup Mount, Monitor U-Bracket Mount, Cigarette Power Adapter, Wireless Camera Power Harness, Multiple Mounting Brackets, Installation Hardware

HOW TO USE:

1. Monitor Power and Mounting: Use the supplied suction cup or U-bracket to mount the 7-inch monitor in the cab. Connect the monitor’s power cable to the vehicle’s DC 12V/DC 24V system via the cigarette adapter or by hardwiring the harness.
2. Camera Power and Mounting: Securely mount the IP68 camera to the rear of the trailer or RV using the appropriate bracket. Connect the camera’s power harness to the trailer’s DC 12V/DC 24V system.
3. Initial Pairing (Quick Sync): Power on both the camera and the monitor. Use the monitor’s control buttons (typically labeled “CAM” or “PAIR”) to initiate the quick sync process, wirelessly linking the camera feed to the monitor channel.
4. DVR Setup: Insert a maximum 128GB SD card into the designated slot on the monitor. The system will begin recording automatically once an SD card is detected and an active camera is visible on screen.

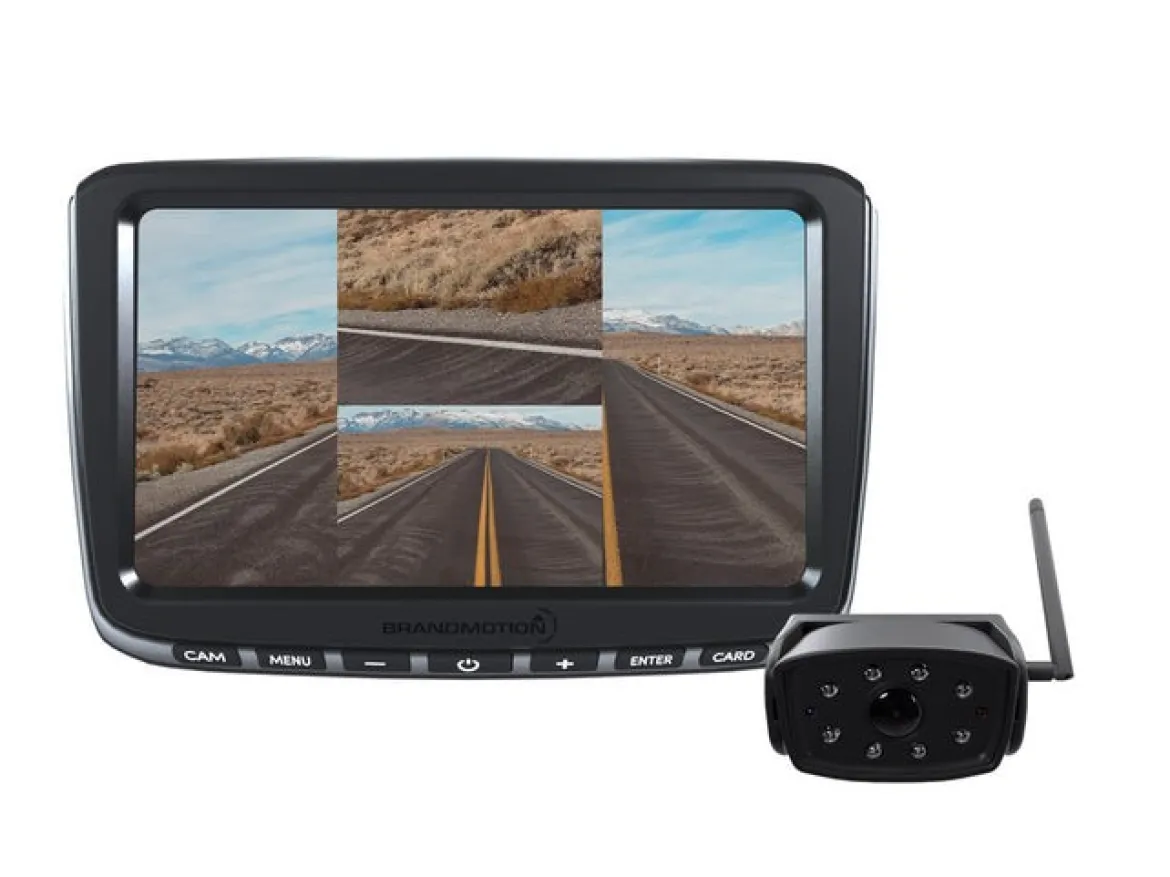

5. Operation and Viewing: Press the “CAM” button to cycle through the available camera channels (up to 4) or activate the split-screen viewing mode. The video feed will display in real time with extremely low latency.
6. Viewing Recordings: Access the recorded files directly through the monitor’s “CARD” or “PLAY” menu, or remove the SD card for playback on a computer.

BENEFITS OF USING BRANDMOTION 7″ DVR MONITOR WIRELESS OBSERVATION SYSTEM (BRMAHDS-7810V2):

• Improved Safety and Confidence: Provides a clear, expansive view of the blind spots and rear area, making lane changes, merging, and complex backing maneuvers significantly safer and easier.
• Reduced Image Lag: The low-latency wireless transmission ensures the visual information you receive is nearly instantaneous, crucial for making timely driving decisions.
• Comprehensive Visibility: The ability to add and view up to four cameras allows for a full 360-degree observation system, eliminating guesswork while towing.
• Documentation and Security: The built-in DVR function continuously records footage, offering a valuable record in case of accidents or incidents.
• Reliability in All Conditions: With its robust construction and wide operating temperature range, the system ensures reliable functionality in extreme environments.

FEATURES:

• Supports wireless pairing for up to four cameras.
• Low latency connection for near-instant video display.
• DVR records to SD card up to 128GB capacity.
• Camera includes microphone; monitor includes built-in speaker.
• High-resolution 7-inch display with 1024×600 resolution.
• Durable camera rated IP68 waterproof.
• Wide horizontal field of view at 110° for improved coverage.
• Compatible with both 12V and 24V power systems.
• Enhanced color night vision for low-light visibility.
• Monitor brightness rated at 700cd for clear viewing in various conditions.
