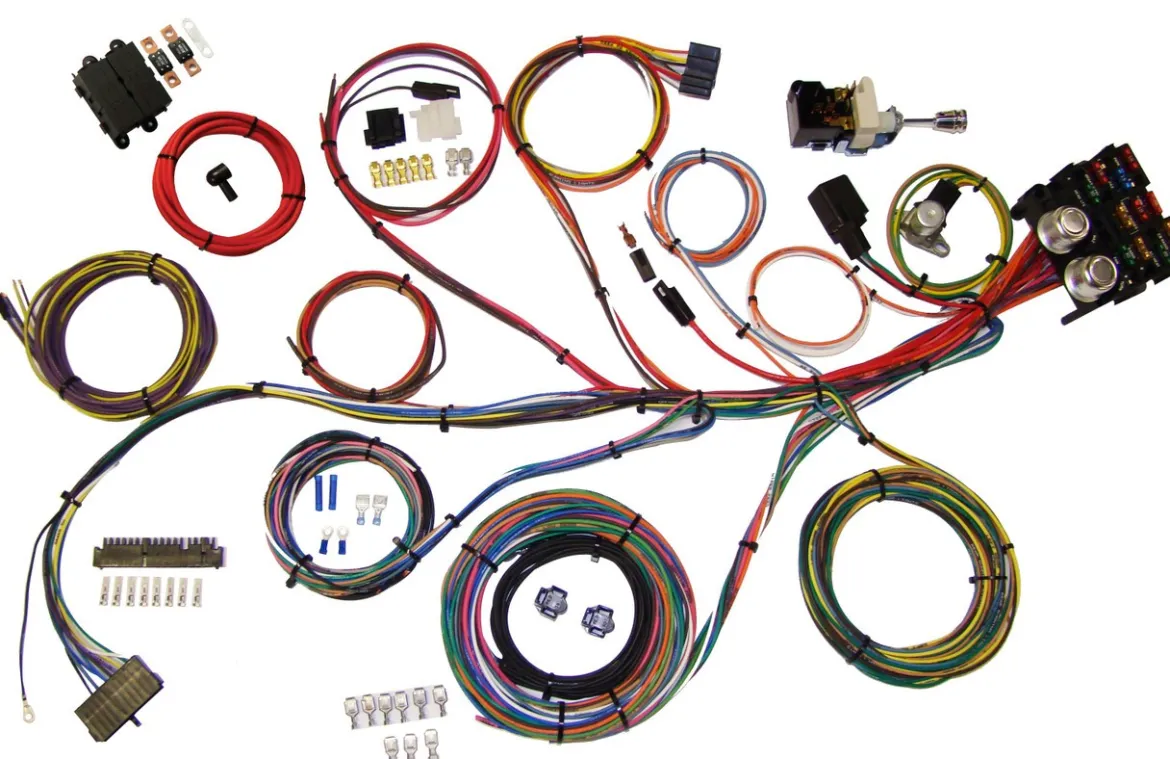

American Autowire Power Plus 13 Universal Wiring System (AAW510004)

The American Autowire Power Plus 13 Universal Wiring System (AAW510004) is a complete, integrated wiring solution designed to provide an economical and convenient way to wire a vehicle with basic electrical requirements. This kit is built around a factory-style, pre-wired fuse box that simplifies installation by eliminating the need for separate sub-harnesses or disconnects. The design provides direct-run feeds from the fuse panel to various switches and components, making for a streamlined and more efficient installation process. This entry-level harness is an ideal choice for projects that need standard electrical feeds to get the vehicle up and running, along with a few spare circuits for common accessories like a radio, A/C, or an electric fan.

KEY FEATURES AND BENEFITS:

• Simplified integrated design with a pre-wired fuse box reduces installation time and complexity.
• Color-coded and pre-labeled GXL wire built to GM specifications for easy identification.
• Includes essential components such as a headlight switch and floor dimmer switch for immediate functionality.
• Provides spare circuits for common accessories like a radio, A/C, or an electric fan.
• Comes with detailed instructions and schematics, plus access to American Autowire’s technical support.

SPECIFICATIONS:

• Panel Dimensions: 4 ¼ x 4 ¼ x 3 inches
• Circuits: 13
• Included in the Box:
• Integrated, pre-wired ATO fuse box
• Headlight switch
• Floor dimmer switch
• Pre-labeled, high-quality GXL wire
• Heavy-gauge alternator leads
• Main power feed connections
• Installation instructions with full-color schematics

HOW TO USE:

1. Mount the Fuse Box: Secure the integrated fuse box on the driver’s side under the dashboard.
2. Route the Wires: Run the pre-labeled wires to their corresponding vehicle components (e.g., headlights, taillights, gauges).
3. Connect Switches and Components: Attach the headlight and dimmer switches, as well as other pre-labeled wires to the ignition, alternator, distributor, and steering column.
4. Reference the Schematics: Use the provided full-color diagrams to confirm wiring accuracy at each step.
5. Finalize Connections: Double-check terminals and splices, insert fuses, and test the system before operating the vehicle.

BENEFITS OF USING THE AMERICAN AUTOWIRE POWER PLUS 13 UNIVERSAL WIRING SYSTEM (AAW510004):

• Economical Solution: Provides essential circuits at a cost-friendly price point.
• Time-Saving Design: Pre-wired fuse box eliminates the need for multiple sub-harnesses.
• User-Friendly: GM color-coded and pre-labeled wires simplify installation for all skill levels.
• Comprehensive Support: Includes instructions, schematics, and access to technical support.
• Compact Footprint: Small panel size fits easily under the dash without taking up excess space.

FEATURES:

• Designed for under-dash installation on the driver’s side.
• Supports 1969 and later GM steering columns and ignition switches.
• Compatible with one-wire and internally regulated GM SI series alternators.
• Includes connectors for HEI distributors.
• Uses an ATO-style fuse panel for simple maintenance.
• Heavy-gauge main power feeds ensure dependable power delivery.
• Comes with installation instructions and full-color schematics.
