American Autowire 62-74 Volks Beetle Classic Update Kit (AAW510419)

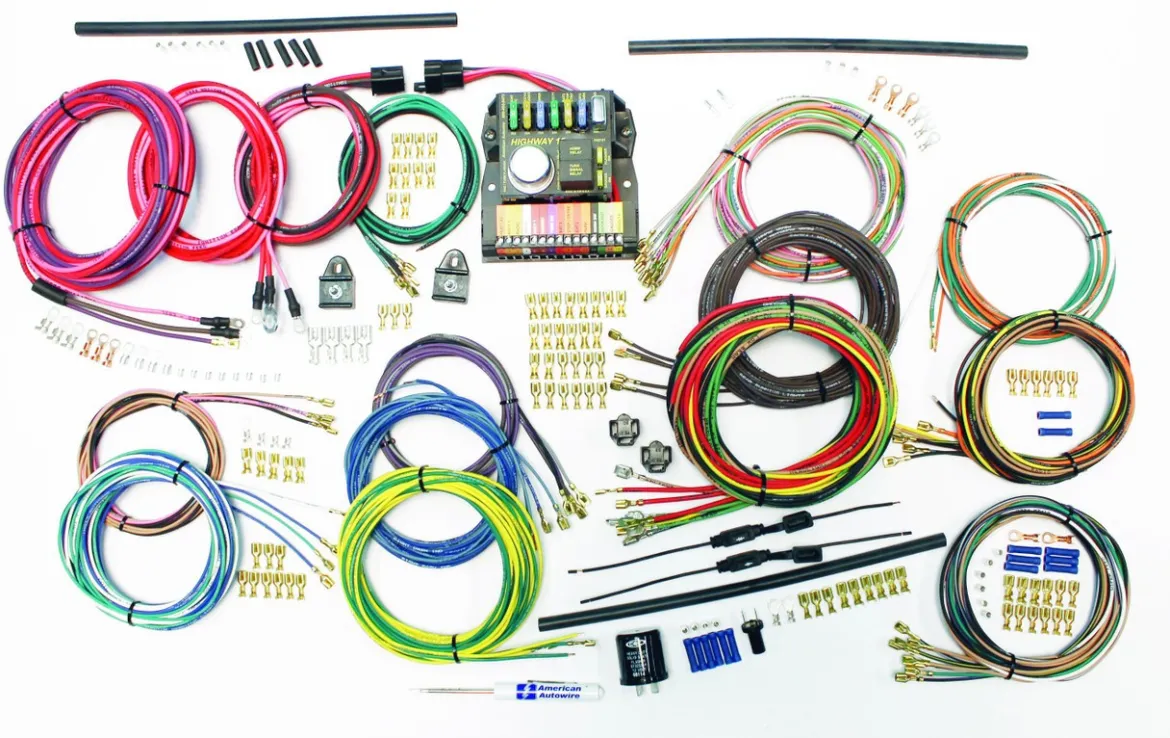

The American Autowire 62-74 Volks Beetle Classic Update Kit (AAW510419) is a full headlight-to-taillight wiring harness designed to modernize the electrical system of 1962–1974 Volkswagen Beetles converted to a 12-volt setup. Ideal for restoration projects, this kit offers more electrical circuits than the original factory harness, providing a safe and reliable foundation for powering modern accessories and upgrades while preserving the classic Beetle’s functionality.

KEY FEATURES AND BENEFITS:

• Modern Fuse Panel: Updated ATO-style fuse panel mounts in the original location to provide an organized central hub for circuits.
• Durable Wiring: GXL wire offers superior resistance to heat, abrasion, and chemicals compared to factory PVC-coated wire.
• Easy Identification: Color-coded wires printed with functions every 3–5 inches simplify installation and future service.
• Custom Routing: Extra-long engine and lighting leads allow flexibility for various engine and transmission combinations.
• Complete Solution: Includes all components required for a full headlight-to-taillight wiring update.

SPECIFICATIONS:

• Part Number: 510419
• Intended Application: Volkswagen Beetle (1962–1974)
• Compatibility: Designed for 12-volt electrical systems
• Fuse Panel Style: ATO
• Wire Type: GXL
• Contents Included:
• Updated ATC fuse panel and fuses
• Engine and front light harness with extra-long leads
• Battery and ignition junction blocks
• Rear body wiring with extra-long leads
• Heavy-gauge fusible link feed
• Diodes and complete instructions
• Original-style terminals
• LED turn signal flasher
• Electric fuel tank sender lead wires

HOW TO USE:

1. Preparation: Disconnect the battery and remove the old wiring harness. Note any important original connections for reference.
2. Fuse Panel Installation: Mount the ATC-style fuse panel in the factory location.
3. Harness Routing: Route new harness sections, using extra-long leads to fit engine, front, and rear body wiring.
4. Connecting Components: Attach wires to switches, lights, and other parts using original-style terminals. Use the printed labels for guidance.
5. Final Connections: Connect the fusible link feed to the main power source and install battery and ignition junction blocks.
6. Testing: Reconnect the battery and test all functions—lights, horn, signals, and gauges—for correct operation.

BENEFITS OF USING THE AMERICAN AUTOWIRE 62-74 VOLKS BEETLE CLASSIC UPDATE KIT (AAW510419):

• Expanded Electrical Capacity: Adds circuits for powering modern electronics and accessories.
• Enhanced Safety: GXL wire and fusible link feed provide improved reliability and protection.
• Simplified Installation: Color-coded and printed wires ease installation for professionals and hobbyists.
• Customization Flexibility: Extra-long leads support modifications and custom component layouts.
• Preserves Originality: Integrates seamlessly with original VW switches while adding modern capability.

FEATURES:

• ATO-style fuse panel with reinforced terminals.
• Main power feed protected by heavy-gauge fusible link.
• Includes diodes and instructions for single-bulb dash turn signal indicators.
• Maintains dimmer and “flash to pass” functions via VW steering column switch connection.
• Engine wiring supports coil, oil pressure sender, starter, tachometer, and temp sender.
• Original-style terminals provided for authentic connections.
• LED-compatible flasher included.
• Supplied with lead wires for electric fuel tank sender.
