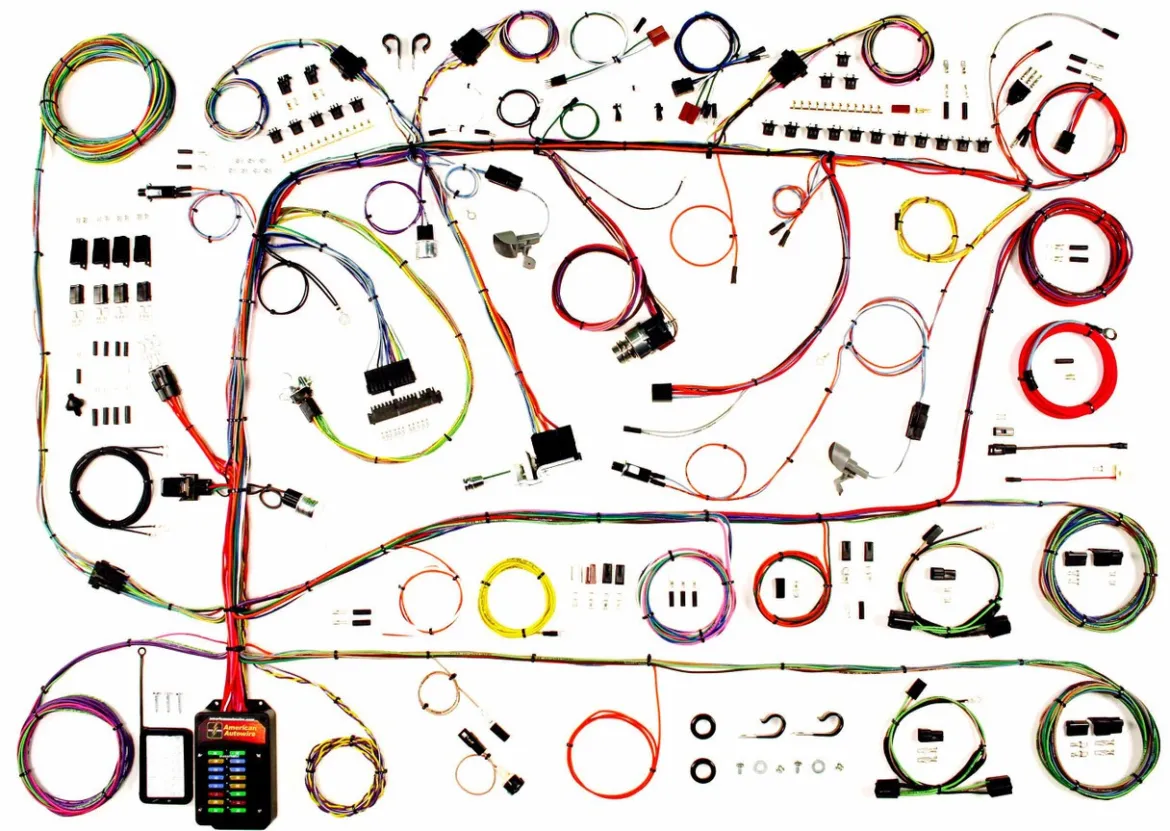

American Autowire 60-64 Galaxie & 61-64 Mercury Update Kit (AAW510591)

The American Autowire 60-64 Galaxie & 61-64 Mercury Update Kit (AAW510591) is a complete, bumper-to-bumper wiring solution engineered for the modern demands of classic car projects. This kit fully integrates with popular modern upgrades, including electronic fuel injection, high-output alternators, and aftermarket gauges. Constructed from GXL wire with labeled circuits every few inches, it provides a safe, reliable, and organized electrical foundation for your vehicle.

KEY FEATURES AND BENEFITS:

• Modern Fuse Panel: Updated ATC fuse panel with blade-style fuses and a protective labeled lid for easy circuit identification.
• High-Quality, Labeled Wiring: GXL wire with circuit function printed every 3 to 5 inches for simplified routing, connection, and troubleshooting.
• Support for Performance Upgrades: Heavy-gauge 6-gauge charge cable and 175-amp mega fuse kit for high-output charging systems and internally regulated alternators.
• Flexible Harness Design: Pre-built dash, engine, front, and rear lighting harnesses with extra-long leads for custom routing and modifications.
• Integration with Gauges: Dash harness includes a gauge cluster disconnect system compatible with original and aftermarket clusters (Dakota Digital, AutoMeter, Classic Instruments).
• Complete Kit: Includes all necessary switches, terminals, connectors, and lamp sockets for a full vehicle rewire.

SPECIFICATIONS:

• Main wiring harness (dash, engine, front light, rear body)
• ATC fuse panel with fuses and labeled lid
• 175-amp mega fuse kit with 6-gauge charge cable
• New headlight switch with 26-amp circuit breaker
• New floor dimmer switch
• Replacement ignition switch
• Steering column adapter kit
• New door jamb switches
• Original-style terminals, connectors, and lamp sockets
• Detailed full-color installation manual

HOW TO USE:

• Preparation: Disconnect the battery. Remove the existing wiring harness, documenting component connections if desired. Lay out the new kit to familiarize yourself with the harnesses.
• Fuse Panel Installation: Mount the ATC fuse panel in an accessible location, typically under the dash in the original factory position.
• Harness Routing: Route the pre-built dash harness and connect to steering column, ignition switch, and instrument cluster. Use labeled wires for accurate connections.
• Engine and Lighting: Route engine and front lighting harnesses using extra-long leads. Connect to engine sensors, HEI or EFI ignition, alternator, headlights, and front parking lights.
• Rear Body Connections: Route the rear body harness to connect taillights, license plate lamp, and fuel tank sending unit.
• Final Connections: Complete all accessory connections. Secure wires with clips or zip ties. Reconnect the battery and test all electrical circuits before final assembly.

BENEFITS OF USING AMERICAN AUTOWIRE 60-64 GALAXIE & 61-64 MERCURY UPDATE KIT (AAW510591):

• Improved Safety: Modern ATC fuse panel and high-quality wiring reduce the risk of shorts and electrical fires.
• Enhanced Reliability: Full replacement of old wiring ensures consistent electrical performance.
• Simplified Upgrades: Supports common modifications without complex custom wiring.
• Long-Term Value: Provides a solid electrical foundation for future troubleshooting and upgrades.

FEATURES:

• Full-vehicle wiring harness for a complete rewire
• Six-way power accessory plug for easy accessory power
• Dedicated trigger wire for electric fan relay
• Circuitry compatible with electronic fuel injection (EFI)
• Engine harness for multiple engine and transmission options
• Pre-built dash harness with gauge cluster disconnect
• Compatible with stock or aftermarket steering columns
• All new switches for headlight, dimmer, and ignition
• Color-coded and labeled GXL wire throughout
• Pre-terminated connectors for most factory locations
