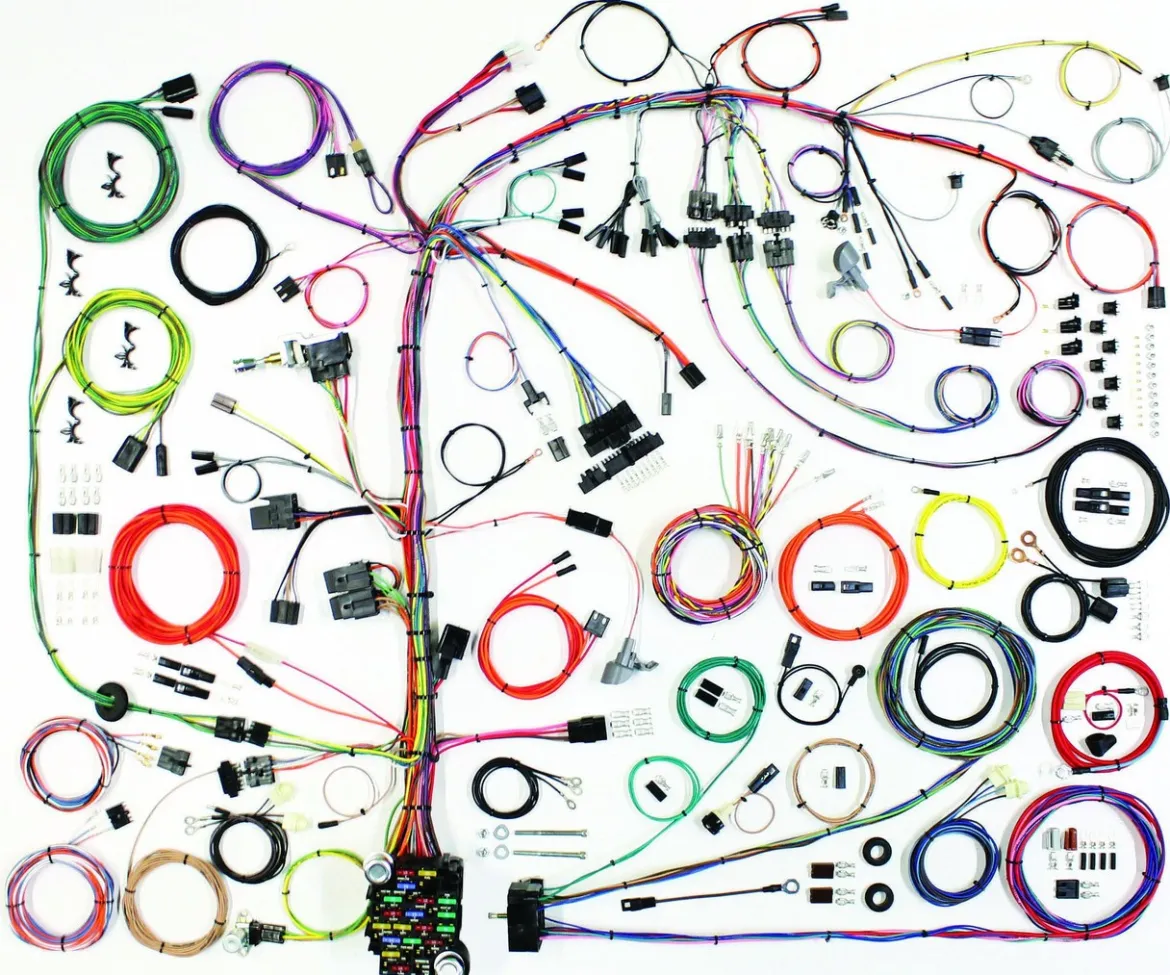

American Autowire 1976-86 Jeep CJ Classic Update Kit (AAW510573)

The American Autowire 1976-86 Jeep CJ Classic Update Kit (AAW510573) is a complete wiring solution for restoration and modification projects. It replaces outdated wiring with a modern, organized harness, featuring high-quality GXL wire and a modern ATO-style fuse panel. Pre-built harnesses for the dash, engine, and rear body include clearly labeled wires for simplified installation, while supporting both original components and popular aftermarket upgrades such as EFI, custom gauges, and high-output alternators.

KEY FEATURES AND BENEFITS:

• Modern Fuse Panel: Provides reliable circuit protection that is easier to service than original fuses.
• Built-in Relays: Relays for headlights, fog lights, and horn reduce switch load and improve high-wattage performance.
• Supports Modifications: Extra-long leads and a six-way power accessory plug accommodate aftermarket upgrades.
• Pre-Built Dash Harness: Includes a gauge cluster disconnect system for quick dashboard access and easy installation.
• High-Quality Wiring: Uses durable, heat-resistant GXL wire throughout.

SPECIFICATIONS:

• Vehicle Compatibility: 1976-1986 Jeep CJ models
• ATO-style fuse panel included
• Pre-built dash harness
• Front light and engine harness
• Rear body harness
• New headlight switch with 26-amp internal circuit breaker
• New floor dimmer switch
• 175-amp mega fuse kit with 6-gauge charge cable
• Steering column adapter kit
• Original-style connectors and terminals
• Detailed, full-color instructions and schematics

HOW TO USE:

• Remove the Old Wiring: Disconnect and remove existing harnesses, photographing or labeling connections for reference.
• Mount the New Fuse Panel: Install the ATO-style fuse panel in the original location, ensuring proper grounding.
• Install the Dash Harness: Connect the pre-built dash harness to the fuse panel, routing wires for gauges, switches, and interior lamps. Use the gauge cluster disconnect system for a clean setup.
• Connect Engine and Front Light Harness: Route wires to engine components, headlights, turn signals, and side markers. Use extra-long leads for clean, custom routing.
• Install the Rear Body Harness: Connect tail lights, brake lights, and license plate lamp wires using the pre-assembled, weatherproof rear harness.
• Final Connections and Testing: Connect all accessories, including aftermarket gauges or EFI systems. Check all electrical functions for proper operation before use.

BENEFITS OF USING AMERICAN AUTOWIRE 1976-86 JEEP CJ CLASSIC UPDATE KIT (AAW510573):

• Reliable and Safe: Replaces old, brittle wiring with a modern, dependable harness.
• Supports Modern Components: Handles EFI, high-output alternators, and aftermarket electronics without overloading the system.
• Future-Proof: Allows for upgrades and modifications with minimal risk to the electrical system.
• Easy Installation: Labeled wires, pre-built harnesses, and clear instructions streamline the process.
• Built-in Safety Features: Modern fuses and relays protect circuits and components from overload.

FEATURES:

• Pre-built dash harness for simplified installation
• Weatherproof rear harness for rear lighting
• Supports high-output alternators with 175-amp mega fuse and heavy-gauge feed
• Steering column adapter kit for factory and most aftermarket columns
• Six-way power accessory plug for aftermarket components
• Labeled wires every 3-5 inches for easy identification
• 26-amp circuit breaker integrated into the headlight switch
• New headlight switch and floor dimmer switch included
