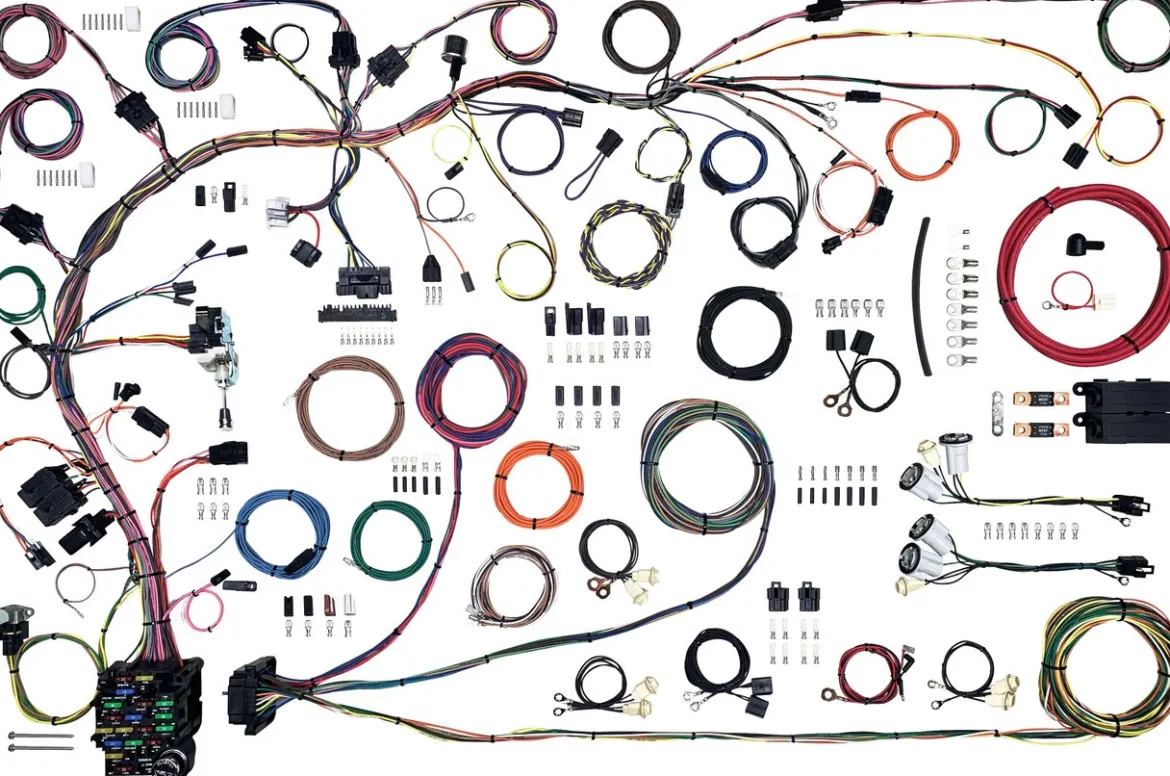

American Autowire 1971-80 International Scout Update Kit (AAW510838)

The American Autowire 1971-80 International Scout Update Kit (AAW510838) is a comprehensive wiring solution designed to completely replace and modernize the electrical system of your classic truck. This kit provides a complete headlight-to-taillight rewire and supports popular modifications including electronic fuel injection (EFI), aftermarket gauges, and other high-demand electrical accessories. It features modern GXL wire, an updated ATC fuse panel, pre-built harnesses, and relays for horns and fog lights for simplified installation and reliable performance.

KEY FEATURES AND BENEFITS:

• Complete Rewire Solution: Pre-built harnesses for dash, engine/front lights, and rear body with extra-long leads for stock or custom routing.
• Modern Fuse Panel: Updated ATC fuse panel provides reliable circuit protection with improved accessibility.
• High-Performance Wiring: Uses durable GXL wire with each wire labeled every few inches for easy installation and troubleshooting.
• Support for Modern Upgrades: Designed to accommodate EFI, high-output alternators, aftermarket gauges, and additional electrical accessories.
• Integrated Relays and Power Plugs: Simplifies wiring for horns, fog lights, and other common add-ons.
• Enhanced Safety: 175-amp mega fuse kit with 6-gauge charge cable ensures protection for high-output charging systems.

SPECIFICATIONS:

• New ATC fuse panel and bulkhead assembly
• Pre-built dash harness with gauge cluster disconnect system
• Engine and front light harness with extra-long leads
• Rear body harness with extra-long leads
• 175-amp mega fuse kit with 6-gauge charge cable
• New headlight switch with 26-amp internal circuit breaker
• New floor dimmer switch
• Steering column adapter kit
• Original-replacement connectors, terminals, and lamp sockets
• Detailed installation instructions and full-color schematics

HOW TO USE:

• Preparation: Disconnect and remove the old factory wiring harness, documenting connections for reference.
• Mount the Fuse Panel: Install the new ATC fuse panel in the designated firewall location. For 1978-80 models it fits directly; for 1971-77 models, use the included template to modify the firewall.
• Install the Harnesses: Route the pre-built dash harness, followed by the engine/front light harness and rear body harness. Extra-long leads allow stock or custom routing.
• Make Connections: Connect labeled wires to the instrument cluster, switches, lights, and engine accessories using the provided connectors and terminals.
• Connect Power: Install the 175-amp mega fuse kit and 6-gauge charge cable to support a high-output alternator. Connect the battery and starter solenoid.
• Final Checks: Review all connections and schematics, then test all electrical systems to confirm proper operation.

BENEFITS OF USING AMERICAN AUTOWIRE 1971-80 INTERNATIONAL SCOUT UPDATE KIT (AAW510838):

• Improved Safety and Reliability: Replaces old, brittle wiring with a modern, safe electrical system.
• Support for Modern Upgrades: Provides circuits and high-amperage support for EFI, high-output stereos, and electric cooling fans.
• Simplified Installation: Pre-built harnesses, labeled wires, and detailed instructions reduce installation complexity.
• Increased Performance: 175-amp mega fuse and 6-gauge charge cable support efficient operation of high-output systems.
• Enhanced Functionality: Integrated relays and accessory plugs simplify adding horns, fog lights, and other common accessories.

FEATURES:

• Year-specific design for 1971-1980 International Scout II, Scout Traveler, and Scout Terra models
• Full front-to-rear electrical rewire
• Modern ATC fuse panel with reliable circuit protection
• High-quality GXL wire, heat-resistant and durable
• Wires labeled every few inches for easy identification
• Gauge cluster disconnect system for stock or aftermarket instruments
• Extra-long leads for custom routing
• Six-way accessory power plug
• Integrated relays for horns and fog lights
• Supports high-output alternators with 175-amp mega fuse and 6-gauge charge cable
• Includes new headlight switch and floor dimmer switch
