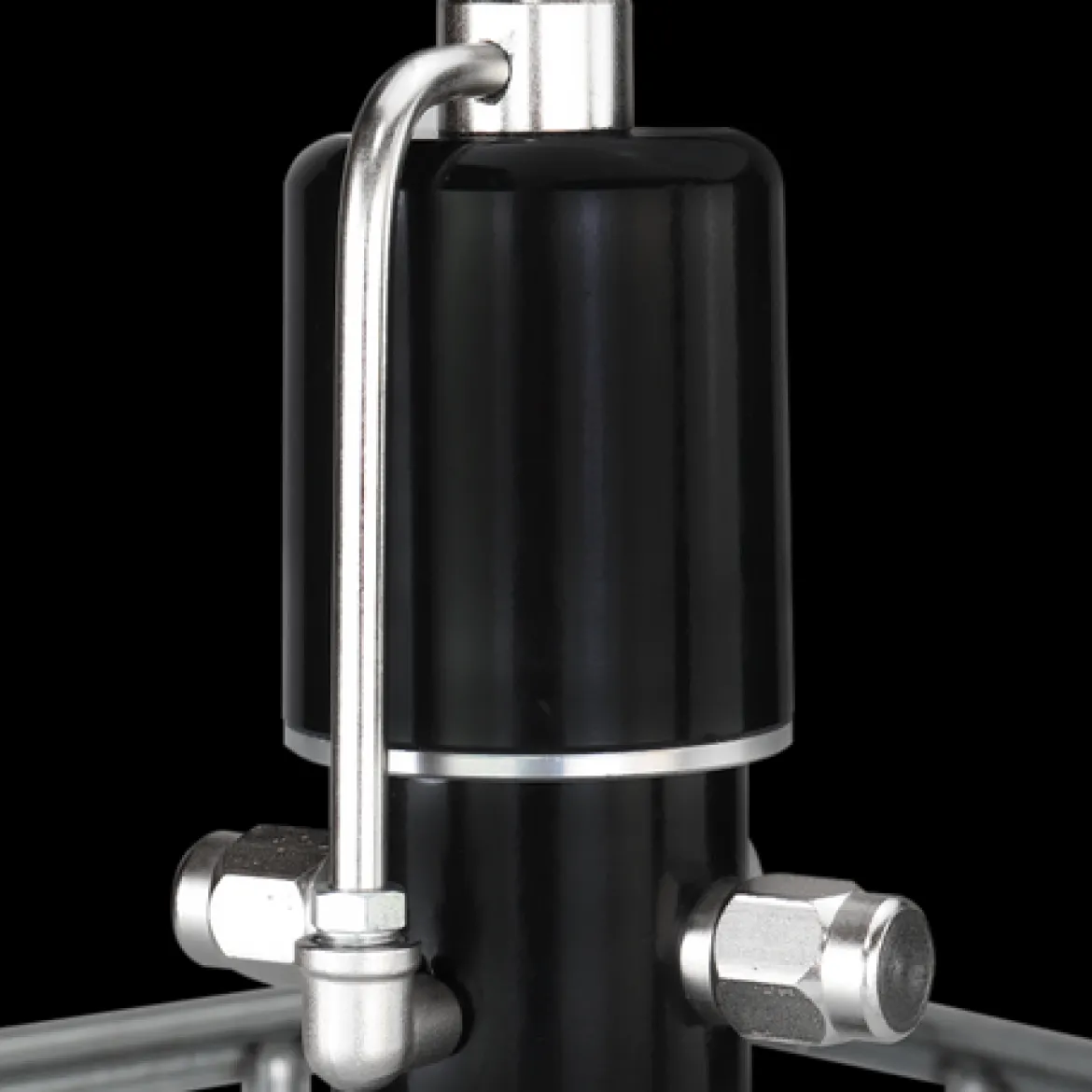

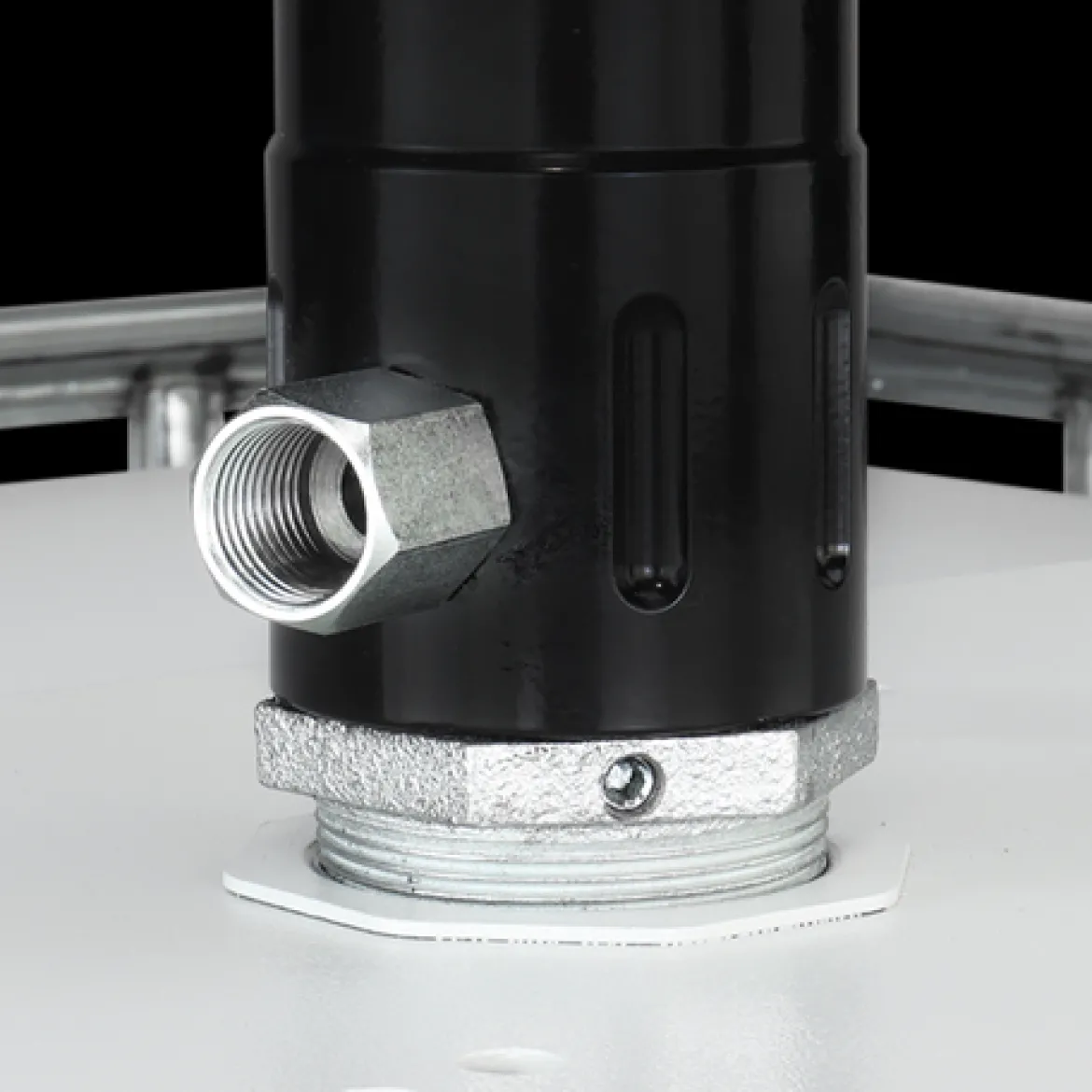

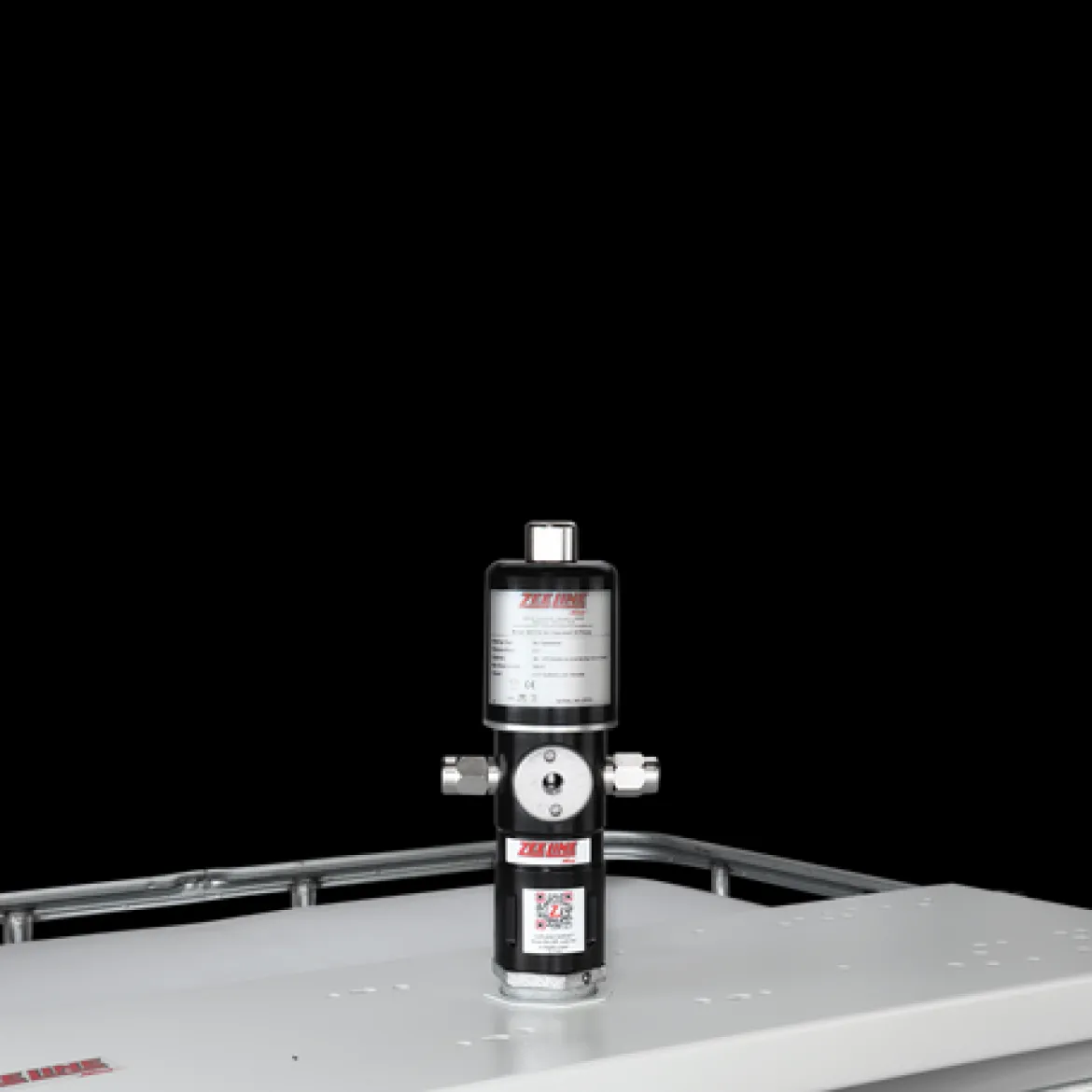

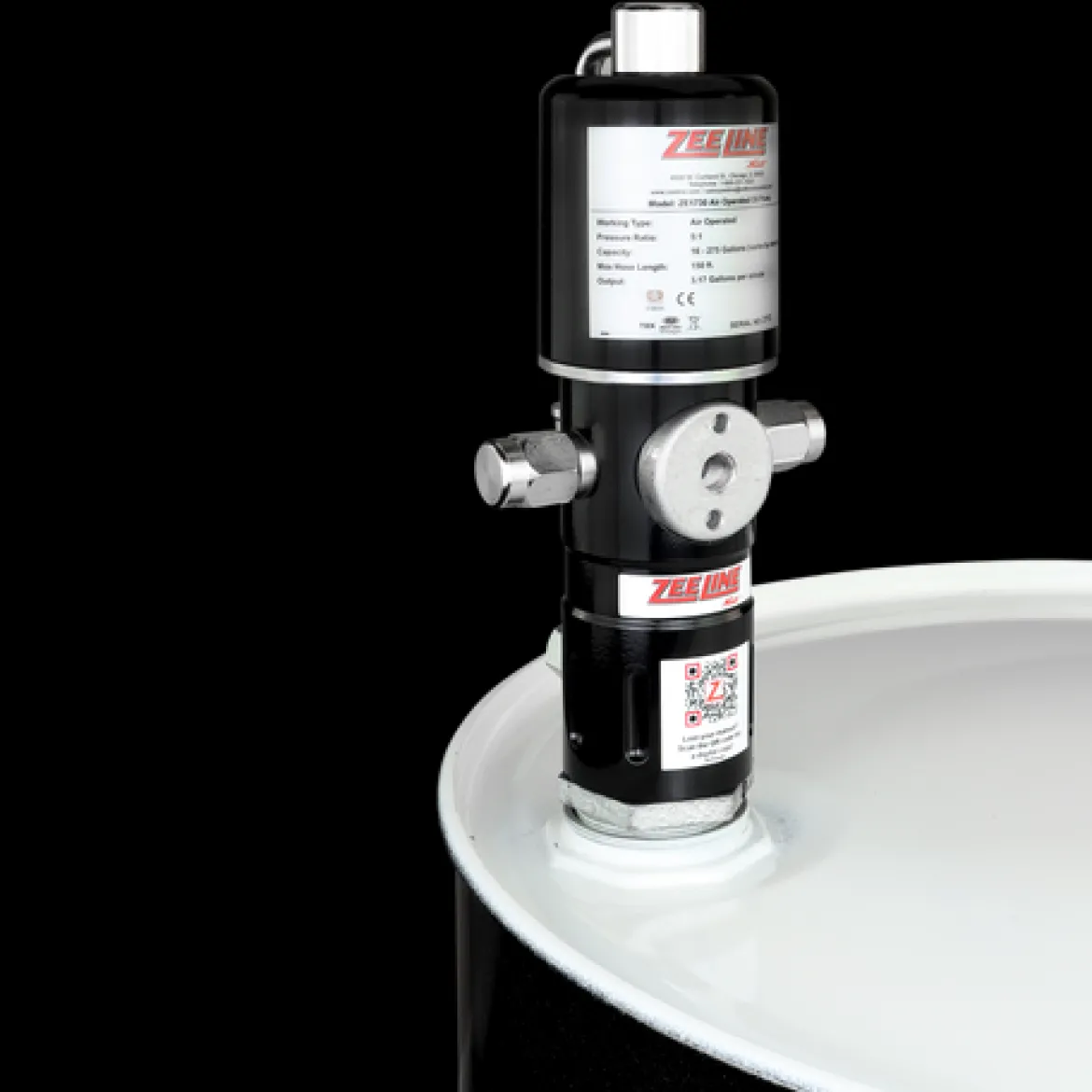

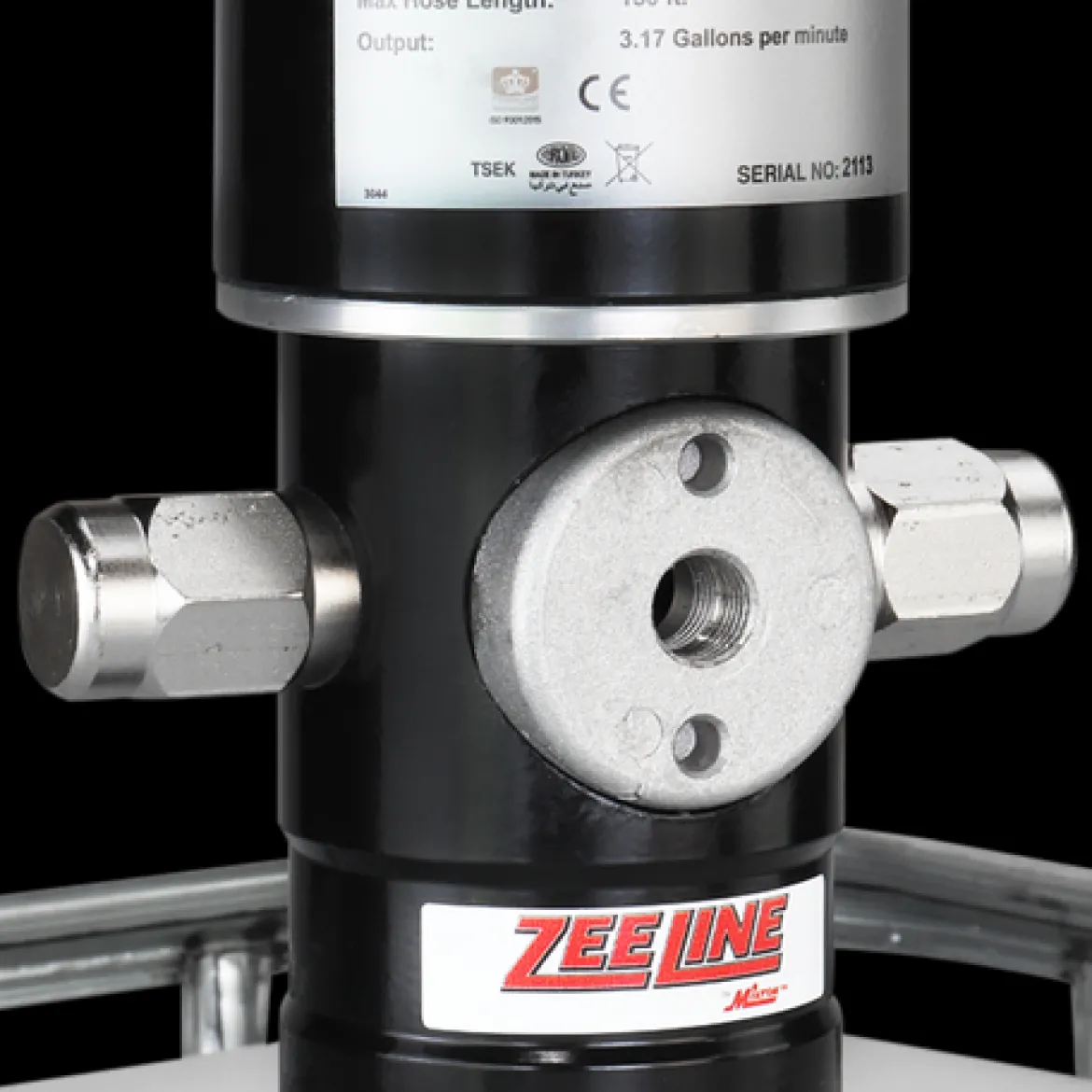

Zeeline 5:1 Pneumatic Stub Style Standard Flow Rate Piston Pump (ZE1730)

• Heavy-Duty Pump: 5:1 ratio oil transfer pump for medium to high viscosity fluids for short to medium distance applications.
• High Flow Rate:3.2 GPM (12 LPM) flow rate allows for quick and efficient dispensing of fluids.
• Variety of Fluid Types:Can be used with SAE 130 oils and fluids that include motor oil, gear oil, hydraulic oil, synthetic hydraulic oil, and transmission fluid.
• Versatile Use:Can be used on 16-gallon drums, 55-gallon drums, 275-gallon IBC totes, or wall mounted with the correct suction tube and foot valve.
• Built to last:Minimal moving parts with corrosion resistant materials reduces down time, keeping your shop running with lower repair costs.

Specifications:

• Air Inlet Size: ¼” NPT
• Fluid Inlet Size: ¾” NPT
• Fluid Outlet Size: ¾” NPT with ½” NPT Adapter
• 5:1 Ratio
• Working Pressure: 87 – 116 PSI (6-8 BAR)

This 5:1 Piston Pump was built with professionals in mind and was designed to be used with low, medium, and high viscous oils such as motor oil, transmission fluid, hydraulic oil, and more! This versatile pump can be mounted on various container sizes such as 16-gallon, 55-gallon, and 275-gallon containers when used with the appropriate suction tube making this pump adaptable with the needs of your shop. The ZE1730 includes an adapter for mounted onto containers using a 2” NPT bung adapter.

Pickup Tubes:

• ZE15220- For 16-Gallon Drums
• ZE15223- For 55-Gallon Drums
• ZE15225- For IBC Totes
