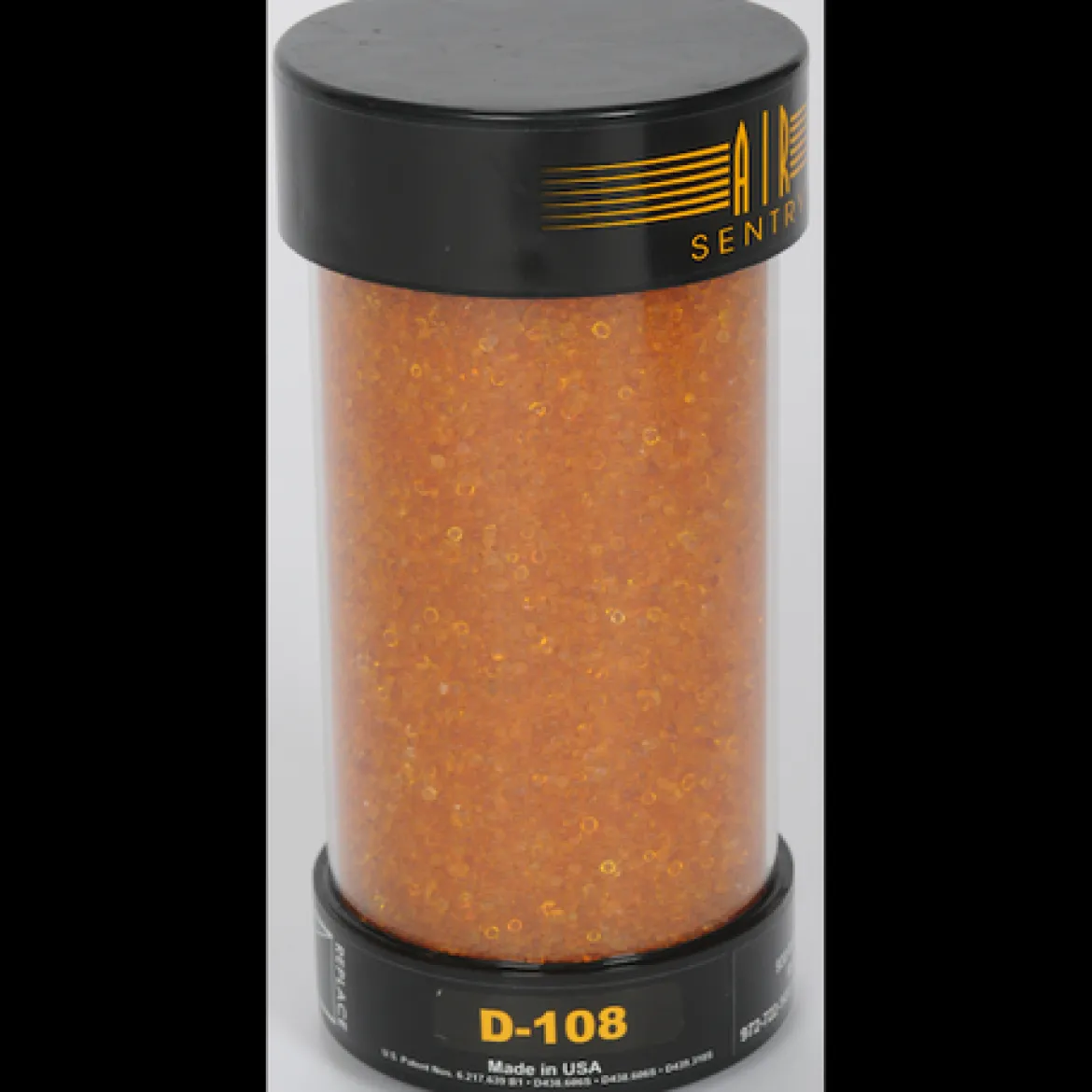

Zeeline 10″ X 5″ Air Sentry (ZED-108)

D-Series Air Sentry Breathers: The D-Series breathers feature numerous models in a variety of sizes, designed to satisfy the requirements of most stationary fluid management applications. The breathers provide application flexibility by using 100% silica gel for moisture adsorption or 100% activated carbon for fume and odor control, or both when necessary. All D-Series models feature 2-micron solid particle filtration and have a max airflow rating of 20 cfm. They also have a max reservoir fluid flow rate of 150 GPM. The D-Series is constructed of industrial grade raw materials, tested to ensure a wide range of chemical compatibilities, and features high impact resistant ABS top and bottom caps.

• Ideal solution for fluid contamination problems
• Blocks corrosive water vapor
• Filters damaging particles
• Reduces other contaminates
• Protects expensive equipment
• Disposable- replace when desiccant color changes from gold to green
• Typical Applications: storage tanks, fluid reservoirs, transformers, pumps, and gearboxes.

Specifications:

• Height: 10″
• Diameter: 5″
• Mounting Connection: 2″ NPT (M)
• Max Adsorption Capacity: 21.47fl oz.
