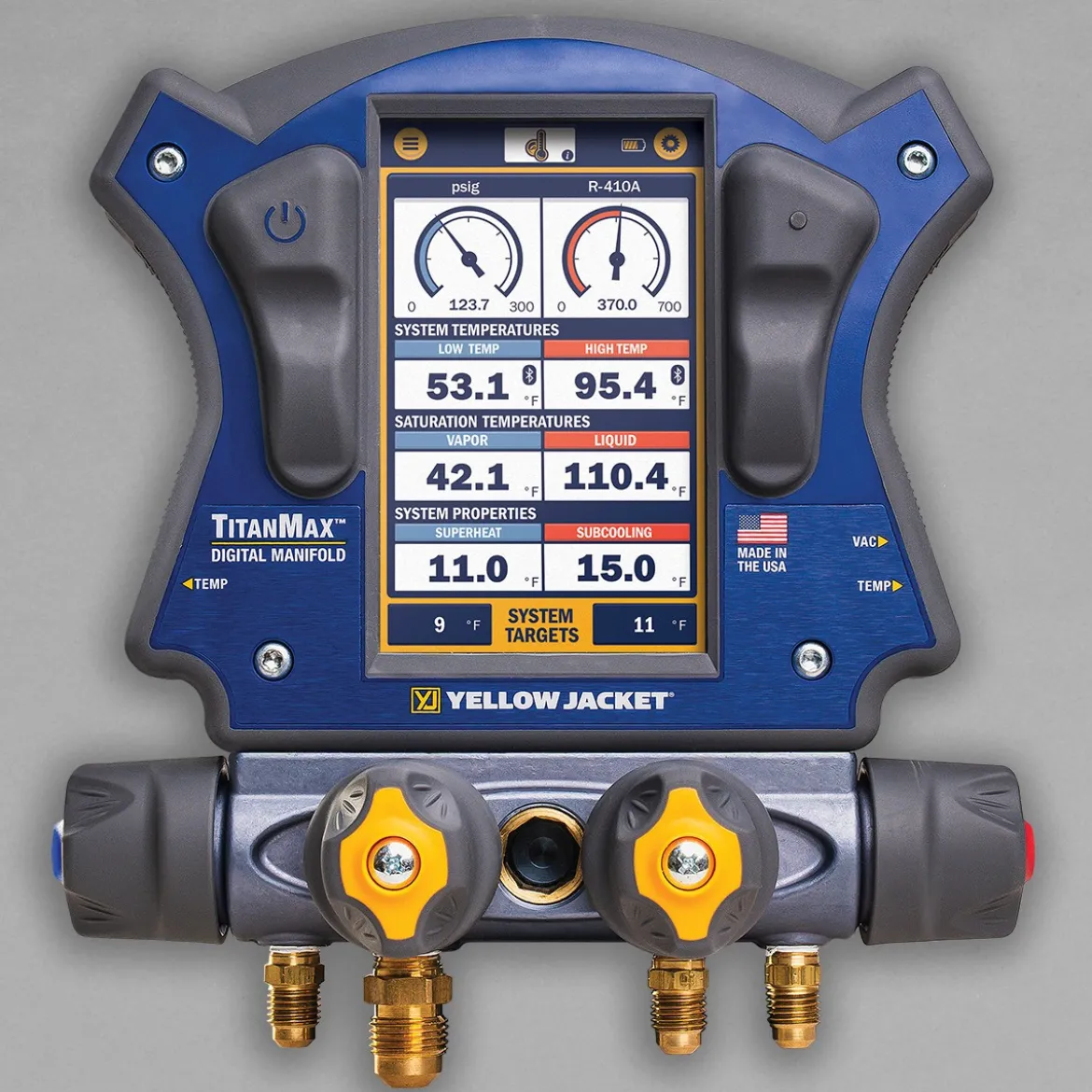

Yellow Jacket TITANMAX Digital Manifold (40880)

TheYELLOW JACKETTITANMAX^™Digital Manifoldprovides the easiest path to system measurements. This 4-valve manifold provides fast and accurate measurements for refrigeration and A/C systems. The high resolution backlit touchscreen display erases the need for multi-function buttons and provides clear graphical and digital measurements. It also features internal data logging. Connect via Bluetoothto the YJACK VIEWApp or measureQuickApp for further analysis.

TITANMAX^™P/N 40881 includes TITANTemperature Clamps (2), Vacuum Sensor and USB-C Charging/Data Cable. Backpack kits also available.

FEATURES

• Measures high and low side pressures and temperatures
• Displays vapor and liquid saturation temperatures
• Calculates system superheat and subcooling
• On-board data logging; export to your computer with USB or to your phone via YJACK VIEWApp
• Compatible with measureQuickApp
• Pressure hold mode displays rate of change for vacuum and positive pressure measurements
• Wirelessly measure and display relative humidity, dry bulb, wet bulb and dew point temperature alongside system pressure and temperature measurements with YJACK DEW
• High resolution, full color, backlit, 5″ touchscreen display
– Ultimate user interface – information on major screens
– Adjustable timing for auto shut-off
– Touchscreen never has to be calibrated
– Digital and graphical pressure/temperature measurements
– Choose from relevant refrigerant profiles stored including A2L – may designate 3 favorites
• Robust housing with ergonomic grip
– 4-way TITANvalve block
– Integrated magnets for mounting on equipment cabinet may also be used to store TITANTemperature Clamps
– Pivoting hook
– Convenient connections for USB port, temperature clamps, and vacuum sensor
• External vacuum sensor with high and low alarms
– Vacuum measurements, set targets and leak testing
• Larger temperature clamps (2) for up to 1-5/8″ pipes
• Bluetooth5.2; range up to 1,000 feet
• Maximum working pressure 740 psia (51.0 bar)
• Multiple languages: French, Spanish, German and English
• Rechargeable battery with life indicator
– Continuous use no backlight: 80 hours
– Continuous use with full backlight: 4.5 hours
• US and INTL units (bar, psia, psig, kPa, MPa, kg/cm2)
• IP52 certified
• Two-year warranty
