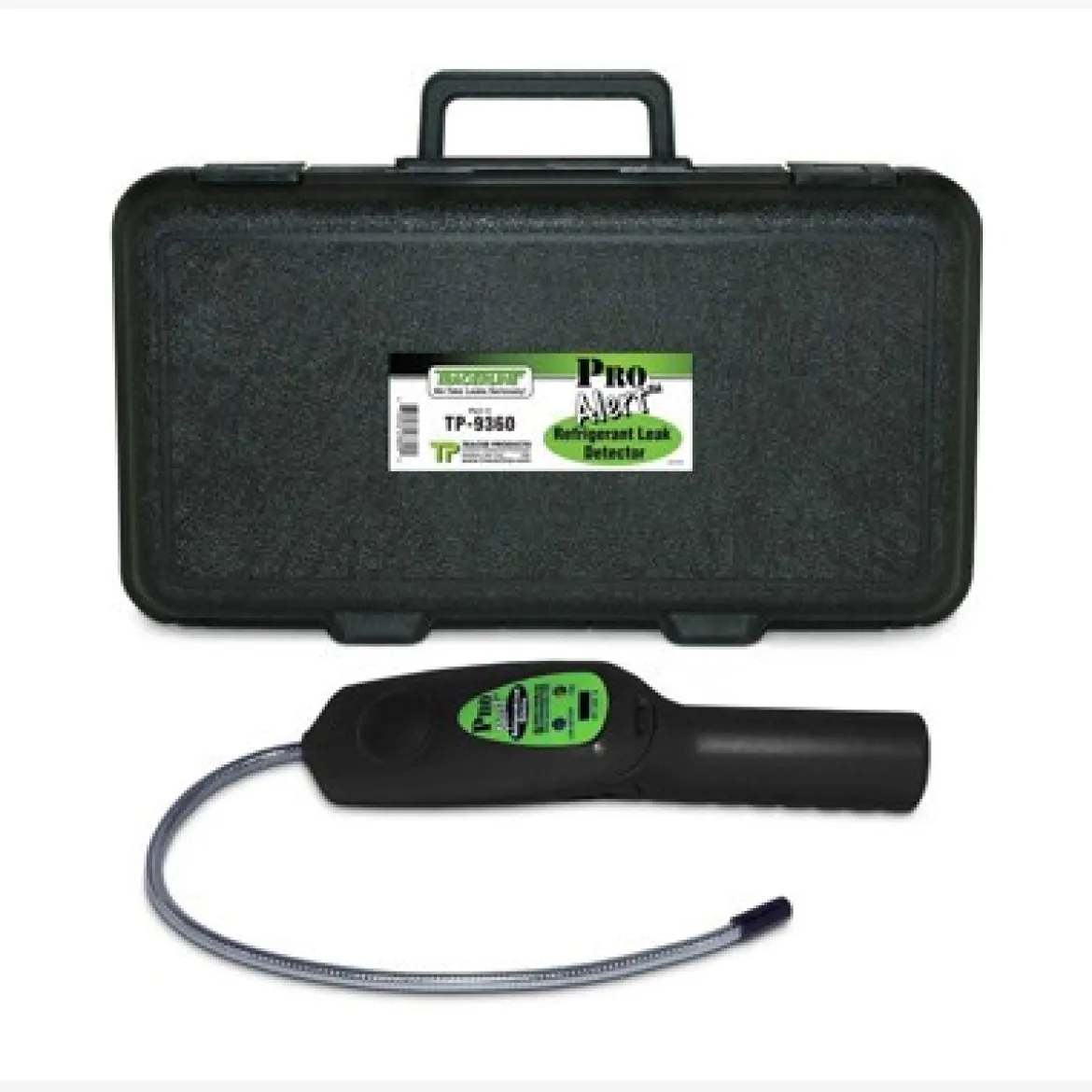

Tracerline PRO-Alert Electronic Refrigerant Leak Detector (TP9360)

The Tracerline PRO-Alert Electronic Refrigerant Leak Detector (TP9360) is a professional-grade diagnostic instrument engineered for precise identification of refrigerant leaks in automotive air conditioning systems and other related applications. Utilizing advanced heated-diode sensor technology, this detector delivers high sensitivity, allowing for the detection of even minute refrigerant escapes. Certified to meet the rigorous SAE J1627 performance standard, the TP9360 ensures reliable and accurate leak detection, making it an essential tool for technicians. Its design focuses on efficient operation, providing both audible and visual alerts to guide users directly to the leak source, significantly streamlining the repair process.

KEY FEATURES AND BENEFITS:

• Advanced Heated-Diode Sensor Technology: Provides superior sensitivity and rapid response for detecting refrigerant gases.
• Optimum Leak Detection Capability: Identifies leaks as small as 0.25 oz/year (7 g/year), ensuring even minor refrigerant losses are found.
• SAE J1627 Certified Performance: Meets industry-recognized standards for electronic refrigerant leak detectors, guaranteeing reliability and accuracy.
• Broad Refrigerant Compatibility: Effectively detects R-12, R-134a, R-1234yf, and other common halogenated refrigerants.
• Long-Lasting Sensor Life: Offers up to 200 hours or more of operational life, reducing the frequency of sensor replacement.
• Dual Leak Indication: Features a variable-intensity audible alarm and a flashing LED to provide clear, immediate feedback for precise leak pinpointing.
• Automatic Self-Calibration: Adjusts to neutralize background contamination, ensuring consistent and accurate readings without manual intervention.

SPECIFICATIONS:

• Model Number: TP-9360
• Type: Electronic Sniffer / Electronic Refrigerant Leak Detector
• Application: Automotive A/C and Heavy-Duty Fluorescent Leak Detection
• Refrigerant Sensitivity: R-12, R-134a, R-1234yf, and other HFC refrigerants
• Minimum Leak Detection: 0.25 oz/year (7 g/year)
• Sensor Life: Up to 200 hours or more
• Power Source: (2) D Cell Batteries
• Material: Plastic
• Country of Origin: US
• Included in Product Package: Sensor, Replacement filters, (2) D cell batteries, Rugged carrying case

HOW TO USE:

1. Preparation: Ensure the detector’s batteries are installed. Open the carrying case and remove the TP9360 unit.
2. Power On: Locate the power switch on the detector and turn it to the ‘ON’ position. Allow a few moments for the unit to warm up and self-calibrate. The detector will typically emit a steady tone during this initial phase.
3. Adjust Sensitivity: If applicable, select the appropriate sensitivity level (High or Low) based on your needs. Start with High sensitivity for general scanning, and switch to Low if the alarm triggers frequently due to high background refrigerant levels.
4. Scan for Leaks: Slowly move the flexible probe of the detector around potential leak areas in the refrigeration system. Maintain a steady, slow pace (e.g., 1-2 inches per second). Ensure the probe tip is close to the components you are inspecting.
5. Pinpoint the Leak: Listen for the variable-intensity audible alarm and observe the flashing LED. As the detector approaches a leak, the alarm will increase in frequency or intensity, and the LED will flash more rapidly. Continue to move the probe back and forth in small motions until the alarm reaches its peak, indicating the precise location of the leak.
6. Confirm Leak: Once a potential leak is identified, move the probe away from the area to allow the detector to clear, then re-scan the suspected spot to confirm the leak location.
7. Power Off: After use, turn the detector off to conserve battery life. Store the unit and its accessories securely in the rugged carrying case.

BENEFITS OF USING TRACERLINE PRO-ALERT ELECTRONIC REFRIGERANT LEAK DETECTOR (TP9360):

• Cost Efficiency: Minimizes refrigerant loss by quickly identifying leaks, saving on costly refrigerant recharges.
• Environmental Responsibility: Reduces harmful refrigerant emissions into the atmosphere by enabling prompt repairs.
• Time Savings: Its highly sensitive and responsive nature allows technicians to rapidly pinpoint leak sources, reducing diagnostic time.
• Enhanced Reliability: The heated-diode technology provides consistent and trustworthy leak detection, minimizing false positives.
• Professional Standard: Meeting SAE J1627 ensures a tool that performs to industry-recognized benchmarks for accuracy and effectiveness.

FEATURES:

• Self-calibrates automatically to adapt to environmental conditions.
• Includes a flexible metal probe for accessing confined spaces.
• Sensor and pump are protected by an easily replaceable foam filter.
• Operates on two standard D cell batteries for convenient portability.
• Designed for use across a spectrum of vehicle types and heavy-duty applications.
• Provides both auditory and visual cues for intuitive leak identification.
