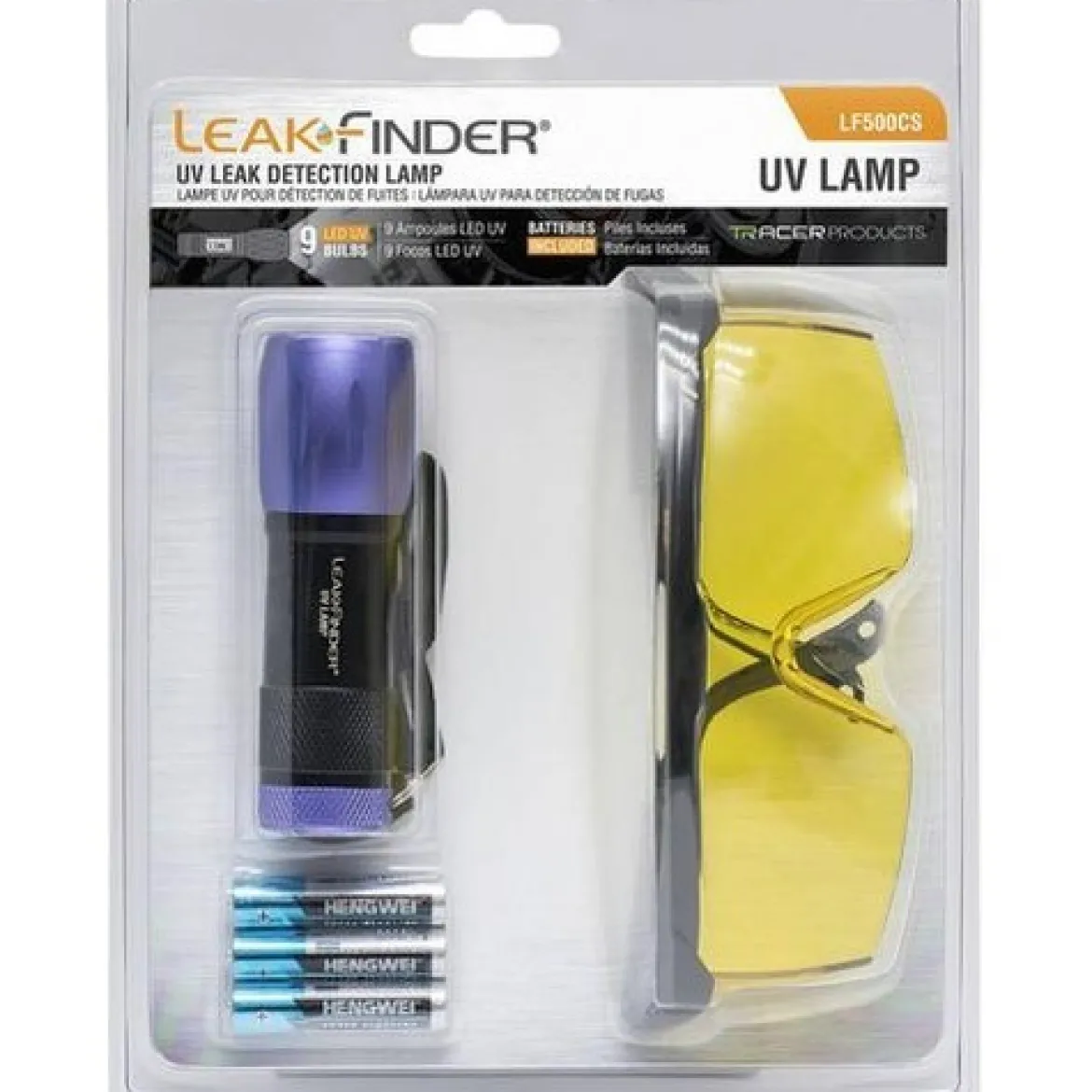

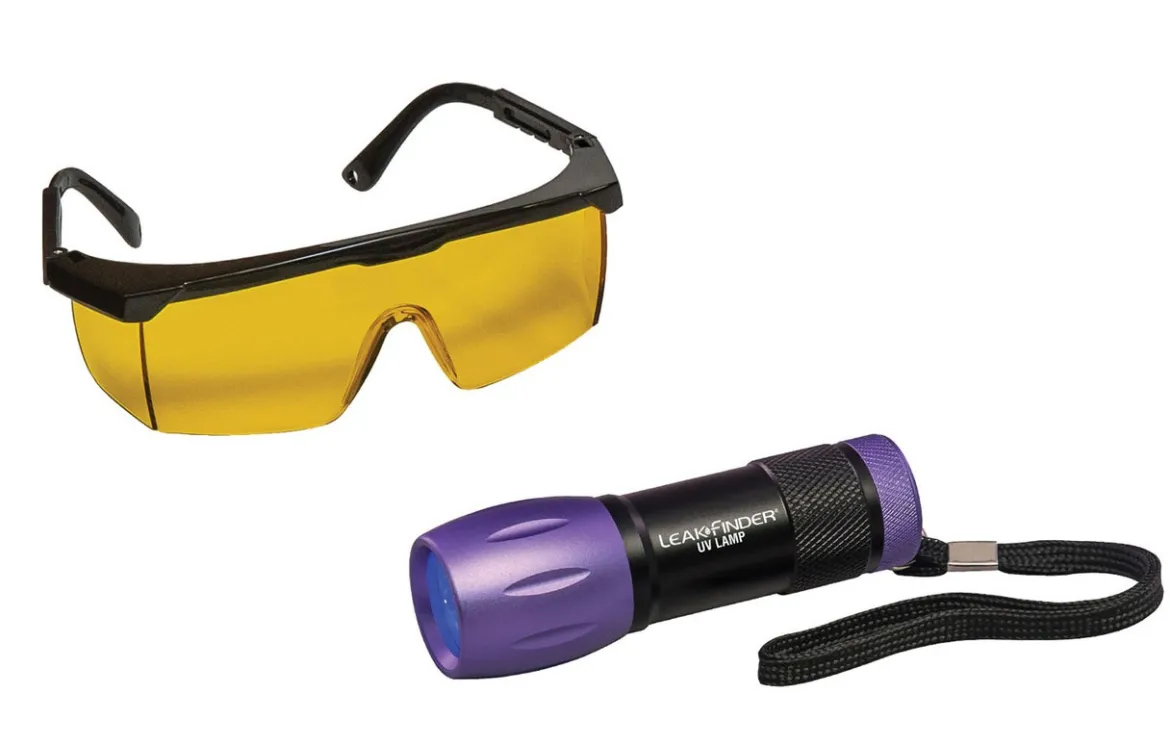

Tracerline LeakFinder UV Lamp (LF500CS)

The Tracerline LeakFinder UV Lamp (LF500CS) is a professional-grade, cordless violet light LED flashlight designed specifically for automotive leak detection. This powerful and compact tool makes it simple to find leaks in a vehicle’s A/C, coolant, oil, and other fluid systems. By causing fluorescent dye to glow brightly, the LF500CS reveals the exact location of a leak, saving time and effort. Its streamlined design allows for easy inspection in the tightest and most difficult-to-reach areas of a vehicle’s engine bay.

KEY FEATURES AND BENEFITS:

• Effective Leak Detection: The powerful violet light LED works with all fluorescent leak detection dyes, causing them to glow brightly and making leaks easy to spot. This allows you to quickly and accurately pinpoint the source of a leak.
• Optimal Coverage: With a compact design and a 5-foot (1.5 m) inspection range, the flashlight provides excellent coverage, ensuring you can scan large areas or focus on specific spots without difficulty.
• User-Friendly Design: The cordless operation and small size make it highly portable and convenient to use. It runs on standard AAA batteries, which are included, along with a lanyard and fluorescence-enhancing glasses.
• Durable and Reliable: Built with a rugged body, the LF500CS is designed to withstand the demands of a professional garage or workshop environment, providing a dependable tool for years of service.

SPECIFICATIONS:

• Lamp Type: Violet light LED
• Power: Three AAA alkaline batteries
• LEDs: 9 fractional (5mm) 400nm LEDs
• Battery Life: 5 hours
• Included: UV lamp, three AAA batteries, fluorescence-enhancing glasses, and a lanyard

HOW TO USE:

1. Add a fluorescent leak detection dye to the vehicle’s system you suspect is leaking (e.g., A/C, coolant, oil).
2. Run the system for a sufficient amount of time to allow the dye to circulate and escape at the leak point.
3. For best results, conduct your inspection in low-light conditions. Put on the included fluorescence-enhancing glasses to help the dye glow more intensely.
4. Point the Tracerline LeakFinder UV Lamp at the components of the system. The dye will fluoresce brightly at the point of any leak.
5. Once the leak is repaired, clean the area thoroughly. Run the system again and re-inspect to confirm the repair and ensure no dye remains.

BENEFITS OF USING TRACERLINE LEAKFINDER UV LAMP (LF500CS):

• Quickly identifies the source of leaks, preventing guesswork and unnecessary part replacements.
• The high-intensity violet light works on all fluorescent dyes, so you don’t need to purchase a specific type for the flashlight.
• Saves you time and money by pinpointing the exact location of a problem, leading to faster and more accurate repairs.
• The ergonomic, cordless design provides the freedom to inspect any part of a vehicle’s system without being restricted by cords or bulky equipment.

FEATURES:

• Powerful violet light LED with 9 fractional 400nm LEDs.
• Compact, anodized aluminum body for enhanced durability.
• Cordless operation powered by three AAA batteries.
• Includes a lanyard for easy carrying and secure handling.
• Comes with fluorescence-enhancing glasses to improve visibility of the dye.
• Inspection range of 5 feet (1.5 m).
