Tracerline LeakFinder BigEZ Universal A/C Leak Detection Kit (LF016)

The Tracerline LeakFinder BigEZ Universal A/C Leak Detection Kit (LF016) is a professional-grade solution engineered for fast and accurate leak diagnosis in automotive air conditioning systems. This kit is specifically designed for high-volume shops that require an efficient and reliable method to service multiple vehicles. By injecting a high-quality fluorescent dye into the A/C system, technicians can easily locate even the most elusive leaks using the included powerful violet light. The universal/ester dye is compatible with a wide range of refrigerant types, providing a versatile tool for any modern service bay. With its robust caulking-gun style injector and a large multi-dose dye cartridge, the LF016 kit streamlines the leak detection process, saving valuable time and ensuring customer satisfaction.

KEY FEATURES AND BENEFITS:

• Efficient High-Volume Application: The caulking-gun style injector and large 8 oz (237 ml) BigEZ™ dye cartridge make it the most effective way to add A/C dye for shops with frequent A/C servicing needs.
• Versatile Universal Dye: The universal/ester dye formula is compatible with all refrigerant systems, including R-134a, R-1234yf, and PAG systems, eliminating the need for multiple dye types.
• Cost-Effective Solution: A single 8 oz dye cartridge can treat up to 64 A/C systems, providing a long-lasting and economical solution for leak detection.
• Fast and Accurate Leak Identification: The powerful cordless, violet light LED flashlight helps technicians quickly spot the fluorescent dye at the exact location of a leak, reducing diagnostic time.

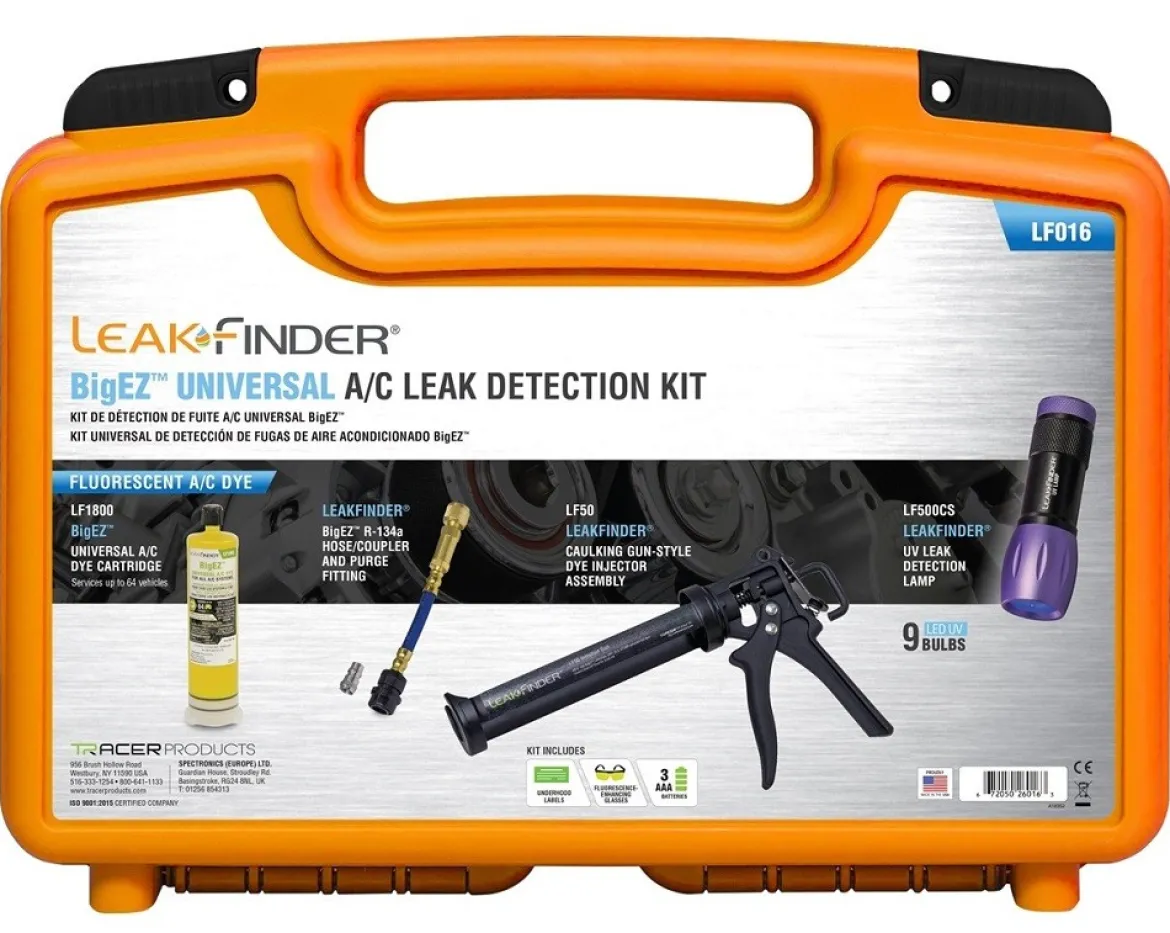

• All-in-One Kit: This comprehensive kit includes all the necessary tools—injector, dye, hose, and flashlight—to begin leak detection immediately upon purchase.

SPECIFICATIONS:

• Included in Kit (LF016):
• LF50: Caulking gun-style dye injector assembly
• LF500CS: LeakFinder® cordless, violet light LED leak detection flashlight
• LF1800: 8 oz (237 ml) BigEZ™ universal multi-dose A/C dye cartridge
• TP9747: 18in (46cm) Hose with R-134a low-side coupler and purge fitting
• Dye:
• Type: Universal/Ester
• Volume: 8 oz (237 ml)
• Treats up to: 64 A/C systems

HOW TO USE:

1. Prepare the Injector: Insert the BigEZ™ universal multi-dose dye cartridge into the caulking gun-style injector.
2. Connect to A/C System: Attach the hose/coupler to the injector and then connect the R-134a low-side coupler to the vehicle’s low-side service port.
3. Inject the Dye: Squeeze the injector handle to add the appropriate amount of dye into the A/C system. The dye will circulate with the refrigerant.
4. Disconnect and Run System: Disconnect the hose from the service port and run the vehicle’s A/C system for approximately 10-15 minutes to allow the dye to circulate.
5. Scan for Leaks: Use the included violet light LED flashlight to scan the A/C system’s components, including hoses, fittings, and the compressor. Any leaks will appear as a bright fluorescent glow.

BENEFITS OF USING TRACERLINE LEAKFINDER BIGEZ UNIVERSAL A/C LEAK DETECTION KIT (LF016):

• Allows for proactive identification of refrigerant leaks before they lead to system failure.
• Provides a simple and effective method for verifying the integrity of A/C repairs.
• Improves shop efficiency by reducing the time spent on difficult leak diagnoses.
• The high-capacity dye cartridge minimizes the need for frequent refills, streamlining workflow.
• Aids in professional compliance with SAE J2297 standards for refrigerant leak detection.

FEATURES:

• Universal dye compatibility for all refrigerant system types.
• Includes a cordless violet light LED flashlight for clear leak visibility.
• Caulking gun-style injector assembly for controlled and easy dye application.
• Large 8 oz (237 ml) multi-dose dye cartridge for servicing numerous vehicles.
• Designed for compatibility with R-134a and R-1234yf systems.
• Comes with an R-134a low-side coupler and purge fitting.
