Tracerline Complete A/C & Fluid Dye UV Leak Detection Kit (TPOPUV16)

The Tracerline Complete A/C & Fluid Dye UV Leak Detection Kit (TPOPUV16) provides a professional and efficient solution for pinpointing leaks in automotive air conditioning, oil, and coolant systems. This all-inclusive kit utilizes advanced fluorescent dye technology combined with a potent UV light to reveal leaks that are otherwise invisible.

KEY FEATURES AND BENEFITS:

• Comprehensive Leak Detection: Quickly identifies leaks in A/C systems (R-134a and R-1234yf), circulating oil-based fluids, and standard coolant systems.
• High-Volume A/C Service: The EZ-Shot™ injector and BigEZ™ cartridge allow for efficient treatment of up to 64 A/C systems, ideal for frequent use.
• Universal Dye Compatibility: Includes Universal/Ester dye suitable for all refrigerant types, simplifying inventory and application.
• Powerful UV Illumination: Features the OPTI-PRO™ UV cordless, violet light LED flashlight for clear and precise visualization of fluorescent dye.
• Complete Kit Contents: Provides all necessary tools, dyes, and adapters for a seamless leak detection process, including an R-1234yf adapter.

SPECIFICATIONS:

• Product Name: Tracerline Complete A/C & Fluid Dye UV Leak Detection Kit (TPOPUV16)
• Capacity: 8 oz (237 ml) A/C dye cartridge, 1 oz (30 ml) oil dye, 1 oz (30 ml) coolant dye, 2 oz (60 ml) dye cleaner

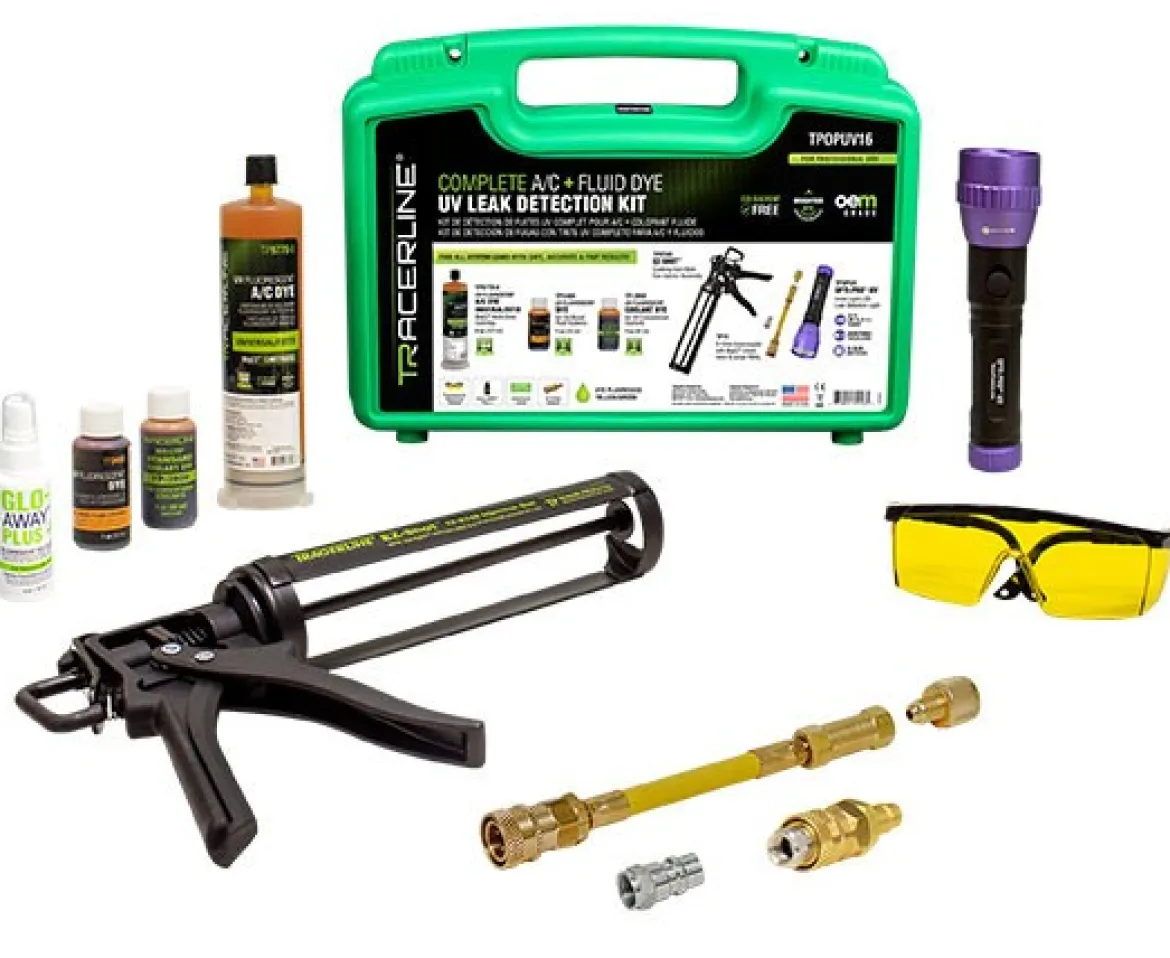

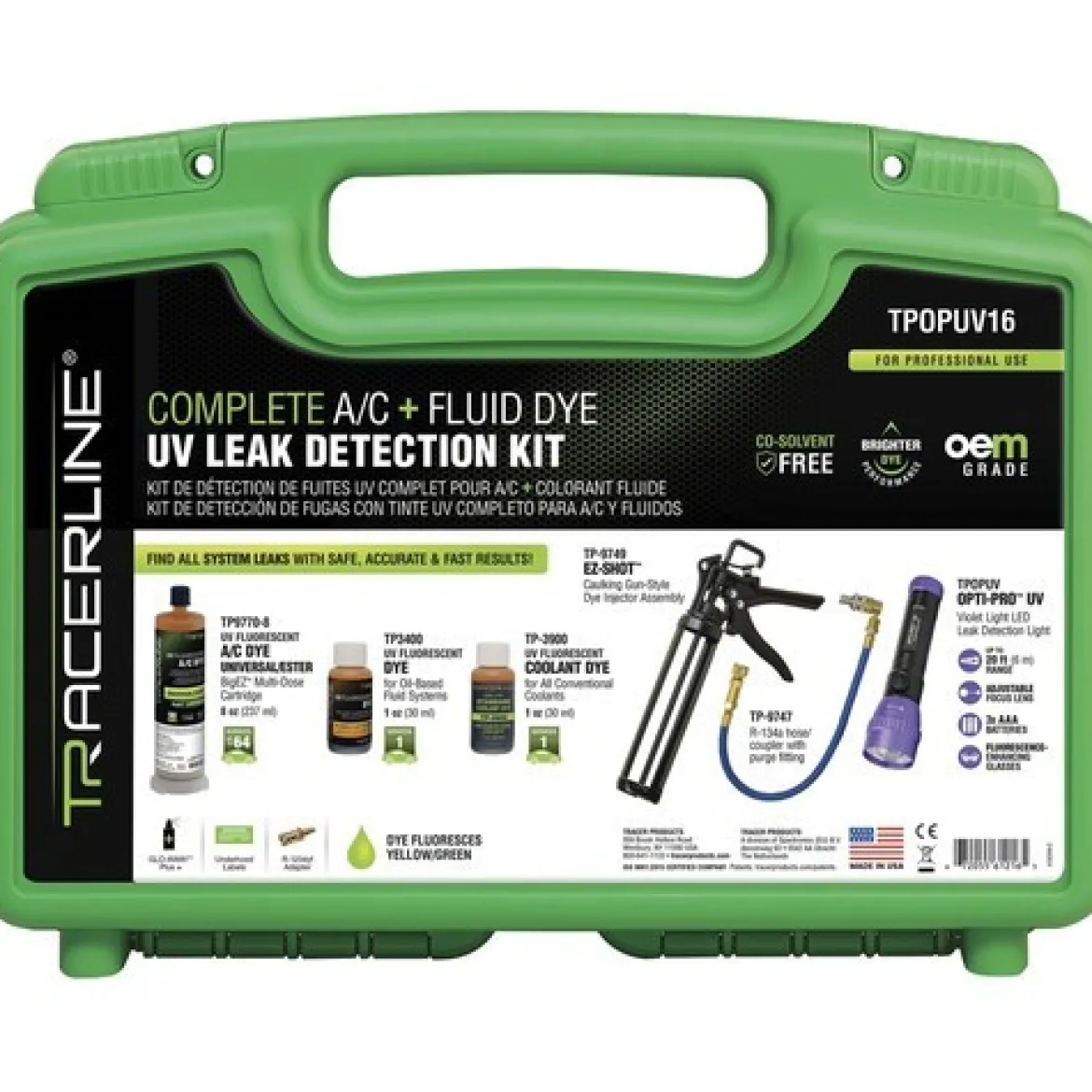

• Kit Includes:
• TPOPUV: OPTI-PRO™ UV cordless, violet light LED leak detection light
• TP9770-8: 8 oz (237 ml) cartridge of BigEZ™ Universal/Ester multi-dose A/C dye, services up to 64 vehicles
• TP3400: 1 oz (30 ml) bottle of dye for all circulating oil-based fluids, services 1 vehicle
• TP-3900: 1 oz (30 ml) bottle of Standard Coolant dye, services 1 vehicle
• TP9749: EZ-Shot™ caulking gun-style dye injector assembly
• TP9747: 18 in (46 cm) Hose with R-134a low-side coupler and purge fitting
• TP19: 2 oz (60 ml) spray bottle of GLO-AWAY™ Plus fluorescent dye cleaner
• TP9831: R-1234yf adapter

HOW TO USE:

1. Add Dye: For A/C systems, attach the EZ-Shot™ injector with the BigEZ™ A/C dye cartridge to the low-side service port using the appropriate coupler (R-134a or R-1234yf adapter). Inject the recommended amount of dye into the system. For oil or coolant systems, add the respective dyes directly into the fluid reservoir.
2. Circulate Dye: Run the vehicle’s system (A/C, engine, etc.) for at least 15–20 minutes to allow the dye to thoroughly mix with the fluid and circulate throughout the system.
3. Inspect for Leaks: Using the OPTI-PRO™ UV flashlight, systematically scan all components and connections of the suspected system. Any leaks will appear as a bright, glowing fluorescent area under the UV light.
4. Clean Up: After identifying and repairing the leak, use the GLO-AWAY™ Plus fluorescent dye cleaner to remove any dye residue from the illuminated areas.

BENEFITS OF USING TRACERLINE COMPLETE A/C & FLUID DYE UV LEAK DETECTION KIT (TPOPUV16):

• Enhanced Accuracy: Pinpoint even the most elusive fluid leaks quickly and precisely, preventing costly guesswork and repeat repairs.
• Time Savings: Rapidly identify leak sources, reducing diagnostic time and allowing for quicker repairs.
• System Protection: Early detection of leaks helps prevent major system failures and component damage due to low fluid levels.
• Cost-Effective: Avoid unnecessary parts replacement by accurately identifying the single source of a leak. The high-volume A/C dye also offers significant value per application.
• Environmentally Responsible: Addresses leaks promptly, minimizing fluid loss that could harm the environment.

FEATURES:

• Violet light LED inspection lamp
• Includes dyes for three distinct fluid types
• Injector designed for professional application
• Quick-connect couplers for various A/C systems
• Fluorescent dye cleaner included
• Portable carrying case for organized storage
• Single bottle dye for oil-based fluids
• Single bottle dye for standard coolants
