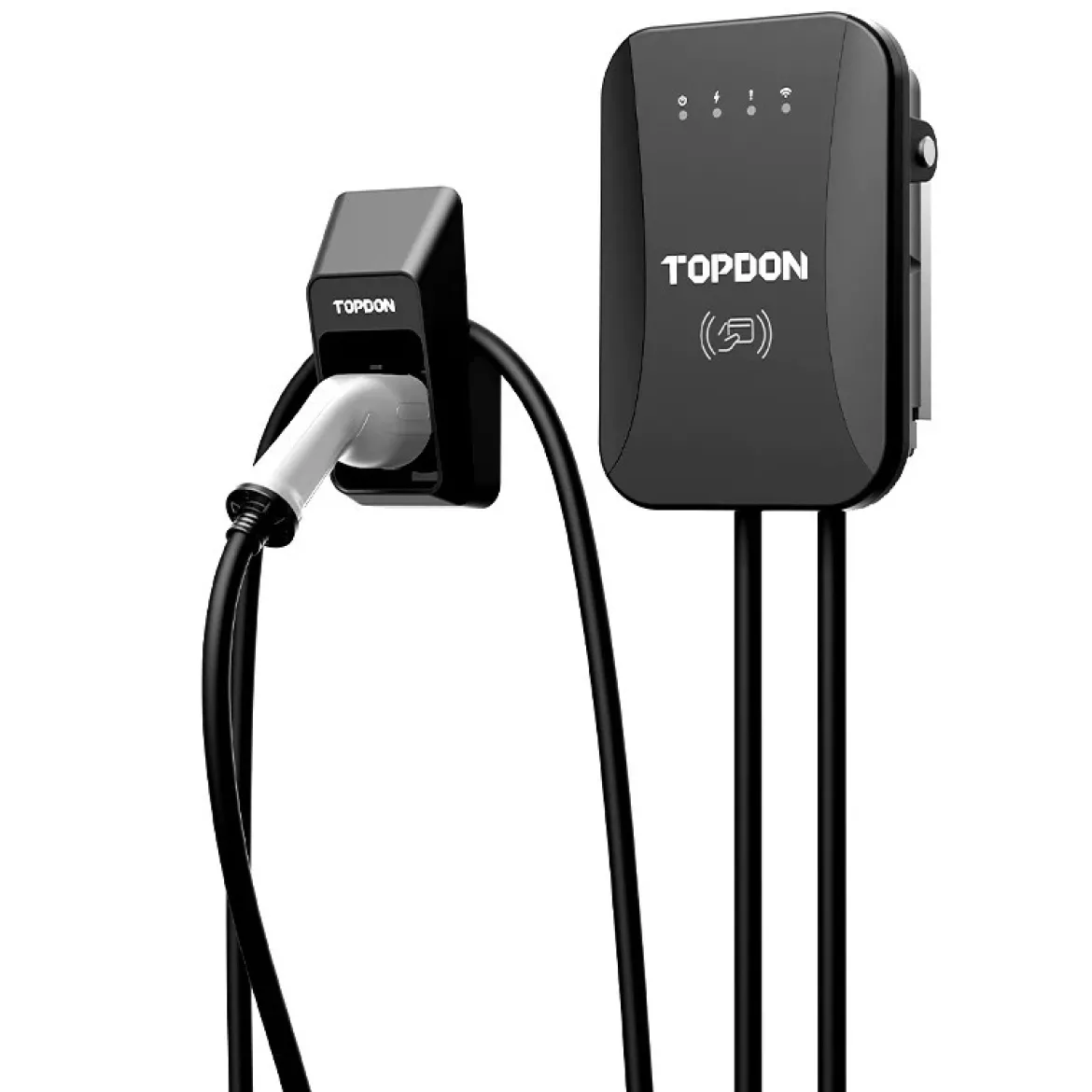

TOPDON Pulse Q 7.5M EV Charger Smart Home Electric Car Charger (TD52130116)

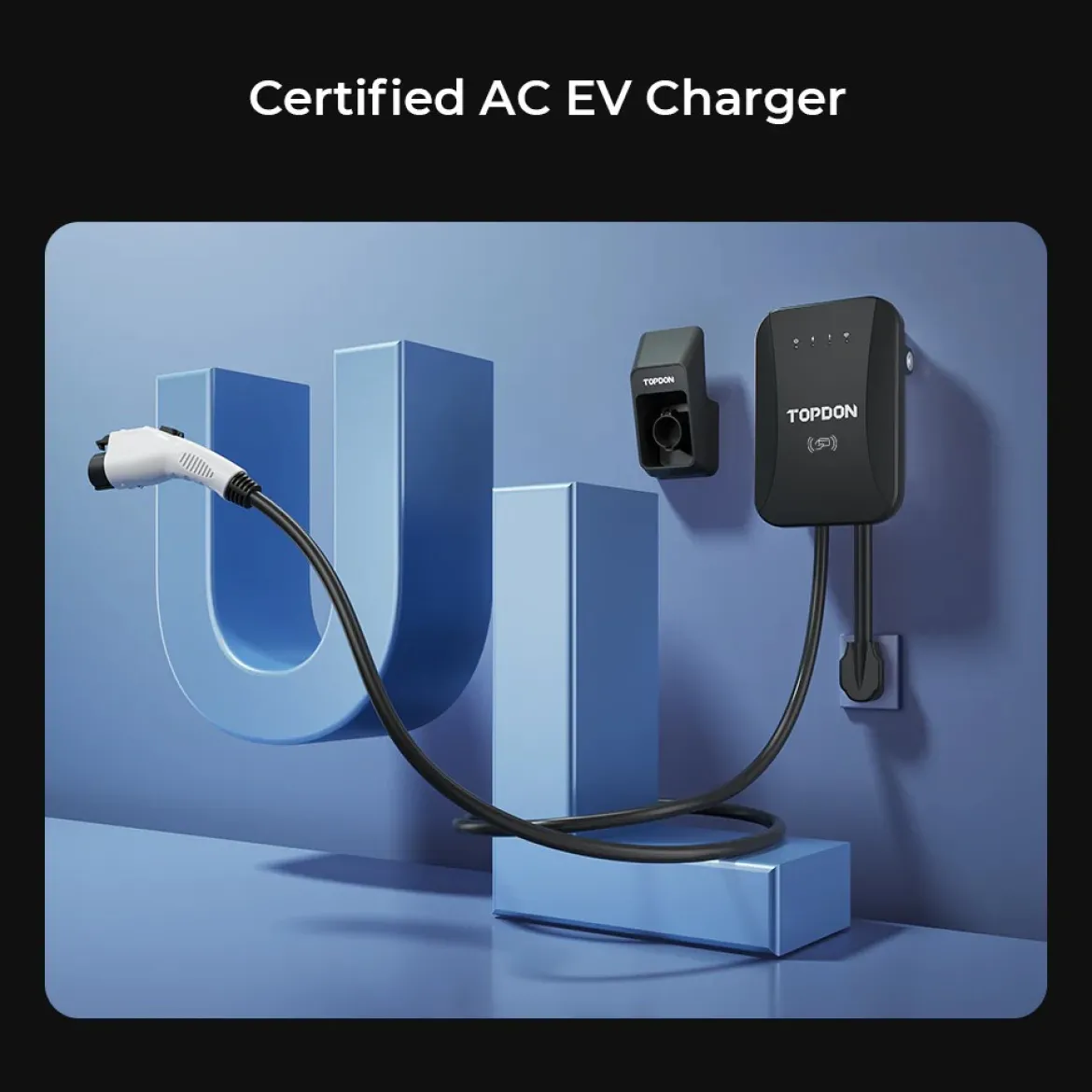

TOPDON Pulse Q 7.5M EV Charger Smart Home Electric Car Charger (TD52130116) is designed to offer a high-efficiency charging solution for electric vehicles. Compatible with most AC electric vehicles due to its SAE J1772 plug, it’s perfect for anyone seeking a reliable and advanced charging station.

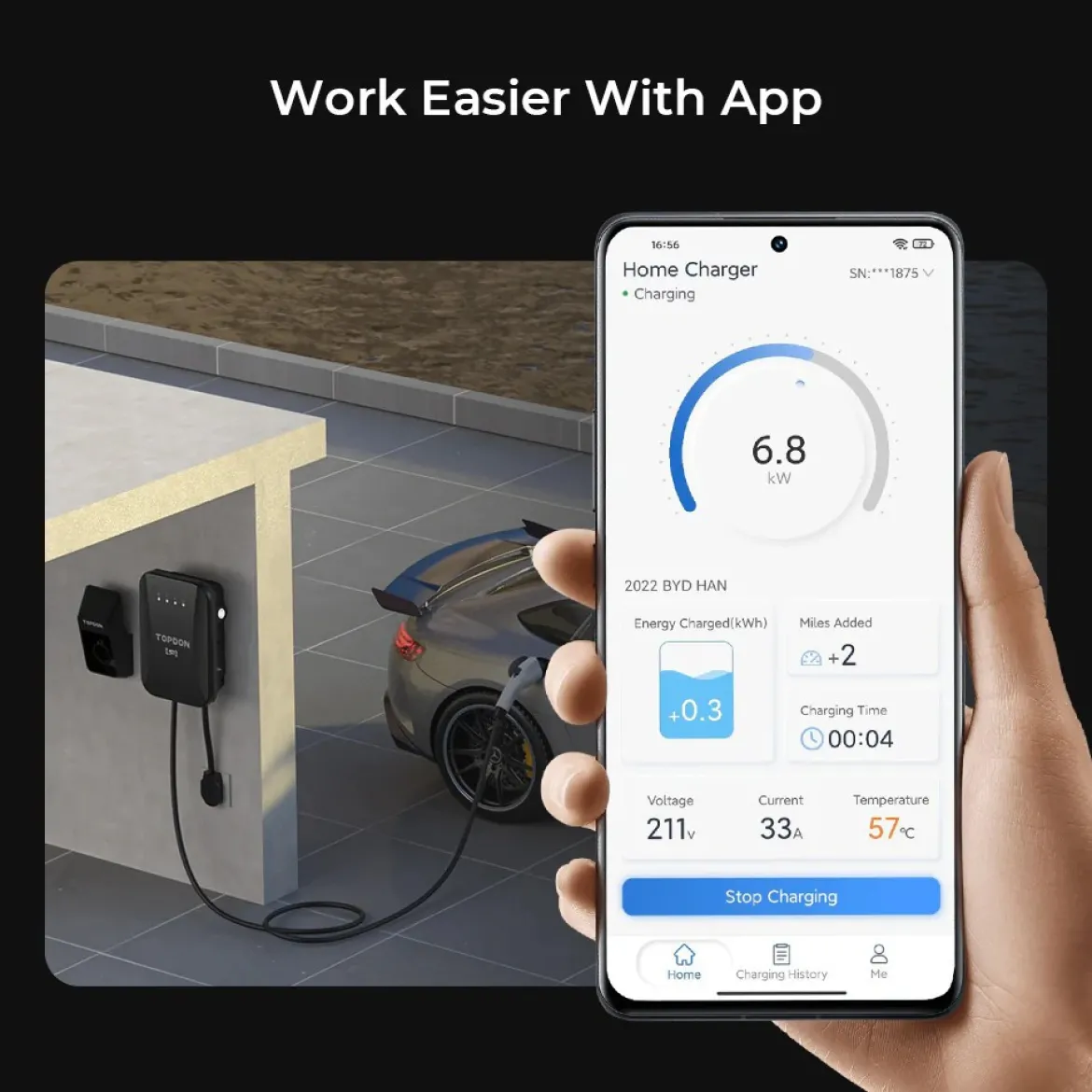

This model boasts an extended 7.5-meter cable for convenient placement and connects via a NEMA14-50R outlet, ensuring high-speed charging. Manage your charging needs with ease using the intuitive app, which allows scheduling and real-time monitoring.

• Specifications and Dimensions
  • Charging Mode: App-Controlled/Plug-and-Play/RFID mode
  • Indicator Lights: Standby, Charging, Fault, Network
  • AC Power Input/Output Voltage: Level 2 AC-208-240V
  • Adjustable Current: 6-40A
  • Rated Frequency: 50/60 Hz
  • Plug: NEMA 14-50
  • Connector Type: SAE J1772 (Type 1)
  • Box Dimensions: 12.2 x 8.6 x 3.7 inches
  • Standard Cable Length: 16.4 ft.
  • Optional Cable Length: 24.6 ft.
  • Weight: 15 lbs.
  • Working Temperature: -22 ~ 131��F
  • Storage Temperature: -40 ~ 167��F
  • Enclosure: PC + ASA

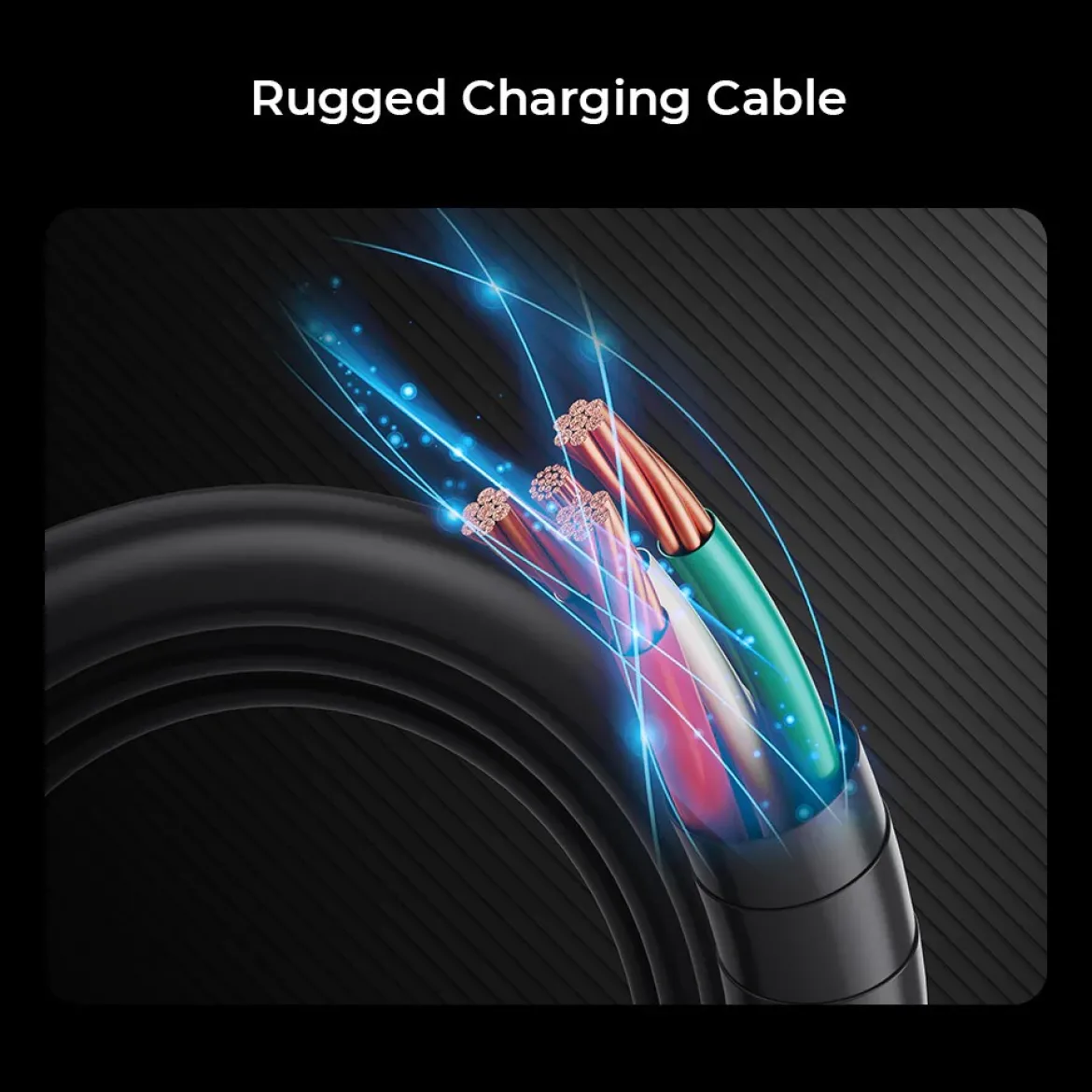

  • Cable: PVC + Copper
• Key Features and Benefits
  • Wide Compatibility: Works with most American standard AC electric or hybrid vehicles.

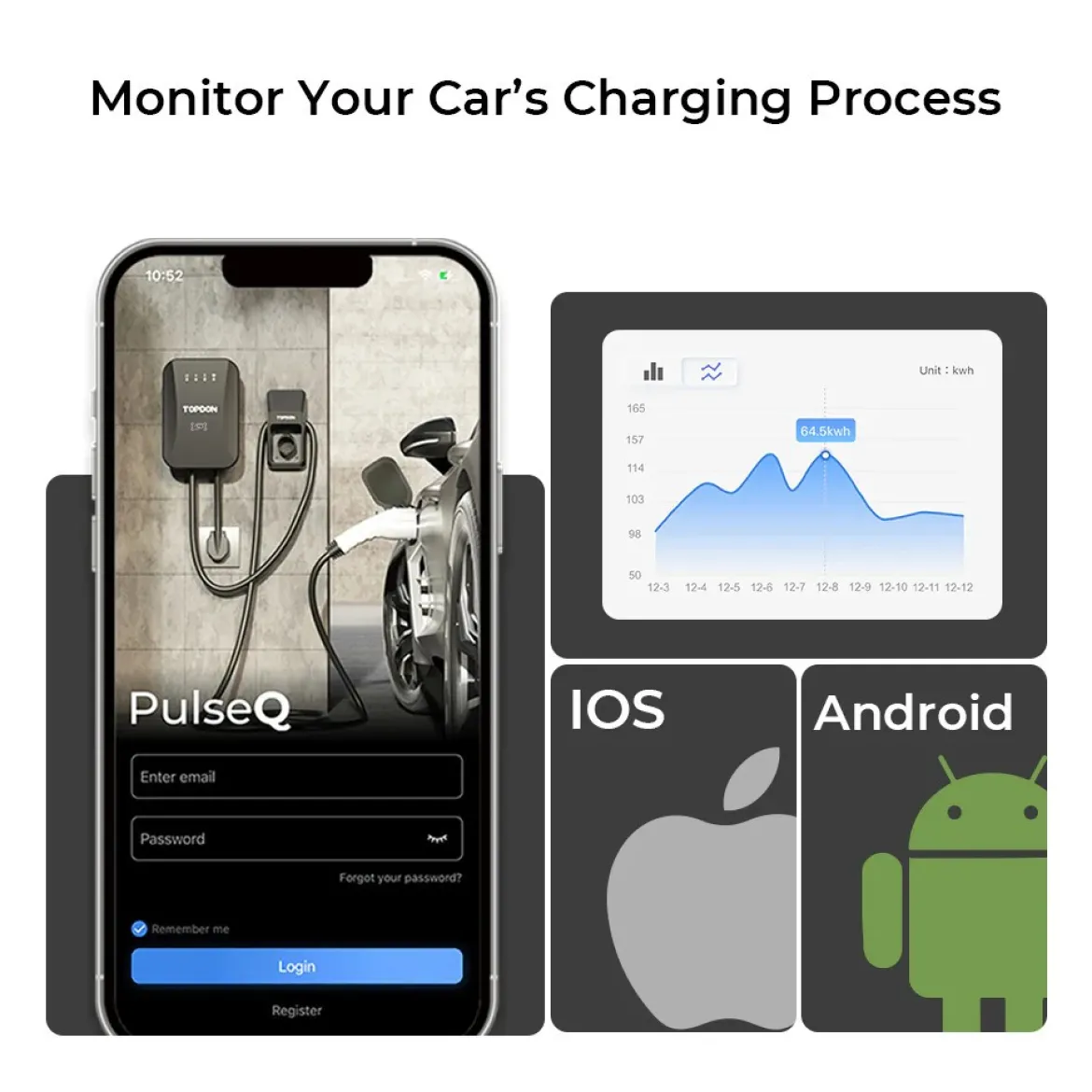

  • Intelligent Charging: Schedule and monitor your charging to optimize usage and cost.

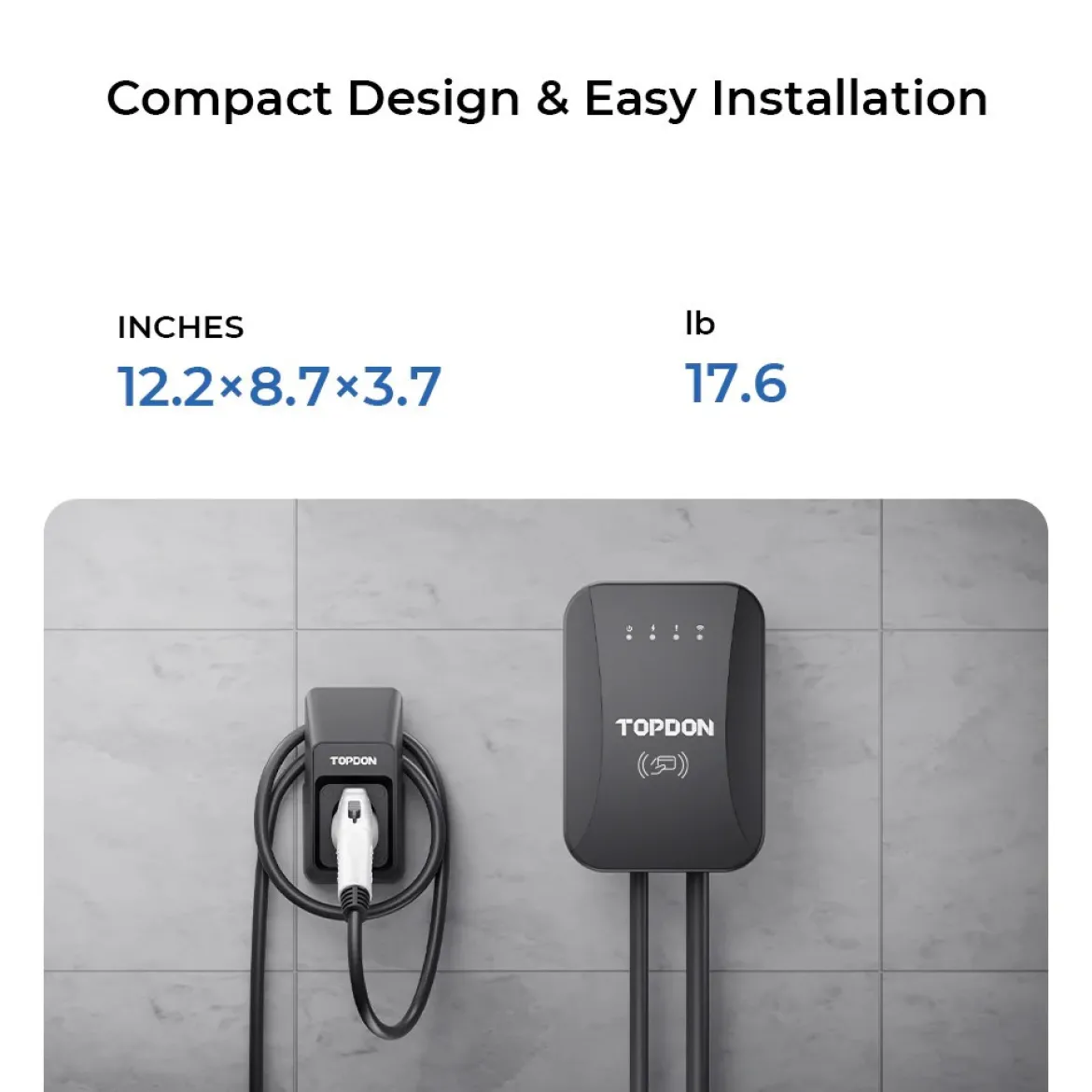

  • Easy Installation: Simple setup with multiple mounting options and quick installation guide.

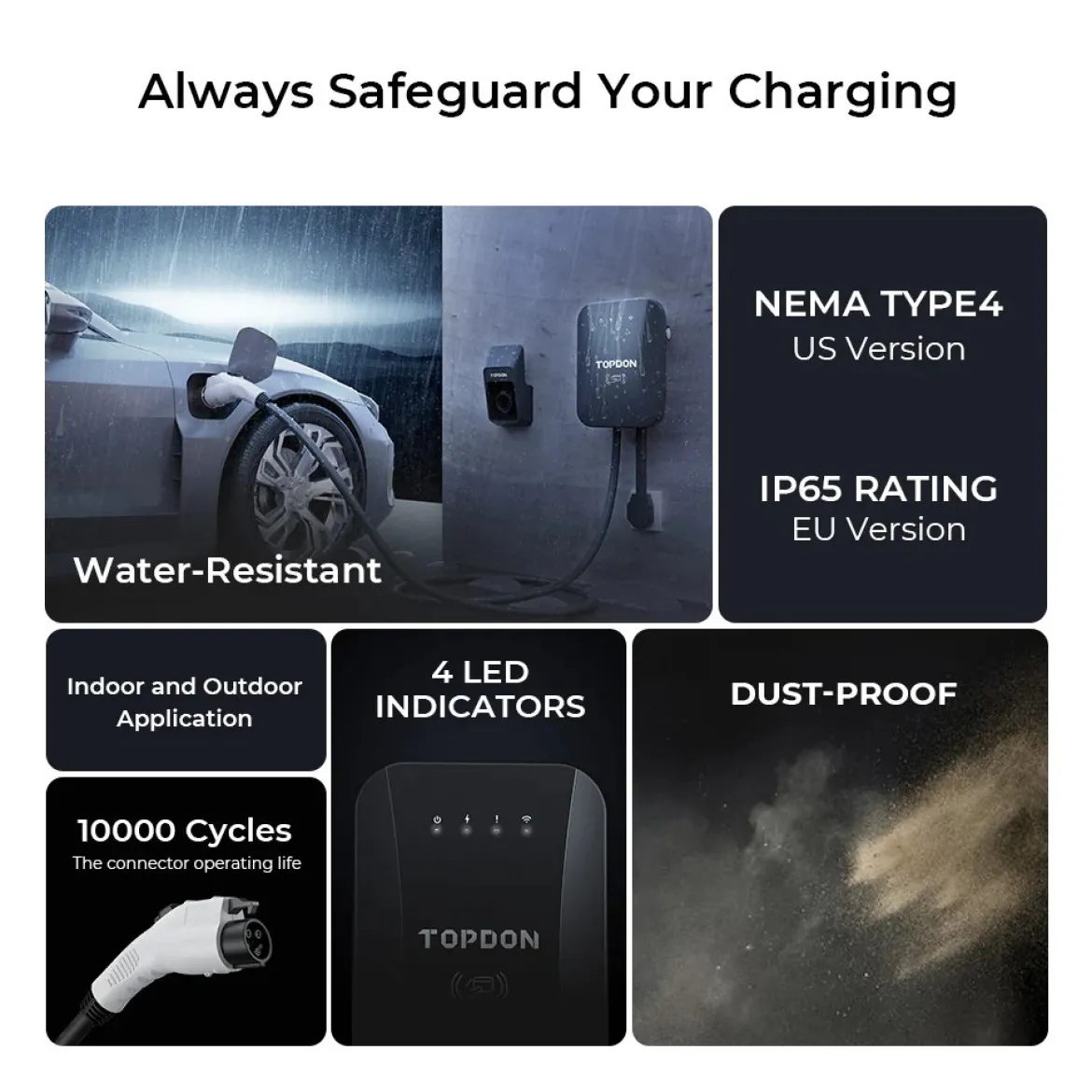

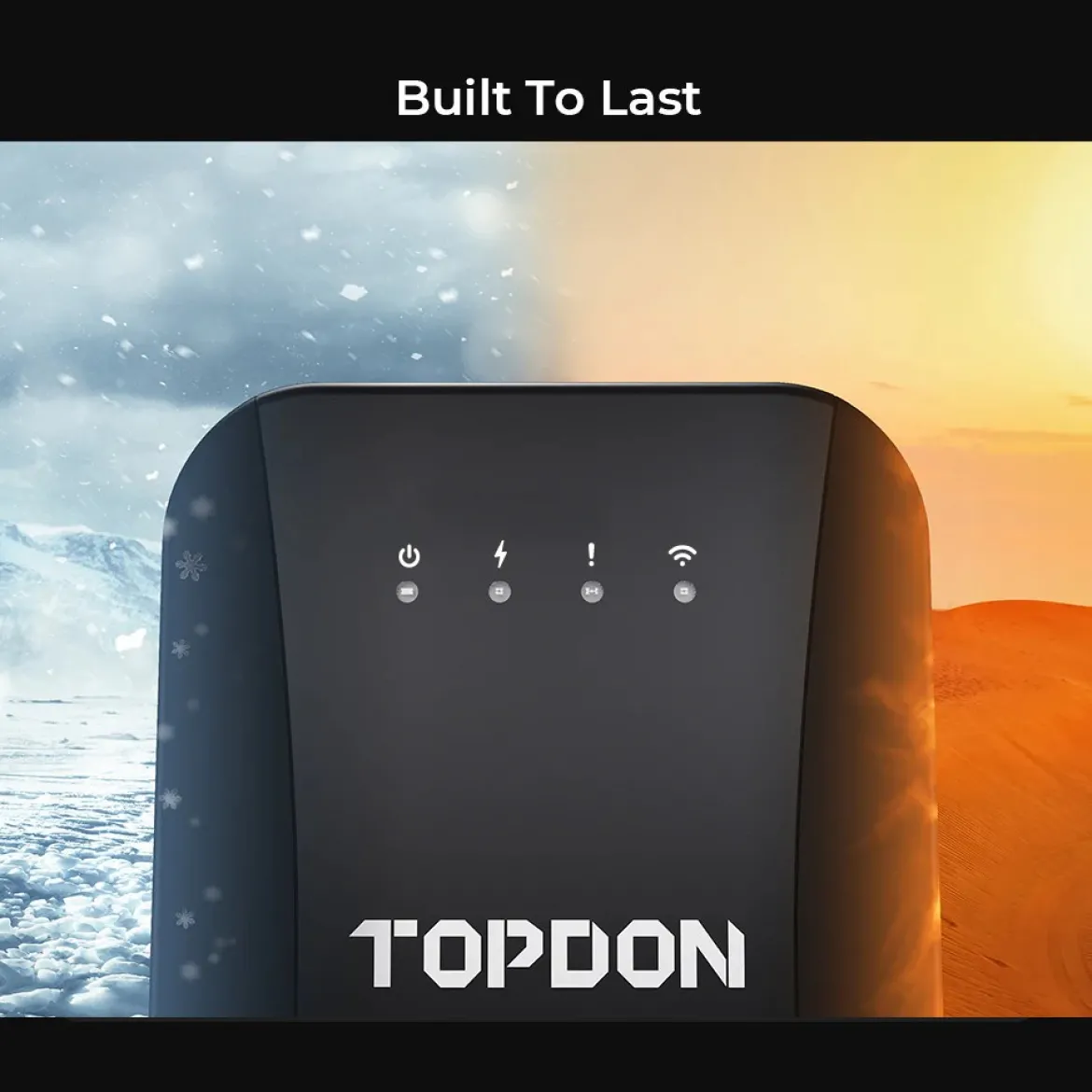

  • Robust Design: Built to last with flame-retardant materials and protective casing for indoor and outdoor use.
  • Safety Features: Equipped with multiple protection systems including over-voltage and under-voltage protection.

Downloads:

• User Manual
• Quick Guide
• Android APP
• iOS APP
