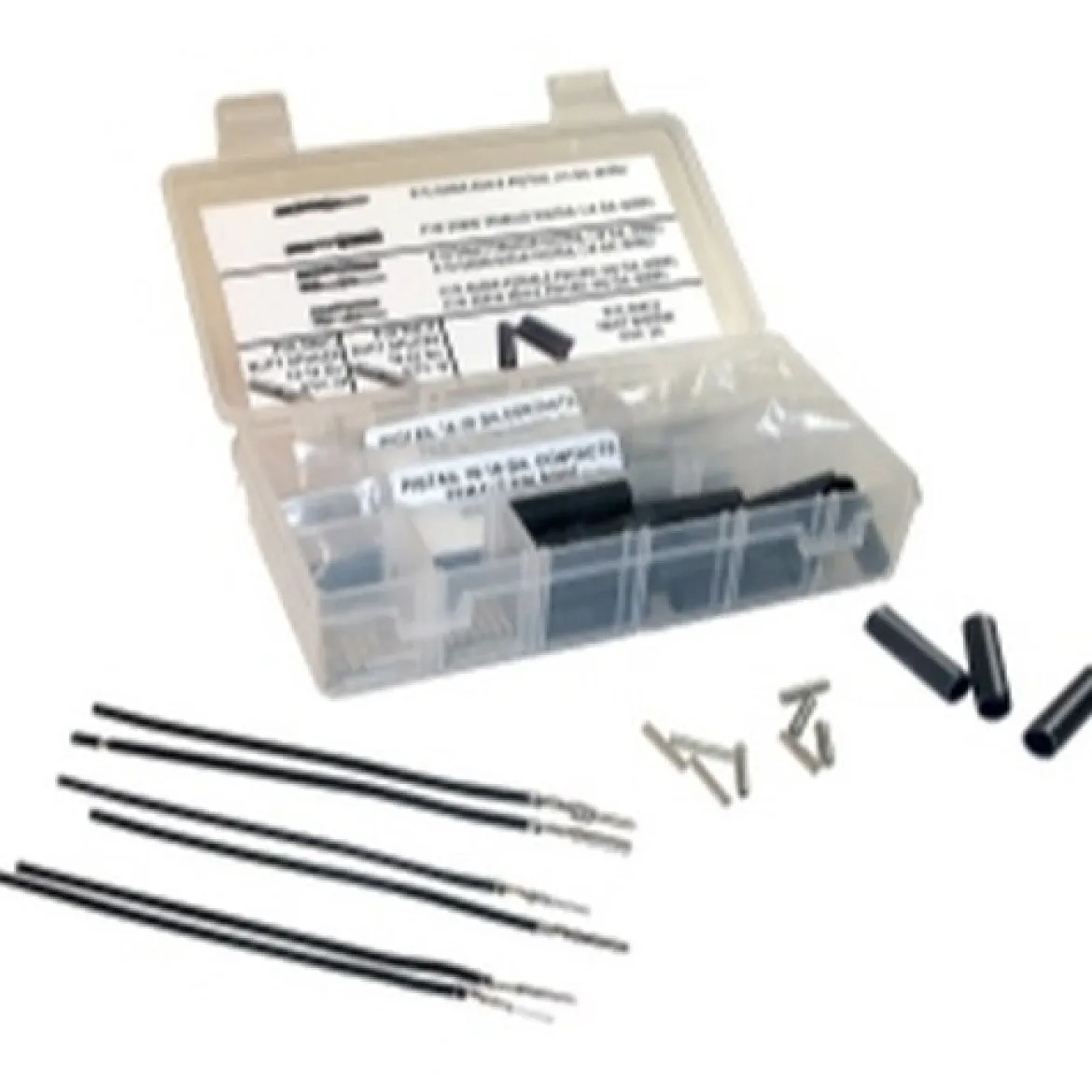

Thexton Deutsch Jumper Wire Repair Kit (508RPL)

The Thexton Deutsch Jumper Wire Repair Kit (508RPL) is an essential solution for technicians and DIY enthusiasts needing to repair faulty Deutsch terminals and circuits. This kit provides a quick, reliable, and professional-quality repair without requiring specialized crimping tools. It complements the Thexton 508 Deutsch Jumper Wire Test Kit by providing all replacement components needed to fix identified circuit problems. With machine-crimped wires and terminals, the 508RPL kit prevents issues like shorts, corrosion, and poor connections that can result from improper manual crimping. It is suitable for a wide range of applications, including agricultural machinery, construction vehicles, and marine and recreational equipment.

KEY FEATURES AND BENEFITS:

• Simplified Repair Process: Pre-crimped wires and terminals reduce repair time and effort, eliminating the need for manual crimping.
• Ensured Reliability: Machine-crimped terminals provide strong mechanical and electrical bonds, preventing intermittent connections, shorts, and corrosion.
• Cost-Effective Solution: Supplies all necessary components, saving money on individual parts and specialized crimping tools.

SPECIFICATIONS:

• Included in the kit:
• Deutsch male and female contacts
• Butt splices for connecting wires
• Adhesive-lined heat shrink tubing for sealed connections
• Components for 14, 16, and 20 gauge wires

HOW TO USE:

• Diagnose the Circuit: Use a diagnostic tool, such as the Thexton 508 Deutsch Jumper Wire Test Kit, to identify the faulty terminal or circuit.
• Remove the Damaged Terminal: Extract the damaged terminal using the appropriate terminal release tool.
• Cut and Splice: Cut the wire from the old terminal and strip a small section of insulation from the existing wire.
• Connect New Jumper Wire: Use a butt splice from the kit to attach the new jumper wire to the stripped end of the existing wire.
• Secure with Heat Shrink: Place heat shrink tubing over the splice and apply heat to create a sealed, corrosion-resistant joint.
• Insert New Terminal: Insert the pre-crimped terminal into the correct cavity of the Deutsch connector until it locks securely.
• Test the Repair: Re-test the circuit to confirm the connection is solid and functioning properly.

BENEFITS OF USING THE THEXTON DEUTSCH JUMPER WIRE REPAIR KIT (508RPL):

• Time-Saving: Ready-to-install, pre-crimped components reduce labor time.
• High-Quality Results: Ensures professional-grade repairs with factory-standard crimps.
• Corrosion Prevention: Adhesive-lined heat shrink tubing creates a water- and corrosion-resistant seal.
• Comprehensive Kit: Contains all necessary parts for a complete repair in one kit.
• Versatile: Compatible with common Deutsch circuits used in heavy-duty and recreational vehicles.

FEATURES:

• Deutsch Contacts: Kit contains male and female terminals.
• Butt Splices: Included for splicing wires.
• Heat Shrink Tubing: Adhesive-lined for sealed, corrosion-resistant connections.
• Machine-Crimped Wires and Terminals: Ensures consistent, reliable connections.
• Wire Size Coverage: Components for 14, 16, and 20 gauge wires.
• Designed for Thexton 508 Test Kit: Serves as a replacement parts kit.
• Prevents Shorts and Failures: Avoids issues caused by improper manual crimping.
