Sunex Tools 4-Piece Pneumatic Separator Air Hammer Chisel in Tool Roll (ACS4)

Sunex Tools 4-Piece Pneumatic Separator Air Hammer Chisel in Tool Roll (ACS4) is a specialized collection of tools designed to address the difficulties of front-end automotive repair. This set focuses on the separation of steering and suspension components, such as ball joints and tie rods, which often become seized due to heat, pressure, and road debris. By utilizing the power of a pneumatic air hammer, these tools provide the necessary force to break these connections without the manual strain associated with traditional hand tools.

Key Features and Benefits:

• Patented Chamfer Design: Each chisel features a specific chamfered edge that redistributes impact force, reducing wear and tear on the air hammer’s retention system, resulting in a tool life approximately 50% longer than standard chisels.
• Enhanced Material Composition: Manufactured from upgraded alloy steel, capable of withstanding repeated high-frequency impacts without fracturing or deforming.
• Corrosion Resistance: Finished with a black oxide coating to protect against moisture, chemicals, and salt, preventing rust in automotive environments.
• Standardized Compatibility: Utilizes a .401-inch shank size, ensuring compatibility with most pneumatic air hammers in professional and home garages.

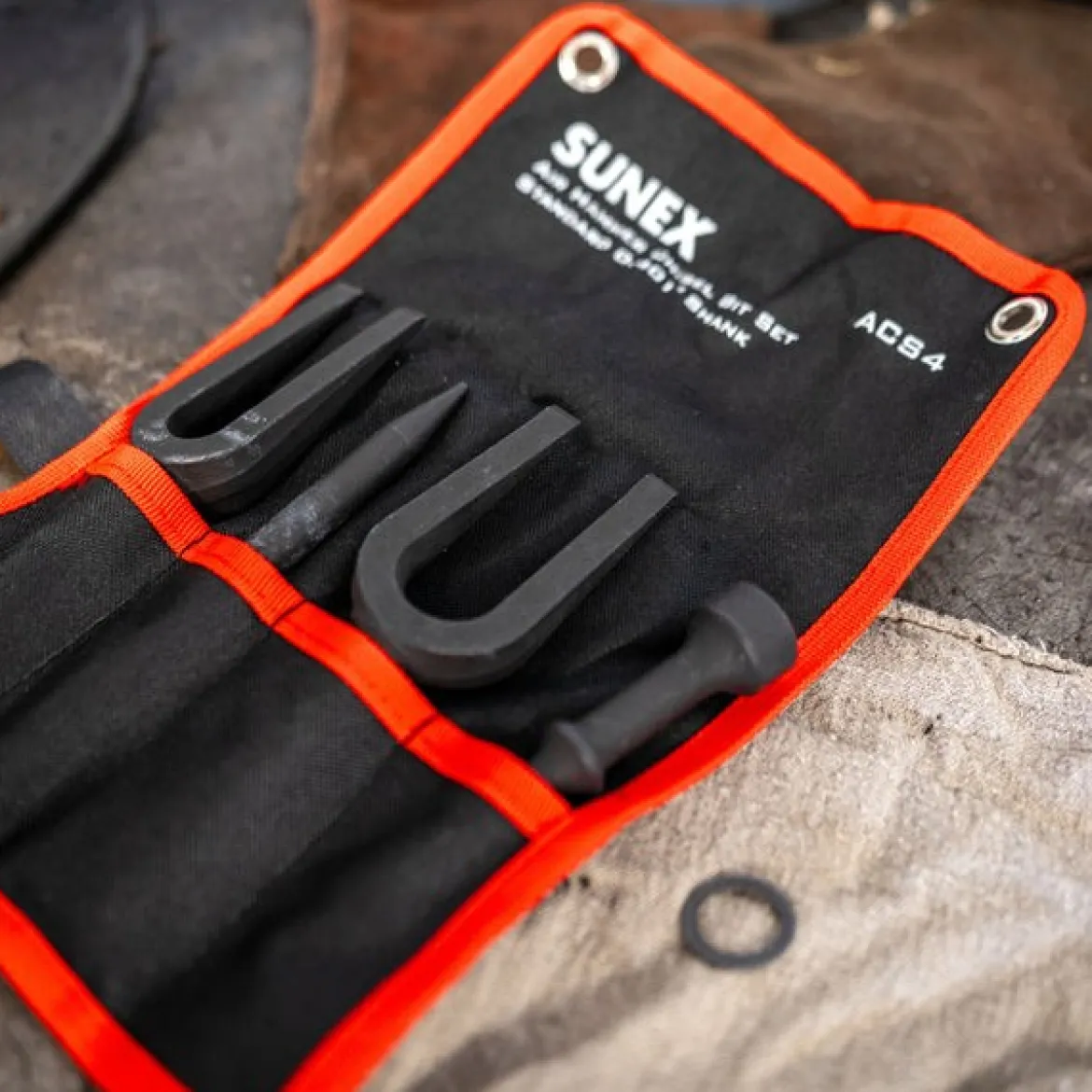

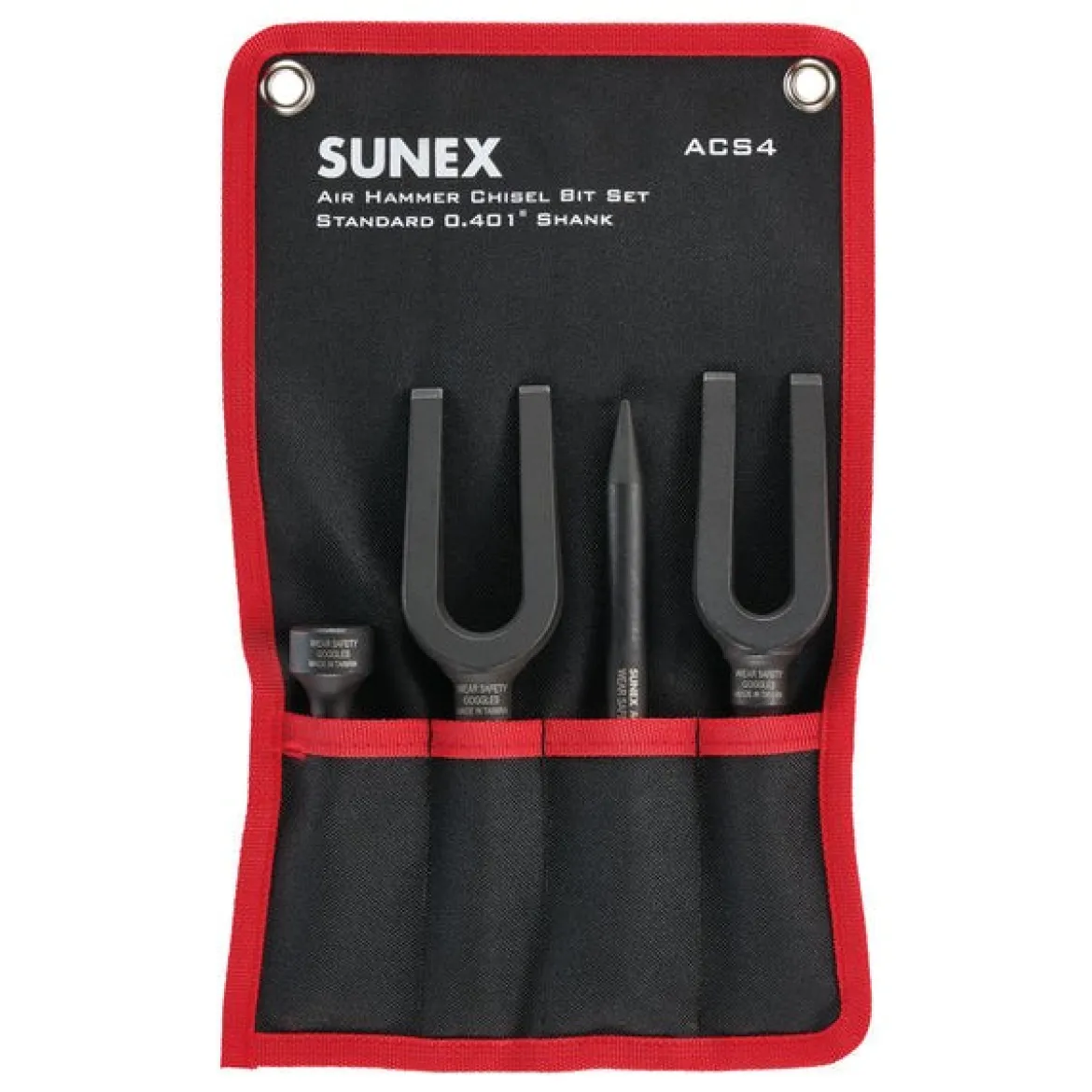

• Protective Storage: The set includes a 600D polyester roll pouch that is heavy-duty, water-repellent, and features a hook-and-loop strap for compact and portable storage.

Specifications:

• Model Number: ACS4
• Shank Size: .401-inch
• Material: Enhanced Alloy Steel
• Finish: Black Oxide
• Pouch Material: 600D Polyester
• Unrolled Dimensions: 7.9Ó x 12.6Ó
• Rolled Dimensions: 3.4Ó x 7.8Ó

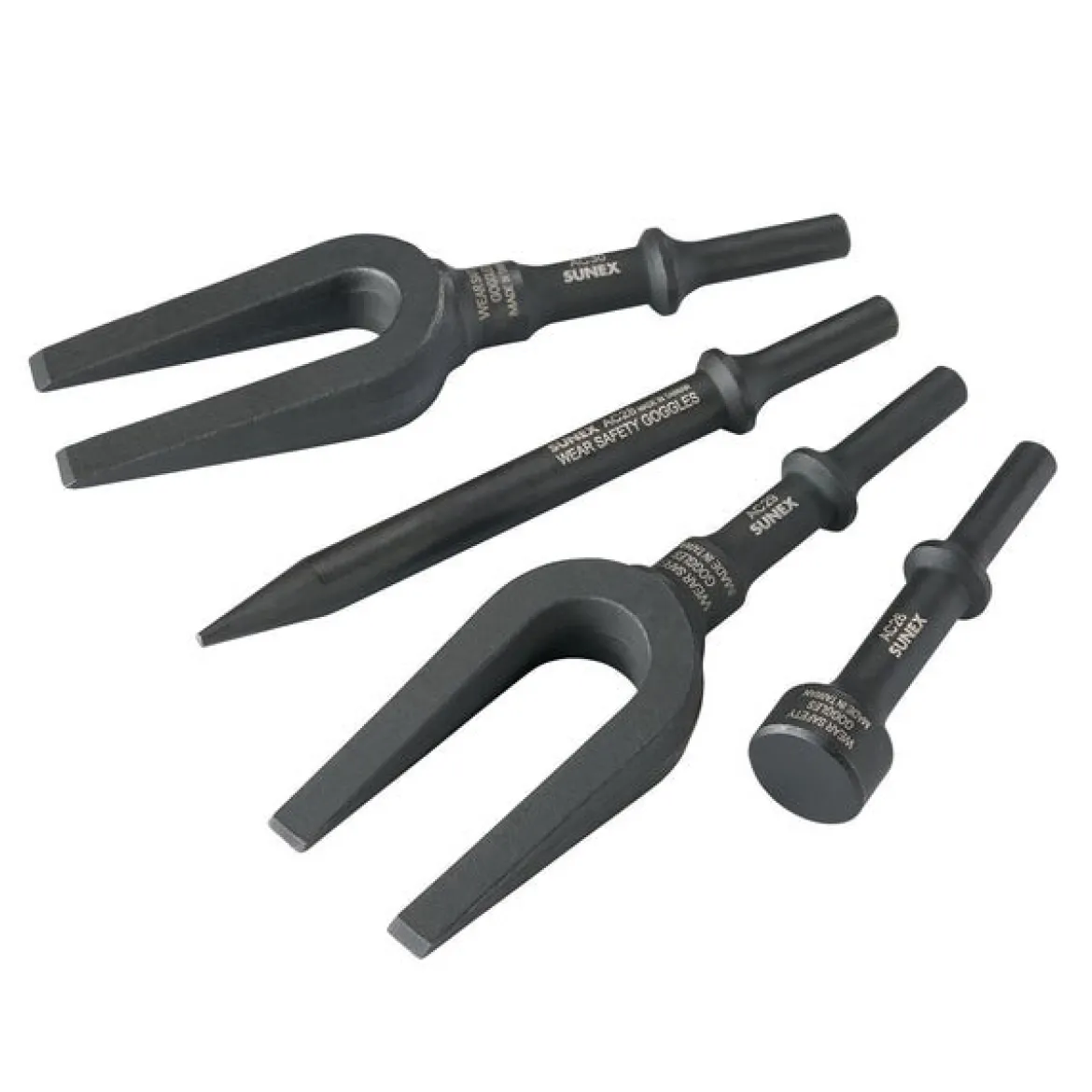

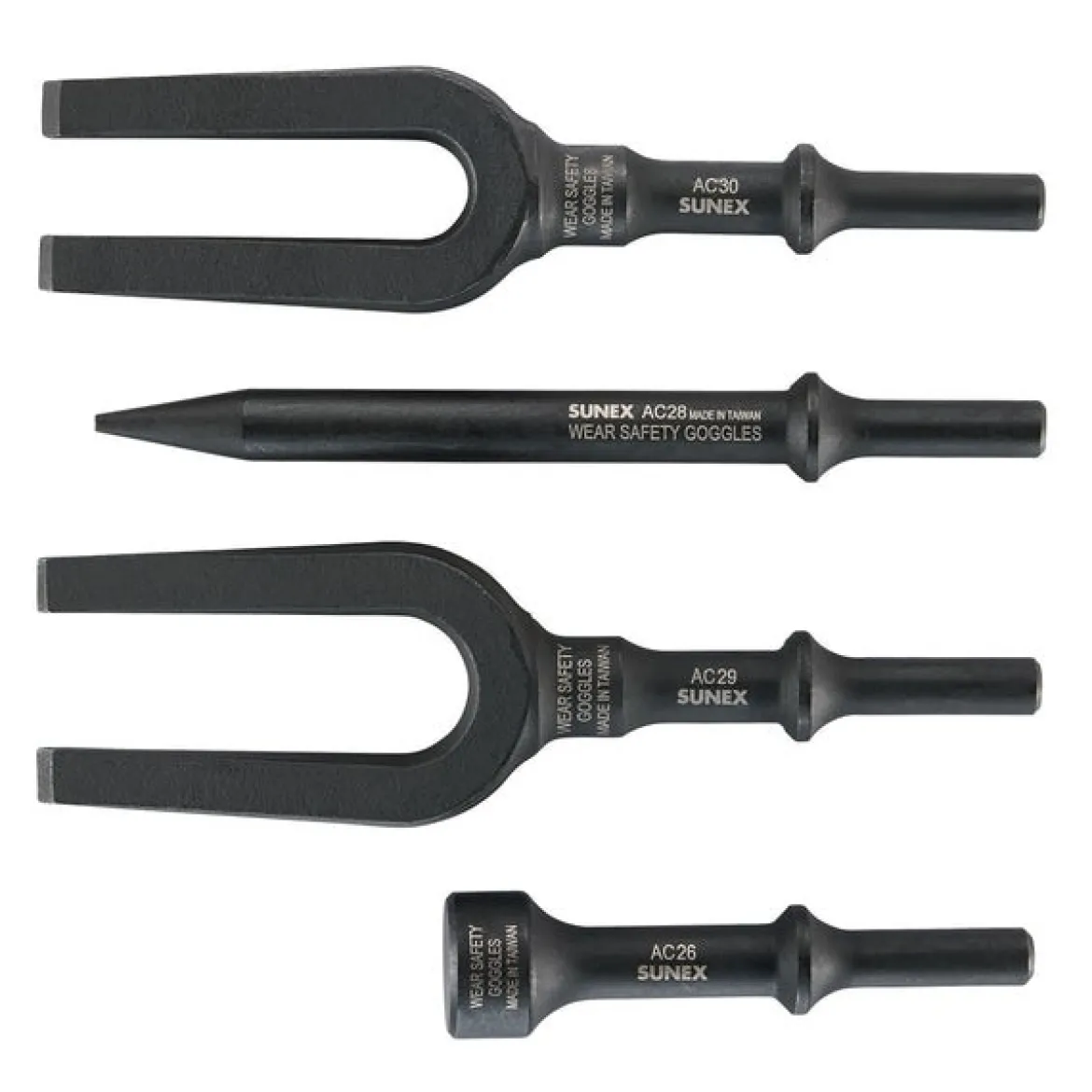

• Included in Set:
  • (1) 4″ Hammer
  • (1) 6-1/2″ Tapered Punch (1/8″ tip)
  • (1) 7″ Pneumatic Ball Joint Wedge
  • (1) 7″ Pneumatic Tie Rod Spreader
  • (1) 600D Polyester Roll Pouch

How to Use:

• Preparation: Identify the component to be separated (e.g., a ball joint or tie rod). Ensure the area is clear of unnecessary obstructions and wear appropriate safety gear, including eye and ear protection.
• Tool Selection: Choose the appropriate chisel from the roll pouch (use the Tie Rod Spreader for steering linkages or the Ball Joint Wedge for suspension control arms).
• Insertion: Insert the .401 shank of the selected tool into the barrel of your pneumatic air hammer, ensuring a secure fit.
• Positioning: Place the fork or wedge end of the tool into the gap between the two components to be separated.
• Operation: Connect the air hammer to the air supply. Hold the tool firmly and apply steady pressure while triggering the air hammer in short bursts to drive the wedge between the parts.

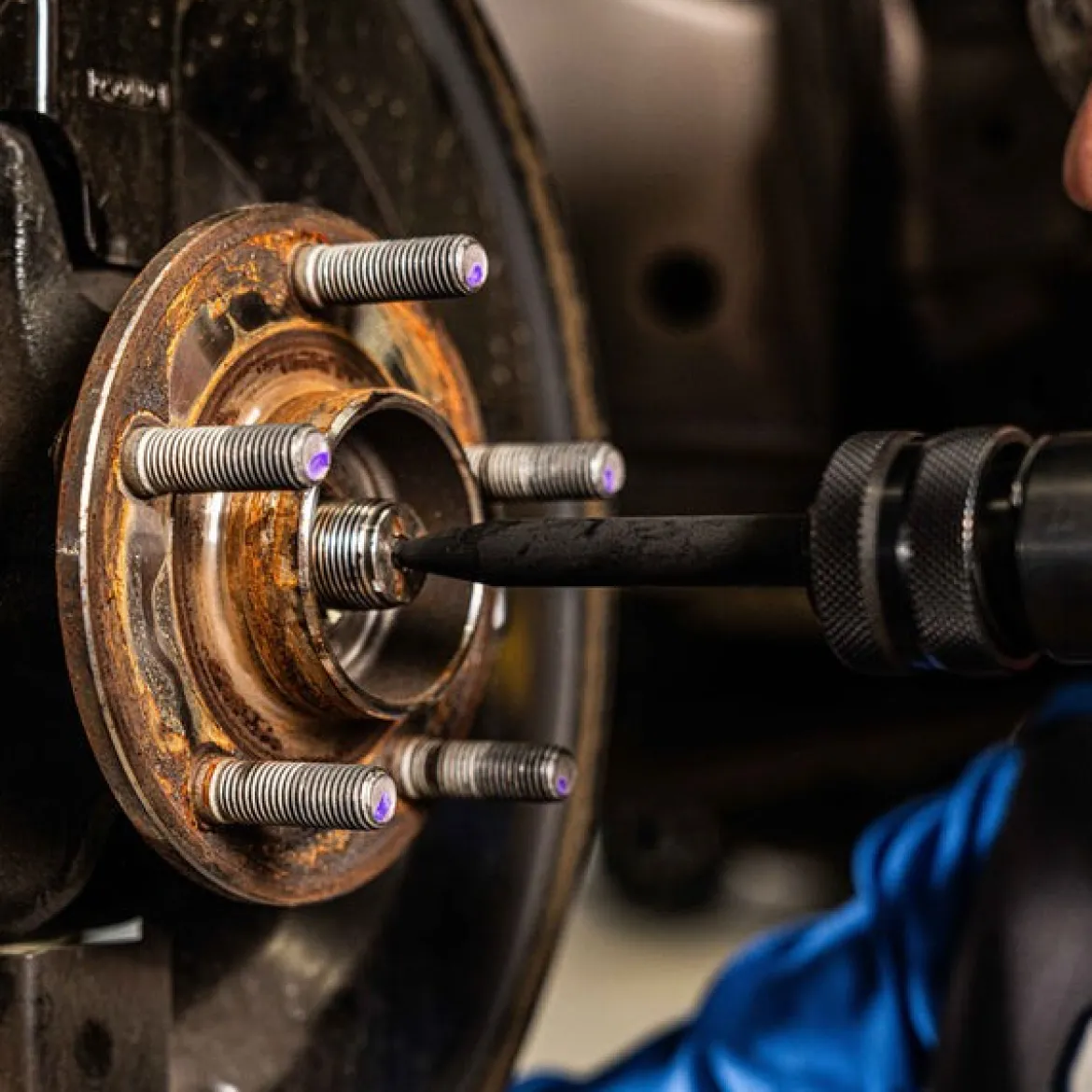

• Separation: Continue until the components pop apart. For stuck pins or bolts, switch to the Tapered Punch or the 4″ Hammer as needed.
• Storage: After use, disconnect the tool, wipe away any grease, and return it to the 600D roll pouch for protection.

Benefits of Using Sunex Tools 4-Piece Pneumatic Separator Air Hammer Chisel in Tool Roll (ACS4):

• Efficiency Improvement: Reduces the time required for suspension teardowns, minimizing physical fatigue by replacing manual hammers and forks with pneumatic power.
• Financial Benefit: The patented chamfer design reduces the frequency of tool replacements while protecting internal components of the air hammer from wear.
• Specialized Shapes: Minimizes the risk of damaging metal surfaces compared to using non-specialized pry bars.

Features:

• Four-Piece Geometry Variety: Offers four distinct head shapes for driving, punching, and spreading tasks within a single kit.
• Beveled Shank Geometry: Incorporates a patented beveled edge to improve the interface with the air hammer retainer.
• 1/8″ Precision Tip: Tapered punch ground to a 1/8-inch tip for removing small pins and aligning bolt holes.
• High-Denier Roll Pouch: Made from 600D polyester fabric, providing resistance to tearing and punctures from sharp chisel ends.
• Hydrophobic Coating: Pouch treated to repel water, helping maintain the integrity of the black oxide finish on the tools.
• Secure Closure System: Features a hook-and-loop strap to prevent tools from sliding during transport.
• Standard Shank Profile: Employs .401 round shank profile for universal fit across different pneumatic tool brands.
