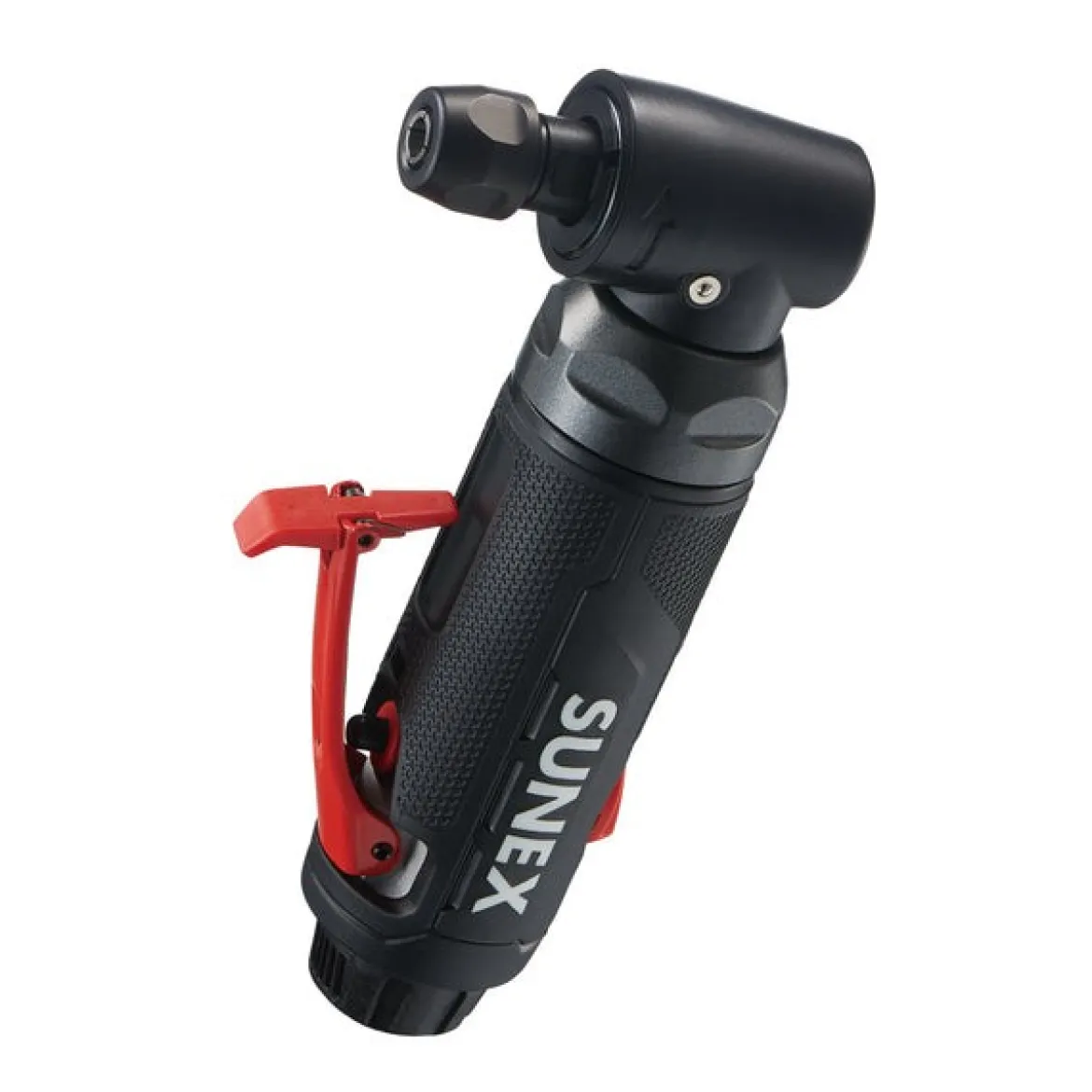

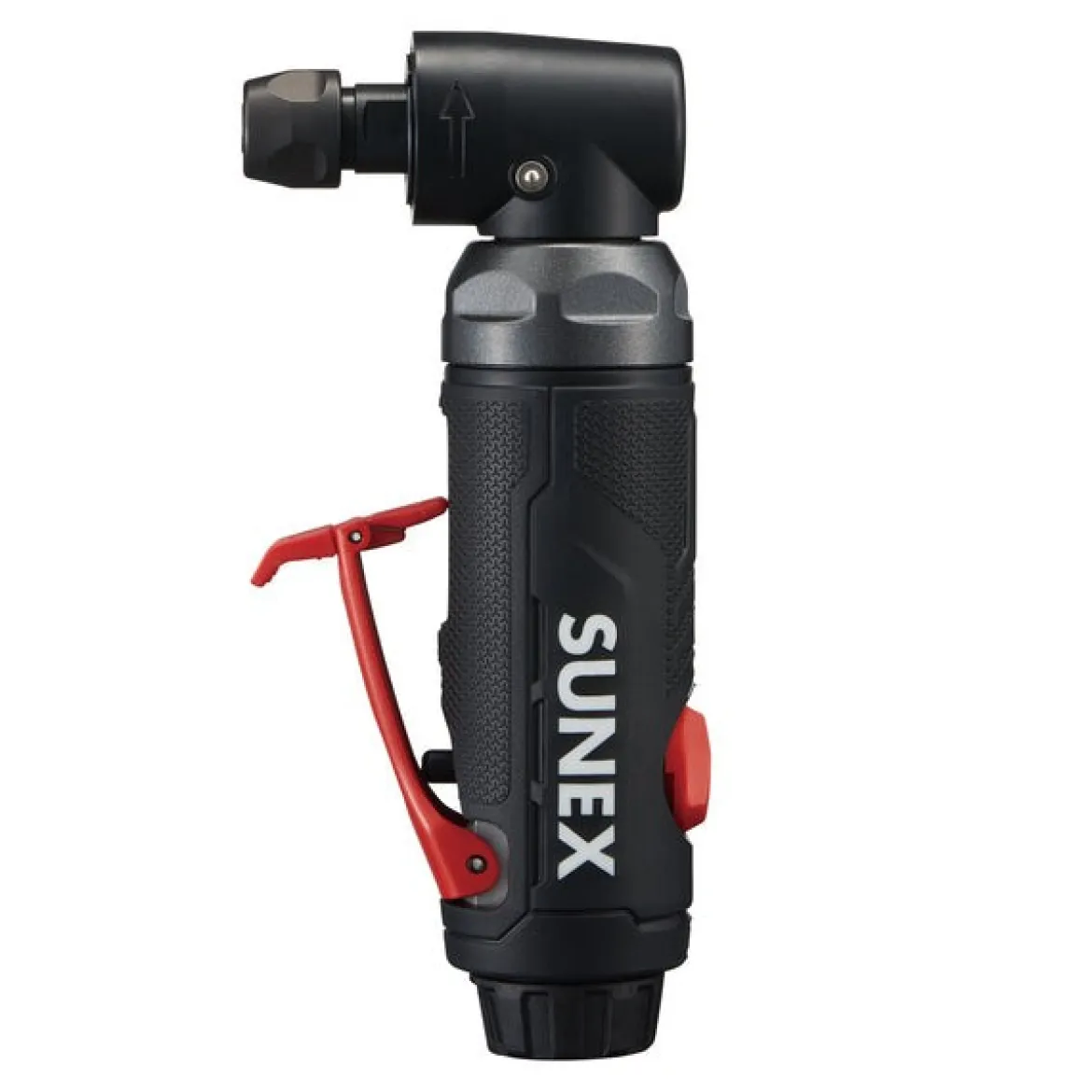

Sunex Tools 0.5HP 90-Degree Angle Die Grinder (SX5208)

Sunex Tools 0.5HP 90-Degree Angle Die Grinder (SX5208) is a professional-grade pneumatic tool engineered for high-output metalwork in environments with limited clearance. Equipped with a 0.5HP motor, this grinder provides the torque and speed necessary for demanding industrial and automotive applications, including weld breaking, deburring, and porting. The 90-degree head configuration is designed to navigate tight spaces such as engine bays, vehicle frames, and under-dash areas where standard straight grinders are ineffective.

Key Features and Benefits:

• 0.5HP Pneumatic Motor: Delivers high-speed performance for heavy-duty tasks such as porting and weld breaking without stalling under load.

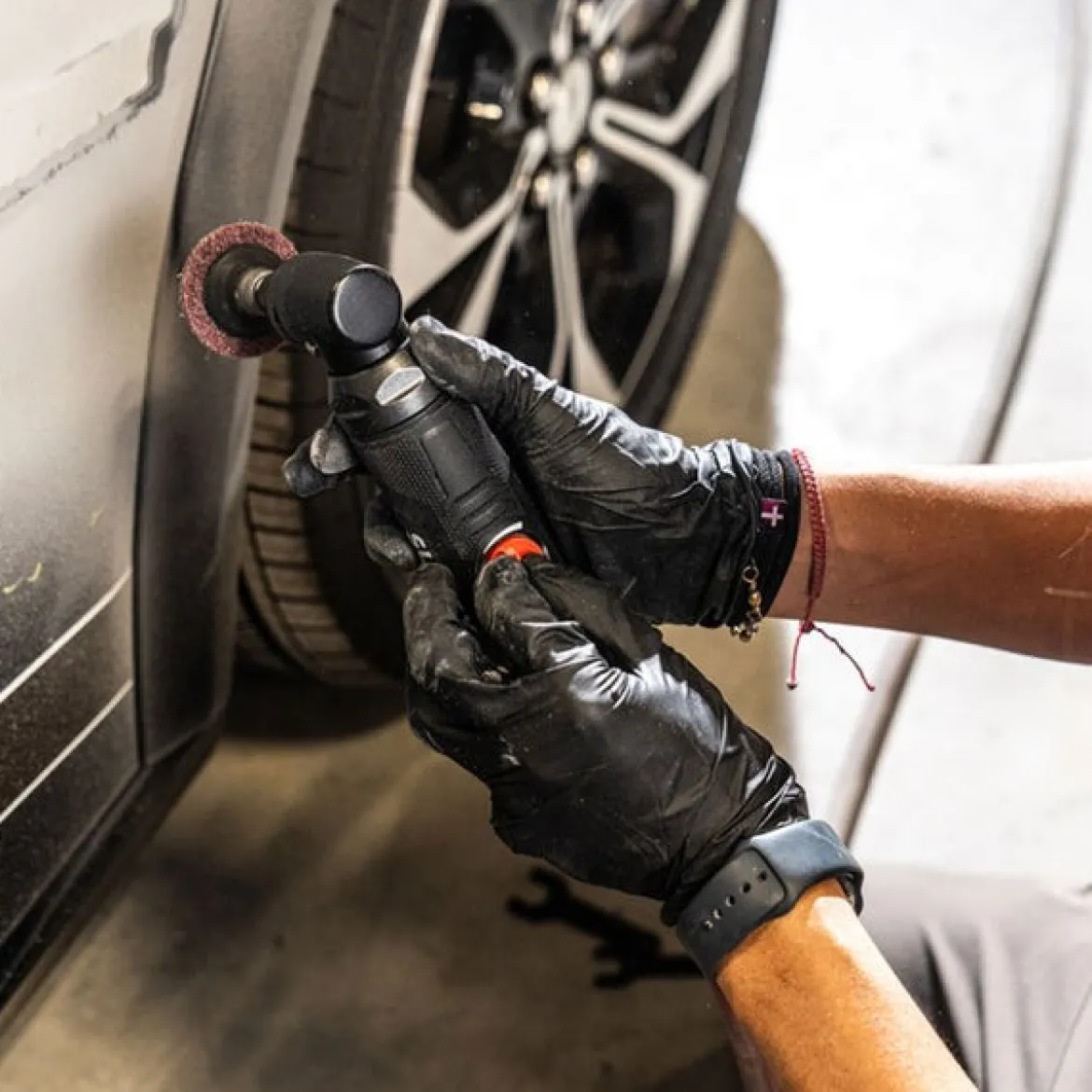

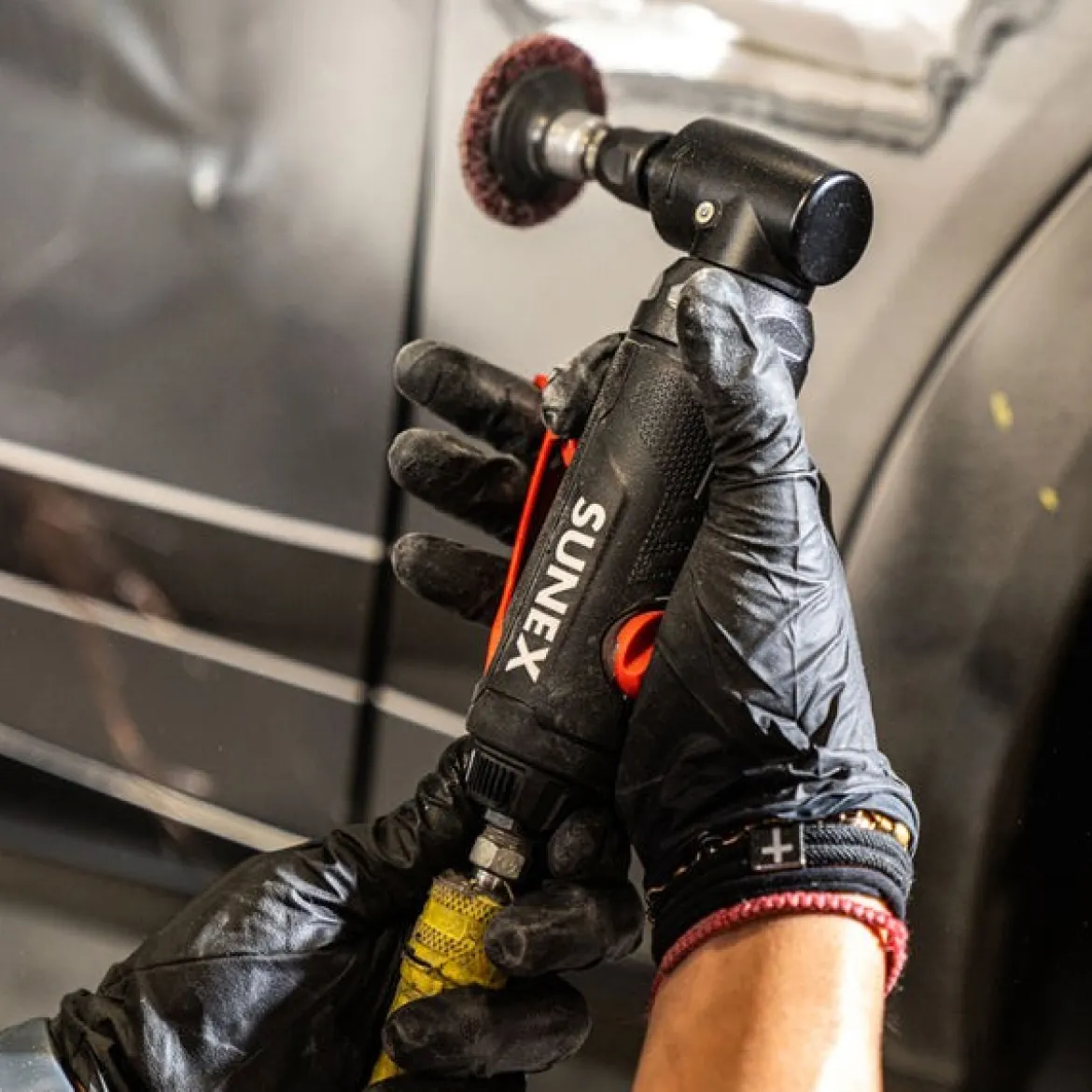

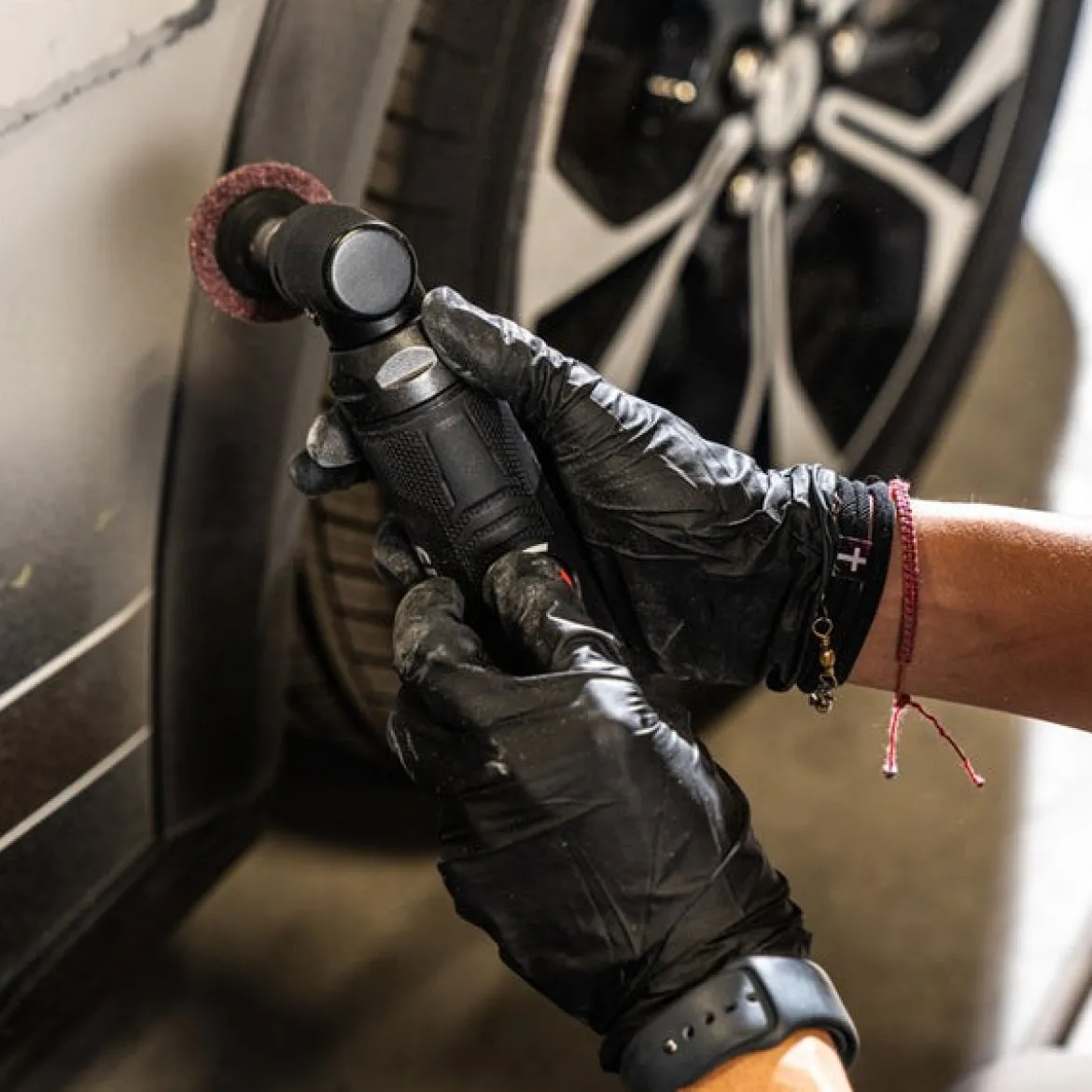

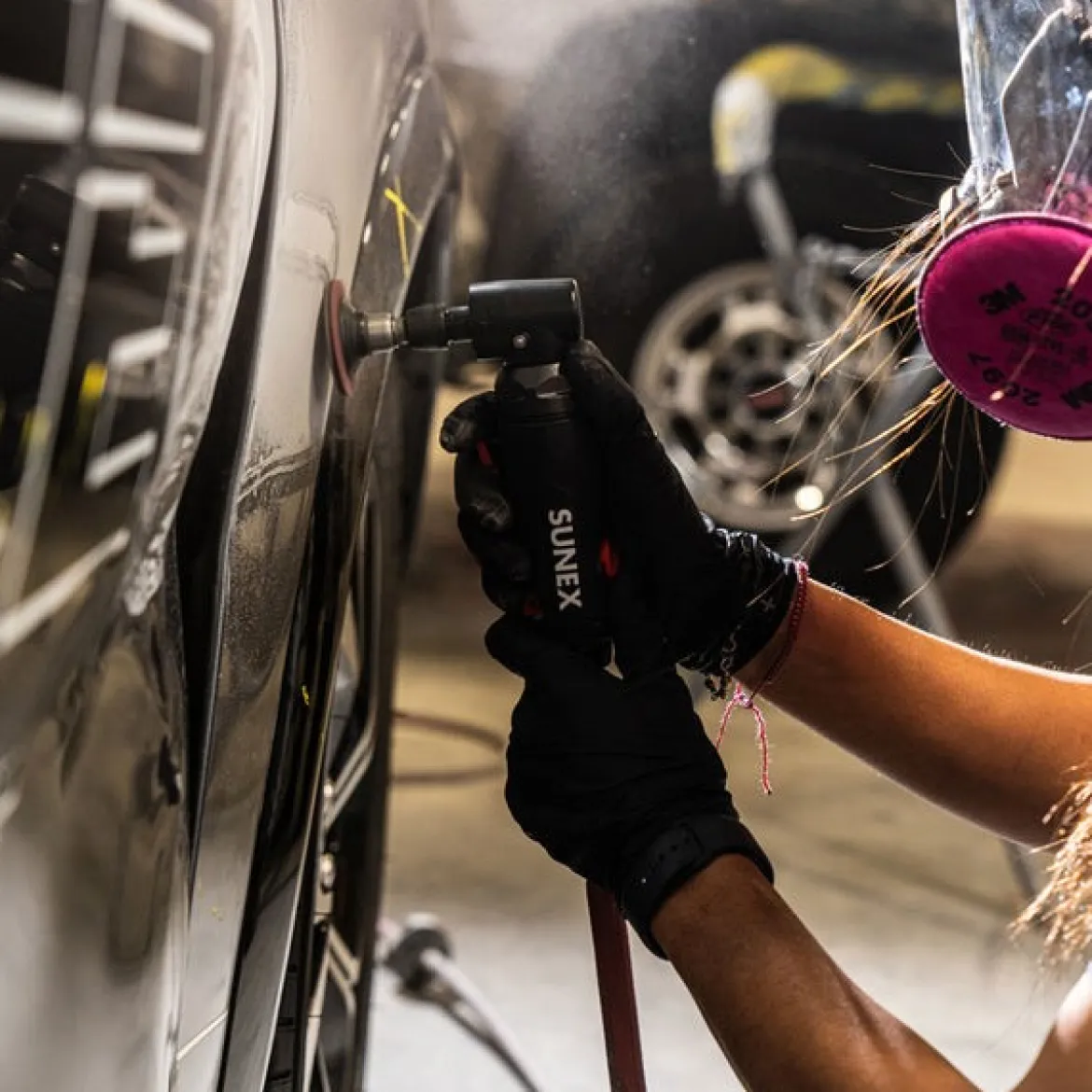

• 90-Degree Angle Configuration: Enables access to restricted areas, making it a functional choice for frame work and engine maintenance.
• Precision 1/4″ 3-Piece Collet: Ensures secure accessory retention and minimizes run-out for more accurate grinding and polishing.
• Integrated Power Regulator: Allows for manual speed adjustments to increase efficiency and safety when switching between different materials.
• Lightweight Composite Housing: Weighing 1.54 lbs, the tool minimizes physical strain during extended use.
• Rear Exhaust System: Directs air and debris away from the operator and work surface to maintain a clean line of sight.
• Safety Lock-Off Trigger: Prevents accidental tool activation in busy shop environments.

Specifications:

• Motor Power: 0.5 HP
• Free Speed: 20,000 RPM
• Collet Size: 1/4 inch
• Air Consumption: 3.5 CFM
• Operating Pressure: 90 PSI
• Air Inlet: 1/4 inch NPT
• Weight: 1.54 lbs
• Included in Box: SX5208 Angle Die Grinder, Collet Wrenches, and Air Inlet Plug

How to Use:

• Air Supply Connection: Attach a 1/4″ NPT air fitting to the tool’s inlet. Ensure your air compressor is set to 90 PSI and can provide at least 3.5 CFM.
• Accessory Installation: Use the provided wrenches to loosen the 3-piece collet. Insert the 1/4″ shank of your grinding or polishing accessory and tighten the collet securely.
• Speed Adjustment: Turn the adjustable power regulator to set the desired speed based on the material you are working on.

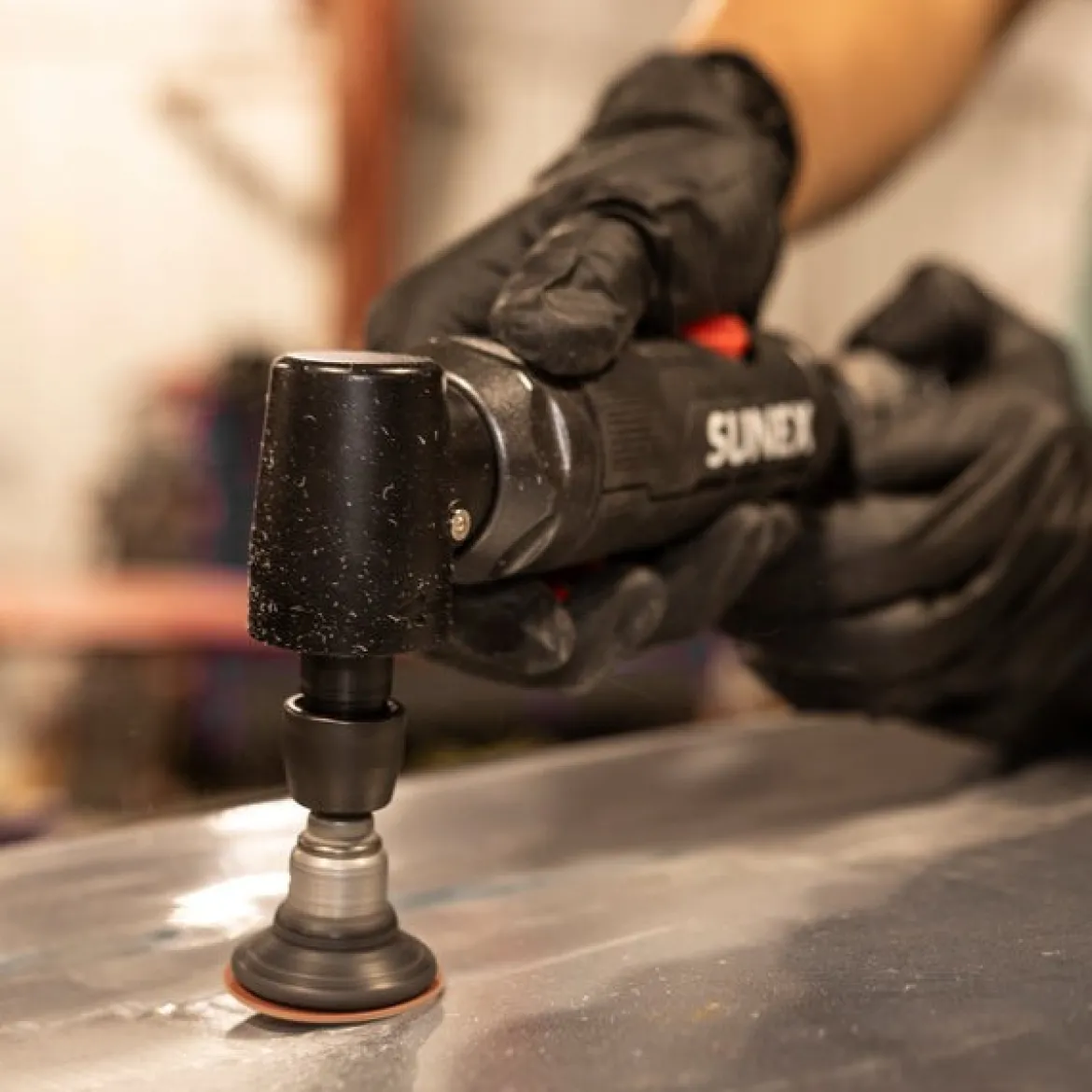

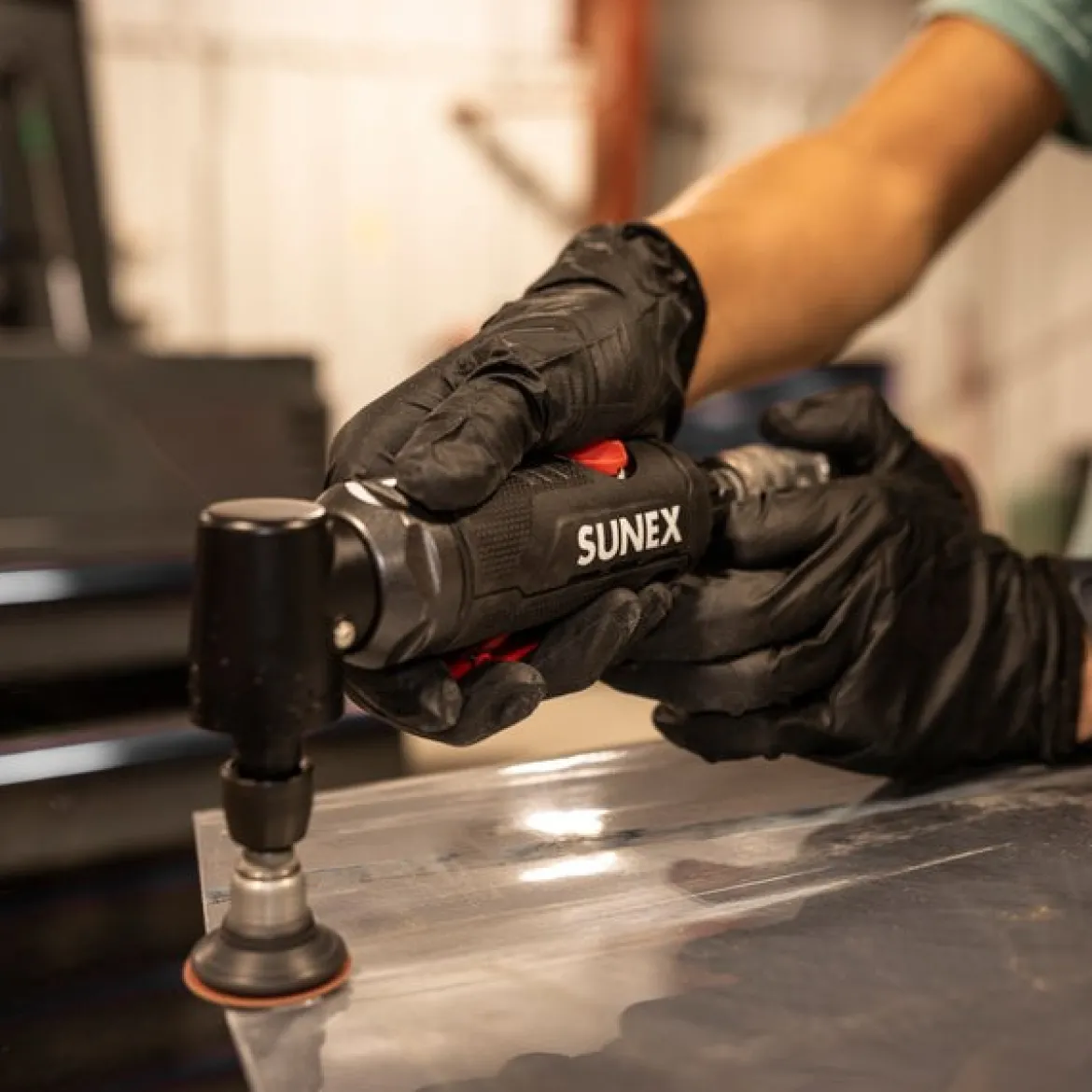

• Operation: Disengage the safety lock-off trigger and depress the lever to start the tool. Apply the accessory to the workpiece, allowing the 20,000 RPM speed to do the work rather than applying excessive downward pressure.
• Shutdown and Maintenance: Release the trigger and wait for the tool to stop completely before setting it down. Disconnect the air line and apply 2-3 drops of air tool oil into the inlet daily.

Benefits of Using Sunex Tools 0.5HP 90-Degree Angle Die Grinder (SX5208):

• High Power and Maneuverability: The 0.5HP motor ensures the tool does not lose momentum during weld breaking. The 90-degree head allows versatile use without disassembly of surrounding components.
• Improved Working Environment: The rear exhaust and composite body minimize noise direction and vibration, enhancing user comfort and accuracy during longer work sessions.

Features:

• High-Velocity Output: Reaches up to 20,000 RPM for rapid material removal and fine detailing.
• Advanced Collet Design: Uses a 3-piece system to provide a more uniform clamping force on 1/4-inch shanks.
• Ergonomic Overmold: Non-slip grip surface that improves tool retention and reduces vibration impact on the hand.
• Debris Management: A rear-oriented exhaust port keeps the work area clear of dust and oil mist.
• Accidental Start Prevention: A mechanical safety lock on the trigger lever ensures the motor only starts when intended.
• Compact Footprint: Engineered with a slim profile to fit into chassis channels and tight mechanical gaps.
• Variable Airflow Control: A built-in dial regulates the volume of air to the motor for real-time speed management.
