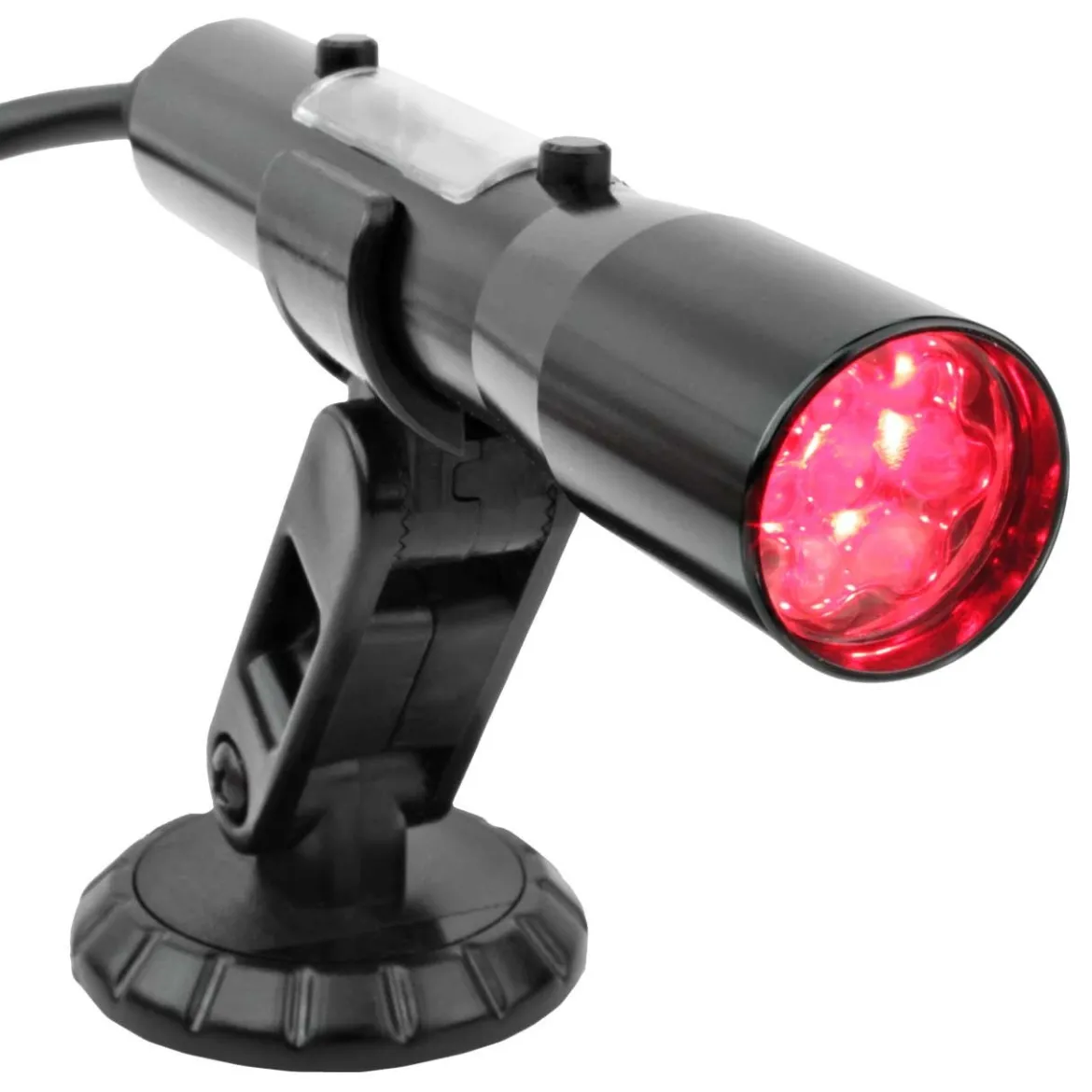

Speedhut Red LEDs Black Tube SST-MAX OBDII Shift Light (A-266)

The Speedhut Red LEDs Black Tube SST-MAX OBDII Shift Light (A-266) is engineered to provide drivers with precise and immediate feedback for optimal gear changes. Utilizing innovative Smart-Shift Technology™, this device directly communicates with your vehicle’s Engine Control Unit (ECU) through the OBDII port. By monitoring both the current gear position and engine RPM in real-time, the SST-MAX™ ensures you know the exact moment to shift for peak performance in any driving situation. Designed for straightforward integration, this shift light offers a simple plug-and-play installation for compatible 2008 and newer vehicles, primarily those based in the USA, Canada, and the UK that utilize the CAN (J1979) protocol. Please note that the SST-MAX™ is not designed to function in conjunction with any other OBDII device connected to your vehicle simultaneously.

KEY FEATURES AND BENEFITS:

• Smart-Shift Technology™: Intelligently monitors both gear position and RPM, providing the most accurate shift indications for optimal vehicle performance.
• Customizable Shift Points: Allows programming of up to 10 different RPM shift points, tailored to each individual gear, within a broad working range of 0 to 10,000 RPM.
• Effortless OBDII Installation: The direct OBDII plug-and-play design eliminates the complexities of traditional wiring, making setup quick and easy for compatible vehicles.
• High-Visibility LED Indication: Features seven super-bright red LEDs that are guaranteed to capture your attention, ensuring you never miss the crucial shift point.
• Adjustable Brightness: Offers five distinct LED brightness settings, including an OFF option, allowing you to customize the display for optimal visibility during both day and night driving conditions.
• Intuitive Menu System: A clear 3-segment LED readout provides a user-friendly interface for easy navigation and setup of the shift light’s various functions.
• Robust and Adjustable Design: Encased in a sleek black billet aluminum housing with an included adjustable mount, offering both durability and flexible installation options.
• Peak Performance Review: The peak recall function allows you to review the highest RPM achieved for each gear, providing valuable insights into your driving performance.
• Extended Reach: Comes equipped with an 8-foot cable, providing ample length for convenient routing and connection to the OBDII port.
• Long-Term Reliability: Backed by a Lifetime Warranty, offering peace of mind regarding the product’s quality and longevity.

SPECIFICATIONS:

• LED Color: Red
• Housing Material: Billet Aluminum
• Cable Length: 8 feet
• Compatibility: 2008 and newer vehicles (primarily USA, Canada, UK) using CAN (J1979) protocol.
• RPM Range: 0 – 10,000 RPM
• Number of Settable Shift Points: Up to 10 (per gear)
• Brightness Levels: 5 (including OFF)
• Included in Purchase: SST-MAX Shift Light unit, OBDII connector cable, adjustable mount.

HOW TO USE:

1. Connect: Locate your vehicle’s 16-pin OBDII Data Link Connector. This is typically found under the dashboard on the driver’s side. Plug the OBDII connector of the SST-MAX shift light securely into this port.
2. Mount: Choose a suitable location to mount the shift light using the provided adjustable mount. Ensure the LEDs are clearly visible while driving and the cable does not interfere with any vehicle controls. You can use the included double-sided tape or a screw (not included) for mounting.
3. Power On: Start your vehicle. The SST-MAX shift light should power on automatically.
4. Enter Setup Menu: Refer to the product’s manual for the specific button sequence to enter the setup menu using the push buttons. The 3-segment LED display will guide you through the menu options.
5. Set Number of Gears: Navigate to the gear selection option in the menu and set the number of gears your vehicle has.
6. Program Shift Points: For each gear, drive at a steady speed in that gear and then press a designated button to save the current RPM as the shift point for that gear. Repeat this process for all gears.
7. Adjust Brightness: Use the menu options to select your desired brightness level for both daytime and nighttime driving. You can also choose to turn the LEDs OFF.
8. Review Peak RPM (Optional): Access the peak recall function in the menu to view the highest RPM reached in each gear.
9. Launch RPM Setting (Optional): If desired, enter the “Launch” mode in the menu and set your desired launch RPM following the instructions in the product manual.

BENEFITS OF USING THE SPEEDHUT RED LEDS BLACK TUBE SST-MAX OBDII SHIFT LIGHT (A-266):

• Improved Shifting Accuracy: By providing precise, real-time feedback on the optimal shift point, the SST-MAX™ helps you shift at the ideal RPM for maximum acceleration and efficiency.
• Enhanced Vehicle Performance: Consistent and accurate shifting contributes to better engine performance, potentially improving fuel economy and reducing wear and tear.
• Simplified Installation: The plug-and-play OBDII connection eliminates the need for complex wiring, making installation quick and hassle-free for compatible vehicles.
• Clear Visual Cue: The bright red LEDs provide an unmistakable visual signal, ensuring you don’t miss the shift point even in demanding driving conditions.
• Customizable to Your Vehicle: The ability to set individual shift points for each gear allows you to tailor the shift light’s behavior to your specific vehicle’s powerband and your driving style.
• Durable and Reliable: The robust billet aluminum housing ensures the longevity of the unit, backed by a comprehensive Lifetime Warranty.

FEATURES:

• Direct communication with the vehicle’s ECU via the OBDII port for real-time gear and RPM monitoring.
• Capability to program up to ten distinct shift RPM values, specifically for each gear.
• A wide operational RPM range from 0 to 10,000 RPM to accommodate various engine types.
• Effortless connection to the vehicle’s diagnostic port, requiring no additional wiring or complex setup.
• Seven intensely bright red LEDs designed for maximum visibility in all lighting conditions.
• Five selectable levels of LED illumination, including a complete OFF setting for user preference.
• A straightforward three-segment LED display facilitating easy navigation and adjustment of settings.
• A strong and stylish black billet aluminum enclosure providing both protection and a sleek aesthetic.
• A function to recall and display the maximum RPM achieved in each gear.
• An extended 8-foot cable with an integrated OBDII connector for flexible mounting options.
