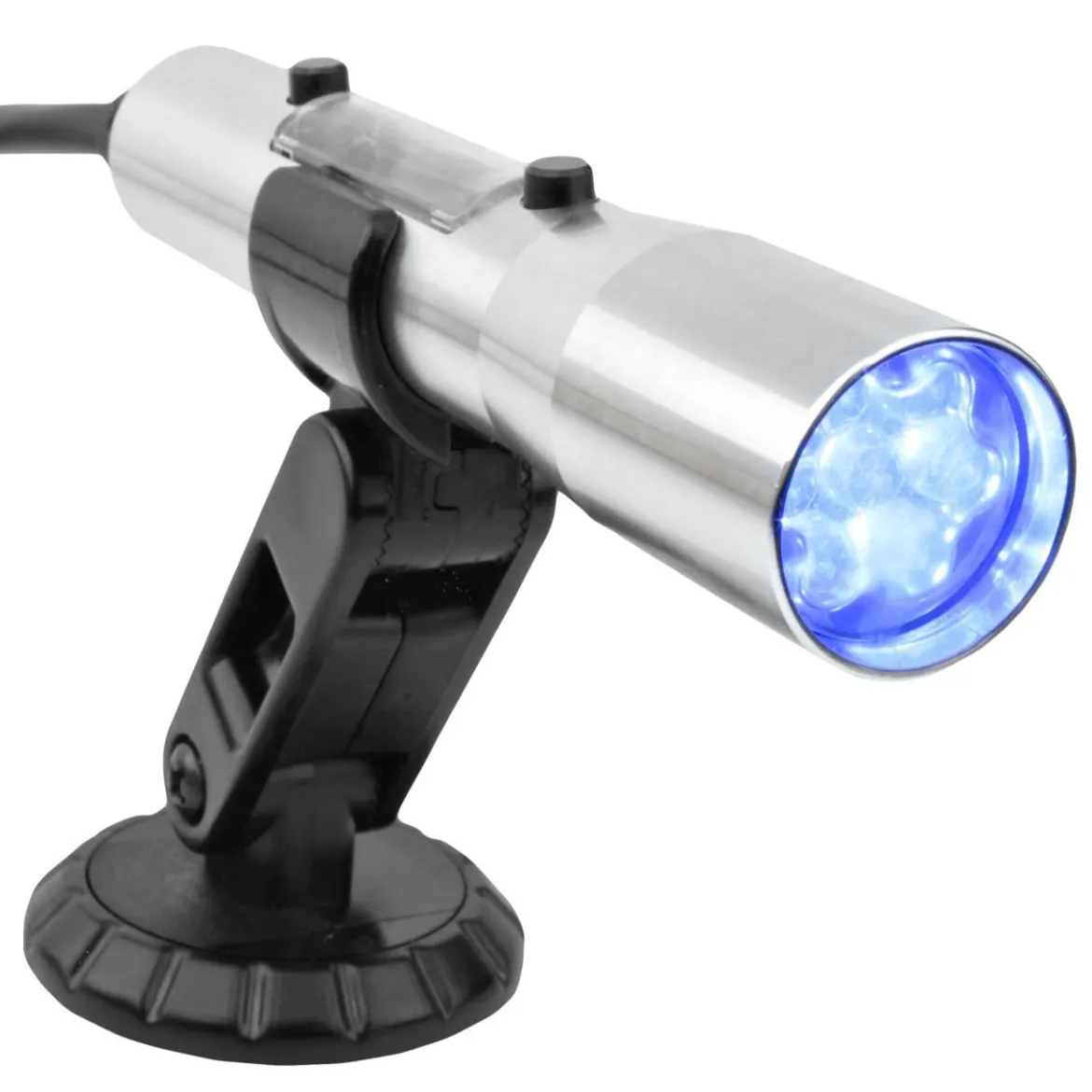

Speedhut Blue LEDs SST Shift Light w/Silver Aluminum Tube (A-147)

The Speedhut Blue LEDs SST Shift Light w/Silver Aluminum Tube (A-147) is engineered to provide drivers with precise visual cues for optimal gear changes. Utilizing patent-pending Smart-Shift Technology™, this advanced shift light actively monitors your engine’s performance in real-time, capturing numerous data points from each spark pulse to ensure highly accurate shift indications. Its broad compatibility across various ignition systems simplifies installation, eliminating the need for additional adapters in most vehicles. The bright blue LEDs offer excellent visibility, allowing drivers to react instantly and improve their shifting precision. Housed in a sleek and robust silver billet aluminum tube, this shift light combines performance with a stylish aesthetic.

KEY FEATURES AND BENEFITS:

• Smart-Shift Technology™: Provides highly accurate, real-time engine monitoring for precise shift points.
• Wide Ignition Compatibility: Works seamlessly with single coil, distributor, distributor-less, and coil-on-plug ignition systems, as well as diesel fuel injectors.
• Hassle-Free Installation: Typically requires no tachometer adapter, simplifying the setup process.
• High Visibility: Features 7 super bright blue LEDs for clear indication of the optimal shift point.
• Programmable Mode: Enables users to calibrate the shift light using a known RPM for maximum accuracy.
• Adjustable Shift Point: Allows for precise setting of the shift RPM in increments of 10 RPM.
• Peak RPM Recall: Records and displays the highest RPM achieved.
• Adjustable Brightness: Offers customizable day and night brightness levels, including an off setting.
• Durable Construction: Features a robust silver billet aluminum housing.
• User-Friendly Interface: Equipped with easy-to-use push buttons and an LED screen for straightforward programming.
• Flexible Mounting: The adjustable mount allows for versatile positioning within the vehicle.
• Long-Term Reliability: Backed by a lifetime warranty on the electronic circuit board.

SPECIFICATIONS:

• LED Color: Blue
• Housing Material: Silver Billet Aluminum
• Tube Diameter (Maximum): 0.75 inches
• Tube Length: 4.25 inches
• Working RPM Range: 0 – 10,000 RPM (up to 20,000 RPM for motorcycles/powersports according to some sources)
• Shift Point Adjustment: 10 RPM increments
• Power Connection: Direct wire (4 ft. leads)
• Included in Purchase: Speedhut Blue LEDs SST Shift Light with Silver Aluminum Tube (A-147), Adjustable Mount

HOW TO USE:

• Preparation: Begin by safely disconnecting the negative terminal of your vehicle’s battery.
• Mounting: Choose a visible location within your vehicle to mount the shift light using the provided double-sided tape or an optional screw (not included). Ensure the adjustable mount is positioned as desired.
• Wiring (Power & Ground): Connect the red wire from the shift light to a +12V accessory power source. Connect the black wire to a suitable ground point on the vehicle’s chassis.
• Wiring (Signal Wire): Connect the yellow/green stripe wire to the negative side of one of your ignition coils or the tachometer output wire, depending on your vehicle’s ignition system. For diesel engines, connect to a fuel injector signal wire. If your model has a white wire, connect it to the dash lighting circuit for day/night brightness control.
• Reconnect Battery: Once all wiring is securely connected, carefully reconnect the negative terminal of your vehicle’s battery.
• Programming (PPR): Turn on your vehicle’s ignition. Access the programming mode on the shift light (refer to the product manual if available) to set the Pulses Per Revolution (PPR) that corresponds to your engine type (e.g., 4 cylinders typically use 2 PPR).
• Programming (Shift Point): Use the push buttons to navigate the menu and set your desired shift point RPM. The LED screen will display the current setting.
• Optional Settings: Explore other programmable features such as peak RPM recall and day/night brightness levels according to your preferences.

BENEFITS OF USING THE SPEEDHUT BLUE LEDS SST SHIFT LIGHT W/SILVER ALUMINUM TUBE (A-147):

• Provides a clear and immediate visual cue for accurate gear changes.
• Improves shifting precision, leading to enhanced acceleration and fuel efficiency.
• Utilizes Smart-Shift Technology™ for real-time engine monitoring.
• Broad ignition compatibility removes the need for adapters in most cases.
• Programmable features allow a customized setup for shift point and brightness.
• Durable construction ensures longevity and performance over time.
• Backed by a lifetime warranty for added peace of mind.

FEATURES:

• Provides immediate visual indication for optimal gear changes.
• Monitors engine performance in real-time for accurate shift cues.
• Installs easily on a variety of ignition systems without extra parts.
• Offers a user-friendly interface with push-button controls.
• Remembers the highest engine speed reached.
• Allows customization of display brightness for different lighting conditions.
• Constructed with a robust and stylish silver metal casing.
• Can be precisely calibrated to match specific engine RPM requirements.
• Offers versatile mounting options for convenient placement.
• Compatible with both gasoline and diesel-powered vehicles.
