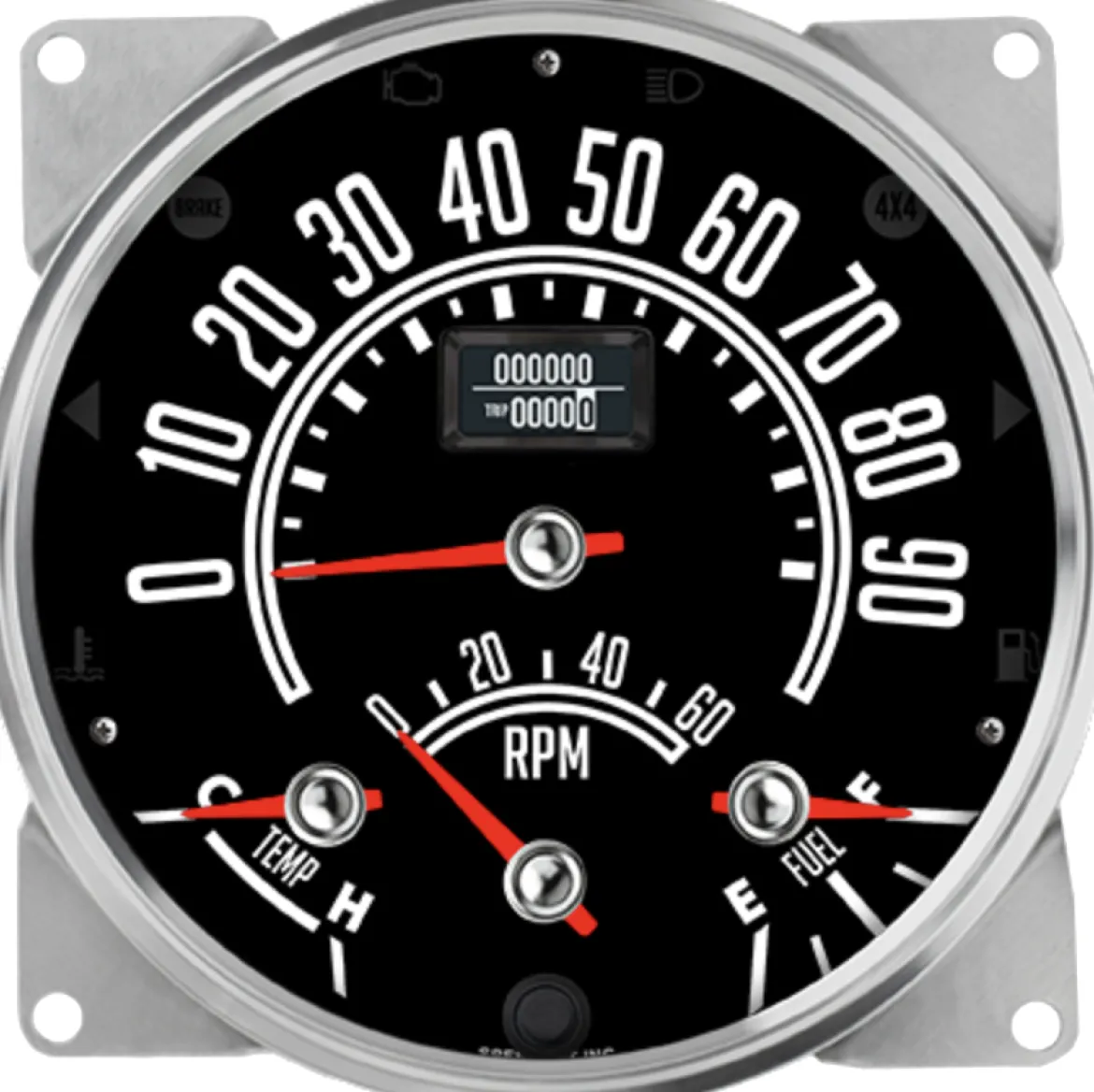

Speedhut 5-1/2″ 90mph CJ Jeep GPS Speedometer w/ Tachometer (CJ55-QG1)

The Speedhut 5-1/2″ 90mph CJ Jeep GPS Speedometer w/ Tachometer (CJ55-QG1) is a comprehensive, direct OEM replacement gauge solution designed specifically for Jeep CJ models (CJ5, CJ7, and CJ8). This precision-engineered unit integrates four essential gauges into a single, space-saving 5-1/2 inch display, providing you with all the critical information you need for confident driving. The standout feature is its GPS-based speedometer, which eliminates the complexities of traditional speed sensors and mechanical cables, ensuring effortless installation and accurate readings without the need for manual calibration. Paired with a reliable tachometer, fuel level gauge, and temperature gauge, this cluster offers a complete and modern instrumentation upgrade for your classic Jeep.

KEY FEATURES AND BENEFITS:

• Integrated 4-in-1 Gauges: Combines a 90 mph GPS speedometer, a 6K RPM tachometer, a fuel level gauge, and a 120-260°F temperature gauge into one compact unit.
• Hassle-Free GPS Speedometer: Utilizes GPS technology for speed readings, making installation simple and eliminating the need to account for tire sizes or gear ratios.
• Global Operation: Functions worldwide using free GPS signals, requiring no subscription or data transmission.
• Accurate Readings: Features an internal microprocessor that ensures precise measurements across all integrated gauges.
• Reliable Performance: Equipped with a high-torque stepper motor for accurate and stable pointer movement.
• Enhanced Durability: Constructed with a solid billet aluminum bezel for added strength and a premium look, along with a weather-resistant design for longevity in various conditions.
• Long-Term Assurance: Backed by a lifetime warranty, providing peace of mind regarding the quality and dependability of the product.

SPECIFICATIONS:

• Speedometer Range: 0-90 mph
• Tachometer Range: 0-6000 RPM
• Temperature Range: 120-260°F
• Size: 5 1/2 inch diameter
• Mounting: Behind dash with factory-style brackets
• Included: GPS antenna with a 9.8 ft cable and SMA connector, main 2-wire power/ground harness, 8 ft tachometer harness (for LED-lit gauges), temperature gauge wiring harness

HOW TO USE:

1. Mount the Gauge Cluster: Install the Speedhut cluster into the factory gauge location in your Jeep CJ using the existing mounting brackets.
2. Connect Power and Ground: Connect the provided 2-wire harness to a suitable power source and ground in your vehicle.
3. Install the GPS Antenna: Mount the GPS antenna in a location with a clear view of the sky (e.g., dashboard top, windshield area) and connect the antenna cable to the speedometer.
4. Connect the Tachometer: Connect the tachometer harness to a suitable tachometer signal source in your vehicle (typically the negative side of the ignition coil or a designated tach output).
5. Connect the Temperature Sensor: Install the provided temperature sensor in the engine’s coolant system and connect it to the temperature gauge using the provided wiring harness.
6. Connect the Fuel Level Gauge: Connect the fuel level gauge wiring to the existing fuel level sender unit in your Jeep’s fuel tank. Calibration may be needed for non-standard senders.
7. Verify Connections: Double-check all wiring connections to ensure they are secure and correct.
8. Test the Gauges: Start your vehicle and observe the gauges to ensure they are functioning correctly and providing accurate readings.

BENEFITS OF USING THE SPEEDHUT 5-1/2″ 90MPH CJ JEEP GPS SPEEDOMETER W/ TACHOMETER (CJ55-QG1):

• Simplified speedometer installation with no mechanical speed sensor or cable required.
• Provides four critical gauges in one space-saving cluster for improved dashboard organization.
• Ensures precision readings through internal microprocessor and high-torque stepper motors.
• Built to endure tough environments with weather-resistant, rugged construction.
• Brings modern functionality to classic Jeep CJ models using GPS technology.
• Covered by a lifetime warranty for long-term reliability and customer assurance.
• Quick and easy setup with minimal calibration needs.

FEATURES:

• Satellite-Based Speed Sensing: Utilizes GPS for precise speed measurement without physical connections to the drivetrain.
• Worldwide Compatibility: Operates using global positioning system signals without requiring any subscriptions.
• Microcontroller Precision: Internal circuitry ensures accurate data processing and gauge display.
• High-Resolution Stepper Movement: Provides smooth and accurate needle movement for clear readings.
• Robust Outer Construction: Features a strong billet aluminum bezel and a design that resists the elements.
• Guaranteed Product Lifespan: Comes with a lifetime warranty on electronic components.
• Proudly Made in the USA: Reflects high manufacturing standards and quality control.
