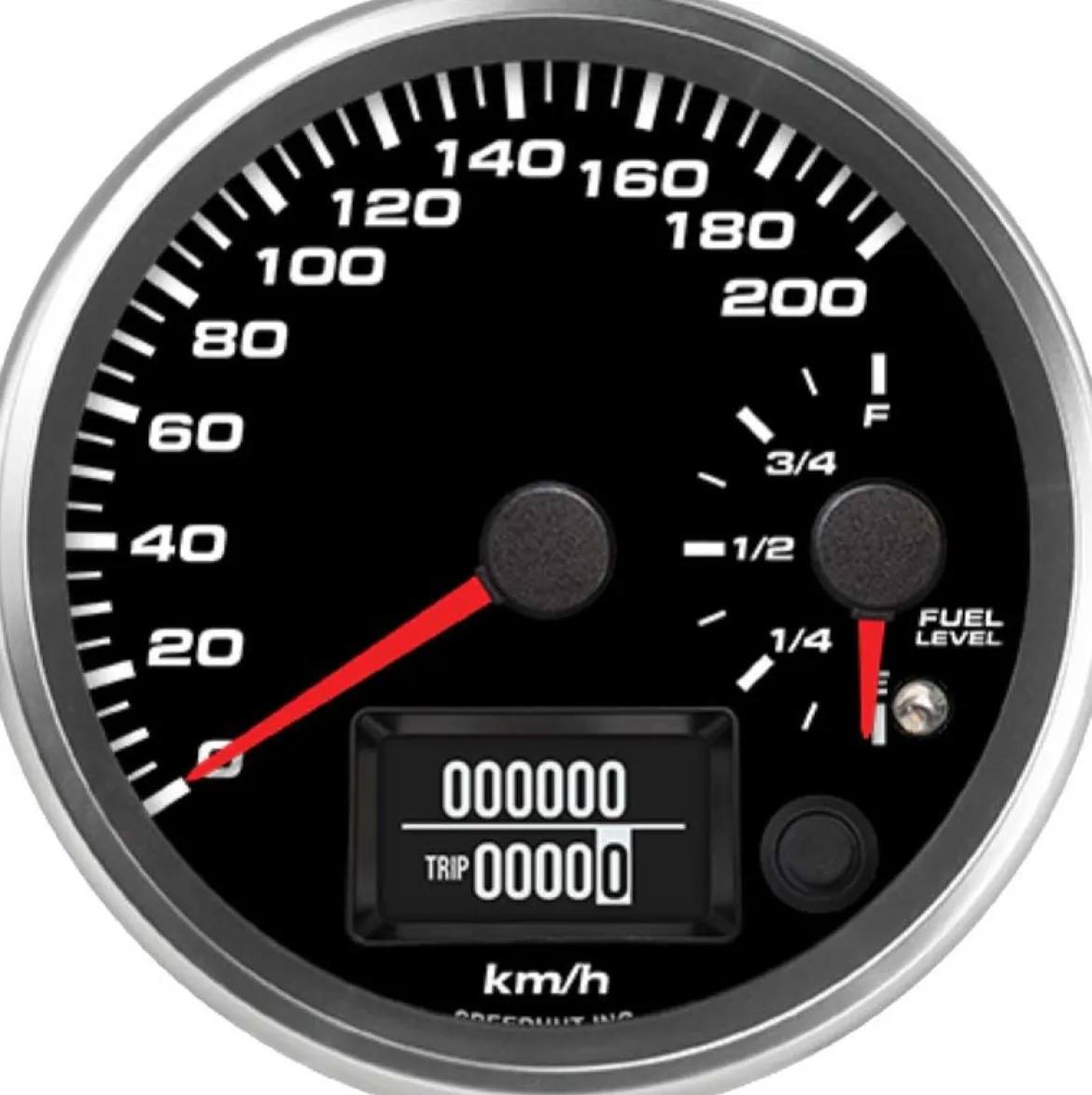

Speedhut 4″ 200 km/h GPS Speedometer / Fuel Level Gauge (R4-DS5-REV)

Experience enhanced driving awareness with the Speedhut 4″ 200 km/h GPS Speedometer / Fuel Level Gauge (R4-DS5-REV). This innovative gauge combines the precision of GPS-based speed measurement with the essential monitoring of your vehicle’s fuel level in a single, easy-to-install unit. Say goodbye to the complexities of traditional speed sensors and enjoy accurate, real-time data at your fingertips. Designed for global usability and built with quality craftsmanship, this gauge provides a comprehensive solution for confident navigation on any road.

KEY FEATURES AND BENEFITS:

• Dual Functionality: Integrates a highly accurate GPS speedometer (0-200 km/h range) and a reliable fuel level gauge (Empty to Full) in a compact 4-inch display.
• Precise GPS Speedometer: Utilizes advanced GPS technology to deliver instantaneous and accurate speed readings without the need for mechanical connections or calibration for tire sizes and gear ratios.
• Effortless Installation: Requires a simple 12V power connection and the included waterproof GPS antenna, which can be conveniently mounted anywhere on your vehicle.
• Global Operation: Functions worldwide, leveraging free GPS technology without any subscription fees. The system is designed to receive data only, ensuring user privacy.
• Accurate Readings: Features an internal microprocessor that ensures pinpoint accuracy in both speed and fuel level readings.
• Reliable Performance: Equipped with a high-torque stepper motor that guarantees precise pointer movement, even under demanding driving conditions.
• Simple Mounting: The slim case design and convenient spin-lock ring allow for quick and easy installation into a standard 3.95″ (100mm) gauge opening.
• Enhanced Aesthetics and Durability: Features a solid billet aluminum bezel, adding a touch of style and increased durability to the gauge.
• Weather Resistance: Built with a weather-resistant design, ensuring reliable performance in various environmental conditions.
• Long-Term Reliability: Backed by a Lifetime Warranty, providing peace of mind and assurance in the product’s dependability.
• Quality Manufacturing: Proudly made in America, reflecting superior quality and craftsmanship.

SPECIFICATIONS:

• Gauge Type: Dual GPS Speedometer / Fuel Level Gauge
• Speedometer Range: 0-200 km/h
• Fuel Level Range: Empty (E) – Full (F)
• Size: 4 inch (4″)
• Hole Size: 3.95 inches (100mm)
• Standard or Metric: Metric
• Included in Purchase:
  • GPS Antenna with 9.8 ft long cable and male SMA connector
  • 3 ft Power & Lighting Harness – for LED Lit Gauges and Clocks
  • Wiring Harness (2-Wire Cable)

HOW TO USE:

1. Mount the Gauge: Locate a suitable 4-inch (100mm) diameter opening on your dashboard. Insert the Speedhut gauge into the opening and secure it using the spin-lock ring from the back.
2. Connect Power: Connect the red wire from the included Power & Lighting Harness to a 12V positive power source in your vehicle. Connect the black wire to a suitable ground.
3. Connect Lighting (Optional): If your gauge has LED lighting, connect the appropriate wires from the Power & Lighting Harness according to the gauge’s specific wiring diagram (typically a separate wire for illumination power and potentially a dimmer wire).
4. Install GPS Antenna: Mount the waterproof GPS antenna in a location with a clear view of the sky. This can typically be on the roof or dashboard.
5. Connect GPS Antenna: Connect the male SMA connector on the GPS antenna cable to the corresponding connector on the back of the Speedhut gauge.
6. Connect Fuel Level Wiring: Connect the wires from the included 2-Wire Cable to the appropriate terminals on your vehicle’s fuel level sending unit. Refer to your vehicle’s wiring diagram for correct connections. The other end of this cable connects to the designated terminals on the back of the Speedhut gauge.
7. Start Your Vehicle: Once all connections are secure, start your vehicle. The speedometer should begin displaying your speed as soon as a GPS signal is acquired. The fuel level gauge should indicate the current fuel level in your tank.

BENEFITS OF USING THE SPEEDHUT 4″ 200 KM/H GPS SPEEDOMETER / FUEL LEVEL GAUGE (R4-DS5-REV):

• Unmatched Speed Accuracy: Experience precise speed readings derived directly from GPS satellites, eliminating the inaccuracies associated with mechanical speedometers, especially after tire or gear changes.
• Simplified Installation: Avoid the complexities of routing speed sensor cables and calibrating for different vehicle setups. The GPS-based system offers a significantly easier installation process.
• Space-Saving Design: Combine two essential gauges into one compact unit, freeing up valuable dashboard space and creating a cleaner, more integrated look.
• Global Compatibility: Whether you’re driving locally in Santa Rosa, Calabarzon, Philippines, or anywhere else in the world, the GPS speedometer will function accurately without any additional setup or subscriptions.
• Enhanced Reliability: The use of a high-torque stepper motor ensures smooth and accurate needle movement for both speed and fuel level, providing consistent and dependable readings.
• Long-Term Investment: The Lifetime Warranty offers exceptional value and confidence in the product’s durability and longevity.
• Quality Assurance: Being made in America signifies a commitment to high manufacturing standards and quality control.

FEATURES:

• Real-time speed tracking via satellite-based positioning.
• Dedicated indicator for fuel tank level (Empty to Full).
• Internal processing unit for precise data interpretation.
• Robust motor technology for consistent pointer movement.
• Low-profile housing with a secure mounting mechanism.
• Machined aluminum outer ring for a refined appearance.
• Engineered to withstand various weather conditions.
• Guaranteed performance for the product’s lifespan.
• Proudly produced within the United States.
• Included antenna for immediate GPS signal acquisition.
• Supplied wiring for straightforward power and optional lighting connections.
• Two-wire harness provided for direct fuel level sensor integration.
