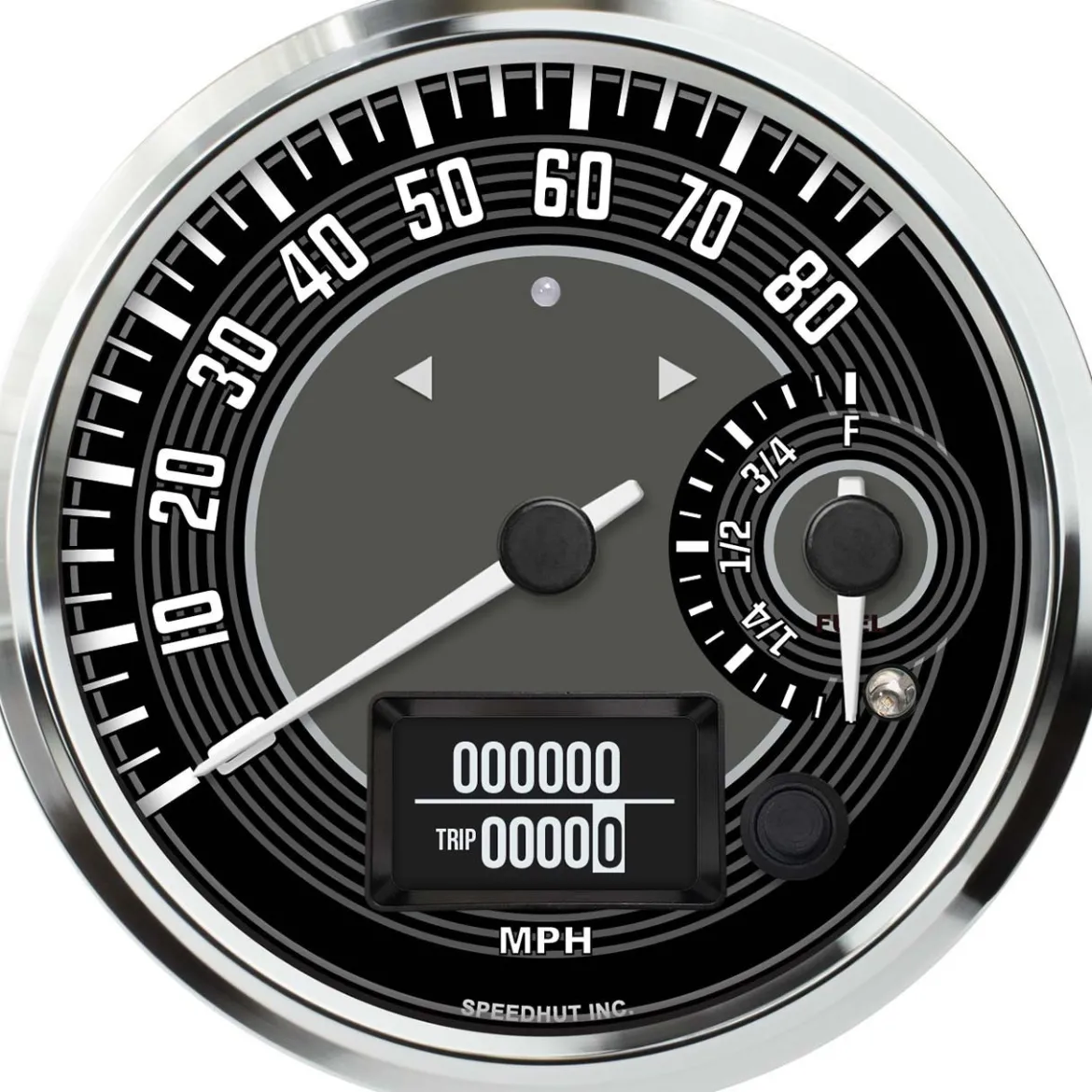

Speedhut 4-1/2″ VW Design 80 mph GPS Speedo / Fuel Level (R45-DS10-VW)

The Speedhut 4-1/2″ VW Design 80 mph GPS Speedo / Fuel Level (R45-DS10-VW) delivers both speed and fuel monitoring in a single, efficient gauge. Featuring a vintage Volkswagen-inspired design paired with modern GPS technology, it provides highly accurate speed readings and dependable fuel level indication. Its easy installation and classic aesthetic make it ideal for a variety of vehicles seeking a retro-modern upgrade.

KEY FEATURES AND BENEFITS:

• Dual Functionality: Combines 80 mph GPS speedometer and fuel level gauge in one unit.
• GPS Accuracy: Offers real-time, sensor-free speed tracking using satellite data.
• Simple Power Setup: Requires only a 12V power connection for operation.
• Universal Fit: Suitable for use in a wide range of vehicle types and dashboards.
• Microprocessor-Controlled: Ensures consistent and precise data processing.
• Stepper Motor Mechanism: Provides smooth and reliable pointer movement.

SPECIFICATIONS:

• Gauge Type: Dual GPS Speedometer / Fuel Level
• Speed Range: 0-80 MPH
• Fuel Level Range: Empty (E) – Full (F)
• Size: 4 1/2 inch (4.5″)
• Hole Size: 4.20 inch (107mm)
• Units: Standard (MPH)
• Included: 3 ft Power & Lighting Harness (for LED Lit Gauges and Clocks), Wiring Harness (2-Wire Cable), GPS Antenna with 9.8 ft long cable and male SMA connector

HOW TO USE:

1. Mount the Gauge: Identify a 4.20 inch (107mm) opening on your dashboard. Insert the gauge from the front and secure it using the spin-lock ring from the back.
2. Connect Power and Lighting: Use the 3 ft Power & Lighting Harness to connect the gauge to a 12V power source. Ensure a solid ground connection for optimal function.
3. Attach Wiring Harness: Connect the included 2-wire cable to the appropriate terminals on the back of the gauge.
4. Install the GPS Antenna: Place the waterproof GPS antenna in a clear-sky location (e.g., roof or dashboard) and mount it securely on a clean surface.
5. Connect the GPS Antenna: Plug the male SMA connector into the GPS input on the gauge.
6. Initialize the Gauge: Start your vehicle. The speedometer will begin displaying speed via GPS. The fuel gauge will function according to the vehicle’s existing sender unit wiring.

BENEFITS OF USING THE SPEEDHUT 4-1/2″ VW DESIGN 80 MPH GPS SPEEDO / FUEL LEVEL (R45-DS10-VW):

• Accurate Speed Readings: GPS data ensures dependable tracking regardless of tire size or gear ratio.
• Simplified Installation: Eliminates the need for mechanical sensors or complex wiring.
• Space-Saving Design: Combines two essential gauges into one streamlined instrument.
• Classic Styling: Vintage VW-inspired design enhances vehicle interior aesthetics.
• Global Compatibility: GPS operation works worldwide without subscriptions.
• Reliable Performance: Stepper motor and microprocessor enable precision and smooth operation.
• Built to Last: High-quality materials and weather-resistant build for long-term use.

FEATURES:

• Easy Installation: Slim case and spin-lock ring make mounting straightforward.
• Durable Construction: Solid billet aluminum bezel adds strength and style.
• Weather Resistance: Designed to endure varying environmental conditions.
• Lifetime Warranty: Backed by a lifetime guarantee for peace of mind.
• Made in the USA: Crafted with high-quality American manufacturing standards.
