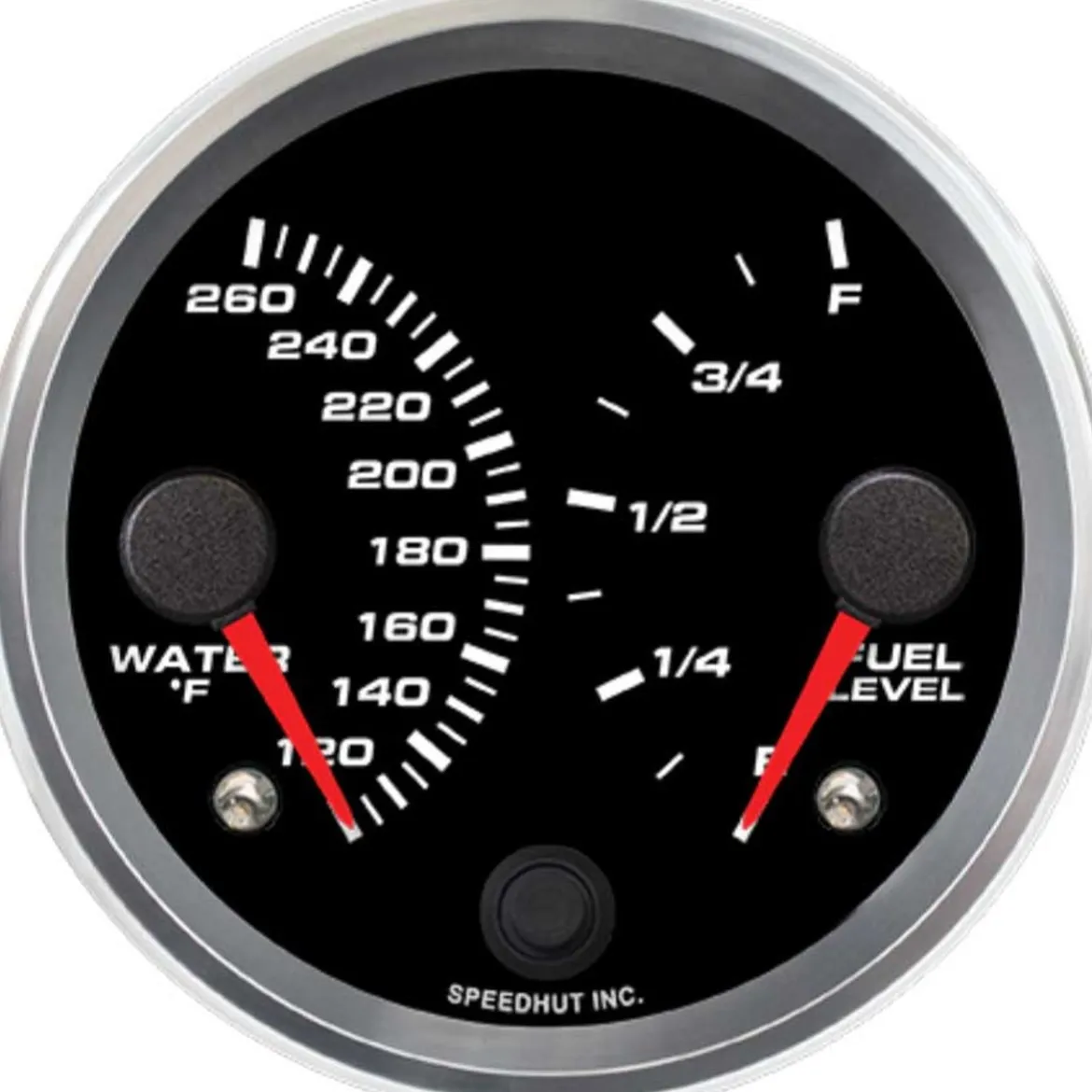

Speedhut 3-3/8″ Porsche Water Temp / Fuel Level Gauge (R3-DG3-PCH)

The Speedhut 3-3/8″ Porsche Water Temp / Fuel Level Gauge (R3-DG3-PCH) provides a stylish and efficient way to monitor two critical vehicle systems simultaneously. Combining engine water temperature and fuel level readings into one compact unit, it features a classic Porsche-inspired design that complements your vehicle’s interior.

KEY FEATURES AND BENEFITS:

• Offers a convenient and accurate dual gauge to monitor water temperature and fuel level in one unit.
• Engine water temperature range from 120 to 260 degrees Fahrenheit.
• Fuel level range from Empty to Full.
• Includes an integrated warning light to alert for potential issues.
• Installation is simplified with included wiring harnesses and a temperature sensor.

SPECIFICATIONS:

• Gauge Type: Dual Gauge
• Combo Options: Water Temperature and Fuel Level
• Water Temperature Range: 120-260 °F
• Fuel Level Range: E-F (Empty to Full)
• Size: 3 3/8 inches (diameter)
• Mounting Hole Size: 3.33 inches (85mm)
• Warning Light: Yes
• Included When Purchased:
• Wiring Harness (2-Wire Cable)
• 3 ft Power & Lighting Harness – for LED Lit Gauges and Clocks
• Temperature Gauge Wiring Harness (2-Wire Cable)
• Speedhut Temperature Sensor

HOW TO USE:

1. Mount the Gauge: Locate a suitable 3.33-inch (85mm) diameter opening in your vehicle’s dashboard. Secure the gauge in place using the provided mounting hardware.
2. Connect the Wiring Harness (2-Wire Cable): Attach one end of the 2-wire cable to the designated terminals on the back of the gauge. Connect the other end to the appropriate power and ground sources in your vehicle’s electrical system, following the wiring diagram provided or consult a professional.
3. Connect the Power & Lighting Harness: Connect the 3 ft power & lighting harness to the designated terminals on the gauge and the vehicle’s power and lighting circuits.
4. Connect the Temperature Gauge Wiring Harness: Attach one end of the 2-wire temperature gauge wiring harness to the designated terminals on the gauge.
5. Install the Temperature Sensor: Locate a suitable port in your engine’s cooling system (e.g., thermostat housing or coolant passage) to install the Speedhut Temperature Sensor securely for accurate readings.
6. Connect the Temperature Sensor Wiring: Connect the other end of the temperature gauge wiring harness to the terminals on the Speedhut Temperature Sensor.
7. Connect the Fuel Level Sender Wiring: Connect the wires from your vehicle’s fuel level sender to the designated terminals on the gauge, following the gauge’s wiring instructions for proper signal and ground connections.
8. Test the Gauge: Start your vehicle and check both water temperature and fuel level readings. Confirm the warning light operates correctly. Fuel level calibration may be required depending on your vehicle’s sender.

BENEFITS OF USING THE SPEEDHUT 3-3/8″ PORSCHE WATER TEMP / FUEL LEVEL GAUGE (R3-DG3-PCH):

• Provides an integrated and space-saving solution to monitor engine temperature and fuel level simultaneously.
• Quickly assess your engine’s thermal state and fuel supply at a glance.
• Porsche-inspired design enhances dashboard aesthetics.
• Visual warning light alerts you to potentially critical engine temperatures.
• Easy installation with included wiring and temperature sensor.

FEATURES:

• Simultaneous readings for engine coolant temperature and fuel tank level.
• Clear display with dedicated scale and pointer for each function.
• Styled to integrate seamlessly with Porsche dashboards.
• Visual warning indicator for high engine temperature conditions.
• Complete with necessary electrical wiring for connections.
• Includes dedicated temperature sensor for accurate coolant temperature measurement.
• Fits standard 3.33-inch (85mm) diameter mounting openings.
