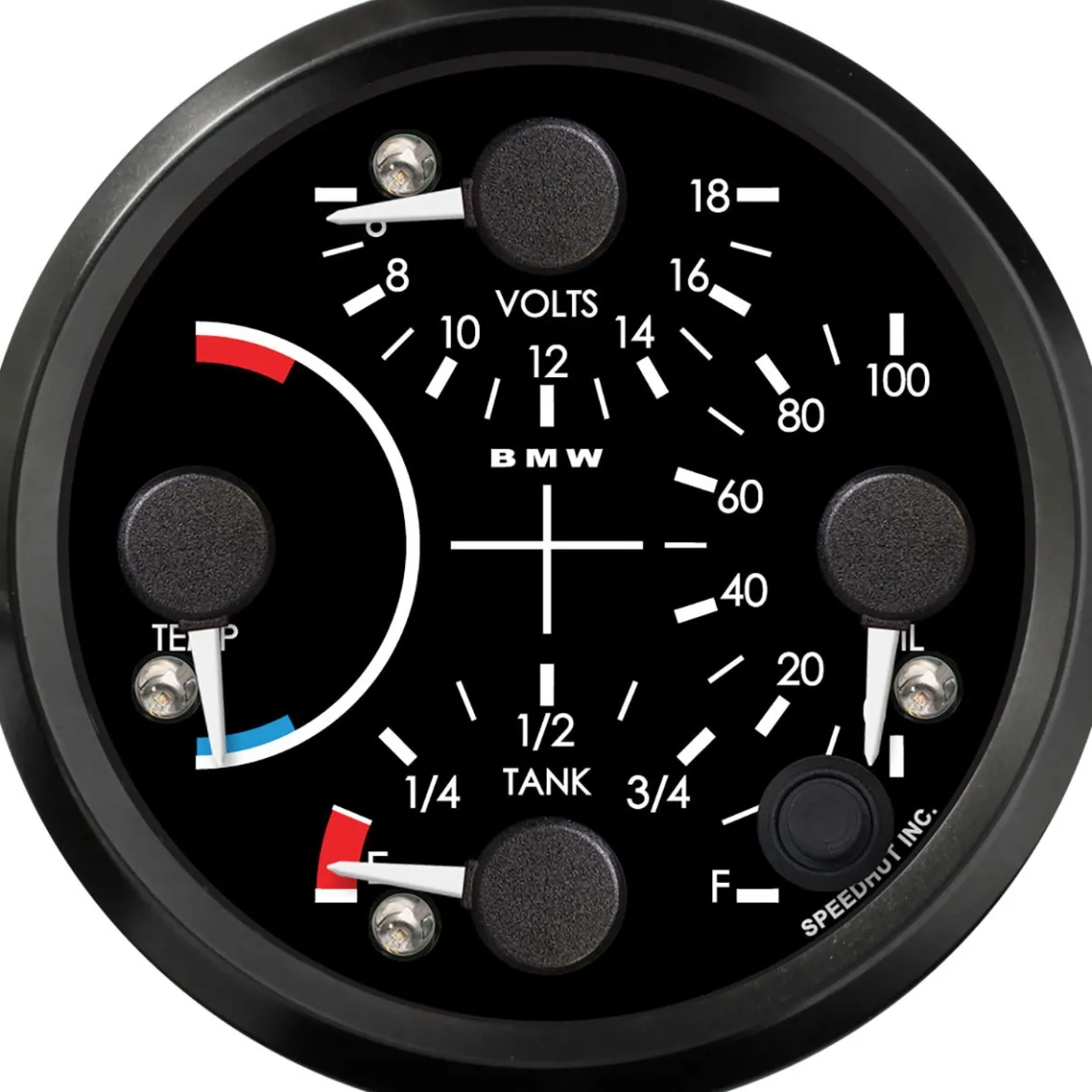

Speedhut 3-3/8″ BMW Met Wat Temp/Volt/OilPSI/Fuel Level (R3-QG1-BMW)

The Speedhut 3-3/8″ BMW Met Wat Temp/Volt/OilPSI/Fuel Level (R3-QG1-BMW) is a comprehensive, space-saving solution for monitoring your vehicle’s most critical systems. This quad gauge integrates four essential readings into a single, easy-to-read 3 3/8 inch (85mm) unit, providing a consolidated overview of your BMW’s performance. Keep a close watch on your engine’s water temperature, electrical system voltage, oil pressure, and fuel level, all from one convenient location. This gauge is designed for accuracy and efficiency, offering drivers the vital information they need without cluttering the dashboard.

KEY FEATURES AND BENEFITS:

• Four-in-One Monitoring: Combines water temperature, voltage, oil pressure, and fuel level readings into a single gauge, simplifying your dashboard layout.
• Clear Metric Readings: Displays water temperature in Celsius, providing precise engine cooling information.
• Essential Electrical Monitoring: Tracks your vehicle’s voltage, helping to identify potential charging system issues.
• Engine Protection: Allows you to monitor oil pressure, a critical factor in engine lubrication and longevity.
• Fuel Awareness: Provides an accurate indication of your remaining fuel level, preventing unexpected empty tanks (compatible with most fuel level sensors up to 300 ohms).
• Warning System: Features an integrated warning light to alert you to potential problems with monitored systems.
• Included Sensors and Wiring: Comes with the necessary temperature and pressure sensors, along with wiring harnesses for straightforward installation.
• Optional Remote Button: Offers the convenience of a remote button for easy access to gauge functions, especially useful when the gauge face is less accessible in the dashboard.

SPECIFICATIONS:

• Gauge Type: Quad Gauge
• Voltage Range: 6-18 volts
• Water Temperature Range: 50-125 °C
• Fuel Level Range: E-F (compatible with fuel level sensors 300 ohms or less)
• Oil Pressure Range: 0-100 psi
• Size: 3 3/8 inch (85mm)
• Hole Size: 3.28 inch (83mm)
• Standard or Metric: Metric (Temperature) / PSI (Pressure)
• Warning Light: Yes
• Included:
  • Wiring Harness (2-Wire Cable)
  • Pressure Gauge Wiring Harness (3-Wire Cable)
  • 3 ft Power & Lighting Harness
  • Speedhut Temperature Sensor
  • Pressure Sensor – 100 psi
  • Temperature Gauge Wiring Harness (2-Wire Cable)

HOW TO USE:

• Installation: Mount the 3 3/8″ Speedhut Quad Gauge into a 3.28″ (83mm) diameter opening in your dashboard.
• Wiring – Power and Ground: Connect the 2-wire power and lighting harness to a suitable 12V power source and ground in your vehicle.
• Wiring – Temperature Sensor: Connect the Speedhut temperature sensor to the designated terminals on the gauge using the provided 2-wire temperature gauge wiring harness. Install the temperature sensor in a suitable location on your engine’s cooling system.
• Wiring – Pressure Sensor: Connect the 100 psi pressure sensor to the designated terminals on the gauge using the provided 3-wire pressure gauge wiring harness. Install the pressure sensor in a suitable port on your engine’s oil system.
• Wiring – Fuel Level: Connect the wiring from your existing fuel level sensor (must be 300 ohms or less) to the designated terminals on the gauge. Note: The fuel level sensor itself is not included.
• Wiring – Voltage: The voltage reading is typically obtained through the main power connection to the gauge.
• Optional Remote Button: If desired, connect the optional remote button to the designated terminals for easier access to gauge functions.
• Operation: Once all connections are secure, the gauge will display the current readings for water temperature, voltage, oil pressure, and fuel level when your vehicle’s ignition is turned on. The warning light will illuminate if any of the readings fall outside of a preset or factory-defined safe range.

BENEFITS OF USING THE SPEEDHUT 3-3/8″ BMW MET WAT TEMP/VOLT/OILPSI/FUEL LEVEL (R3-QG1-BMW):

• Provides a centralized and clear display of critical engine and electrical system information for proactive monitoring.
• Combines four gauges into one to declutter the dashboard and maintain a cleaner aesthetic.
• Includes high-quality sensors ensuring accurate and reliable readings.
• Optional remote button enhances usability in custom dashboard setups.
• Helps contribute to vehicle longevity and reliability by monitoring vital parameters consistently.

FEATURES:

• Integrated Four-in-One Design: Consolidates four critical vehicle measurements into a single, compact unit.
• Metric Temperature Display: Provides precise engine coolant readings in degrees Celsius.
• Direct Voltage Monitoring: Offers real-time feedback on the vehicle’s electrical system performance.
• Real-time Oil Pressure Indication: Displays immediate oil pressure readings in PSI for engine health assessment.
• Broad Fuel Level Compatibility: Designed to work with most standard fuel level senders up to 300 ohms.
• Visual Warning System: Features an integrated light to immediately alert the driver of abnormal readings.
• Complete Wiring Harnesses Included: Simplifies the installation process with specifically designed wiring for each sensor and power.
• Dedicated Temperature Sensor: Ensures accurate and reliable water temperature readings.
• Precise Pressure Sensor: Delivers accurate oil pressure measurements up to 100 psi.
