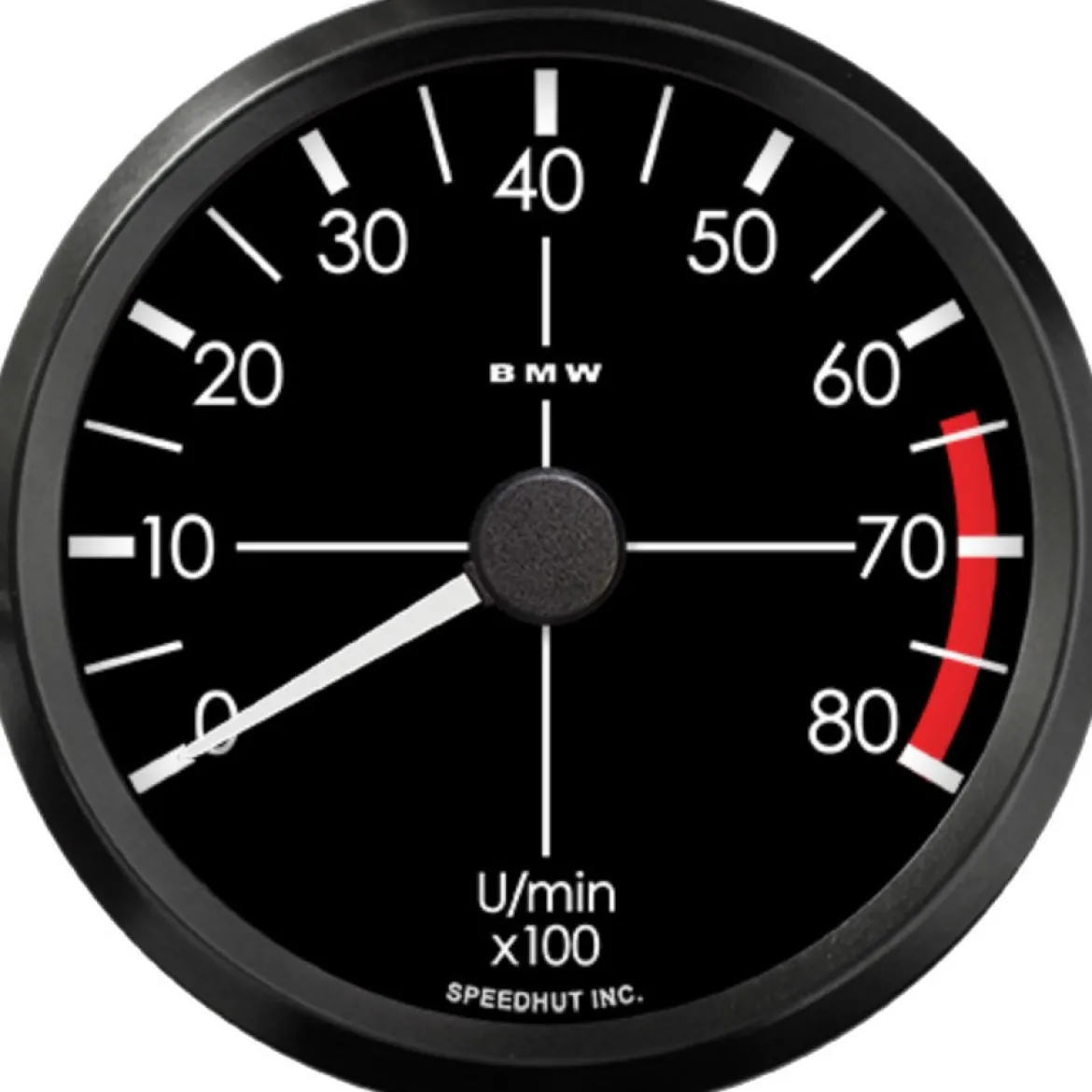

Speedhut 3-3/8″ BMW Design 8K RPM Tachometer (L3-TC3-BMW)

The Speedhut 3-3/8″ BMW Design 8K RPM Tachometer (L3-TC3-BMW) is an essential instrument for drivers seeking accurate and immediate feedback on their engine’s performance. This gauge provides real-time readings of your engine’s revolutions per minute (RPM), allowing for precise monitoring and optimized driving. Designed with a distinct BMW aesthetic, this tachometer seamlessly integrates into vehicles with a similar interior style. Its compatibility with a wide range of engines, from 1 to 12 cylinders utilizing standard spark plug ignition systems, makes it a versatile choice for various automotive applications. Built to deliver pointer precision, even under demanding conditions, this Speedhut tachometer ensures reliable and accurate RPM information, crucial for maximizing engine efficiency and responsiveness.

KEY FEATURES AND BENEFITS:

• Provides accurate real-time RPM readings, essential for performance monitoring.
• Features a BMW-inspired design, complementing vehicles with similar interior aesthetics.
• Compatible with 1 to 12 cylinder engines that use standard spark plug ignition systems.
• Offers precise pointer movement, ensuring reliable readings even in challenging driving scenarios.
• Simple to install with the included mounting ring and wiring harnesses.
• Contributes to achieving peak engine efficiency and responsiveness by allowing drivers to monitor optimal operating ranges.
• Robust construction ensures longevity and reliable performance.

SPECIFICATIONS:

• Gauge Type: Tachometer
• Compatibility: 1-12 cylinder (standard spark plug ignition systems)
• Range: 0 – 8,000 RPM
• Size: 3 3/8 inch (85.725 mm)
• Hole Size: 3.3 inches (84 mm)
• Internal Shift Light: No
• Gauge Mounting Ring: Included
• Ships With:
• 8 ft Tachometer Harness – for LED Lit Gauges (1 Wire 2 Pin Connector)
• 3 ft Power & Lighting Harness – for LED Lit Gauges and Clocks

HOW TO USE:

• Mount the Gauge: Secure the tachometer in a suitable location on your dashboard or instrument panel using the included mounting ring. Ensure the 3.3-inch (84mm) hole is appropriately sized.
• Connect the Power and Lighting Harness: Attach the 3 ft Power & Lighting Harness to the designated terminals on the back of the tachometer. Connect the power wire (typically red) to a switched 12V source, the ground wire (typically black) to a suitable ground point, and the lighting wire (often orange or similar) to your vehicle’s lighting circuit if you desire backlighting.
• Connect the Tachometer Signal Harness: Connect the 8 ft Tachometer Harness to the designated signal terminal on the back of the tachometer. The other end of this harness needs to be connected to a reliable tachometer signal source in your vehicle. For standard spark plug ignition systems, this often involves connecting to the negative (-) side of the ignition coil or a designated tachometer output from your vehicle’s ECU (refer to your vehicle’s wiring diagram for the correct connection point).
• Secure Wiring: Ensure all wiring connections are secure and properly insulated to prevent shorts or loose connections. Route the harnesses neatly and away from any moving parts or heat sources.
• Test the Gauge: Start your vehicle and observe the tachometer’s reading. Verify that the RPM displayed corresponds to the engine speed. Check the backlighting if you connected it to the lighting circuit.

BENEFITS OF USING THE SPEEDHUT 3-3/8″ BMW DESIGN 8K RPM TACHOMETER (L3-TC3-BMW):

• Enhanced Engine Awareness: Provides a clear and immediate visual representation of your engine’s RPM, allowing you to understand its operating state at a glance.
• Optimized Gear Changes: Enables you to shift gears at the most efficient RPM range, maximizing your vehicle’s performance and fuel economy.
• Preventing Engine Damage: Helps avoid over-revving your engine, which can lead to costly damage.
• Improved Driving Experience: Offers a more engaging and informed driving experience, particularly for enthusiasts who want precise control over their vehicle’s performance.
• Seamless Integration: The BMW-inspired design ensures the gauge blends well with the interior of BMW vehicles and other cars with a similar aesthetic.
• Reliable Performance Data: Delivers accurate and consistent RPM readings, crucial for performance tuning and diagnostics.
• Straightforward Installation: The included mounting hardware and wiring harnesses simplify the installation process.

FEATURES:

• Displays engine speed up to 8,000 revolutions per minute.
• Designed with a visual style reminiscent of BMW instrumentation.
• Compatible with engines having one to twelve cylinders.
• Specifically engineered for standard spark plug ignition systems.
• Measures 3 3/8 inches (85.725 mm) in diameter.
• Requires an 84mm (3.3 inch) opening for mounting.
• Comes with an 8-foot harness for the tachometer signal.
• Includes a 3-foot harness for power and backlighting connections.
• Offers precise and stable needle movement for accurate readings.
• Built with robust components for long-lasting operation.
