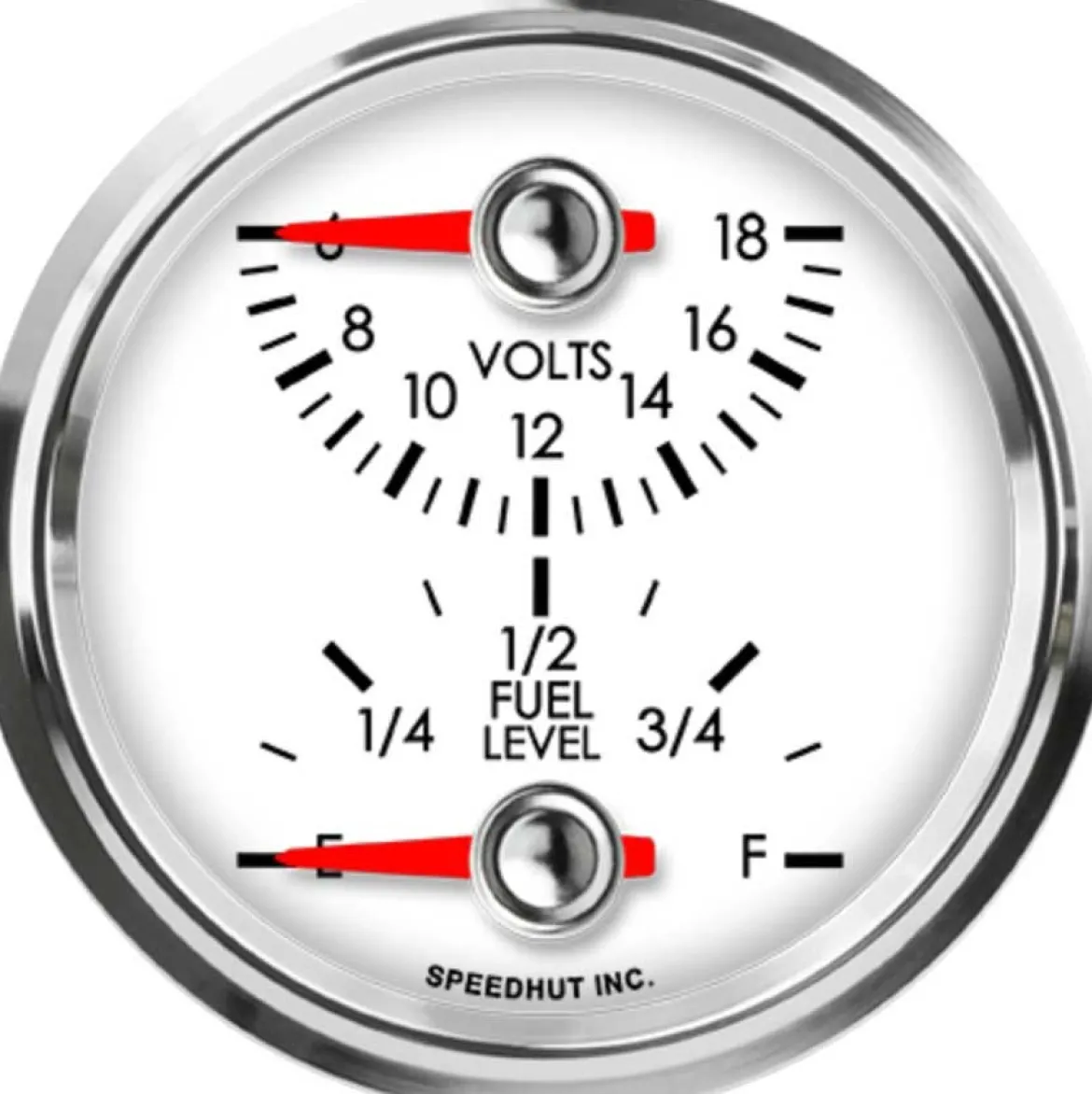

Speedhut 2-5/8″ Volts / Fuel Level Gauge (top/bot) (L25-DG2-LEG)

The Speedhut 2-5/8″ Volts / Fuel Level Gauge (top/bot) (L25-DG2-LEG) offers a practical solution for monitoring two critical vehicle parameters in a single, space-efficient unit. This standard-sized dual gauge provides clear and immediate readings of your vehicle’s voltage and fuel level, allowing you to stay informed about its essential operational status. Designed for easy integration into your dashboard, this gauge is a valuable tool for any vehicle owner seeking to keep a close watch on their system’s health and fuel consumption.

KEY FEATURES AND BENEFITS:

• Dual Functionality: Integrates both a voltmeter (6-18V range) and a fuel level gauge (E-F) into one 2-5/8″ unit, maximizing dashboard space.
• Clear and Accurate Readings: Provides real-time information on your vehicle’s voltage and fuel level.
• Standard Sizing: The 2-5/8 inch (68mm hole size) ensures compatibility with many standard gauge openings.
• Easy Installation: Comes with an included mounting ring for secure and straightforward installation.
• Comprehensive Package: Ships with essential wiring harnesses for power, lighting, and potentially for included sensors (temperature and pressure – verify specific usage with this gauge model).

SPECIFICATIONS:

• Gauge Type: Dual Gauge
• Standard or Metric: Standard
• Combo Options: Voltage and Fuel Level
• Voltage Range: 6-18 volts
• Fuel Level Range: E-F
• Size: 2 5/8 inch
• Hole Size: 2.67 inches (68mm)
• Warning Light: No
• Gauge Mounting Ring: Included
• Ships With:
  • 3 ft Power & Lighting Harness – for LED Lit Gauges and Clocks
  • Speedhut Temperature Sensor
  • Pressure Sensor – 100 psi
  • Temperature Gauge Wiring Harness (2-Wire Cable)
  • Pressure Gauge Wiring Harness (3-Wire Cable)

HOW TO USE:

• Prepare the Mounting Location: Ensure you have a 2.67″ (68mm) diameter opening in your dashboard where you want to install the gauge.
• Connect the Power and Lighting Harness: Attach the provided 3 ft Power & Lighting Harness to the appropriate terminals on the back of the gauge. Connect the power wire to a switched 12V source (or constant 12V if desired), the ground wire to a suitable ground point, and the lighting wire to your vehicle’s lighting circuit if you want the gauge to illuminate with your other lights.
• Connect the Voltage Input: Wire the voltage input terminal on the gauge to a reliable source of your vehicle’s voltage system.
• Connect the Fuel Level Sender: Connect the fuel level sender wire from your vehicle’s fuel tank to the corresponding terminal on the back of the gauge. Ensure compatibility between the gauge and your vehicle’s fuel level sender unit.
• Mount the Gauge: Insert the gauge into the prepared dashboard opening and secure it using the included mounting ring.
• Test the Gauge: Turn on your vehicle’s ignition to check if the voltage reading is displaying correctly. Start the engine to verify the voltage range. Also, check if the fuel level reading corresponds to the fuel level in your tank.
• (Optional – Verify Compatibility): If you intend to use the included temperature or pressure sensors, consult the specific product manual for this gauge model to understand if and how they can be connected and if the gauge can display these readings. Connect the respective sensor and wiring harness according to the manual’s instructions.

BENEFITS OF USING THE SPEEDHUT 2-5/8″ VOLTS / FUEL LEVEL GAUGE (TOP/BOT) (L25-DG2-LEG):

• Space Efficiency: Combines two critical gauges into one, freeing up valuable dashboard space for other instruments or accessories.
• Convenient Monitoring: Allows you to easily keep track of both your vehicle’s electrical system health and fuel level at a glance.
• Early Problem Detection: Monitoring voltage can help identify potential issues with your battery or charging system before they lead to breakdowns.
• Fuel Awareness: Provides a clear indication of your remaining fuel, helping you avoid running out unexpectedly.
• Clean Installation: The single unit requires only one mounting location, contributing to a cleaner and more organized dashboard appearance.

FEATURES:

• Displays real-time electrical system voltage.
• Indicates the current fuel level in the tank.
• Compact 2-5/8 inch diameter for versatile mounting.
• Designed to fit a standard 2.67″ (68mm) dashboard cutout.
• Operates within a 6-18 volt range, suitable for various vehicle electrical systems.
• Fuel level indication from Empty (E) to Full (F).
• Mounting ring is included for secure installation.
• Comes with a 3 ft power and lighting harness for easy electrical connections.
• Potentially compatible with included temperature and pressure sensors (verify with product manual).
• LED backlighting for enhanced visibility (assumed based on the included harness description).
