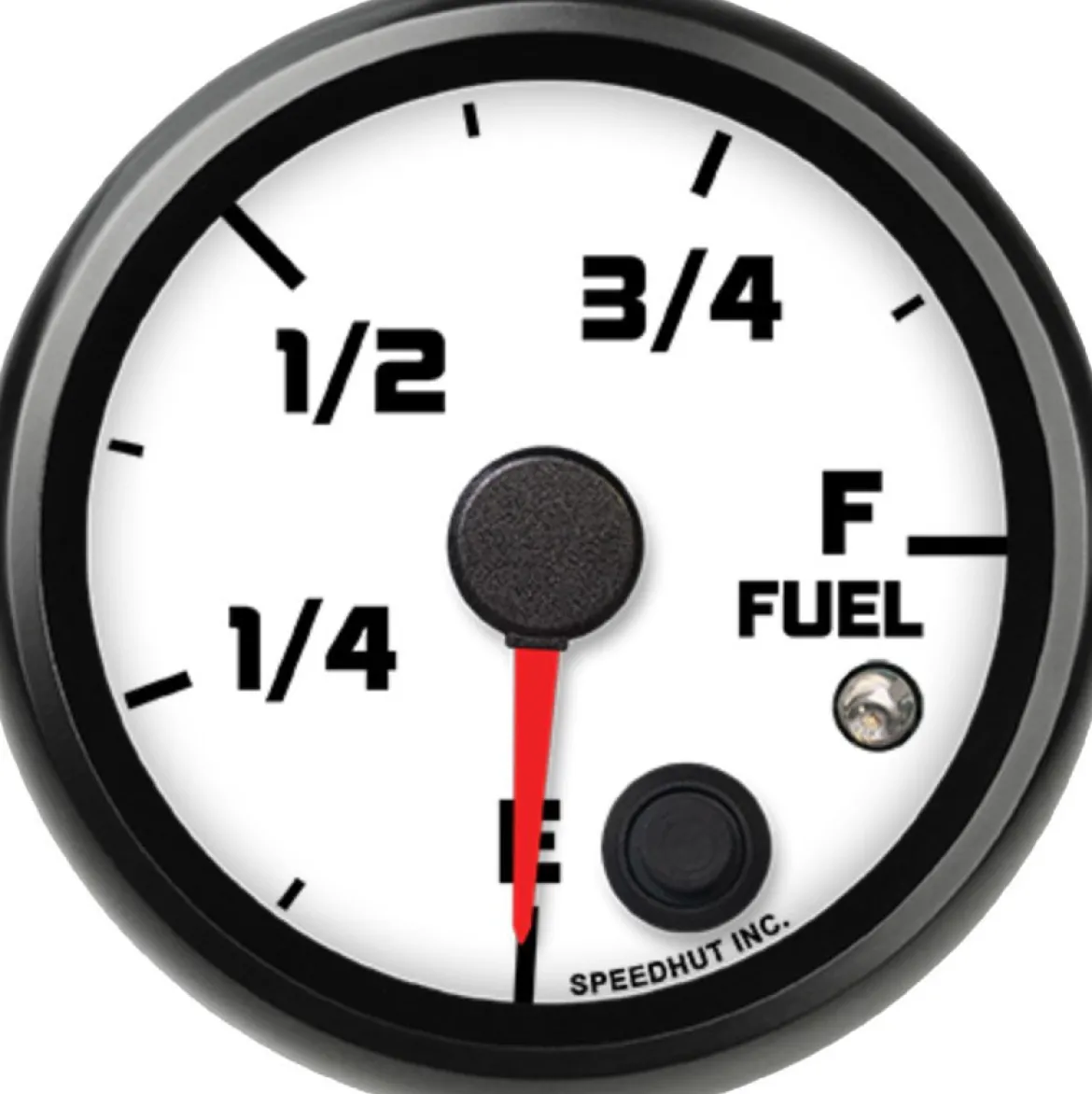

Speedhut 2-5/8″ Street XL Programmable Fuel Level w/Warn (R25-FL1-SXL)

The Speedhut 2-5/8″ Street XL Programmable Fuel Level w/Warn (R25-FL1-SXL) offers a reliable and versatile solution for monitoring your vehicle’s fuel level. Designed for compatibility with most fuel level sensors (up to 300 ohms), this gauge provides accurate readings and includes a helpful low fuel warning light for added peace of mind. Its programmable nature allows for easy setup with common sensor ranges or manual calibration for unique applications.

KEY FEATURES AND BENEFITS:

• Wide Sensor Compatibility: Programmable to work seamlessly with fuel level sensors ranging from 0 to 300 ohms, covering the majority of standard automotive applications.
• Simplified Setup: Features built-in preset ohm ranges, enabling quick and straightforward installation for common fuel sender types.
• Custom Calibration: Offers a manual calibration option, providing flexibility for use with custom or less common fuel level sensor values.
• Precise Readings: Equipped with a stepper motor that ensures smooth and accurate needle movement, delivering reliable fuel level information.
• Low Fuel Alert: Includes an integrated warning light that illuminates when your fuel level is low, providing a timely reminder to refuel.
• Easy Installation: Designed with a 2-5/8 inch size (67mm) and includes necessary mounting hardware for straightforward installation in a 2.67″ (68mm) hole.

SPECIFICATIONS:

• Gauge Type: Fuel Level Gauge
• Fuel Level Signal Type: 300 ohms or less
• Size: 2 5/8 inch (67mm)
• Range: Empty (E) to Full (F)
• Mounting Hole Size: 2.67 inches (68mm)
• Warning Light: Yes
• Included: 3 ft Power & Lighting Harness, Wiring Harness (2-Wire Cable), Mounting Spin Ring

HOW TO USE:

1. Mount the Gauge: Secure the Speedhut fuel level gauge in a 2.67″ (68mm) diameter hole using the provided mounting spin ring.
2. Connect the Wiring Harness: Attach the included 2-wire cable wiring harness to the appropriate terminals on your fuel level sensor.
3. Connect the Power Harness: Connect the 3 ft Power & Lighting Harness to a suitable power source and ground in your vehicle, ensuring proper polarity.
4. Select Preset Range or Calibrate Manually:
   • Preset: If your fuel level sensor falls within one of the built-in preset ohm ranges, select the corresponding setting on the gauge according to the product manual.
   • Manual Calibration: If your sensor has a custom range, follow the manual calibration steps outlined in the product documentation to teach the gauge the empty and full resistance values of your sensor.
5. Verify Operation: Turn on your vehicle’s ignition to power the gauge and observe the fuel level reading as the fuel level changes. Ensure the low fuel warning light illuminates when the fuel level is low.

BENEFITS OF USING THE SPEEDHUT 2-5/8″ STREET XL PROGRAMMABLE FUEL LEVEL W/WARN (R25-FL1-SXL):

• Broad compatibility with various fuel sensors simplifies installation and ensures accurate readings.
• Preset ranges provide convenience for standard setups, while manual calibration supports custom applications.
• Accurate and smooth needle movement delivers clear fuel level monitoring.
• Low fuel warning light helps avoid unexpected fuel depletion.
• Compact size and included hardware make installation quick and simple.

FEATURES:

• Accommodates fuel senders outputting up to 300 ohms.
• Offers quick configuration through pre-configured resistance values.
• Allows for user-defined calibration to suit specific sensor outputs.
• Needle movement is smooth and precise across the entire range.
• Provides a visual cue when the fuel supply is running low.
• Designed to fit standard 2 5/8″ (67mm) gauge openings.
• Comes with essential wiring components for installation.
