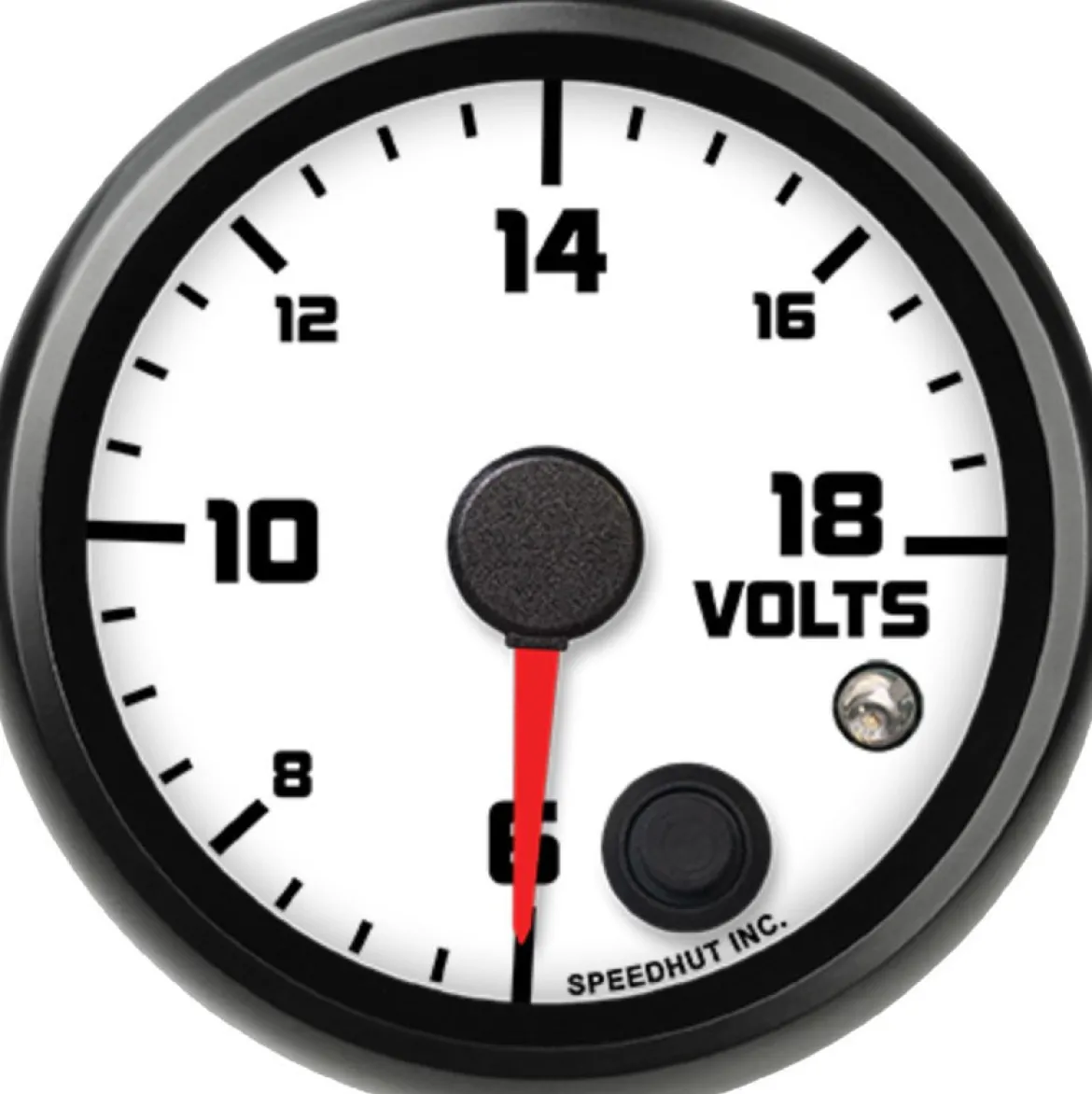

Speedhut 2-5/8″ Street XL 6-18V Volt Gauge w/ Warning (R25-V1-SXL)

The Speedhut 2-5/8″ Street XL 6-18V Volt Gauge w/ Warning (R25-V1-SXL) is a reliable instrument designed to provide accurate monitoring of your vehicle’s electrical system. This gauge offers a clear and direct reading of the voltage, ranging from 6 to 18 volts, allowing you to stay informed about the health of your battery and charging system. Equipped with an integrated warning light, this gauge provides an immediate visual alert if the voltage falls outside the acceptable range, helping you identify potential electrical issues before they escalate. Its 2-5/8 inch size ensures it fits seamlessly into most aftermarket gauge setups.

KEY FEATURES AND BENEFITS:

• Accurate Voltage Monitoring: Provides precise readings of your vehicle’s voltage between 6 and 18 volts.
• Integrated Warning Light: Features a built-in warning light that illuminates when voltage levels are abnormal, alerting you to potential problems.
• Easy Installation: Designed for straightforward installation with the included power and lighting harness.
• Clear Visual Display: The 2-5/8 inch Street XL design offers an easy-to-read display for quick voltage checks.
• Wide Compatibility: The 6-18 volt range makes it suitable for a variety of vehicle electrical systems.

SPECIFICATIONS:

• Gauge Type: Voltage Gauge
• Voltage Signal Type: Voltage from Power Wire
• Range: 6-18 volts
• Size: 2 5/8 inch
• Hole Size: 2.67 inches (68mm)
• Warning Light: Yes
• Included: 3 ft Power & Lighting Harness – for LED Lit Gauges and Clocks

HOW TO USE:

1. Mount the Gauge: Locate a suitable 2.67-inch (68mm) diameter hole in your vehicle’s dashboard or instrument panel. Securely mount the Speedhut volt gauge in this opening.
2. Connect the Power Harness: Connect the provided 3 ft Power & Lighting Harness to the back of the gauge. Ensure proper connections to the power source (typically an ignition-switched or constant 12V source), ground, and lighting circuit in your vehicle.
3. Route the Wiring: Carefully route the wiring harness to your chosen power and ground locations, avoiding any moving parts or sources of excessive heat.
4. Secure Connections: Ensure all wire connections are secure and properly insulated to prevent shorts or loose connections.
5. Test the Gauge: Once all connections are made, turn on your vehicle’s ignition. The gauge should illuminate, and the needle should indicate the current voltage of your electrical system. Observe the warning light functionality by temporarily simulating low or high voltage conditions (if possible and safe) to ensure it activates correctly.

BENEFITS OF USING THE SPEEDHUT 2-5/8″ STREET XL 6-18V VOLT GAUGE W/ WARNING (R25-V1-SXL):

• Proactive Electrical Monitoring: Constantly monitors your vehicle’s voltage to detect issues such as failing alternators or weak batteries.
• Visual Alerts: Integrated warning light notifies you of out-of-range voltage before major issues arise.
• Improved Reliability: Helps maintain the health of your vehicle’s electrical system by alerting you to anomalies early on.
• Broad Application: Suitable for use in various vehicles with 6 to 18 volt electrical systems.
• Simple Integration: Standard 2-5/8″ size and included harness allow for easy addition to most aftermarket dashboards.

FEATURES:

• Direct voltage reading from the power wire for straightforward monitoring.
• Clearly marked 6 to 18 volt scale for easy interpretation.
• Compact 2-5/8 inch diameter for versatile mounting options.
• Requires a 2.67-inch (68mm) mounting hole for secure installation.
• Equipped with an internal warning light to signal abnormal voltage levels.
• Comes with a 3-foot power and lighting harness for immediate connectivity of both power and illumination.
• Part of the Speedhut Street XL series, known for its distinct design.
• Designed for a broad range of vehicles utilizing 6 to 18 volt electrical systems.
