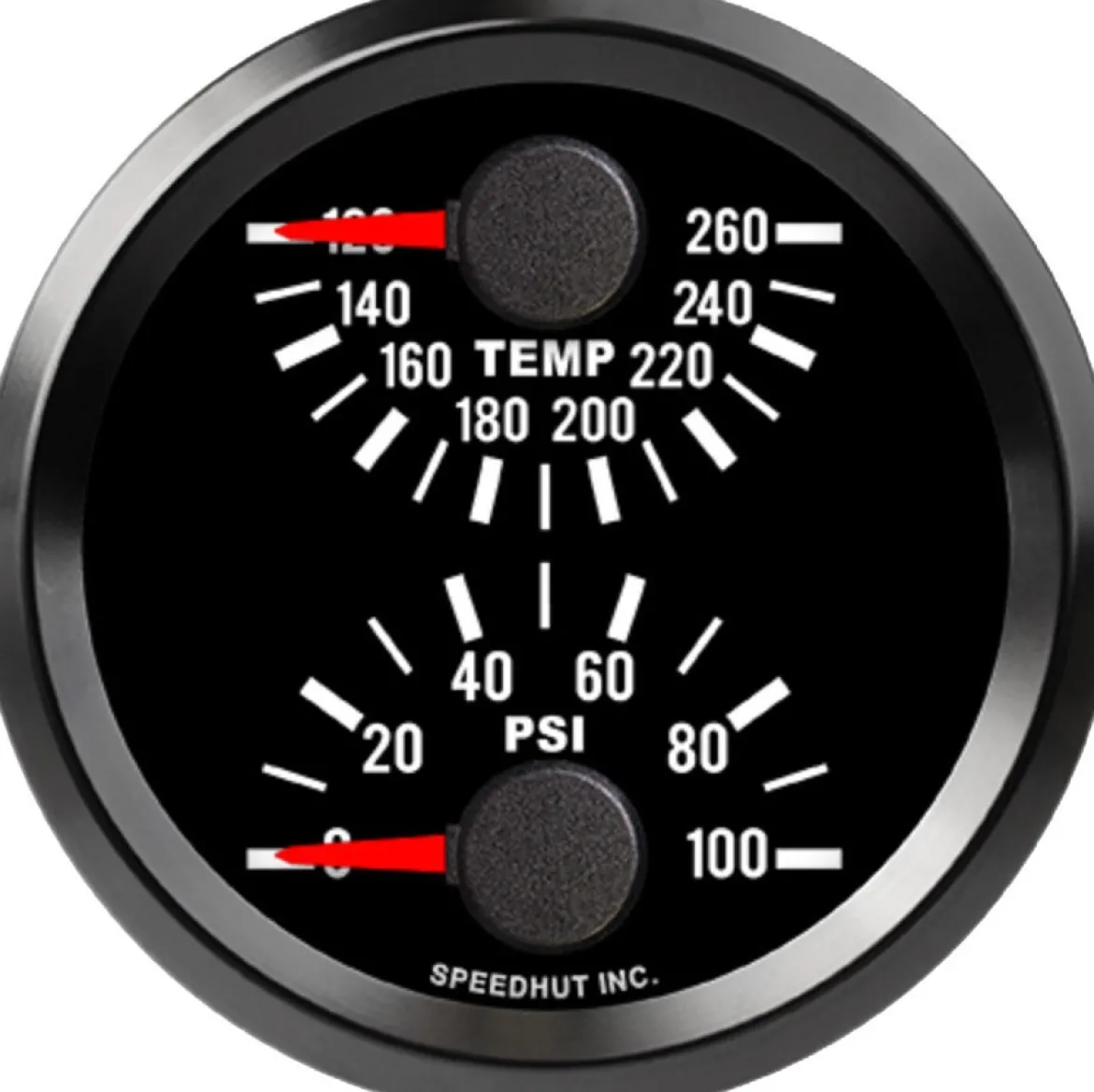

Speedhut 2-5/8″ JDM 510 Wat Temp/Oil Pressure (top/bot) (L25-DG1-510)

The Speedhut 2-5/8″ JDM 510 Wat Temp/Oil Pressure (top/bot) (L25-DG1-510) offers a space-saving solution for monitoring two crucial aspects of your engine’s performance. This single, compact unit displays both water temperature and oil pressure, providing real-time data to help you stay informed about your vehicle’s health. Designed for a 2 5/8 inch (68mm) mounting hole, this gauge is a practical and efficient addition to any dashboard. It ships with all the necessary components for installation, allowing you to easily integrate this powerful monitoring tool into your vehicle.

KEY FEATURES AND BENEFITS:

• This dual gauge: Combines two essential monitoring functions into one unit, maximizing dashboard space.
• Accurate, real-time readings: Measures water temperature (120-260°F) and oil pressure (0-100 psi) to allow proactive monitoring of critical engine parameters.
• Easy installation: The included mounting ring simplifies installation, and the provided sensors and wiring harnesses ensure a straightforward setup process.
• Preventative maintenance: Enables early detection of potential issues and helps users monitor engine operation effectively.
• Convenient dual functionality: Delivers essential information in a single, well-integrated instrument.

SPECIFICATIONS:

• Gauge Type: Dual Gauge
• Combo Options: Water Temperature and Oil Pressure
• Water Temperature Range: 120-260 °F
• Oil Pressure Range: 0-100 psi
• Standard or Metric: Standard
• Size: 2 5/8 inch
• Hole Size: 2.67 inches (68mm)
• Warning Light: No
• Gauge Mounting Ring: Included
• Ships With:
  • 3 ft Power & Lighting Harness
  • Speedhut Temperature Sensor
  • Pressure Gauge Wiring Harness (3-Wire Cable)
  • Pressure Sensor – 100 psi
  • Temperature Gauge Wiring Harness (2-Wire Cable)

HOW TO USE:

1. Mount the Gauge: Locate a suitable 2.67″ (68mm) opening on your dashboard. Insert the gauge into the opening and secure it using the included gauge mounting ring.
2. Connect the Power and Lighting Harness: Connect the 3 ft power and lighting harness to a suitable power source in your vehicle, ensuring proper grounding. This harness will power the gauge and its illumination.
3. Install the Temperature Sensor: Locate an appropriate port on your engine’s cooling system for the temperature sensor. Install the Speedhut temperature sensor securely.
4. Connect the Temperature Sensor Wiring: Connect the 2-wire cable from the temperature sensor to the corresponding terminals on the gauge.
5. Install the Pressure Sensor: Locate an appropriate port on your engine’s oil system for the pressure sensor. Install the 100 psi pressure sensor securely.
6. Connect the Pressure Sensor Wiring: Connect the 3-wire cable from the pressure sensor to the corresponding terminals on the gauge.
7. Verify Operation: Once all connections are made, start your vehicle and check that the water temperature and oil pressure gauges are displaying accurate readings. Ensure the gauge illumination is also functioning correctly.

BENEFITS OF USING THE SPEEDHUT 2-5/8″ JDM 510 WAT TEMP/OIL PRESSURE (TOP/BOT) (L25-DG1-510):

• Efficient dual monitoring: Tracks two critical engine parameters in one compact unit.
• Real-time insights: Allows early detection of problems such as overheating or low oil pressure.
• Enhanced decision-making: Provides actionable data to inform vehicle operation and maintenance.
• Cost prevention: Early detection of issues may help avoid expensive engine repairs.
• Convenient installation: Ships with all required components for a quick setup.
• Readable display: Offers clear and accessible engine information for safe driving.

FEATURES:

• Integrated Dual Display: Presents both water temperature and oil pressure readings in a single, cohesive unit for efficient monitoring.
• Compact Form Factor: The 2-5/8 inch size maximizes dashboard space without sacrificing readability.
• Direct Sensor Connectivity: Comes with dedicated sensors for both temperature and pressure, ensuring accurate data acquisition.
• Complete Wiring Solution: Includes all necessary wiring harnesses for power, lighting, and sensor connections, simplifying the installation process.
• Secure Mounting: The provided gauge mounting ring ensures a stable and professional-looking installation in a standard 2.67″ (68mm) opening.
