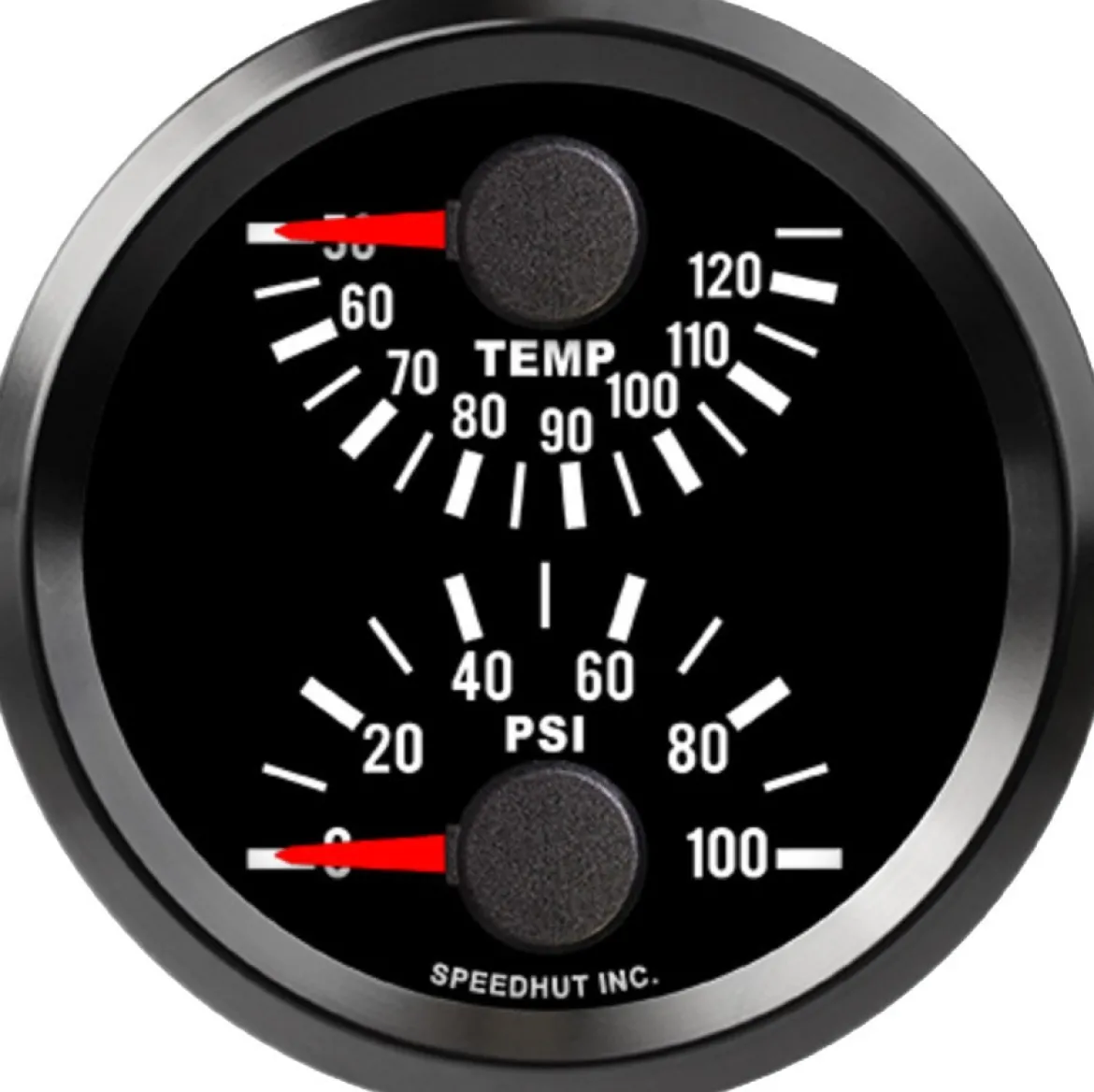

Speedhut 2-5/8″ JDM 510 Cel Wat Temp/Oil Press (top/bot) (L25-DG5-510)

The Speedhut 2-5/8″ JDM 510 Cel Wat Temp/Oil Press (top/bot) (L25-DG5-510) maximizes dashboard space by combining two critical engine monitors—water temperature and oil pressure—into a single compact unit. This high-precision instrument simplifies diagnostics and provides real-time updates to help optimize vehicle performance. Designed for space-constrained dashboards, it ensures drivers stay informed and in control, making it an ideal upgrade for efficient and functional engine monitoring.

KEY FEATURES AND BENEFITS:

• Combines two essential gauges: Water temperature and oil pressure in one 2 5/8″ (68mm) unit.
• Real-time readings: Engine coolant temperature (50-125 °C) and oil pressure (0-100 psi).
• Streamlined monitoring: Helps detect potential engine issues early.
• Space-saving solution: Ideal for dashboards with limited room.
• Complete installation kit: Includes all sensors and wiring harnesses.
• Mounting ring included: Allows for easy and secure placement.

SPECIFICATIONS:

• Gauge Type: Dual Gauge
• Combo Options: Water Temperature and Oil Pressure
• Water Temperature Range: 50-125 °C (Metric)
• Oil Pressure Range: 0-100 psi
• Size: 2 5/8 inch (68mm)
• Hole Size: 2.67″
• Warning Light: No
• Included:
• Pressure Gauge Wiring Harness (3-Wire Cable)
• Speedhut Temperature Sensor
• 3 ft Power & Lighting Harness – for LED Lit Gauges and Clocks
• Pressure Sensor – 100 psi
• Temperature Gauge Wiring Harness (2-Wire Cable)
• Gauge Mounting Ring

HOW TO USE:

• Mount the Gauge: Secure the dual gauge in a suitable 2.67″ (68mm) opening on your dashboard or in a gauge pod using the included mounting ring.
• Install the Temperature Sensor: Locate a suitable port on your engine’s coolant system and install the provided Speedhut temperature sensor.
• Install the Pressure Sensor: Find an appropriate port on your engine’s oil system and install the included 100 psi pressure sensor.
• Connect the Wiring Harnesses:
  • Connect the 2-wire temperature gauge wiring harness between the temperature sensor and the back of the dual gauge.
  • Connect the 3-wire pressure gauge wiring harness between the pressure sensor and the back of the dual gauge.
  • Connect the 3 ft power & lighting harness to a 12V power source, ground, and optionally to your vehicle’s lighting circuit for illumination.
• Verify Connections: Double-check all wiring connections to ensure they are secure and correct.
• Test the Gauge: Start your vehicle and observe the gauge readings to confirm proper functionality of both the water temperature and oil pressure displays.

BENEFITS OF USING THE SPEEDHUT 2-5/8″ JDM 510 CEL WAT TEMP/OIL PRESS (TOP/BOT) (L25-DG5-510):

• Consolidated engine data: View water temp and oil pressure in one gauge to reduce dashboard clutter.
• Proactive engine monitoring: Helps prevent damage and costly repairs.
• Accurate real-time data: Offers immediate insight into engine performance.
• Ease of installation: Includes sensors and wiring harnesses to simplify setup.
• Compact compatibility: Perfect for vehicles with minimal dashboard space.

FEATURES:

• Dual-function display shows both Celsius water temperature and PSI oil pressure.
• Clear, legible gauge face for fast status checks.
• Electric operation ensures precision with no mechanical linkage.
• LED backlighting improves visibility during nighttime use.
• All required wiring and mounting hardware are included for easy installation.
