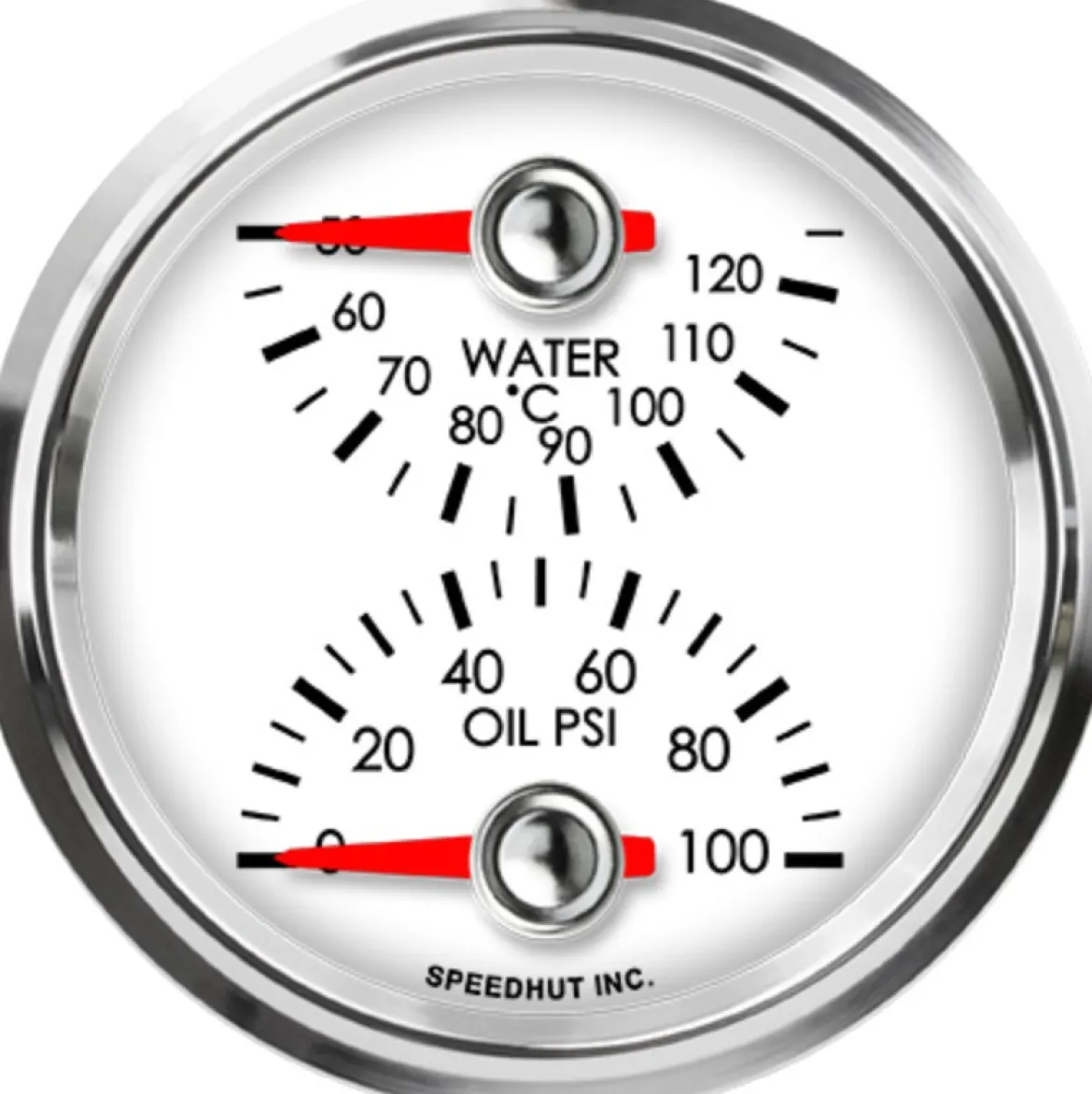

Speedhut 2-5/8″ Cels Water Temp / Oil Pressure (top/bot) (L25-DG5-LEG)

The Speedhut 2-5/8″ Cels Water Temp / Oil Pressure (top/bot) (L25-DG5-LEG) offers a practical solution for monitoring two critical aspects of your engine’s health in a single, space-efficient instrument. This metric gauge displays water temperature ranging from 50 to 125 degrees Celsius and oil pressure from 0 to 100 psi. Designed for ease of use and installation, it provides real-time feedback, allowing you to stay informed about your engine’s vital signs and potentially identify issues before they escalate. This dual gauge is a valuable addition for anyone looking to keep a close watch on their engine’s performance without the need for multiple individual gauges.

KEY FEATURES AND BENEFITS:

• Dual monitoring: Combines water temperature and oil pressure readings in one compact unit.
• Space efficiency: Reduces dashboard clutter by integrating two gauges into a single device.
• Real-time readings: Provides immediate feedback on engine conditions for proactive maintenance.
• Complete kit: Includes all necessary sensors and wiring harnesses for easy installation.
• Metric measurements: Displays temperature in Celsius and pressure in PSI for international compatibility.
• Secure installation: Comes with a mounting ring for a tight, clean fit in a 2-5/8 inch (68mm) hole.

SPECIFICATIONS:

• Gauge Type: Dual Gauge (Water Temperature / Oil Pressure)
• Combo Options: Water Temperature (Top) and Oil Pressure (Bottom)
• Water Temperature Range: 50-125 °C
• Oil Pressure Range: 0-100 psi
• Standard or Metric: Metric
• Size: 2 5/8 inch
• Hole Size: 2.67 inches (68 mm)
• Warning Light: No
• Gauge Mounting Ring: Included
• Included Components:
• 3 ft Power & Lighting Harness (for LED Lit Gauges and Clocks)
• Pressure Gauge Wiring Harness (3-Wire Cable)
• Pressure Sensor (100 psi)
• Speedhut Temperature Sensor
• Temperature Gauge Wiring Harness (2-Wire Cable)

HOW TO USE:

1. Preparation: Identify a suitable location on your dashboard or instrument panel with a 2.67-inch (68mm) diameter opening. Ensure there is enough clearance behind the mounting surface for the gauge and its wiring.
2. Mounting the Gauge: Insert the Speedhut dual gauge into the prepared opening. Secure it using the included mounting ring from the back of the panel.
3. Wiring Connections (Power & Lighting): Connect the 3 ft Power & Lighting Harness to the appropriate power and ground sources in your vehicle’s electrical system. This harness will also power the gauge’s illumination.
4. Wiring Connections (Pressure Sensor): Connect the 3-Wire Pressure Gauge Wiring Harness to the provided 100 psi pressure sensor. Then, connect the other end of this harness to the corresponding terminals on the back of the gauge.
5. Installing the Pressure Sensor: Locate an appropriate port on your engine’s oil system to install the pressure sensor. Ensure the sensor is properly threaded and sealed to prevent leaks.
6. Wiring Connections (Temperature Sensor): Connect the 2-Wire Temperature Gauge Wiring Harness to the provided Speedhut temperature sensor. Then, connect the other end of this harness to the corresponding terminals on the back of the gauge.
7. Installing the Temperature Sensor: Locate an appropriate location on your engine’s cooling system (e.g., thermostat housing, coolant line) to install the temperature sensor. Ensure it is properly installed to get accurate readings.
8. Final Checks: Double-check all wiring connections to ensure they are secure and correct.
9. Testing: Start your vehicle and observe the gauge readings to confirm that both the water temperature and oil pressure are being displayed correctly.

BENEFITS OF USING THE SPEEDHUT 2-5/8″ CELS WATER TEMP / OIL PRESSURE (TOP/BOT) (L25-DG5-LEG):

• Dashboard efficiency: Combines two key engine monitoring functions into one device.
• Streamlined monitoring: Allows users to track water temperature and oil pressure simultaneously.
• User-friendly installation: Includes mounting ring and all necessary wiring components.
• Preemptive diagnostics: Real-time readings enable early detection of potential engine issues.
• Wide compatibility: Metric units are ideal for many international vehicles and user preferences.

FEATURES:

• Simultaneous display of Celsius water temperature (50-125°C) and metric oil pressure (0-100 psi).
• Space-saving design integrates two crucial readings into a single 2 5/8 inch (68mm) unit.
• Complete with dedicated wiring harnesses for both pressure and temperature sensors.
• Includes a 100 psi pressure sensor specifically designed for accurate oil pressure readings.
• Comes with a Speedhut temperature sensor for reliable coolant temperature monitoring.
• Power and lighting harness included for easy electrical connection and gauge illumination.
• Mounting ring provided for a secure and finished installation appearance.
• Designed for straightforward installation with included hardware.
• Provides continuous, real-time feedback on engine conditions.
• Offers a clear and easy-to-read display of vital engine data.
