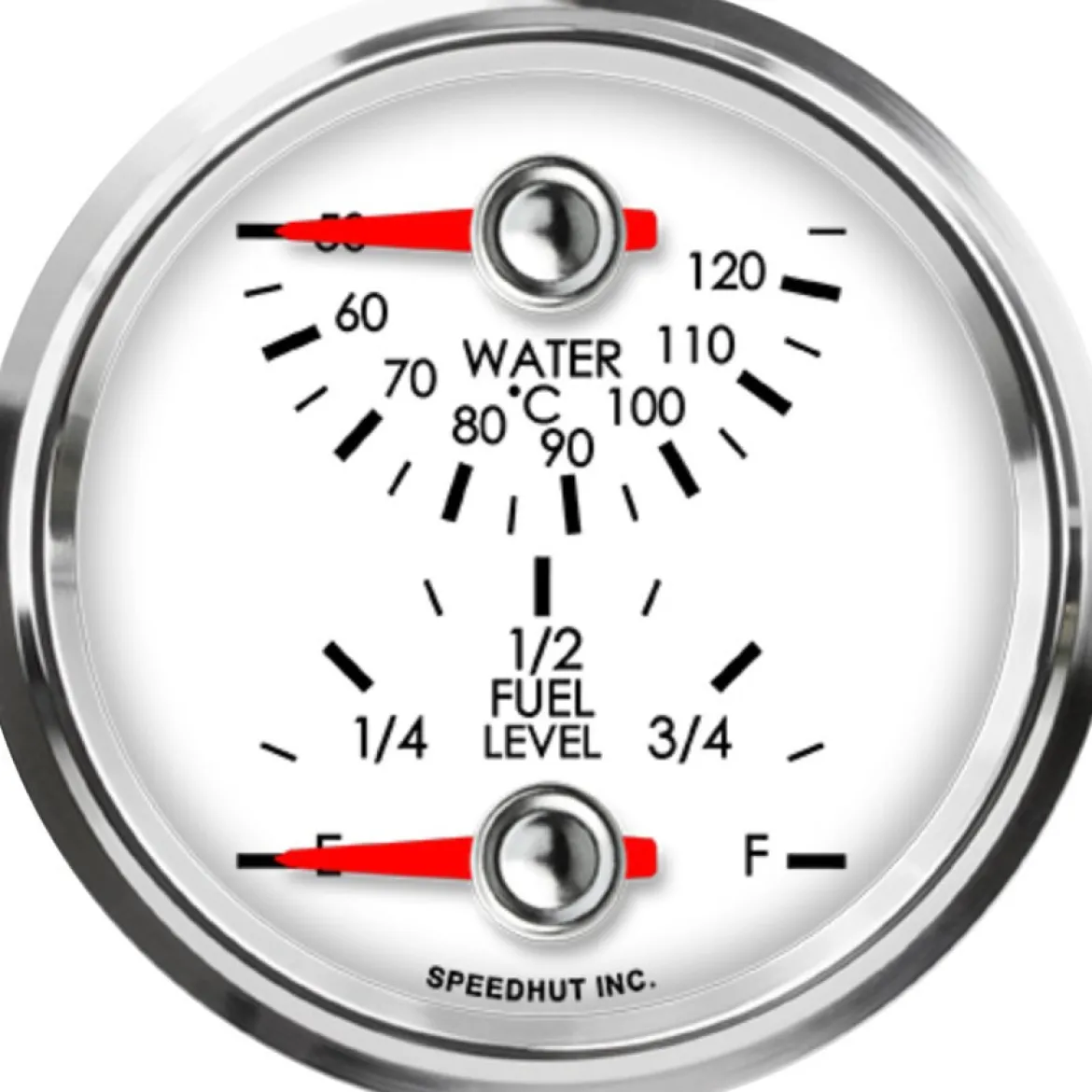

Speedhut 2-5/8″ Cels Water Temp / Fuel Level (top/bot) (L25-DG8-LEG)

The Speedhut 2-5/8″ Cels Water Temp / Fuel Level (top/bot) (L25-DG8-LEG) offers a practical solution for monitoring two crucial vehicle parameters in a single, space-efficient unit. This metric gauge displays water temperature in Celsius (ranging from 50 to 125 degrees) and provides a clear indication of the fuel level, from Empty to Full. Designed for a 2 5/8 inch (66.7mm) mounting hole, this gauge includes a mounting ring for straightforward installation. It’s a valuable tool for keeping track of essential engine information without cluttering your dashboard.

KEY FEATURES AND BENEFITS:

• Dual Functionality: Integrates a Celsius water temperature gauge and a fuel level gauge into one unit, saving space.
• Metric Measurement: Provides readings in Celsius for water temperature (50-125°C).
• Fuel Level Indication: Clearly displays the fuel level from Empty to Full.
• Compact Size: With a 2 5/8 inch diameter, it fits into a standard 68mm mounting hole.
• Easy Installation: Comes with a mounting ring to simplify the setup process.
• Clear Readings: Designed for easy interpretation of both temperature and fuel levels.
• Efficient Monitoring: Allows users to keep a close eye on critical engine conditions.

SPECIFICATIONS:

• Gauge Type: Dual Gauge
• Standard or Metric: Metric
• Combo Options: Water Temp and Fuel Level
• Water Temperature Range: 50-125 °C
• Fuel Level Range: E-F
• Size: 2 5/8 inch (66.7mm)
• Hole Size: 2.67 inches (68mm)
• Gauge Mounting Ring: Included
• Ships With: Mounting Ring

HOW TO USE:

1. Prepare the Mounting Location: Identify a suitable 2.67-inch (68mm) diameter hole on your dashboard or instrument panel where you want to install the gauge.
2. Connect the Wiring: Attach the appropriate wiring harnesses to the gauge. You will typically have connections for power, ground, the water temperature sensor, and the fuel level sending unit. Refer to the specific wiring diagram provided with the gauge for correct connections.
3. Install the Temperature Sensor: Mount the provided water temperature sensor in a suitable location on your engine where it can accurately measure coolant temperature.
4. Connect to the Fuel Level Sender: Ensure the gauge is properly connected to your vehicle’s fuel level sending unit. This will allow the gauge to read the fuel level in the tank.
5. Insert the Gauge: Carefully insert the gauge into the prepared 68mm hole from the front of the dashboard.
6. Secure with Mounting Ring: From the back of the dashboard, slide the included mounting ring over the back of the gauge and tighten it to secure the gauge firmly in place.
7. Test the Gauge: Once all connections are made and the gauge is mounted, turn on your vehicle’s ignition to verify that both the water temperature and fuel level readings are functioning correctly.

BENEFITS OF USING THE SPEEDHUT 2-5/8″ CELS WATER TEMP / FUEL LEVEL (TOP/BOT) (L25-DG8-LEG):

• Space Optimization: Combines two essential gauges into a single unit, freeing up valuable dashboard space for other instruments or accessories.
• Convenient Monitoring: Allows for simultaneous observation of both water temperature and fuel level, providing a quick overview of critical vehicle status.
• Enhanced Awareness: Enables drivers to easily monitor engine temperature, helping to prevent overheating and potential engine damage.
• Fuel Management: Provides a clear indication of the remaining fuel, reducing the risk of running out unexpectedly.
• Simplified Installation: The included mounting ring facilitates a relatively straightforward installation process.
• Clean Aesthetics: Offers a streamlined and organized look to your vehicle’s interior compared to installing two separate gauges.
• Reliable Information: Provides real-time readings of essential parameters, contributing to informed driving decisions.

FEATURES:

• Integrated design combining Celsius water temperature and fuel level displays in one housing.
• Metric display with water temperature shown in degrees Celsius.
• Fits a standard 2 5/8 inch (66.7mm) gauge opening.
• Secure installation with a spin-lock mounting ring.
• Provides immediate feedback on water temperature and fuel level status.
• Blends seamlessly into your vehicle’s dashboard layout.
• Displays two vital operating parameters for both engine performance and fuel awareness.
