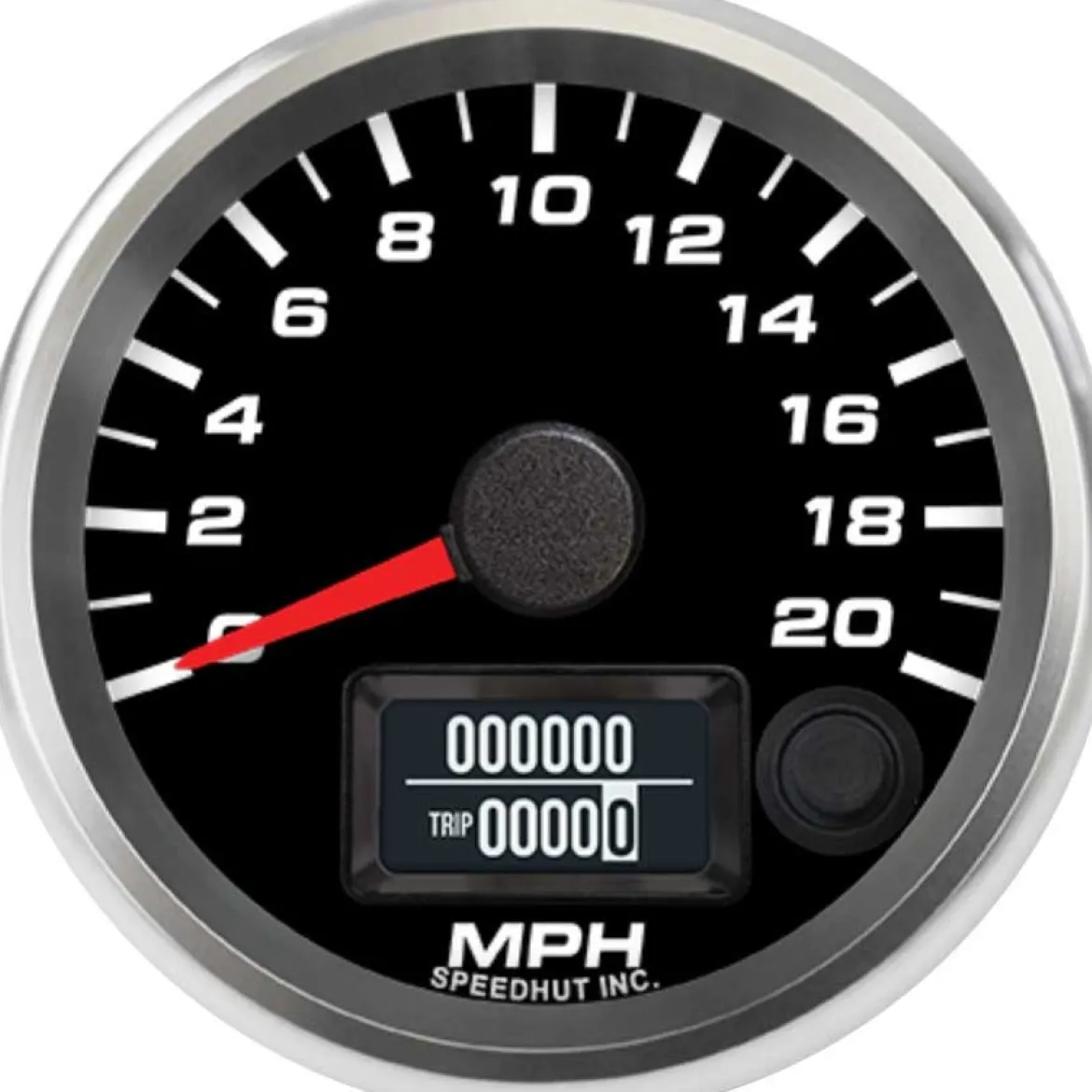

Speedhut 2-5/8″ 20 mph GPS Speedometer (R25-S6-REV)

Experience precise speed indication with the Speedhut 2-5/8″ 20 mph GPS Speedometer (R25-S6-REV). This gauge offers a straightforward solution for monitoring your vehicle’s velocity without the complexities of traditional speed sensors. Utilizing global positioning system technology, it delivers accurate readings directly to a clear LCD screen. Its user-friendly design ensures a simple installation process, making it an excellent choice for various applications.

KEY FEATURES AND BENEFITS:

• Accurate Speed Measurement: Employs an internal microprocessor to deliver precise speed readings.
• Hassle-Free Installation: Requires only a 12V power connection and the included waterproof GPS antenna, mountable anywhere with a clear sky view.
• No Calibration Needed: Eliminates the need to input tire sizes or gear ratios, simplifying the setup process.
• Global Operation: Functions worldwide using free GPS technology without any subscription fees.
• Precise Pointer Movement: Features a high torque stepper motor for accurate pointer response, even in demanding conditions.
• Easy Mounting: Designed with a slim case and a convenient spin-lock ring for quick and secure installation.

SPECIFICATIONS:

• Gauge Type: Speedometer
• Speedometer Signal Type: GPS
• Range: 0 – 20 MPH
• Size: 2 5/8 inch (67mm)
• Hole Size: 2.67 inches (68mm)
• Standard or Metric: Standard (MPH)
• Included:
  • 3 ft Power & Lighting Harness (for LED Lit Gauges and Clocks)
  • GPS Antenna with 9.8 ft long cable and male SMA connector
  • Gauge Mounting Ring

HOW TO USE:

1. Mount the Gauge: Insert the 2-5/8″ Speedometer into a 2.67″ (68mm) diameter opening in your dashboard or mounting panel. Secure it using the included spin-lock ring.
2. Connect the Power: Connect the 3 ft Power & Lighting Harness to a 12V power source in your vehicle. Ensure proper grounding.
3. Install the GPS Antenna: Mount the waterproof GPS antenna in a location with a clear, unobstructed view of the sky. This could be on the roof, dashboard, or another suitable flat surface.
4. Connect the Antenna: Connect the 9.8 ft cable from the GPS antenna to the back of the Speedometer using the male SMA connector.
5. Power On: Once all connections are secure, power on your vehicle. The Speedometer will acquire a GPS signal and begin displaying your speed. This may take a few seconds upon initial startup or after periods of inactivity.

BENEFITS OF USING THE SPEEDHUT 2-5/8″ 20 MPH GPS SPEEDOMETER (R25-S6-REV):

• Delivers precise speed measurements using GPS, avoiding inaccuracies of traditional systems.
• Requires no complex calibration, saving installation time and effort.
• Provides global functionality, ensuring accurate speed readings anywhere in the world.
• Constructed for durability and reliability in diverse environments.
• Backed by a Lifetime Warranty for added peace of mind.

FEATURES:

• Enhanced Aesthetics and Durability: Includes a solid billet aluminum bezel for added strength and a refined look.
• Weather Resistance: Built to withstand various environmental conditions, ensuring long-term reliability.
• Peace of Mind: Backed by a Lifetime Warranty on the electronic circuit board.
• Quality Craftsmanship: Proudly made in America.
