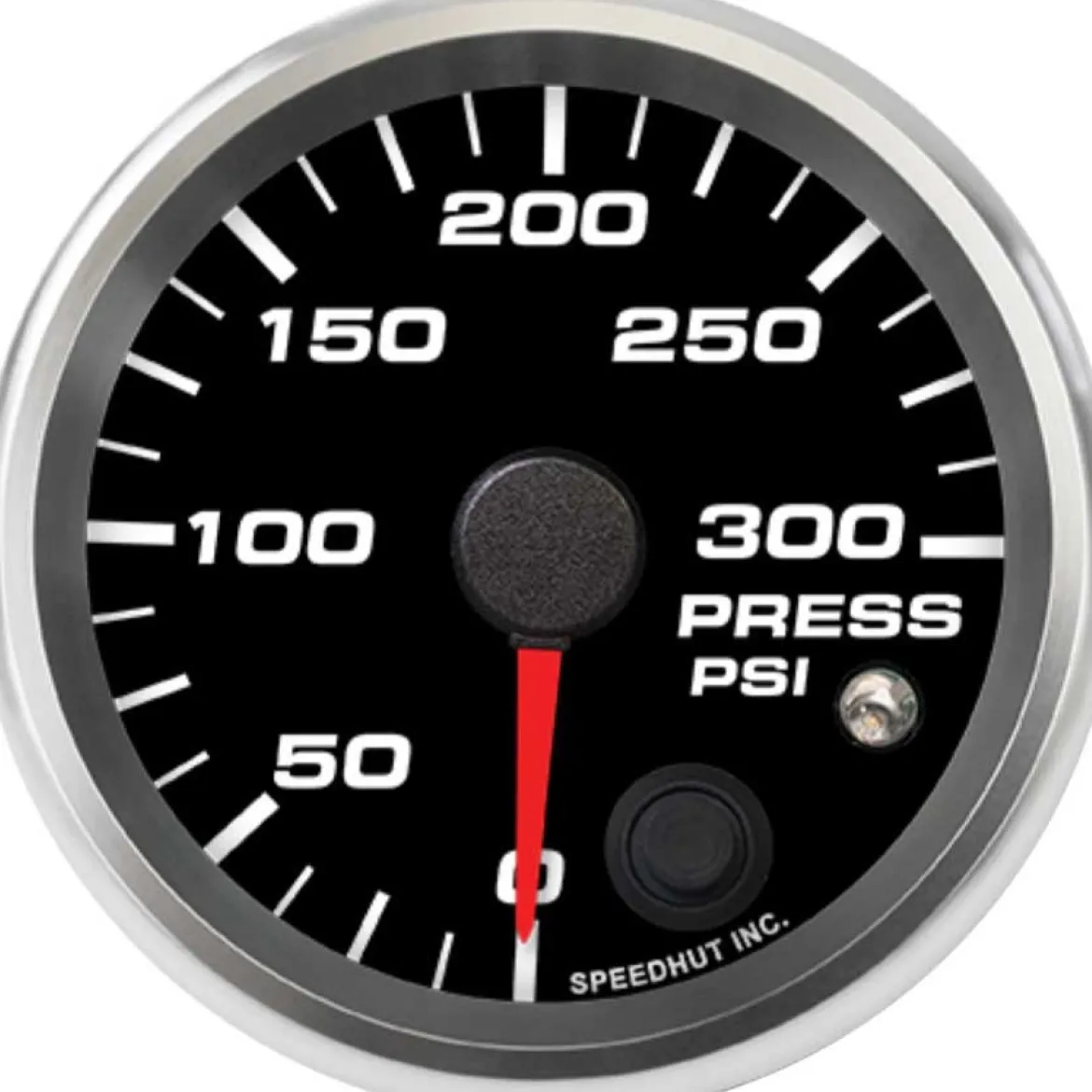

Speedhut 2-5/8″ 0-300 PSI Pressure Gauge w/ Warning (R25-P2-REV)

The Speedhut 2-5/8″ 0-300 PSI Pressure Gauge w/ Warning (R25-P2-REV) is a vital instrument for monitoring pressure in a variety of performance applications. This analog gauge provides accurate readings from 0 to 300 PSI, ensuring you have the critical data needed to maintain optimal system performance and prevent potential issues. Its integrated warning light system allows users to set a pressure threshold, providing an immediate visual alert if levels fall outside the desired range. Built with quality components and designed for ease of installation, this Speedhut gauge offers reliability and peace of mind.

KEY FEATURES AND BENEFITS:

• Accurate Pressure Monitoring: Provides precise readings within the 0-300 PSI range, allowing for close observation of system pressures.
• High-Performance Sender: Utilizes a 3-wire military-grade transducer, known for its enhanced accuracy and stable signal output, ensuring reliable data.
• Configurable Warning Light: Features a settable warning light that alerts the user when pressure levels exceed or fall below a predetermined value, helping to prevent damage.
• Easy Installation: Designed with a 2 5/8 inch (67mm) diameter and includes all necessary wiring harnesses for a straightforward setup.
• Complete Wiring Included: Ships with a dedicated pressure gauge wiring harness (3-wire cable) and a separate 3 ft power & lighting harness for LED illumination and overall operation.
• Durable Construction: Built to withstand the demands of various operating environments, ensuring long-lasting performance.
• Clear Visual Display: The 2-5/8″ analog face offers easy readability of pressure levels at a glance.

SPECIFICATIONS:

• Gauge Type: Pressure Gauge
• Range: 0-300 PSI
• Size: 2 5/8 inch (67mm)
• Hole Size: 2.68″ (68mm)
• Pressure Sender Type: 3-Wire Military Grade Transducer (Performance)
• Warning Light: YES
• Included:
  • Pressure Gauge Wiring Harness (3-Wire Cable)
  • Pressure Sensor – 300psi (with 3-Wire Military Grade Transducer)
  • 3 ft Power & Lighting Harness – for LED Lit Gauges and Clocks

HOW TO USE:

• Mount the Gauge: Locate a suitable 2.68″ (68mm) diameter hole in your desired mounting location. Insert the Speedhut gauge into the hole and secure it using the provided mounting hardware (typically a spin-lock ring).
• Install the Pressure Sensor: Identify the point in your system where you need to monitor pressure. Install the included 300 PSI pressure sensor at this location, ensuring a proper and leak-free connection. The sensor typically has a 1/8″ NPT thread.
• Connect the Sensor Wiring: Attach the 3-wire cable from the pressure gauge wiring harness to the terminals on the 3-wire pressure sensor. Ensure correct polarity and secure connections.
• Connect Power and Lighting: Use the 3 ft power & lighting harness. Connect the power wire (typically red) to a 12-16V DC power source that is switched with the ignition. Connect the ground wire (typically black) to a suitable ground point. If your gauge has LED lighting, connect the appropriate wire from this harness to your vehicle’s lighting circuit if desired.
• Connect the Warning Light: The wiring harness will include a wire for the warning light function. Connect this wire according to the instructions provided with your specific gauge to enable the warning light feature. This may involve connecting to a ground or power source depending on the desired behavior.
• Set the Warning Threshold: Refer to the Speedhut gauge’s instructions on how to set the desired high or low pressure warning threshold. This typically involves using a button or dial on the gauge face.
• Verify Operation: Once all connections are made, turn on your vehicle’s ignition. The gauge should illuminate, and the pointer should indicate the current pressure. Test the warning light by simulating a pressure level outside your set threshold.

BENEFITS OF USING THE SPEEDHUT 2-5/8″ 0-300 PSI PRESSURE GAUGE W/ WARNING (R25-P2-REV):

• Early Problem Detection: The accurate pressure readings allow for the early identification of potential issues within your system, preventing costly damage or failures.
• Enhanced Performance Monitoring: By closely tracking pressure levels, you can ensure your system is operating within its optimal parameters for peak performance.
• Increased Safety: The integrated warning light provides an immediate visual cue if pressure deviates from the safe operating range, allowing for prompt corrective action.
• Reliable Data: The use of a military-grade transducer ensures consistent and trustworthy pressure readings, giving you confidence in the information displayed.
• Simplified Installation: The inclusion of all necessary wiring harnesses streamlines the installation process, saving time and effort.
• Customizable Alerts: The ability to set your own warning threshold allows you to tailor the alert system to your specific needs and operating conditions.

FEATURES:

• Provides a clear analog display of pressure from 0 to 300 PSI.
• Employs a high-accuracy 3-wire military-specification pressure sensor for dependable readings.
• Includes a user-programmable visual warning indicator for critical pressure levels.
• Designed with a standard 2 5/8 inch diameter for versatile mounting options.
• Requires a 2.68″ (68mm) mounting hole for secure installation.
• Comes complete with a dedicated 3-wire sensor wiring harness.
• Includes a separate 3 ft power and illumination wiring harness for easy electrical connections.
