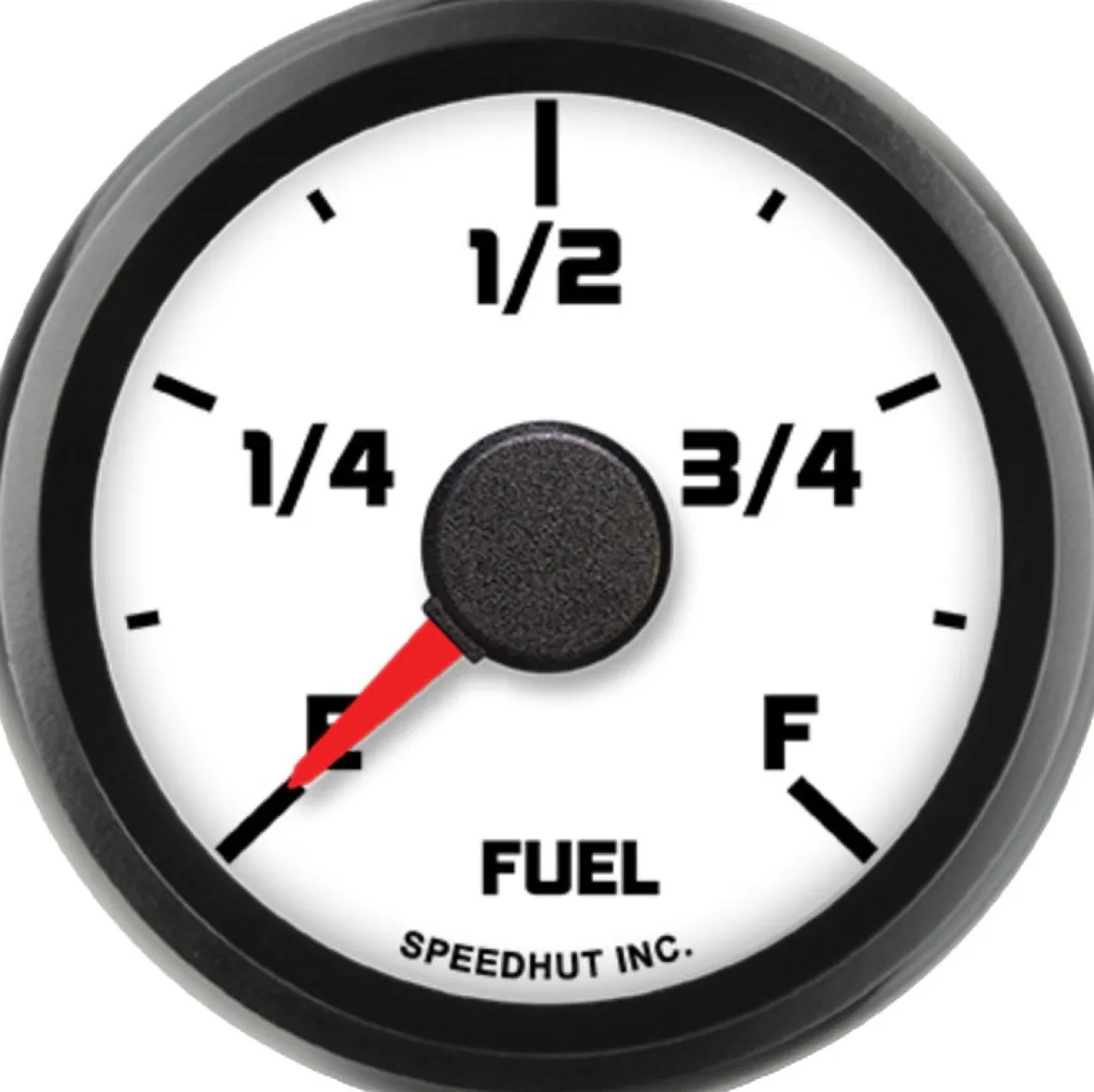

Speedhut 2-1/16″ Street XL Programmable Fuel Level Gauge (L2-FL1-SXL)

The Speedhut 2-1/16″ Street XL Programmable Fuel Level Gauge (L2-FL1-SXL) is a reliable and versatile instrument designed to provide accurate monitoring of your vehicle’s fuel level. Its programmable nature ensures compatibility with a wide range of aftermarket and original equipment manufacturer (OEM) fuel level sending units that operate at 300 ohms or less. This gauge offers a straightforward solution for ensuring you always know how much fuel you have.

KEY FEATURES AND BENEFITS:

• Programmable Compatibility: Works seamlessly with most fuel level sensors available on the market with a resistance of 300 ohms or less, offering flexibility for various vehicle setups and sensor types.
• Accurate Readings: The high torque stepper motor ensures precise and smooth needle movement, providing dependable fuel level indication in all driving conditions.
• Easy Installation: Designed for mounting in a standard 2-1/16 inch (52mm) diameter hole with a user-friendly spin-lock ring for secure and simple installation.
• Clear Display: The gauge features a clear and easy-to-read display, allowing for quick and effortless monitoring of your fuel level.
• Included Components: Comes complete with essential wiring harnesses and a programming button, simplifying the installation and setup process.
• LED Illumination Ready: The included power and lighting harness suggests compatibility with LED illumination for enhanced visibility, especially in low-light conditions.
• Made with Quality: Manufactured in America, reflecting a commitment to quality and craftsmanship.

SPECIFICATIONS:

• Gauge Type: Fuel Level Gauge
• Fuel Level Signal Type: 300 ohms or less
• Size: 2 1/16 inch (52mm)
• Range: Empty (E) – Full (F)
• Standard or Metric: Standard
• Hole Size: 2.05 inch (52mm)
• Warning Light: No
• Ships With:
• 3 ft Power & Lighting Harness – for LED Lit Gauges and Clocks
• Gauge Programming Button (For LED-Lit gauges)
• Wiring Harness (2-Wire Cable)

HOW TO USE:

1. Mount the Gauge: Locate a suitable 2.05 inch (52mm) diameter opening in your vehicle’s dashboard or instrument panel. Insert the gauge into the opening and secure it using the provided spin-lock ring.
2. Connect the Wiring Harness (2-Wire Cable): Connect one wire of the 2-wire cable to the signal output wire from your fuel level sensor. Connect the other wire to a suitable ground point in your vehicle’s electrical system.
3. Connect the Power & Lighting Harness: Connect the power wire (typically red) from the 3 ft Power & Lighting Harness to a switched 12V power source in your vehicle. Connect the ground wire (typically black) to a reliable ground point. If your gauge features LED illumination, connect the lighting wire (often orange or blue) to your vehicle’s lighting circuit so the gauge illuminates with your other lights.
4. Program the Gauge (if necessary): Using the provided Gauge Programming Button and following the manufacturer’s instructions, program the gauge to correctly read the resistance range of your specific fuel level sensor. This may involve setting low and high resistance values corresponding to empty and full tank levels.
5. Test the Gauge: Once all connections are made and the gauge is programmed, turn on your vehicle’s ignition. The fuel level gauge should now indicate the approximate level of fuel in your tank. Add or remove fuel to verify the gauge’s accuracy across its range.

BENEFITS OF USING THE SPEEDHUT 2-1/16″ STREET XL PROGRAMMABLE FUEL LEVEL GAUGE (L2-FL1-SXL):

• Versatile Compatibility: Eliminates the hassle of finding a fuel level gauge that perfectly matches a specific sensor, thanks to its programmable nature.
• Precise Monitoring: Provides accurate and real-time information about your fuel level, helping you avoid running out of fuel unexpectedly.
• Simple Integration: The standard size and included hardware facilitate a relatively easy installation process into various vehicle makes and models.
• Enhanced Visibility: The potential for LED illumination ensures the gauge is easily readable day and night, improving safety and convenience.
• Reliable Performance: Built with quality components and manufactured in the USA, offering peace of mind regarding its performance and longevity.

FEATURES:

• Adaptable to fuel level sensors with a resistance of up to 300 ohms.
• Smooth and accurate needle movement powered by a high torque stepper motor.
• Compact 2-1/16 inch (52mm) size for versatile mounting options.
• Straightforward installation using a 2.05 inch (52mm) mounting hole and spin-lock ring.
• Includes a 3 ft Power & Lighting Harness for easy electrical connections.
• Comes with a dedicated Gauge Programming Button for simple calibration.
• Equipped with a 2-Wire Cable for connecting to the fuel level sensor.
