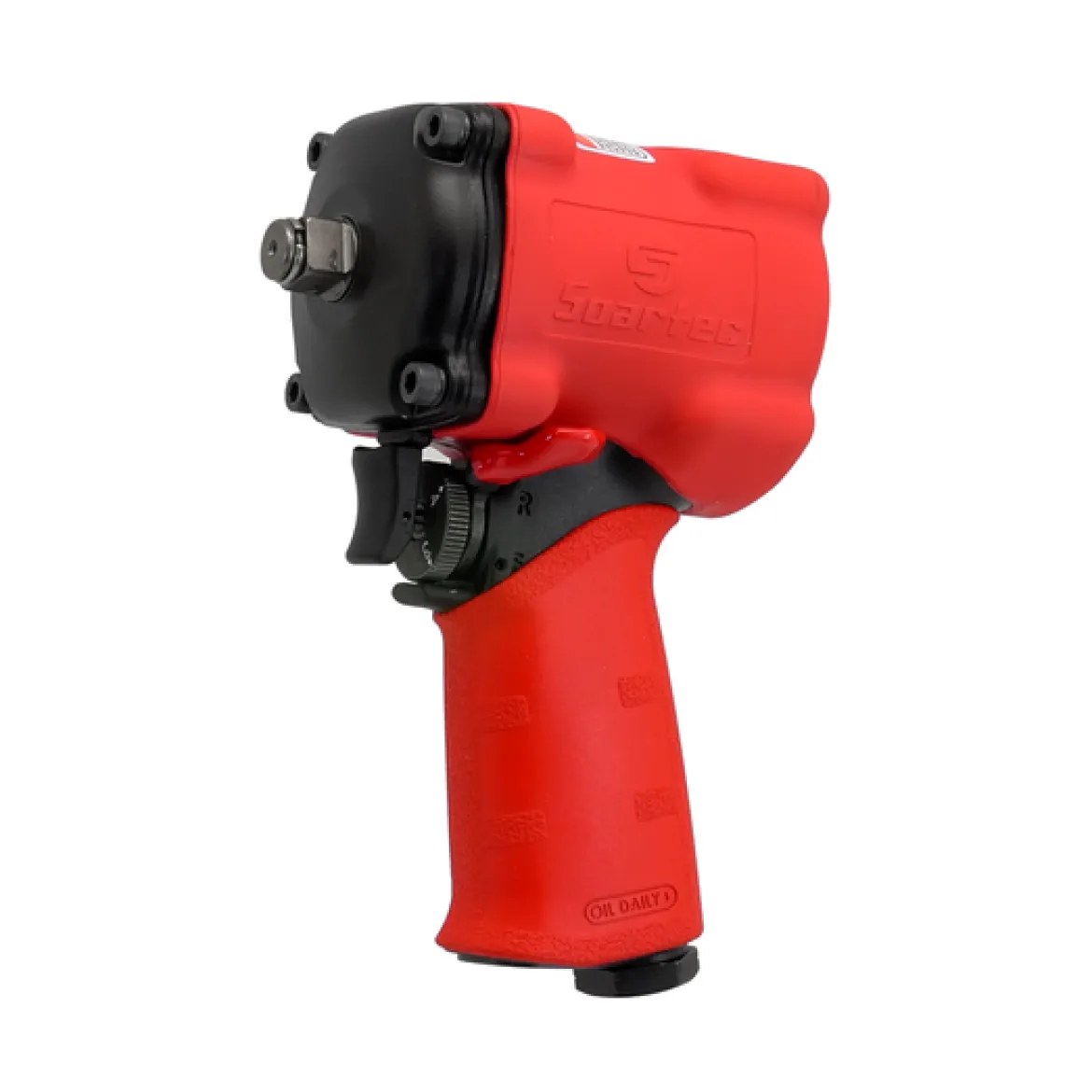

Soartec 1/2″ 650 ft-lb Compact Impact Wrench (WS-217S)

The Soartec 1/2″ 650 ft-lb Compact Impact Wrench (WS-217S) is a pneumatic tool engineered for effective fastening and loosening in confined and challenging work areas. This air impact wrench combines a powerful output with a compact and manageable design, making it an excellent choice for a range of professional and DIY applications, including automotive maintenance, equipment repair, and general assembly. Its thoughtful construction focuses on both performance and user convenience, ensuring efficient operation even in tight spaces.

KEY FEATURES AND BENEFITS:

• High Reverse Torque Output: Delivers a maximum reverse torque of 650 ft-lbs (881 Nm) and a nut busting torque of 650 ft-lbs, providing substantial power for removing stubborn fasteners.
• Compact Design: With a length of only 115mm (4.53 inches), this tool is specifically designed to fit and operate comfortably in small or restricted workspaces where larger wrenches cannot reach.
• Lightweight Construction: Weighing just 3.3 lbs, it reduces user fatigue during extended use and enhances maneuverability in various orientations.
• Efficient Speed Control: Features a 4-position swivel disc that allows for quick, one-thumb adjustments between 4 forward and 4 reverse speed settings, optimizing performance for different tasks.
• Durable Build: The entire body is covered in rubber, providing enhanced protection against impacts and wear, extending the tool’s lifespan in demanding environments.
• High Free Speed: Operates at a free speed of 9000 RPM, allowing for rapid rundown and removal of fasteners, increasing work efficiency.

SPECIFICATIONS:

• Type: Air Impact Wrench
• SKU: WS-217S
• Square Drive: 1/2 inch
• Standard Bolt Capacity: 9/16 inches (0.56 inches / 14 mm)
• Max. Torque (Reverse): 650 ft-lbs (881 Nm)
• Max. Forward Torque: 550 ft-lbs
• Min. Working Torque: 25 ft-lbs
• Max. Working Torque: 600 ft-lbs
• Free Speed: 9000 RPM
• Weight: 3.3 lbs
• Length: 115 mm (4.53 inches)
• Clutch Type: Jumbo Hammer (Twin Hammer)
• Min. Hose Size: 3/8 inch
• Air Inlet: 1/4 inch NPT
• Air Pressure: 90 PSI (Max)
• Air Consumption: 15.9 CFM (450 L/min)
• Noise Level: 111.9 dB
• Variable Speed: Yes
• Warranty: 3-year limited warranty
• Included in the box: Soartec 1/2″ 650 ft-lb Compact Impact Wrench (WS-217S)

HOW TO USE:

1. Connect Air Supply: Ensure your air compressor is set to a maximum of 90 PSI and connect a 3/8 inch minimum diameter air hose to the 1/4 inch NPT air inlet on the impact wrench.
2. Select Socket: Choose the appropriate 1/2″ drive impact-grade socket for the fastener you intend to work on and securely attach it to the tool’s square drive.
3. Adjust Direction and Speed: Use the 4-position swivel disc to select the desired direction (forward for tightening, reverse for loosening) and one of the four available speed settings. For initial loosening, start with the highest reverse setting. For tightening, use a lower setting and finish with a torque wrench for precise specification.
4. Engage Fastener: Position the socket firmly onto the fastener (nut or bolt head).
5. Activate Tool: Press the low-pressure activation trigger to begin operation. Apply steady pressure to keep the socket engaged with the fastener.
6. Monitor Progress: Listen to the tool’s operation and observe the fastener’s movement. Release the trigger once the fastener is adequately tightened or loosened.
7. Disconnect: After use, disconnect the air supply to the tool and store it in a dry, clean place.

BENEFITS OF USING SOARTEC 1/2″ 650 FT-LB COMPACT IMPACT WRENCH (WS-217S):

• Increased Productivity: Its high torque and speed capabilities allow for quick and efficient removal and installation of fasteners, saving significant time on tasks.
• Access in Confined Areas: The tool’s compact size enables access to bolts and nuts in cramped engine bays, undercarriages, and other restricted spaces that traditional impact wrenches cannot reach.
• Reduced Physical Strain: The lightweight design minimizes user fatigue during prolonged use, making it more comfortable for professionals.
• Enhanced Control: The 4-position speed control and low-pressure activation trigger provide precise control over fastening applications, reducing the risk of overtightening or damaging fasteners.
• Reliable Performance: Built with a Jumbo Hammer mechanism, it delivers consistent and strong impacts, ensuring effective results even on rusted or stubborn fasteners.
• Tool Longevity: The rubber-covered body offers protection against drops and impacts, contributing to the tool’s durability and a longer operational life.

FEATURES:

• Pneumatic Operation: Air-powered design for consistent power delivery without battery recharge limitations.
• Ergonomic Design: Engineered for comfortable handling during extended periods of use.
• Variable Speed Trigger: Allows for fine control of the tool’s speed based on the application’s requirements.
• Reversible Functionality: Easily switch between forward and reverse rotation for both tightening and loosening tasks.
• Jumbo Hammer Clutch System: Provides robust and efficient impacts for high torque output.
• Integrated Handle Exhaust: Directs air exhaust away from the user and the work surface, improving comfort and visibility.
• Rubber Body Covering: Offers a protective layer against external damage and enhances grip.
• Designed for Tight Spaces: Its short length makes it ideal for operating in areas with limited clearance.
