Race Ramps Portable Pit Stop Ramps – Racer Model (RR-PPS-R)

Race Ramps Portable Pit Stop Ramps – Racer Model (RR-PPS-R) offer a precise and secure method for elevating vehicles, enhancing both maintenance access and display presentation. With a 14-inch lift, these ramps provide ample space for underbody work, making tasks such as oil changes, inspections, and detailing more convenient and efficient. Their adjustable wheelbase, accommodating vehicles from 90 to 115 inches, ensures compatibility with a wide range of cars, particularly those with low ground clearance like race cars. A key benefit of the Racer Model is the inclusion of 15-inch cutouts on the top platforms, specifically designed to integrate with corner weight scales, enabling precise vehicle corner balancing. Furthermore, the modular design simplifies transport and storage, as no single piece weighs over 40 pounds, allowing for easy setup at the track, in a garage, or at a workshop. Once a vehicle is positioned, the center sections and inclines can be removed, offering improved access to the vehicle’s underside and perimeter.

KEY FEATURES AND BENEFITS:

• 14-Inch Vehicle Lift: Provides generous underbody clearance for maintenance, detailing, and inspections.
• Scale Cutouts: Integrated 15-inch cutouts on top platforms for corner weight scale placement, supporting precise vehicle balancing.
• Adjustable Wheelbase: Fits vehicles with wheelbases from 90 to 115 inches, offering broad compatibility.
• Modular Construction: Designed for easy assembly, transport, and storage; no component weighs more than 40 pounds.
• Removable Sections: Center sections and inclines can be detached post-positioning for enhanced access.
• Optimized for Low-Clearance Vehicles: Gentle 10.4-degree approach angle ensures compatibility with performance and race cars.
• Stable, Non-Slip Build: Solid foam core with a traction coating delivers reliable grip on a range of surfaces.

SPECIFICATIONS:

• Made In: USA
• Sold As: Pair (complete set for four wheels)

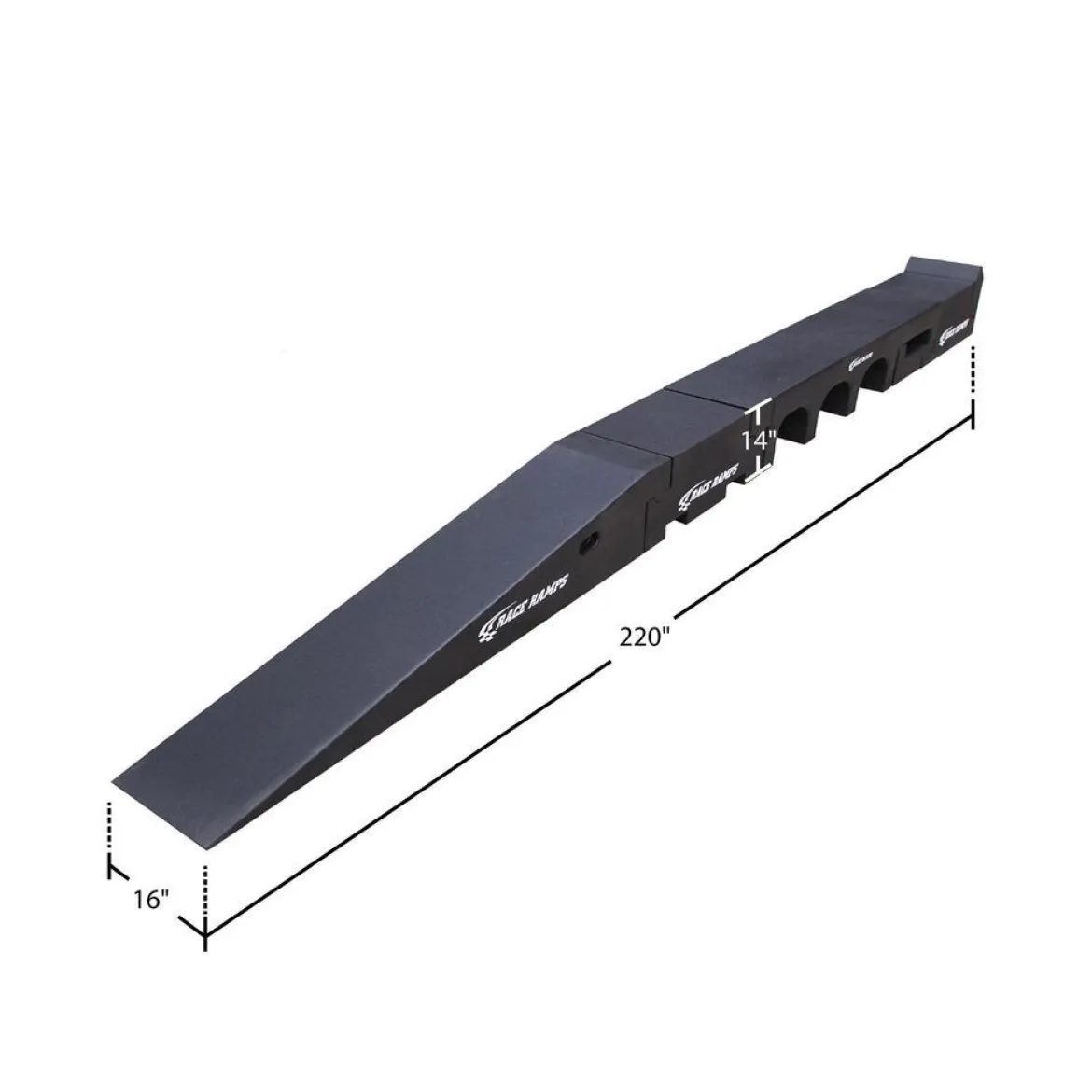

• Assembled Length: 220 inches
• Width: 16 inches
• Height: 14 inches
• Total Weight: 250 lbs.
• Lift Height: 14 inches
• Maximum Capacity: 6,000 lbs.
• Maximum Tire Width: 14 inches
• Approach Angle: 10.4°
• Material: Expanded foam with traction coating
• Cutout Size: 15 inches
• Color: Black

HOW TO USE:

1. Inspect Ramps: Before each use, thoroughly check all ramp components for any signs of damage. Do not use if damaged.
2. Prepare Surface: Ensure the area where the ramps will be used is a flat, level surface. The ramps must make full contact with the ground.
3. Position Ramps: Place the ramp sections accurately in front of each of the vehicle’s wheels that will be elevated. Ensure proper alignment for a straight approach.
4. Align Vehicle: Confirm that the vehicle’s steering wheel is straight before attempting to drive onto the ramps.
5. Drive On: Slowly and steadily drive the vehicle onto the ramps. Maintain a consistent, controlled speed until all four wheels are securely positioned on their respective platforms.
6. Secure Vehicle: Once the vehicle is fully on the ramps, turn off the engine and engage the parking brake.
7. Enhance Access (Optional): For increased access under the vehicle, the removable center sections and inclines can be carefully detached and stored after the vehicle is securely in place.

BENEFITS OF USING RACE RAMPS PORTABLE PIT STOP RAMPS – RACER MODEL (RR-PPS-R):

• Improved Maintenance Access: The 14-inch lift facilitates oil changes, detailing, and mechanical inspections.
• Integrated Scale Functionality: The 15-inch platform cutouts enable the use of corner weight scales for precision tuning.
• Lightweight and Portable: Ideal for transport to race tracks, garages, or workshops thanks to modular components under 40 lbs.
• Durable Foam Construction: Solid, high-density foam provides long-lasting support without adding excessive weight.
• Safe on All Surfaces: Traction coating prevents slipping and won’t scratch garage floors or shop surfaces.
• Long-Term Reliability: Will not rust, degrade, or damage over time—suitable for consistent use in all weather conditions.

FEATURES:

• Crafted from 100% solid, high-density foam.
• Coated with a rugged anti-slip finish for enhanced grip.
• Designed not to slide on garage floors or other surfaces.
• Each modular piece weighs no more than 40 pounds.
• Withstands varied weather conditions without degradation.
• Will not scratch or otherwise mar underlying floor surfaces.
• Manufactured in the United States.
• Adjustable to fit vehicles with wheelbases from 90 to 115 inches.
• Accommodates tires up to 14 inches in width.
• Center sections and inclines are designed to be removable after vehicle positioning.
