Race Ramps 5″ Height Lip Nose Rack Ramp (RR-RACK-5)

Race Ramps 5″ Height Lip Nose Rack Ramp (RR-RACK-5) provides an effective and convenient solution for safely driving low-clearance vehicles onto car lifts, service platforms, or display ramps. Designed to extend the approach angle, these ramps prevent costly undercarriage damage often associated with standard lift access. Constructed from a patented, high-density expanded foam, these ramps offer exceptional strength while remaining remarkably lightweight, making them an ideal alternative to cumbersome steel ramps.

KEY FEATURES AND BENEFITS:

• Optimized Approach Angle: Features an 8.6-degree angle of approach, significantly reducing the risk of scraping the vehicle’s underside when accessing a lift or platform.
• Vehicle Protection: Prevents damage to front ends, side skirts, and undercarriages, preserving the aesthetic and structural integrity of low-profile vehicles.
• Floor Protection: The non-skid, anti-slip coating ensures the ramps stay firmly in place without marking, scuffing, or scratching garage floors or concrete.
• Lightweight Portability: Each ramp weighs only 9 pounds, making them exceptionally easy to carry, position, and store.
• High Strength-to-Weight Ratio: Despite their light weight, these ramps are engineered to support substantial vehicle loads, ensuring reliable performance.
• Durability: Made from 100% solid, high-density foam that will not rust, corrode, or transfer heat or cold, ensuring long-lasting use in various environments.
• Simple Operation: Their design simplifies the process of getting vehicles onto lifts, saving time and effort during maintenance or display setup.

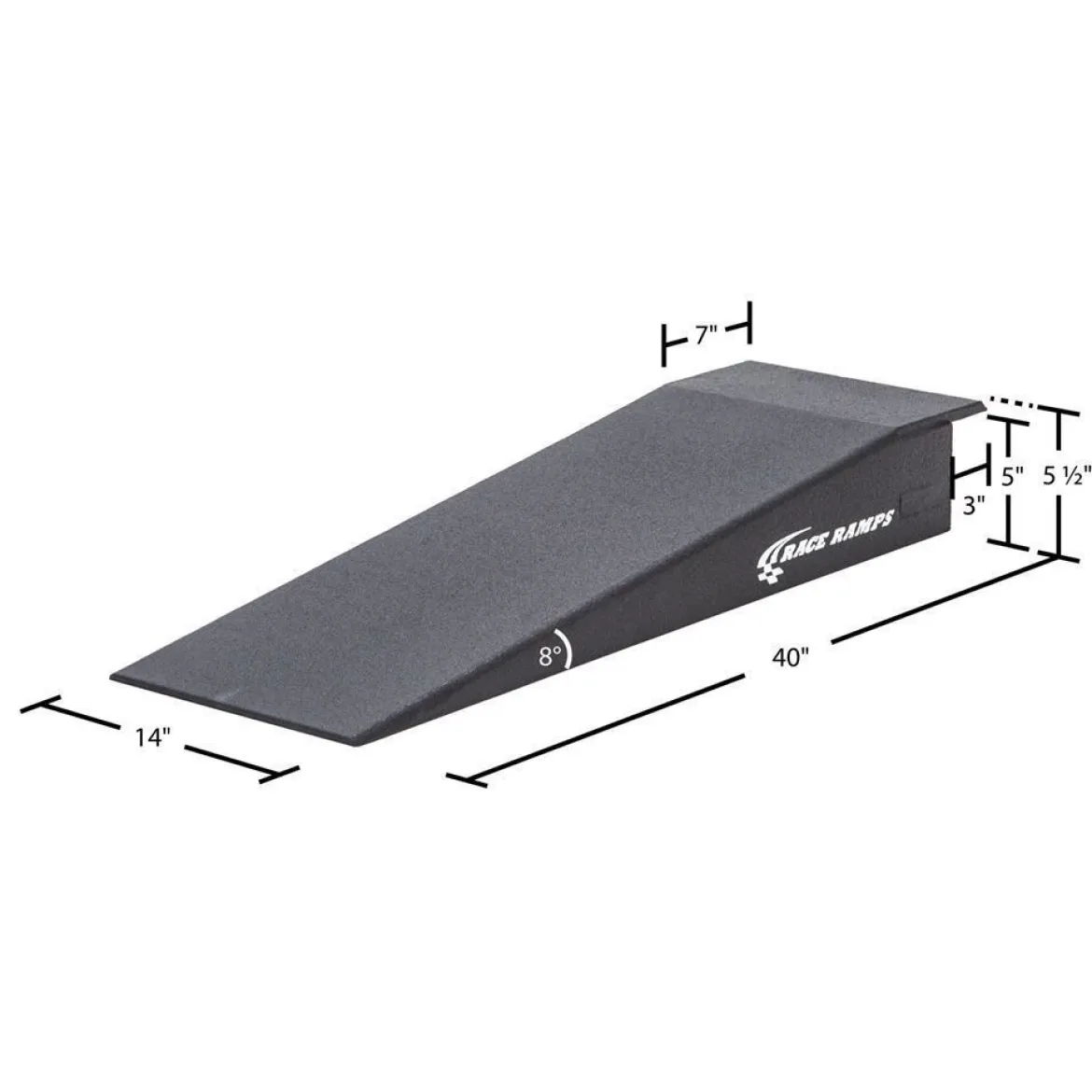

SPECIFICATIONS:

• Sold As: Pair (Set of two ramps)
• Length: 40 inches (101.6 cm)
• Width: 14 inches (35.56 cm)
• Height (Lift): 5 inches (12.7 cm) from ground to underside of ramp lip; 5.5 inches (13.97 cm) from ground to top of ramp lip
• Weight (Per Ramp): 9 lbs. (4.08 kg)
• Maximum Capacity (Per Ramp): 1,500 lbs. (680.3 kg)
• Total Vehicle Weight Capacity (For Pair): 6,000 lbs. (2,721.55 kg)
• Maximum Tire Width: 12 inches (30.48 cm)
• Approach Angle Degree: 8.6°
• Material: Expanded foam with traction coating
• Connector: 3-inch lip bridge
• Color: Black
• Manufacturing Location: Made in the USA
• Included in Purchase: A set of two Race Ramps 5″ Height Lip Nose Rack Ramps (RR-RACK-5)

HOW TO USE:

1. Inspect Ramps: Before each use, thoroughly examine both ramps for any signs of damage. Do not use if damaged.
2. Position Ramps: Place the ramps on a flat, level, and stable surface directly in front of your car lift or service platform. Ensure the 3-inch lip bridge connector is properly aligned with and resting on the edge of the lift.
3. Ensure Full Contact: Verify that the entire bottom surface of each ramp is making full and firm contact with the ground to ensure maximum stability.
4. Clear Area: Ensure that all other individuals are clear of the vehicle and the ramps before proceeding.
5. Prepare Vehicle: Straighten your vehicle’s steering wheel.
6. Drive On: Slowly and steadily drive your vehicle forward, guiding your tires onto the ramps until they are positioned correctly on the lift. Avoid sudden movements or excessive speed.
7. Secure Vehicle: Once the vehicle is on the lift, follow your lift manufacturer’s instructions for securing the vehicle before performing any service.
8. Storage: After use, clean the ramps if necessary and store them in a cool, dry place.

BENEFITS OF USING RACE RAMPS 5″ HEIGHT LIP NOSE RACK RAMP (RR-RACK-5):

• Protects Vehicle Investment: Prevents costly damage to bumpers, spoilers, and undercarriages, extending the life and preserving the value of your vehicle.
• Enhanced Safety: Provides a stable and controlled approach to lifts, reducing the risk of accidents during vehicle positioning.
• User Convenience: Eliminates the strain of moving heavy, cumbersome steel ramps, offering a simple and efficient solution.
• Versatile Application: Suitable for a wide range of low-clearance cars, from sports cars to modified vehicles, ensuring broader usability.
• Long-Term Value: The durable material and robust construction ensure a long product lifespan, providing reliable performance for years.
• Space-Efficient Storage: Their relatively compact size and lightweight nature make them easy to store when not in use.

FEATURES:

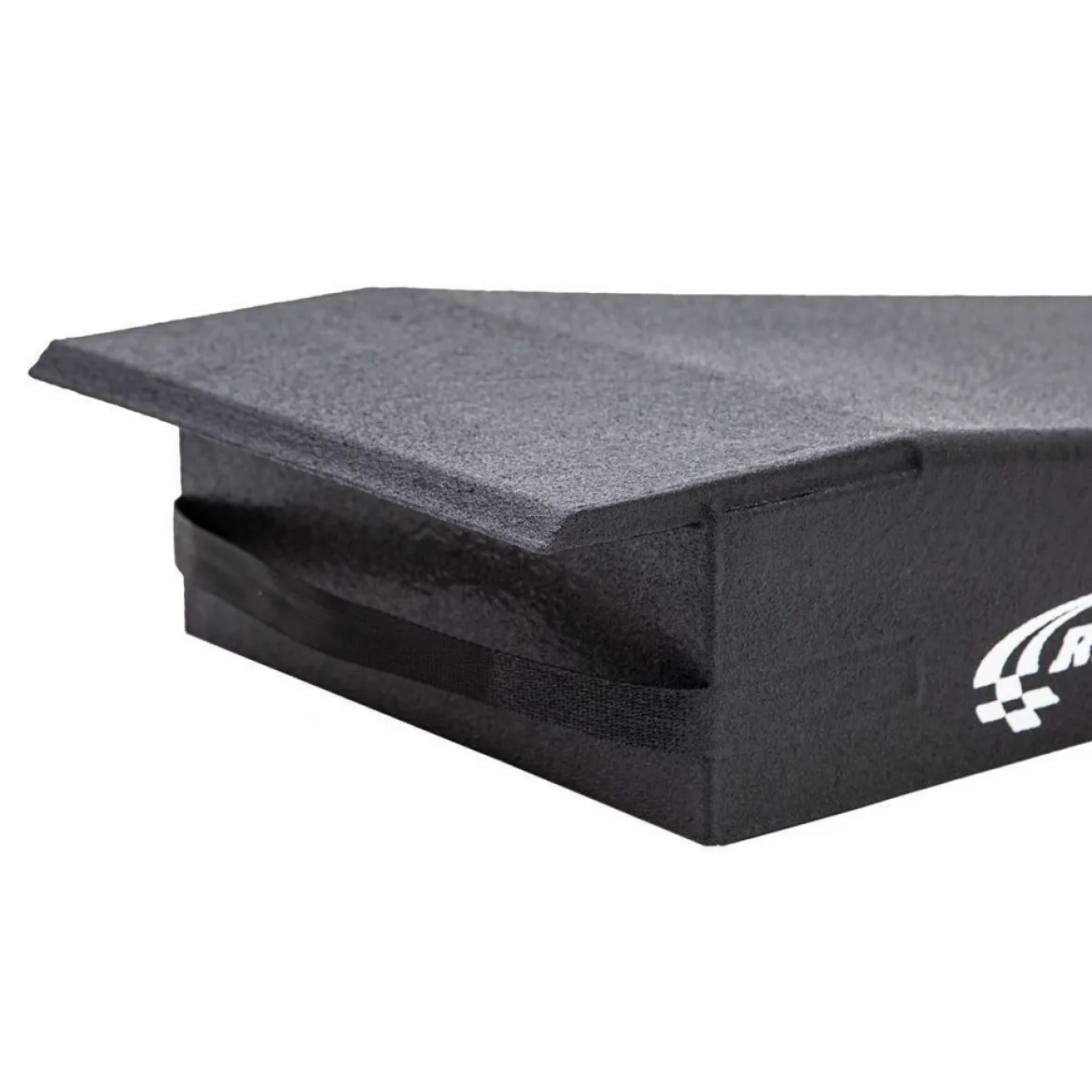

• Integrated 3-inch lip bridge connection for secure mating with lift platforms.
• Crafted from a proprietary high-density expanded foam core.
• Equipped with a textured, anti-skid coating for superior tire grip.
• Resistant to rust, corrosion, and extreme temperature transfer.
• Designed to be non-damaging to delicate garage flooring.
• Engineered to support a significant load with minimal material weight.
• Specific lip measurements: 5 inches to underside, 5.5 inches to top.
• Manufactured using an exclusive, patented process ensuring product integrity.
• Accommodates tires up to 12 inches in width.
