Race Ramps 4″ Height Hook Nose Rack Ramp (RR-RACK-HN14-4)

Race Ramps 4″ Height Hook Nose Rack Ramp (RR-RACK-HN14-4) is a specialized solution engineered to simplify the process of driving low-clearance vehicles onto 4-post lifts and service platforms. This product effectively reduces the approach angle, preventing common scraping and damage to vehicle undercarriages and front ends that can occur with steeper, traditional ramps. Made with an innovative, patented process, these ramps offer an ideal combination of strength, light weight, and floor protection, making them an essential addition for any garage or professional service bay dealing with performance or lowered vehicles.

KEY FEATURES AND BENEFITS:

• Gentle Approach Angle: Provides an 8-degree approach angle, significantly reducing the steepness to safely guide low-profile vehicles onto lifts without scraping the front bumper or undercarriage.
• Lightweight Design: Weighing only 7 lbs per ramp, they are exceptionally easy to position, move, and store, eliminating the effort associated with heavy steel alternatives.
• Non-Damaging to Surfaces: The unique material and coating prevent rusting, heat/cold transfer, and will not skid or scuff your garage floors, preserving your workspace.
• High Weight Capacity: Each individual ramp supports up to 1,500 lbs, accommodating a total vehicle weight of up to 6,000 lbs when used as a pair, suitable for a wide range of passenger vehicles.

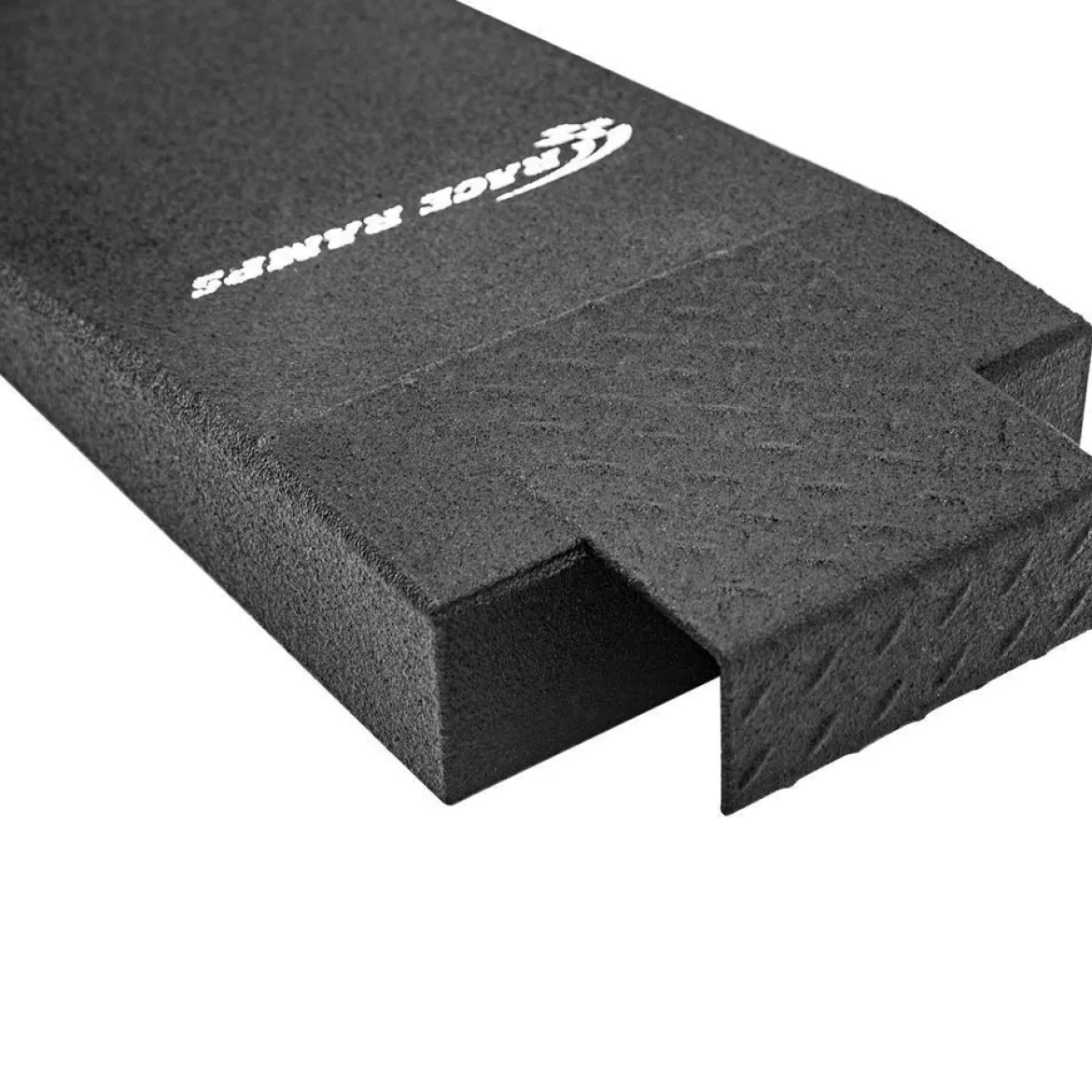

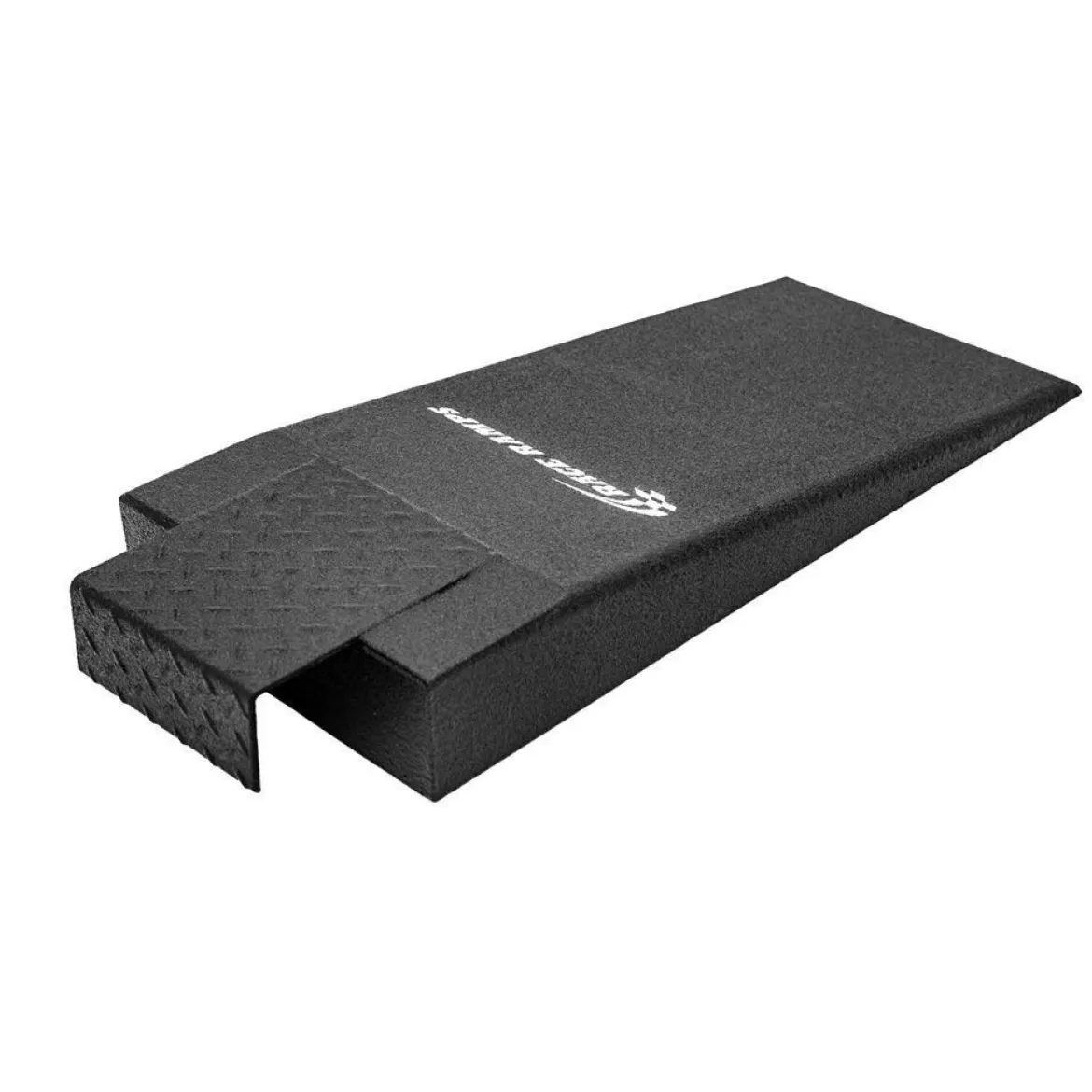

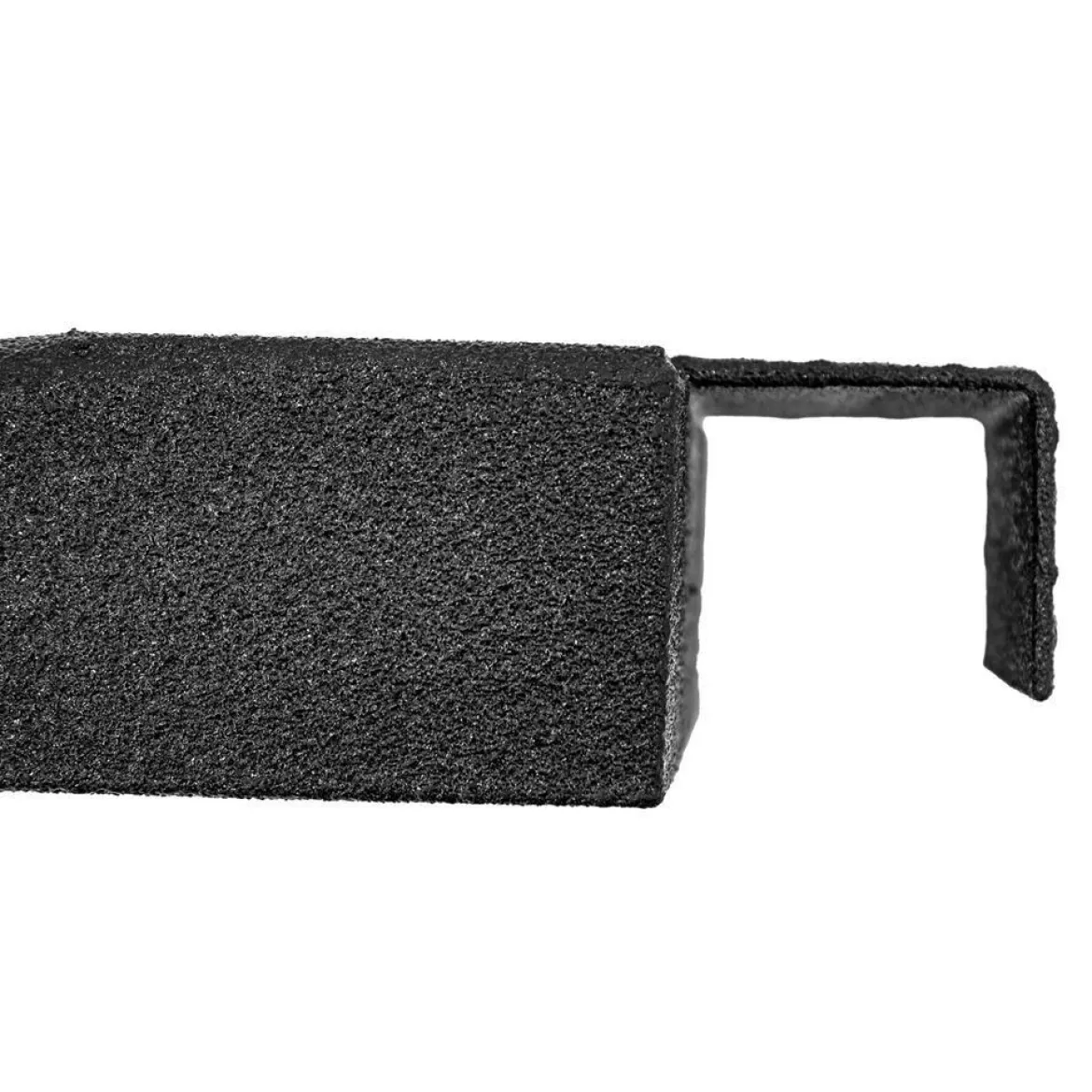

• Secure Lift Connection: Features a 3-inch hook designed to fit securely into the industry-standard slots found on most 4-post lift systems, ensuring stability during vehicle movement.
• Easy Maintenance: The material and anti-slip coating allow for simple cleaning with just soap and water or WD-40, maintaining their appearance and function over time.

SPECIFICATIONS:

• Model Number: RR-RACK-HN14-4
• Made In: USA
• Sold As: Pair (Set of two ramps)
• Length: 34 inches
• Width: 14 inches
• Height: 4 inches (Provides 4 inches of lift height)
• Weight: 7 lbs. (per ramp)
• Maximum Capacity: 1,500 lbs. (per ramp)
• Maximum Tire Width: 12 inches
• Approach Angle Degree: 8°
• Material: Expanded foam with traction coating
• Connector: 3-inch hook
• Color: Black

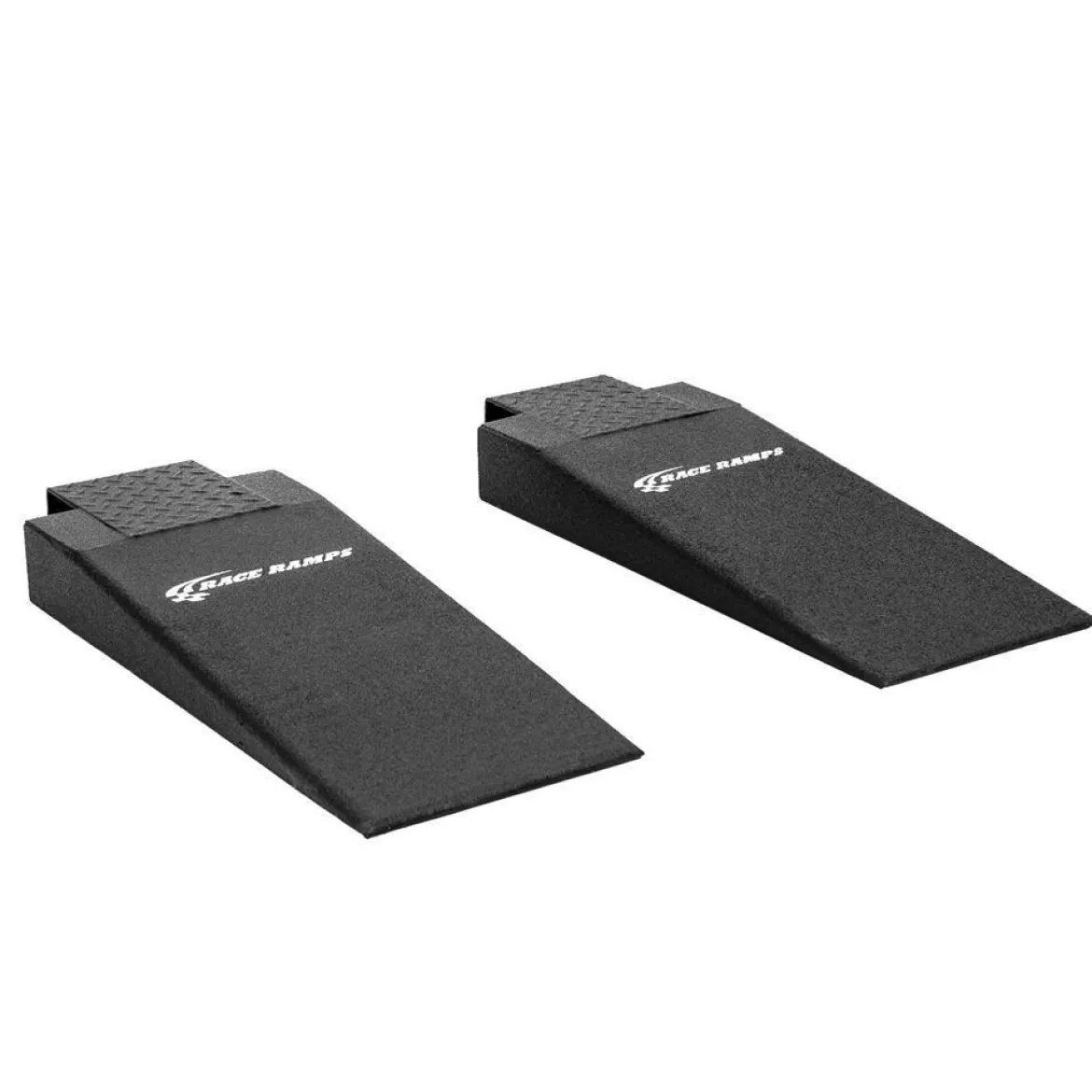

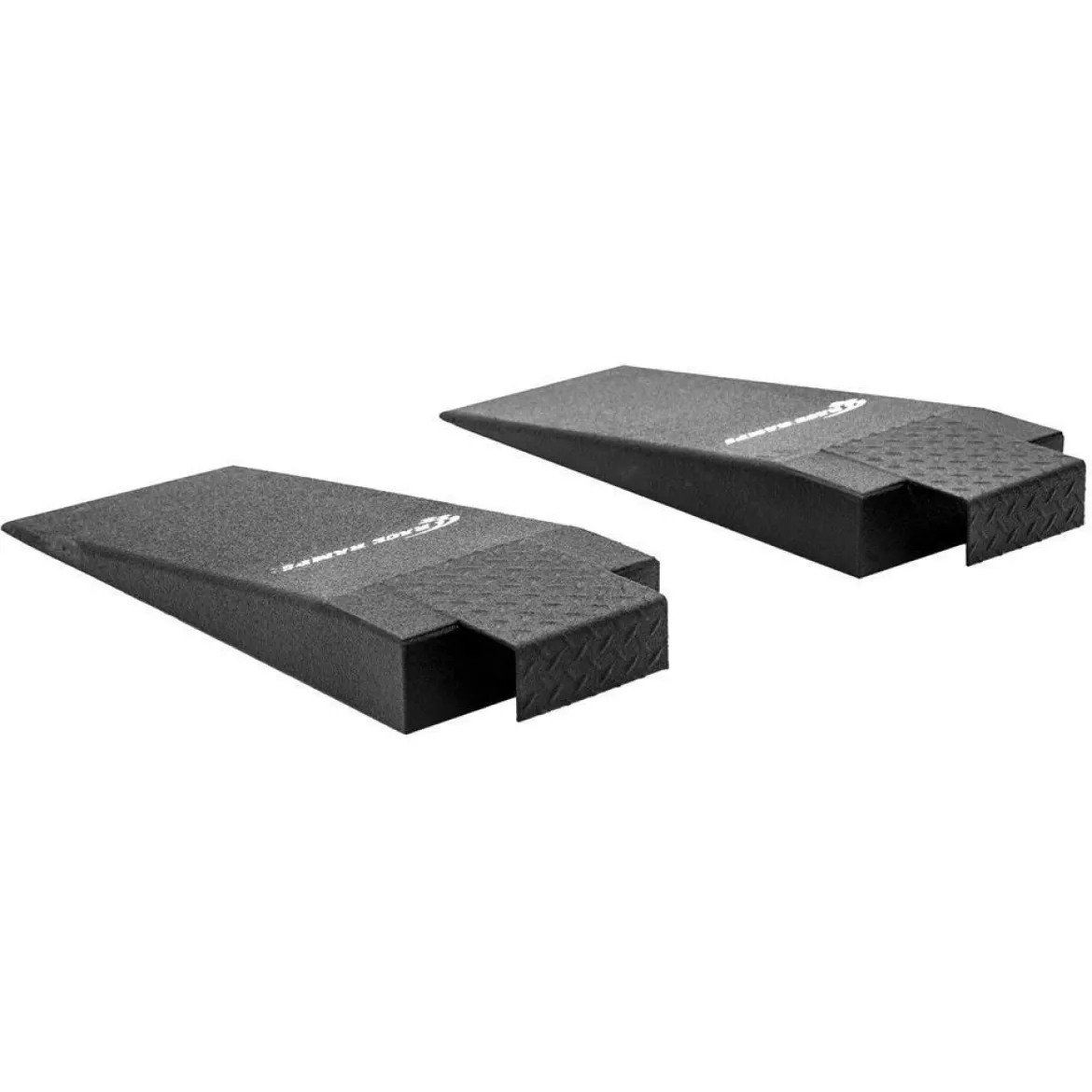

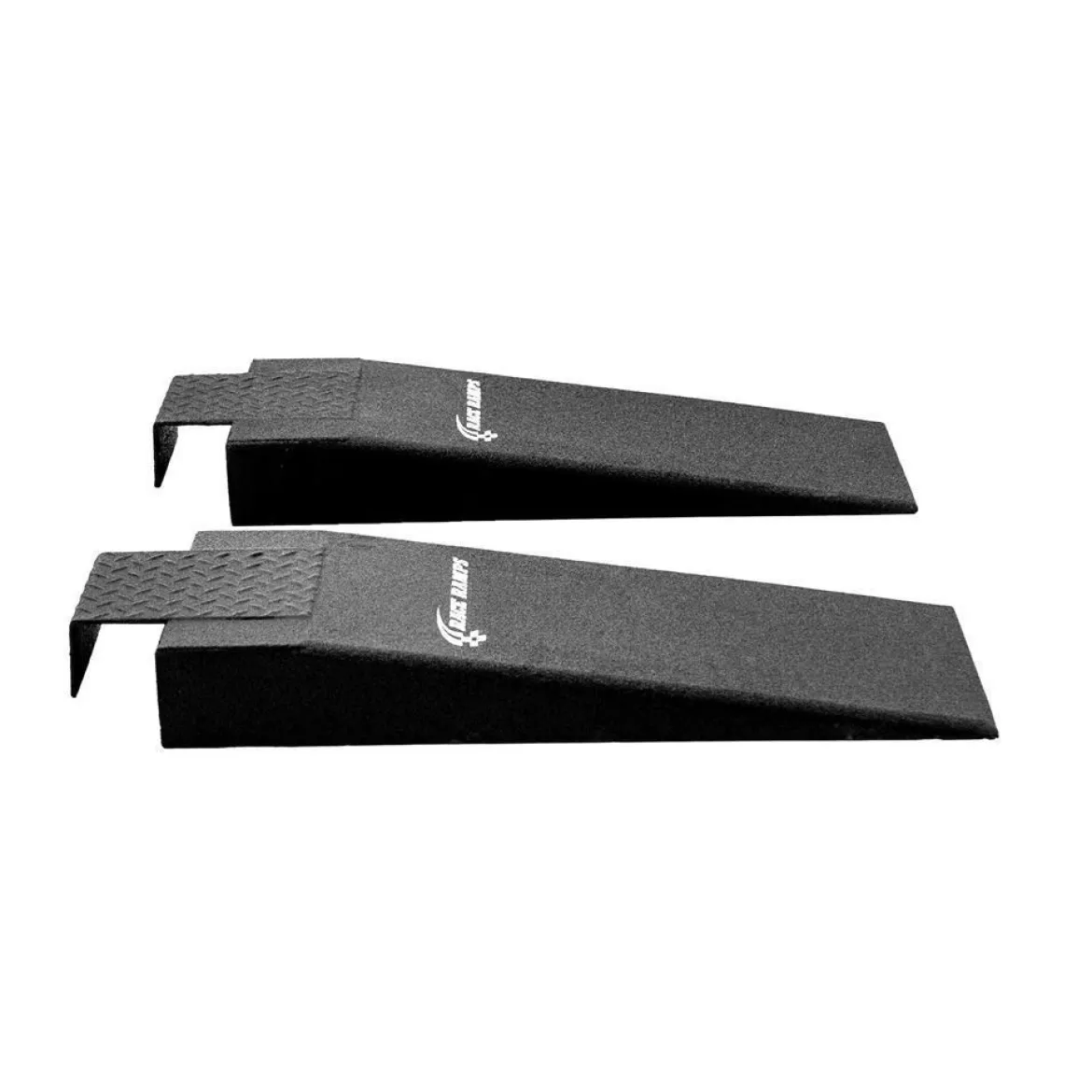

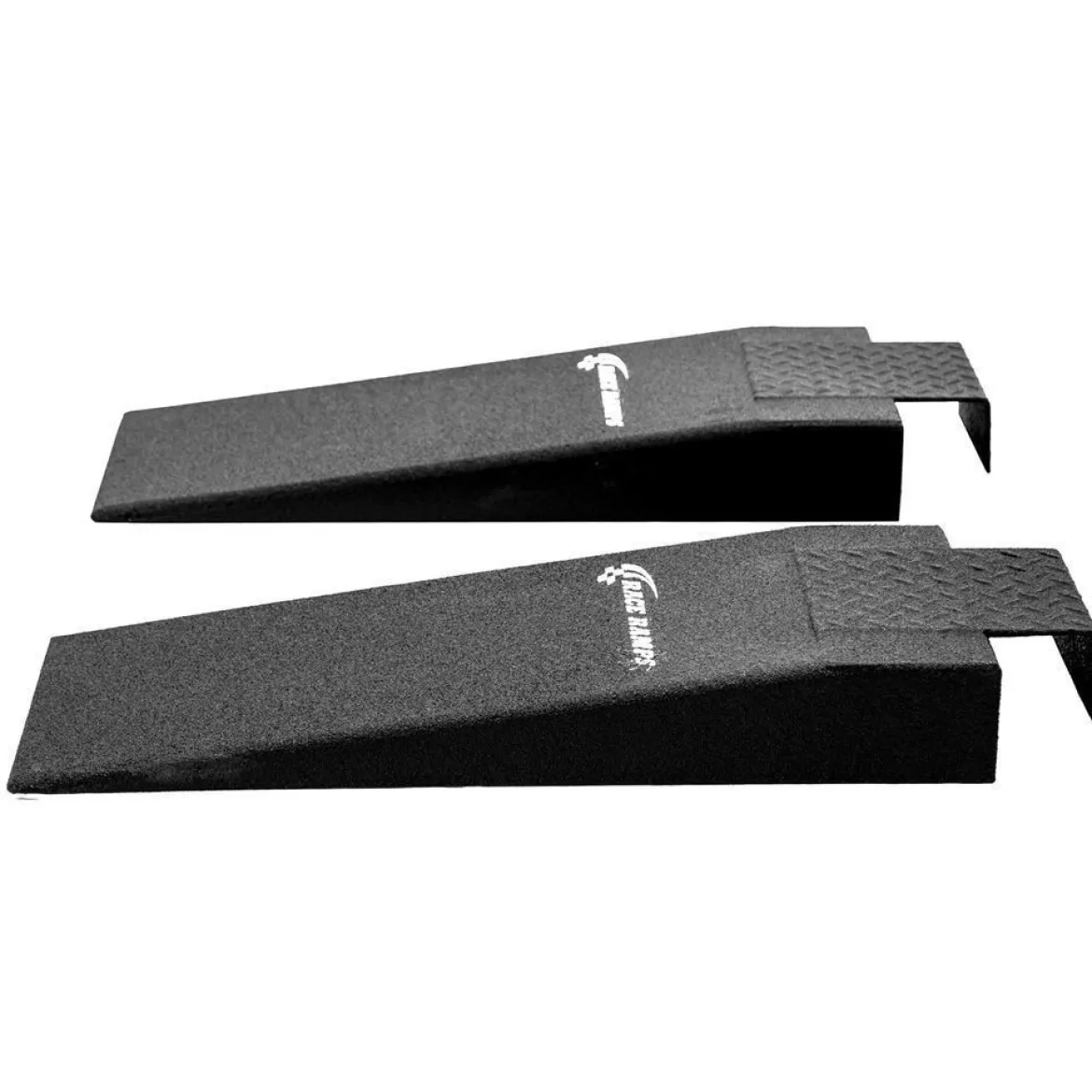

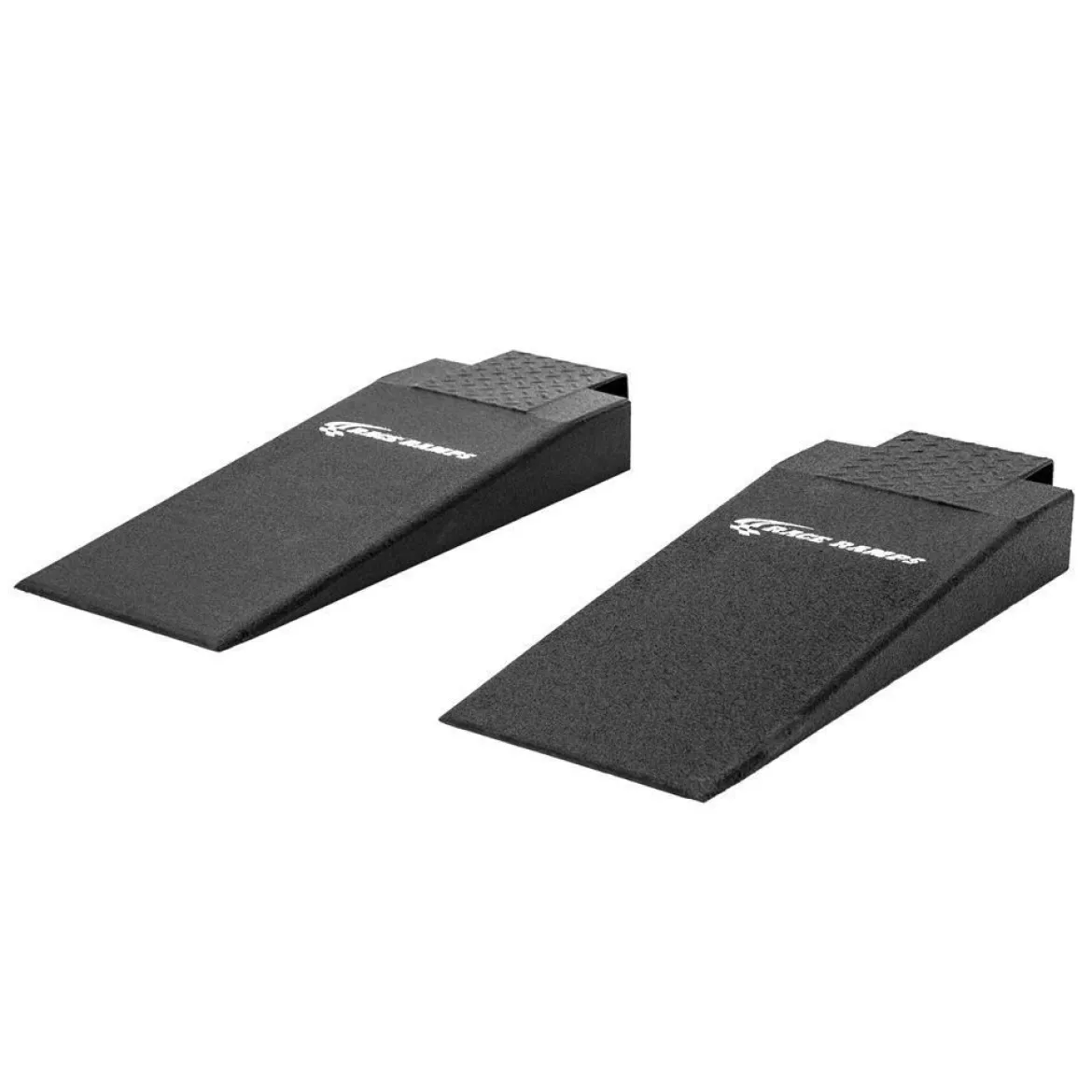

• Included in Purchase: Two (2) Race Ramps 4″ Height Hook Nose Rack Ramps

HOW TO USE:

1. Inspect Ramps: Before each use, thoroughly check both ramps for any signs of damage. Do not use if damaged.
2. Position Ramps: Place one ramp directly in front of each front wheel of the vehicle. Ensure the 3-inch hook on each ramp is securely inserted into the corresponding slot on your 4-post lift or service platform.
3. Ensure Stability: Verify that each ramp makes full, even contact with the ground and that no debris is present underneath that could compromise stability. The ramps must be on a flat, level surface.
4. Align Vehicle: Ensure the vehicle’s steering wheel is straight and the wheels are aligned with the center of the ramps.
5. Drive Slowly: Slowly and steadily drive the vehicle up the ramps. Maintain a consistent, controlled speed. It is advisable to have another person observe and guide the driver.
6. Secure Vehicle: Once the vehicle is fully on the lift or platform, engage the parking brake and follow all safety procedures for your lift system, including chocking any unramped wheels if applicable.

BENEFITS OF USING RACE RAMPS 4″ HEIGHT HOOK NOSE RACK RAMP (RR-RACK-HN14-4):

• Vehicle Protection: Eliminates the risk of scraping and damaging the front bumper, air dams, or undercarriage components of low-clearance vehicles during the lifting process.
• Enhanced Safety: Provides a stable and controlled transition onto lifts, reducing the potential for accidents caused by vehicles bottoming out or unstable ramp setups.
• Time Efficiency: Their lightweight nature allows for quick and effortless positioning, reducing the time and effort typically spent maneuvering heavier, traditional ramps.
• Longevity and Durability: Constructed from high-density, rust-proof foam with a traction coating, these ramps are built to withstand repeated use without degradation, unlike metal alternatives that can corrode.
• Floor Preservation: The non-abrasive, anti-slip coating protects valuable garage floors from scratches, scuffs, or marks, maintaining a clean and professional appearance.

FEATURES:

• Zero-slip surface with specialized anti-slip coating for excellent tire grip.
• Patented construction using a solid, high-density foam core for strength and lightness.
• Environmental resistance to rust and temperature transfer.
• Integrated 3-inch hook for secure fit with 4-post lift slots.
• Supports tires up to 12 inches wide for broad vehicle compatibility.
