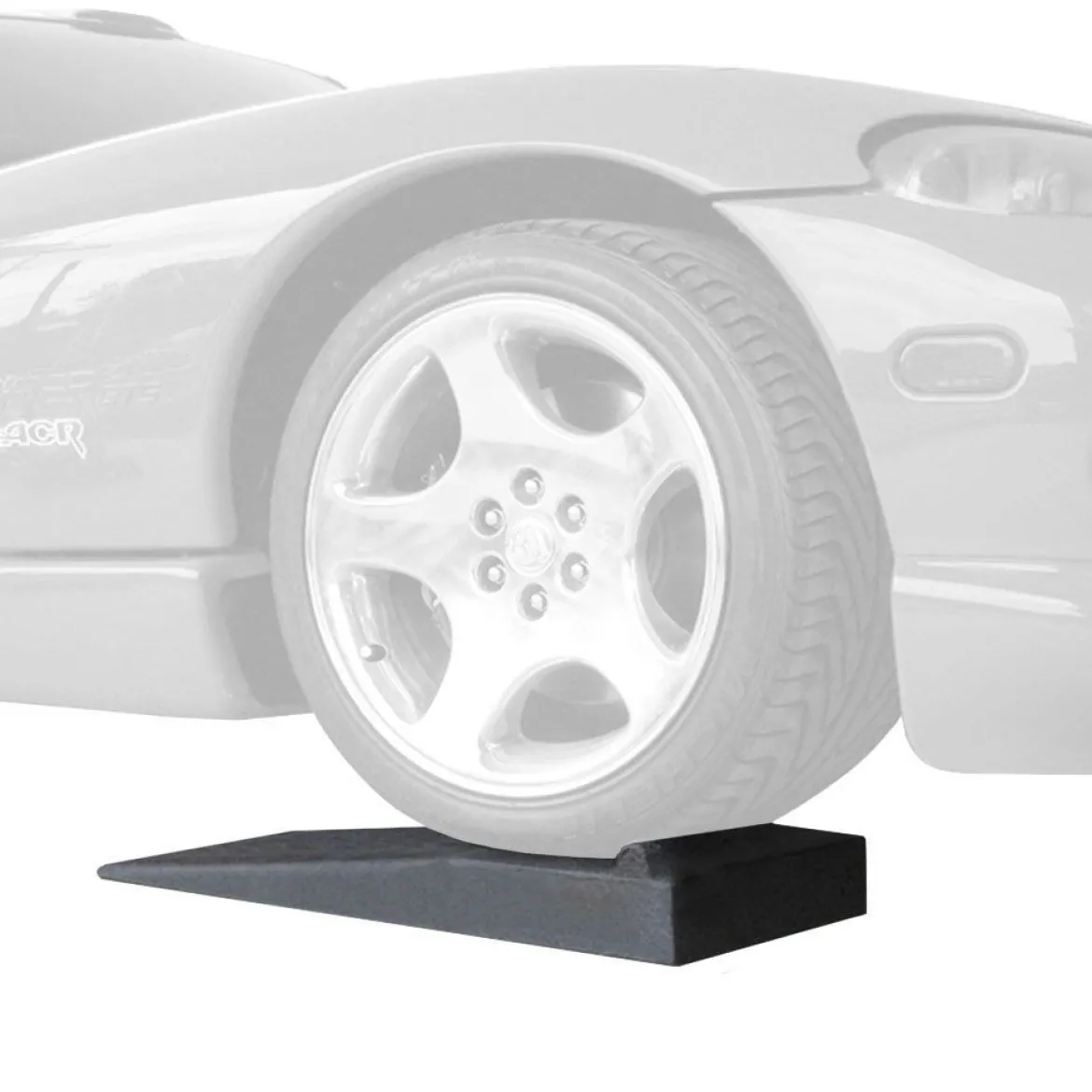

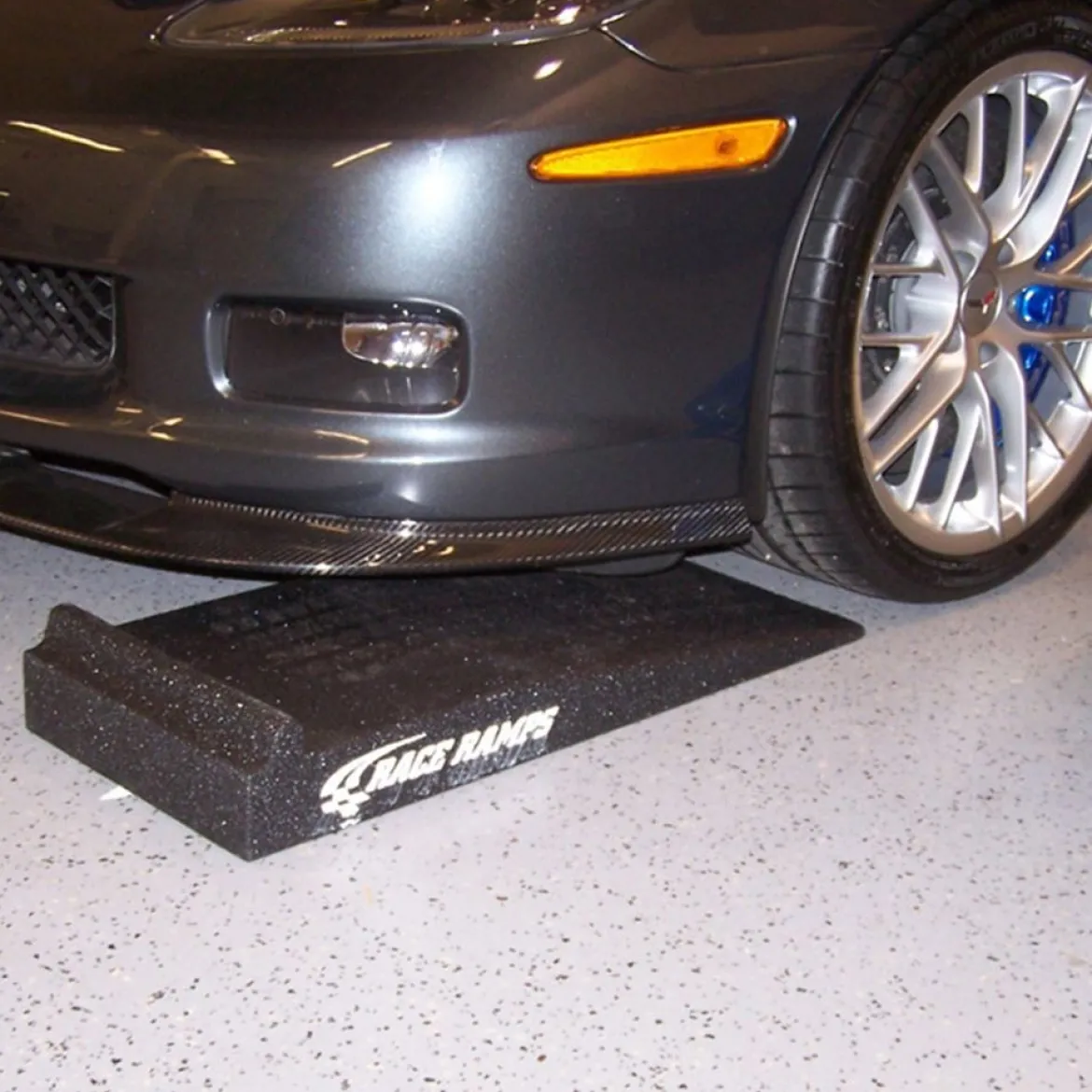

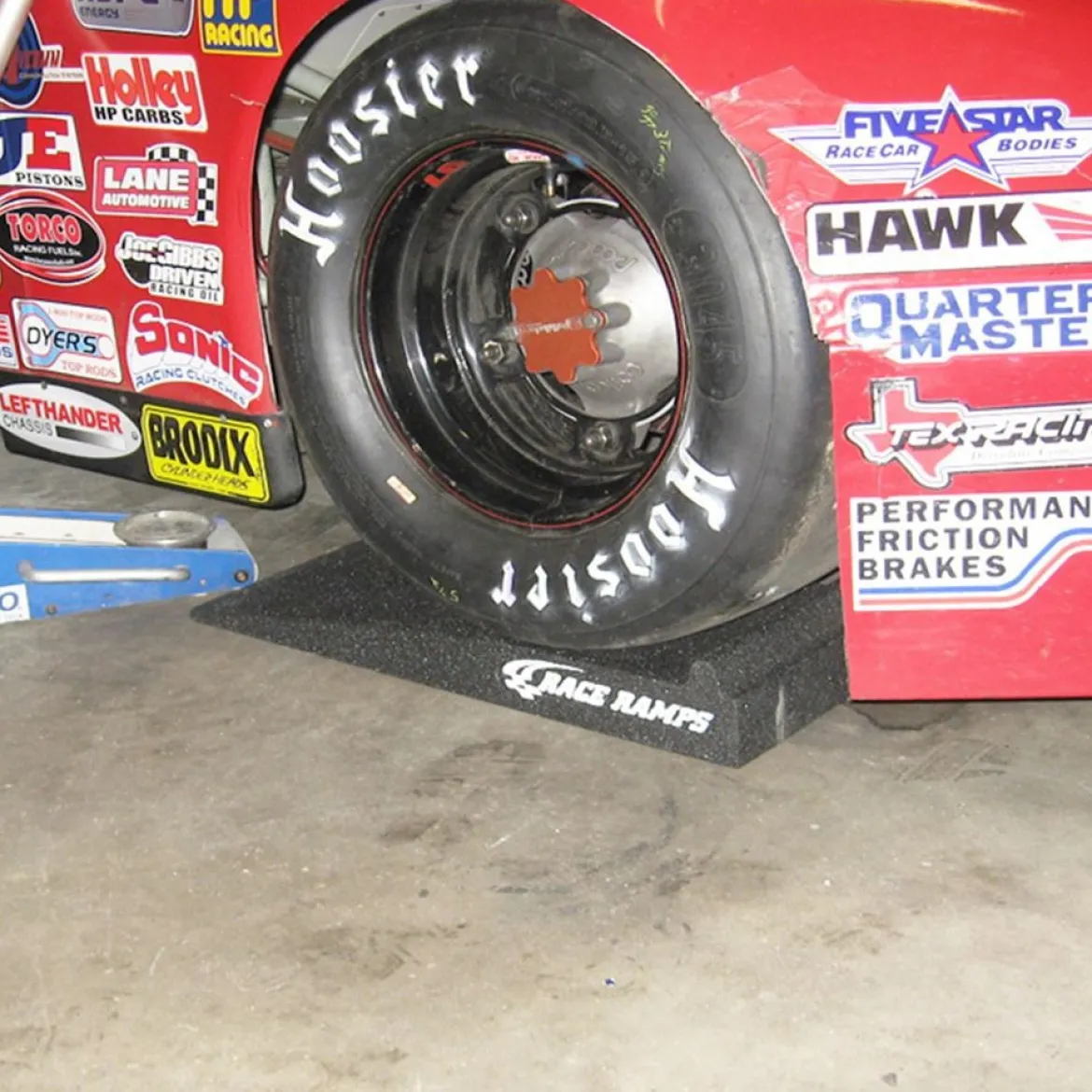

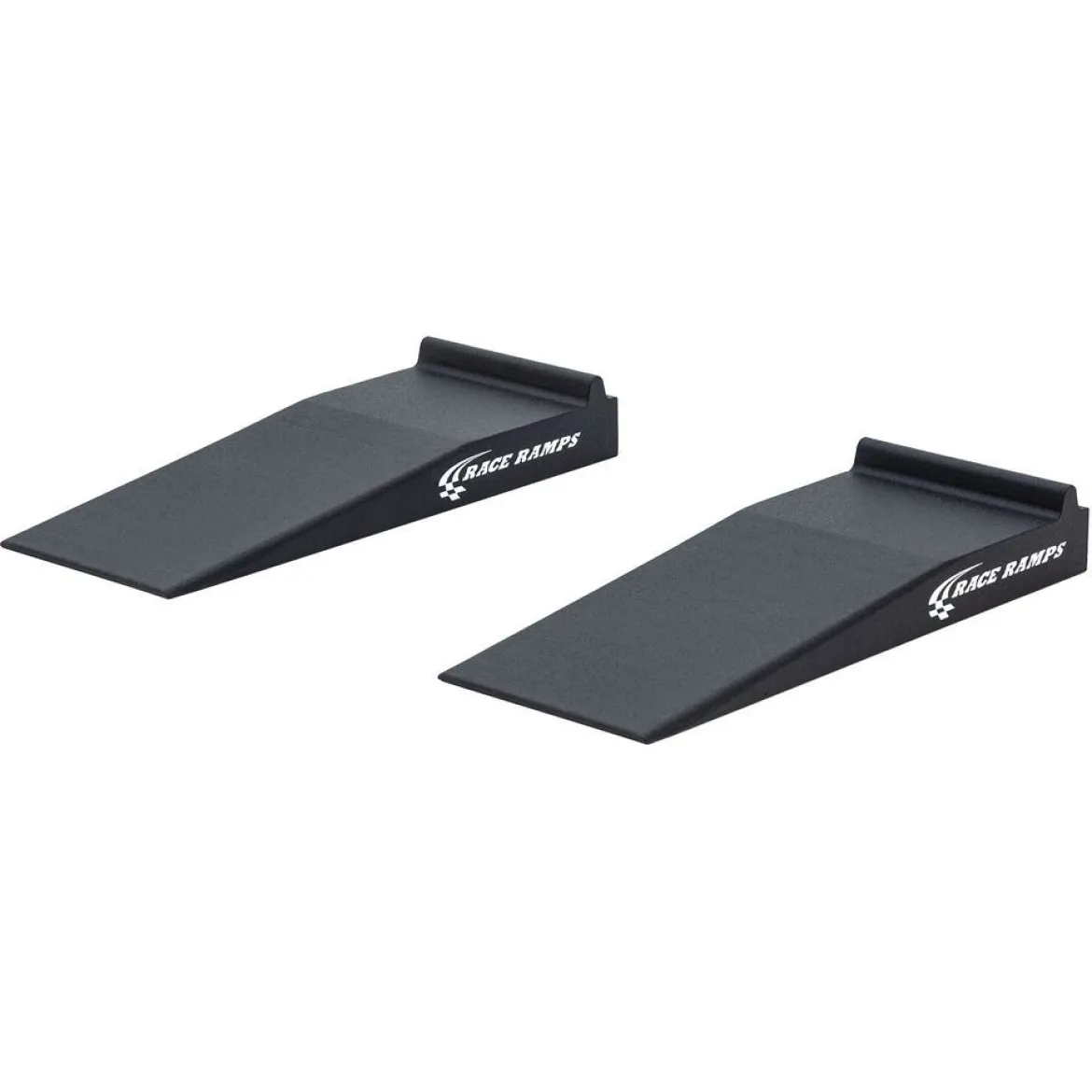

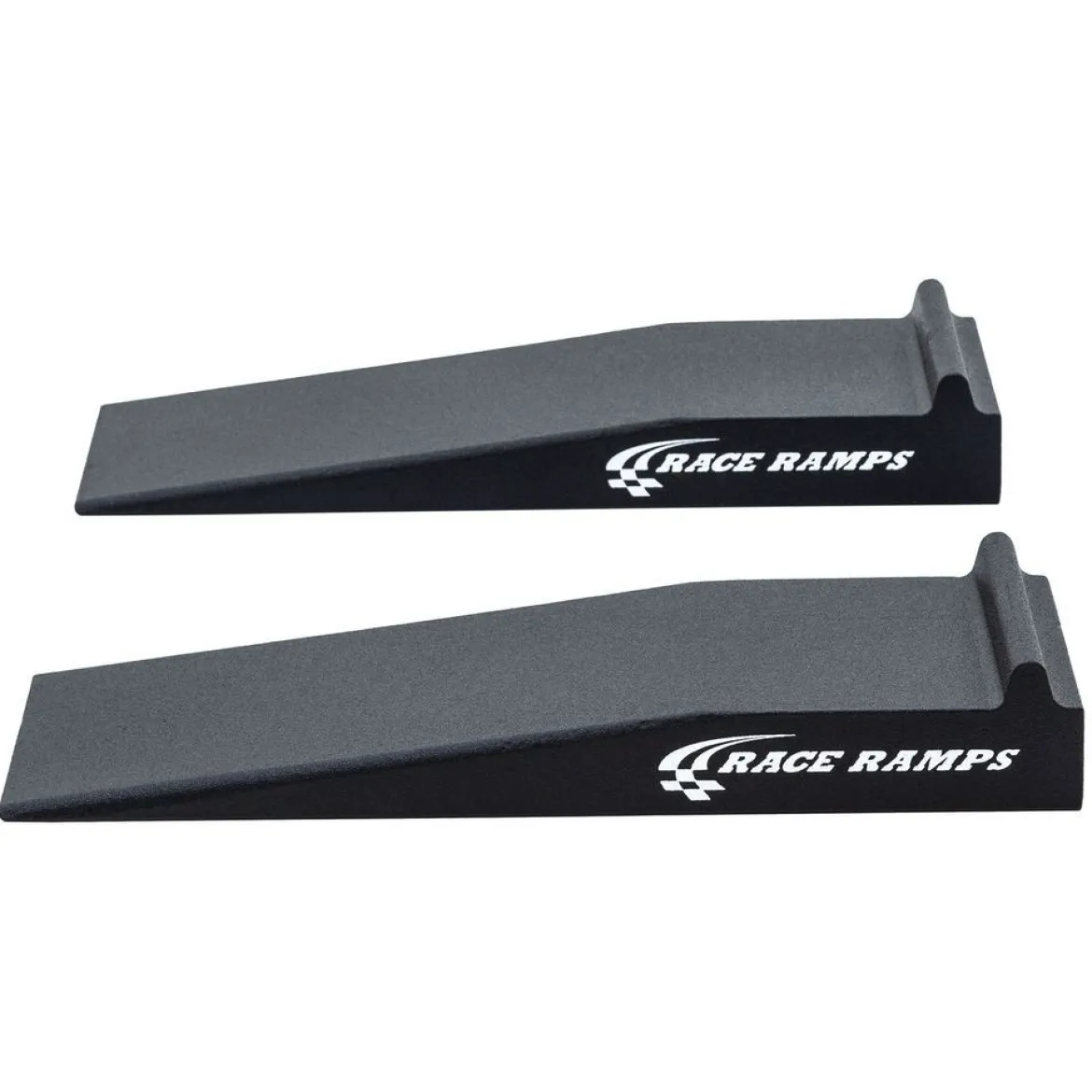

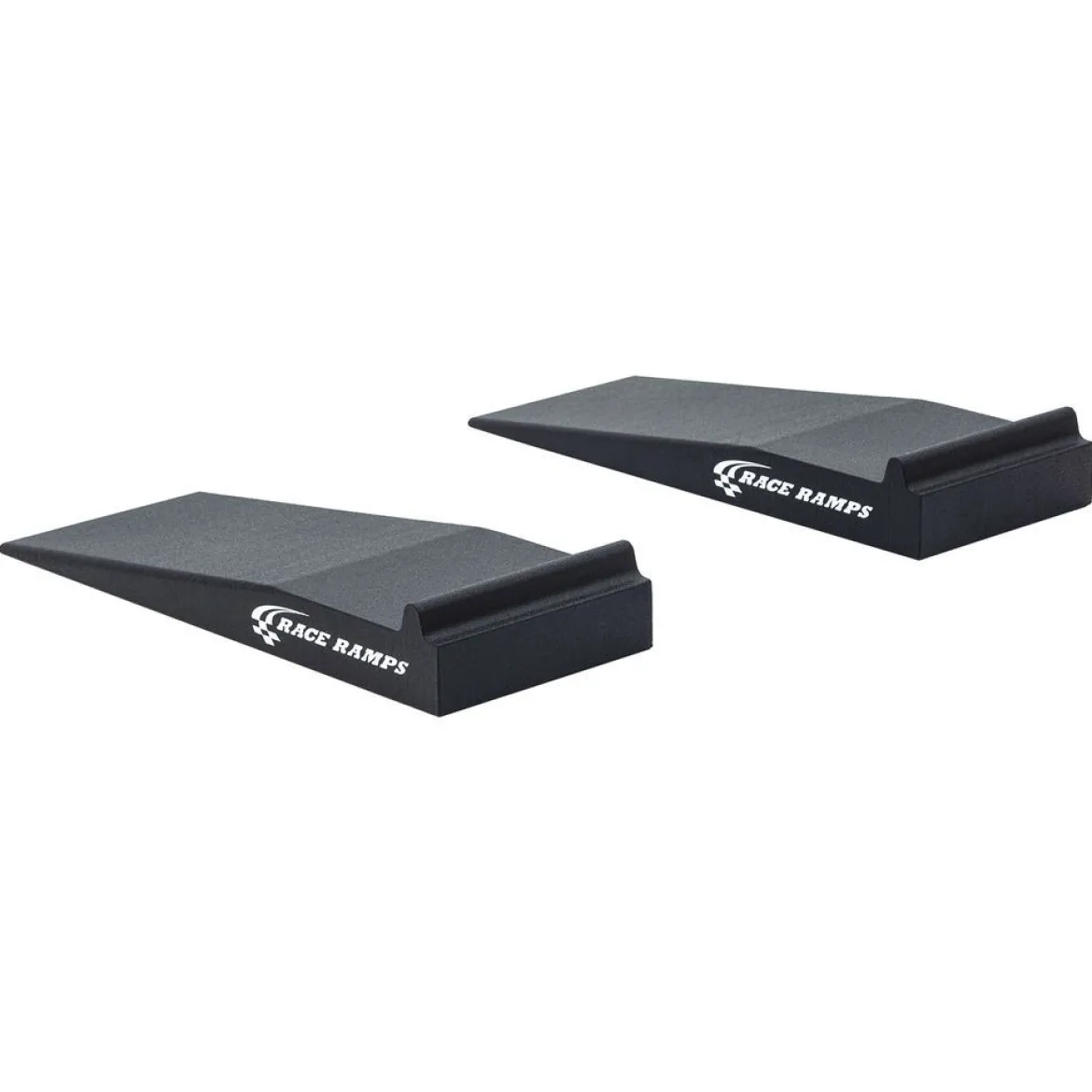

Race Ramps 3″ Trak-Jax Ramps with 1.5″ Stop (RR-TJ-S)

The Race Ramps 3″ Trak-Jax Ramps with 1.5″ Stop (RR-TJ-S) offer a straightforward and effective solution for elevating low-profile vehicles. Designed to bridge the gap between low-clearance cars and standard floor jacks, these ramps provide the necessary height without requiring specialized, low-profile jacking equipment. Their unique construction ensures stability and ease of use for various automotive tasks, from routine maintenance to trackside tire changes.

KEY FEATURES AND BENEFITS:

• Elevates vehicles for jack access: Provides 3 inches of lift, creating sufficient space to slide a standard floor jack underneath low-profile vehicles, eliminating the need for specialized equipment.
• Gentle approach angle: Features a 7.8-degree angle of approach, suitable for many lowered vehicles, ensuring a smooth and controlled ascent without scraping the vehicle’s underside.
• Integrated safety stop: Includes a 1.5-inch stop at the end of each ramp, providing a clear and gentle indication to the driver when the vehicle has reached the optimal position.
• Portable and easy to handle: Each ramp weighs only 5 lbs, making them exceptionally light and simple to transport, set up, and store, even in a vehicle’s trunk.
• High weight support: Despite their lightweight design, each ramp can support up to 1,500 lbs, accommodating a wide range of passenger vehicles securely.

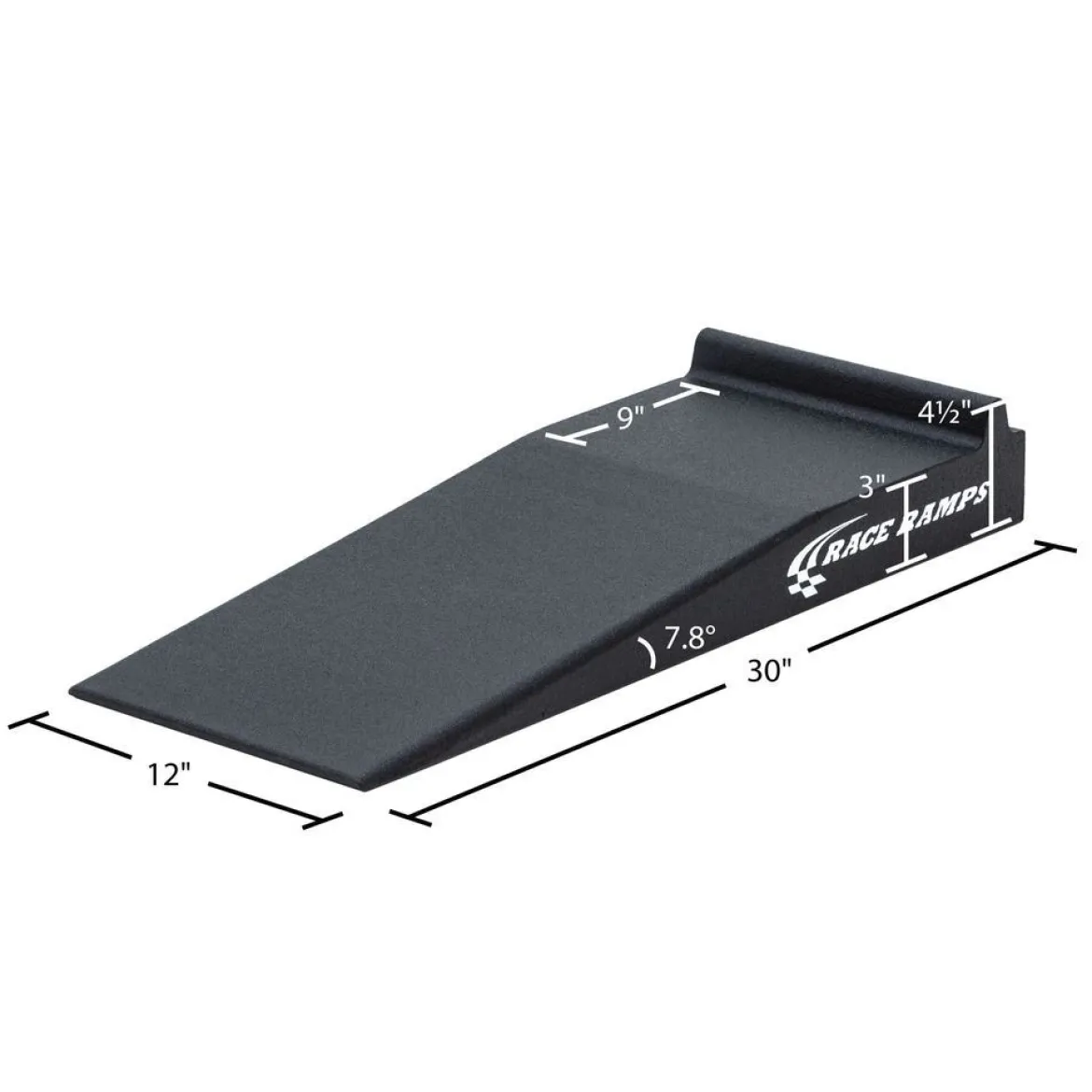

SPECIFICATIONS:

• Made in the USA: Yes
• Sold As: Pair
• Length: 30 inches
• Width: 12 inches
• Height: 4-1/2 inches (overall height)
• Weight: 5 lbs (per ramp)
• Lift Height: 3 inches
• Maximum Capacity: 1,500 lbs (per ramp)
• Maximum Tire Width: 10 inches
• Approach Angle Degree: 7.8°
• Material: Expanded foam with traction coating
• Color: Black
• Included in Product: Two (2) Race Ramps 3″ Trak-Jax Ramps with 1.5″ Stop (RR-TJ-S)

HOW TO USE:

1. Inspect ramps: Before each use, thoroughly check both ramps for any signs of damage. Do not use if any damage is present.
2. Prepare surface: Ensure the ground where you intend to use the ramps is flat and level. Verify that the entire bottom surface of each ramp will make full contact with the ground for maximum stability.
3. Position ramps: Place the ramps directly in front of the tires you intend to raise. Ensure they are centered with the tires.
4. Align vehicle: Straighten your vehicle’s steering wheel to ensure the tires will drive onto the ramps in a straight line.
5. Drive on slowly: Drive your vehicle slowly and steadily onto the ramps. The 1.5-inch stop will provide a gentle alert when your tires have reached the end of the ramp.
6. Secure vehicle: Once on the ramps, engage the parking brake. You can now safely position your standard floor jack under the vehicle’s designated jacking points, which should now have ample clearance.
7. Reverse carefully: When finished, slowly and carefully back the vehicle off the ramps.

BENEFITS OF USING RACE RAMPS 3″ TRAK-JAX RAMPS WITH 1.5″ STOP (RR-TJ-S):

• Eliminates the need for specialized, expensive low-profile floor jacks.
• Facilitates easy access to undercarriage for maintenance, cleaning, or detailing.
• Offers a safe and stable platform for lifting, reducing the risk of vehicle movement.
• Protects garage and driveway surfaces from scratches or damage due to its non-slip, non-scuff material.
• Provides a quick setup and breakdown time, ideal for enthusiasts and track day participants.
• Resistant to common automotive fluids and will not rust or transfer temperature extremes.

FEATURES:

• Constructed from a proprietary high-density foam core.
• Coated with a specialized anti-slip, anti-scuff surface.
• Designed to be impervious to most automotive chemicals and liquids.
• Will not corrode or degrade over time.
• Engineered to prevent sliding on various surfaces, including concrete.
• Manufactured with a patented process ensuring strength without excess weight.
• Small form factor allows for convenient storage in a vehicle’s trunk or garage.
• Features a gradual incline for controlled vehicle ascent.
• Resistant to hot and cold temperature transfers.
