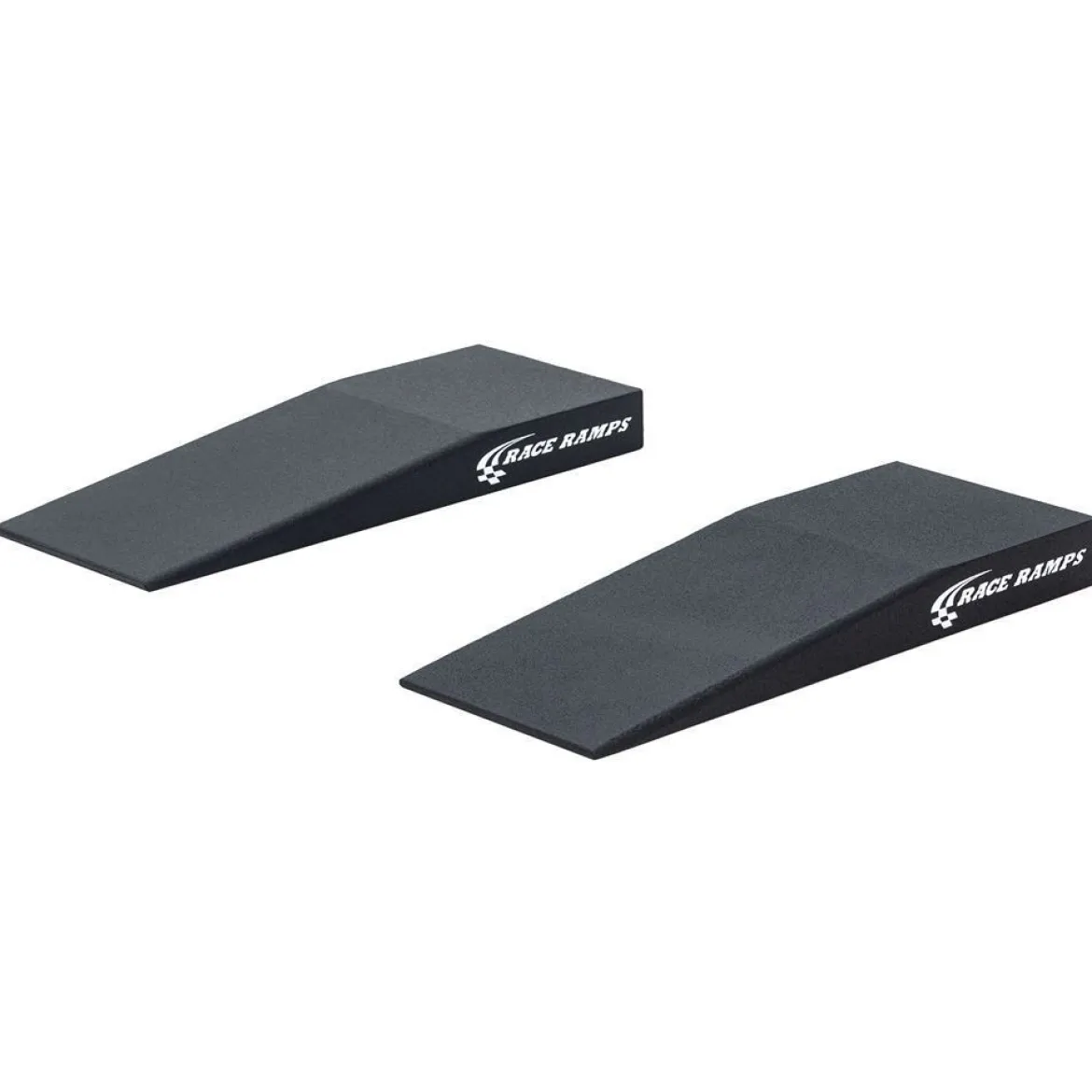

Race Ramps 3″ Trak-Jax Ramps (RR-TJ)

Race Ramps 3″ Trak-Jax Ramps (RR-TJ) are designed to provide a practical and efficient solution for vehicle owners, especially those with low-profile cars, who need to access the underside of their vehicle for maintenance or tire changes. These ramps offer a crucial 3 inches of lift, allowing standard floor jacks to be positioned beneath vehicles that would otherwise be too low to clear. Inspired by the needs of auto-crossers, these ramps combine lightweight portability with sturdy construction, making them an excellent addition to any garage or track day kit.

KEY FEATURES AND BENEFITS:

• Elevates low vehicles: Provides a 3-inch lift, creating sufficient clearance to fit standard floor jacks under cars with low ground clearance.
• Gentle approach angle: Features a shallow 7.8-degree approach angle to avoid scraping the front bumper or underside.
• Lightweight & portable design: Each ramp weighs only 5 lbs and is compact enough for easy storage and transport.
• High weight capacity: Each ramp supports up to 1,500 lbs, accommodating a wide range of vehicles.
• Non-slip stability: Coated with an anti-slip layer and built with a solid base to stay firmly in place on various surfaces.

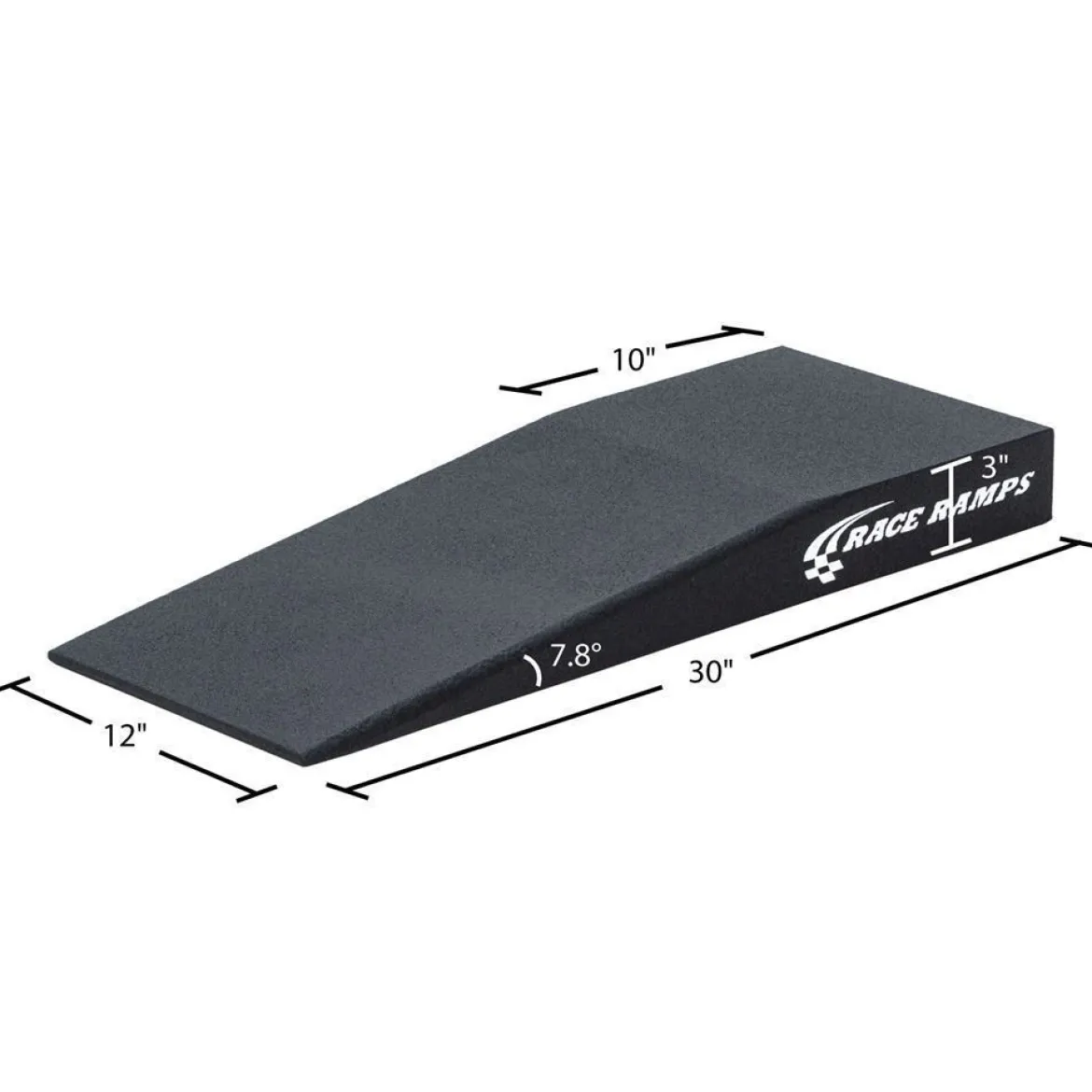

SPECIFICATIONS:

• Sold As: Pair (2 ramps included per purchase)
• Length (per ramp): 30 inches
• Width (per ramp): 12 inches
• Height (per ramp): 3 inches
• Weight (per ramp): 5 lbs
• Lift Height: 3 inches
• Maximum Capacity (per ramp): 1,500 lbs
• Maximum Tire Width: 10 inches
• Approach Angle Degree: 7.8°
• Material: Expanded foam with traction coating
• Color: Black
• Made in: USA

HOW TO USE:

1. Inspect Ramps: Visually inspect both ramps before each use for any damage. Do not use damaged ramps.
2. Prepare Surface: Ensure the area is flat, level, and debris-free to prevent ramp shifting or damage.
3. Position Ramps: Align the ramps with the tires and ensure full ground contact.
4. Align Steering Wheel: Straighten the steering wheel before ascending.
5. Drive On: Slowly drive onto the ramps until the tires are centered on the flat platform. Engage the parking brake.
6. Secure Vehicle: Use a standard floor jack under designated jacking points, then place jack stands for safety.
7. Remove Ramps (When Done): After maintenance, lower the vehicle from the jack and back off the ramps carefully.

BENEFITS OF USING RACE RAMPS 3″ TRAK-JAX RAMPS (RR-TJ):

• Enhanced Accessibility: Provides necessary clearance for floor jack access under lowered vehicles.
• Portable Convenience: Lightweight and compact, ideal for travel or emergency use.
• Floor Protection: Safe on garage floors due to smooth, non-damaging construction.
• User-Friendly Design: Designed for safe, easy vehicle ascent with a gentle incline and grippy surface.
• Space-Saving Storage: Minimal space required for storing when not in use.

FEATURES:

• Constructed from high-density expanded foam.
• Protected by a robust, anti-slip polyurea coating.
• Designed to withstand most automotive fluids.
• Lack sharp edges, reducing risk of injury or damage.
• Engineered to prevent sliding on various surfaces.
• Specifically shaped for a smooth, low-angle vehicle approach.
