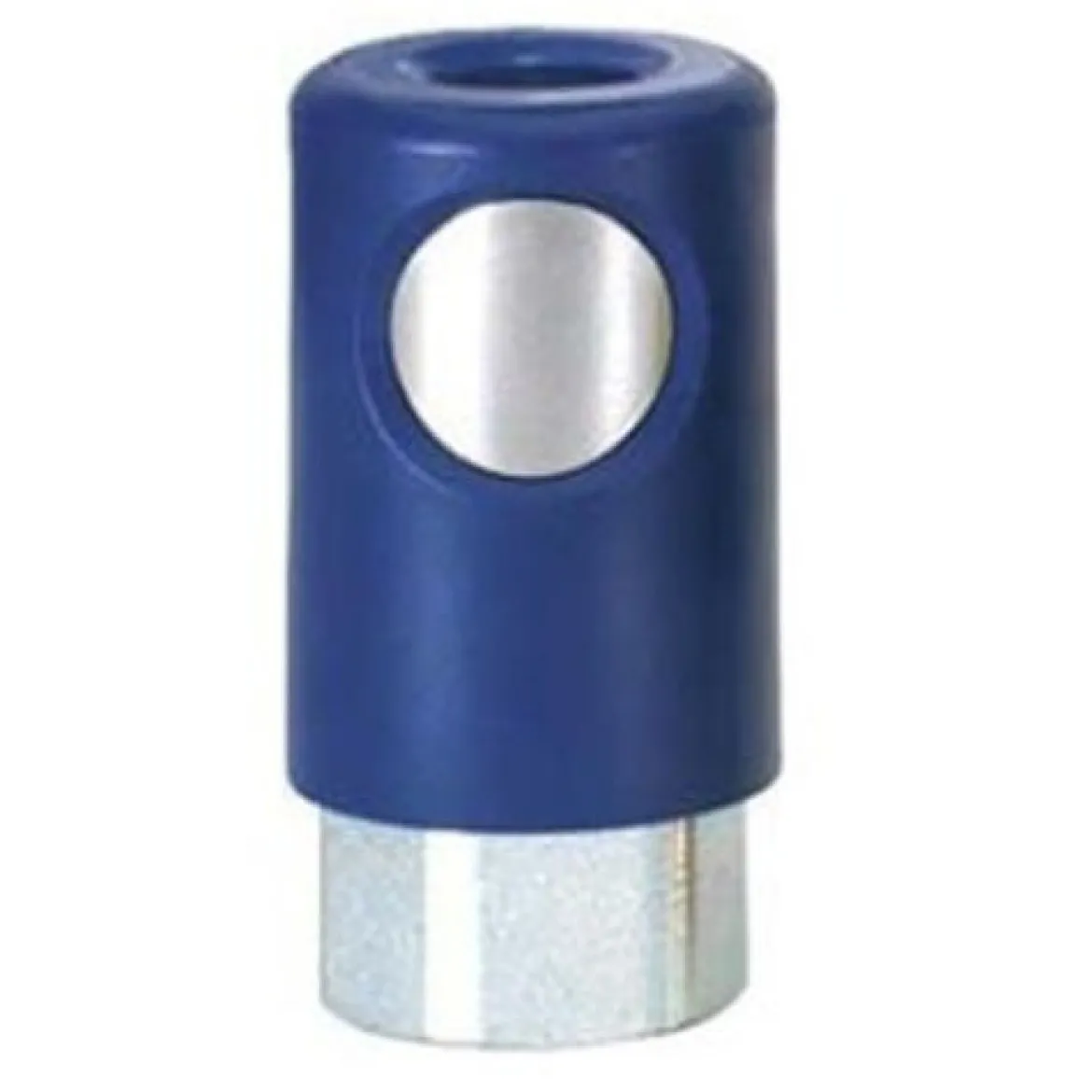

Prevost NPT 3/8″ Industrial Female Coupler (IRC061202)

The Prevost NPT 3/8″ Industrial Female Coupler (IRC061202) is a precision-engineered pneumatic fitting designed to deliver secure and efficient connections in industrial compressed air systems. Built from high-grade composite material, it offers both durability and a lightweight, non-marring finish to protect sensitive surfaces. This coupler ensures quick and safe attachment or detachment of air tools and hoses, helping maintain productivity and safety in demanding work environments. Its advanced safety features vent air pressure during disconnection, reducing common workplace hazards such as hose whip.

KEY FEATURES AND BENEFITS:

• Secure Connection: Provides a reliable, leak-free seal for consistent air pressure and tool performance.
• Safety Disconnection: One-push safety mechanism vents air before disconnection to prevent hose whip and enhance user safety.
• Enhanced Flow: Features a 1/4″ internal passage that minimizes pressure drop and maximizes airflow.
• Robust Construction: Impact-resistant composite body ensures durability while being lightweight and surface-friendly.
• Broad Compatibility: Compatible with Industrial Interchange (ISO 6150-B / “M” style) air plugs.
• Temperature Stability: Performs reliably across temperatures ranging from 5°F to 158°F.

SPECIFICATIONS:

• Reference: IRC 061202
• Net Weight: 0.093 kg
• Flow Rate: 28 CFM (at 87 PSI inlet pressure, with an 8.69 PSI pressure drop)
• ID Passage: 1/4″
• Max. Output Pressure: 174 PSI
• Profile: Industrial Interchange (ISO 6150-B / “M” style)
• Female Thread: NPT 3/8″
• Temperature Range: 5°F to 158°F (-15°C to 70°C)
• Included in Product: One (1) Prevost NPT 3/8″ Industrial Female Coupler (IRC061202)

HOW TO USE:

1. Preparation: Turn off or regulate the air compressor to a safe pressure level. Check that the male plug is clean and free of debris.
2. Connecting an Air Tool/Hose: Insert the male industrial air plug into the coupler until a click confirms the secure connection. Tug lightly to ensure it is locked in place.
3. Operating Pneumatic Equipment: Once connected, pressurize the air line and operate your tools as required.
4. Disconnecting Safely: Press the push-button mechanism on the coupler to vent the air pressure safely.
5. Complete Disconnection: After the air is vented, remove the plug and store the coupler in a clean, dry location.

BENEFITS OF USING PREVOST NPT 3/8″ INDUSTRIAL FEMALE COUPLER (IRC061202):

• Improves workplace safety by preventing hose whip during disconnection.
• Delivers consistent airflow and reduces pressure loss for efficient tool operation.
• Offers long-term durability with high-quality materials for industrial use.
• Enables fast, one-handed tool changes for better workflow efficiency.
• Works with standard industrial plugs for versatile applications.
• Prevents surface damage with its non-marring composite body.

FEATURES:

• Lightweight composite construction for easy handling.
• Anti-corrosion treated internal components.
• One-hand push-button release for convenient disconnection.
• Designed for 1/4″ industrial profile air plugs.
• 3/8″ NPT female tapered thread for secure connections.
• Nitrile (NBR) gasket ensures effective sealing.
• Impact-resistant housing for long service life.
• Optimized internal flow path for high air volume.
• Reliable performance across wide temperature ranges.
