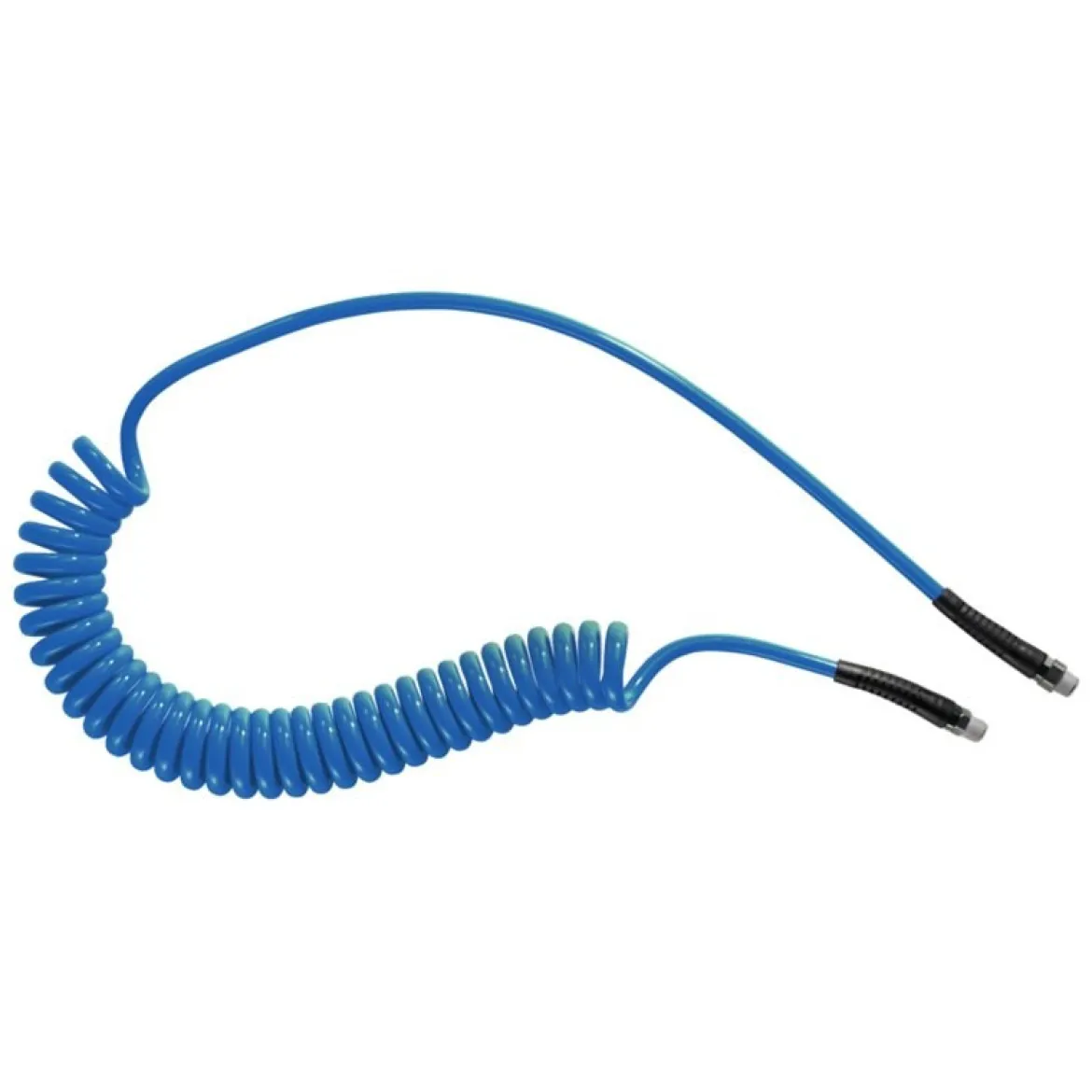

Prevost 5/16″ x 26′ Blue Coil Hose w/Fixed & Swivel Fittings (PUS268)

The Prevost 5/16″ x 26′ Blue Coil Hose w/Fixed & Swivel Fittings (PUS268) is a practical and efficient solution for delivering compressed air to your pneumatic tools. Constructed from high-quality polyurethane, this blue coil hose is designed for effective performance and ease of use in various work environments. Its coiled nature allows for convenient storage and prevents tangling, making it an excellent choice for workshops, garages, and mobile applications where space optimization is important.

KEY FEATURES AND BENEFITS:

• Efficient Air Delivery: Provides a consistent flow of compressed air to pneumatic tools, supporting optimal performance.
• Space-Saving Design: Coiled structure allows the hose to extend for use and retract for compact storage, minimizing clutter.
• Flexible Polyurethane Construction: Offers good flexibility and resistance to kinking, ensuring smooth air flow and extending the life of the hose.
• Swivel Fitting for Enhanced Maneuverability: The 360° swivel 1/4″ NPT male fitting at one end prevents twists and tangles, allowing for easy movement of air tools.
• Secure Connections: Fixed and swivel 1/4″ NPT male fittings, along with Teflon-coated threads, provide reliable and leak-resistant connections to air compressors and tools.
• Hose Guards: Equipped with protective guards at both ends to reduce wear and tear on the hose near the fittings, contributing to its longevity.
• Wide Temperature Range: Operates effectively in temperatures from 5°F to 158°F, suitable for diverse working conditions.

SPECIFICATIONS:

• Model/Part Number: PUS268 (also PRVPUS268)
• Material: Polyurethane
• Color: Blue
• Inner Diameter (ID): 5/16 inches
• Extended Length: 25.9 feet
• Retracted Length (Length Mini): 2.62 feet
• Diameter of Coils (Ø of coils): 2.05 inches
• Fittings: Fixed and Swivel 1/4″ Male NPT
• Maximum Operating Pressure: 116 psi
• Temperature Range: 5°F to 158°F
• Net Weight: 0.7 kg

HOW TO USE:

1. Connect to Air Source: Take the end of the hose with the fixed 1/4″ NPT male fitting and securely screw it into the air outlet of your compressor or air supply system. Ensure a tight connection to prevent air leaks.
2. Attach Air Tool: Take the other end of the hose, which features the 360° swivel 1/4″ NPT male fitting, and connect it to the air inlet of your pneumatic tool (e.g., air nailer, impact wrench, blow gun). Tighten this connection firmly.
3. Check for Leaks: Once both ends are connected, turn on your air compressor and allow it to build pressure. Listen for any hissing sounds indicating air leaks at the connections. If a leak is detected, tighten the fittings further.
4. Operate Tool: With the hose securely connected and no leaks present, your pneumatic tool is now ready for use. The coil design allows the hose to extend as you move around your workspace.
5. Store After Use: After completing your task, disconnect the air tool first, then disconnect the hose from the air compressor. The hose will naturally retract to its compact coil shape. Store it in a clean, dry place, ideally by hanging it to maintain its coiled form.

BENEFITS OF USING PREVOST 5/16″ X 26′ BLUE COIL HOSE W/FIXED & SWIVEL FITTINGS (PUS268):

• Improved workspace organization with a retractable coil design.
• Enhanced mobility thanks to the 26-foot extended length and swivel fitting.
• Reduced time spent on hose management due to self-retracting feature.
• Durable polyurethane construction and protective hose guards for extended lifespan.
• Consistent air flow for optimal pneumatic tool performance.

FEATURES:

• Polyurethane hose material for resilience and ease of handling.
• Built-in hose guards at each fitting for connection point reinforcement.
• Includes a specialized 360° rotating male NPT fitting.
• Fittings are pre-treated with a Teflon coating for improved sealing.
• Designed with an extended pigtail section for practical tool connection.
• Features non-scratch properties to protect surfaces during use.
• Engineered with technology that reduces hose twisting during operation.
