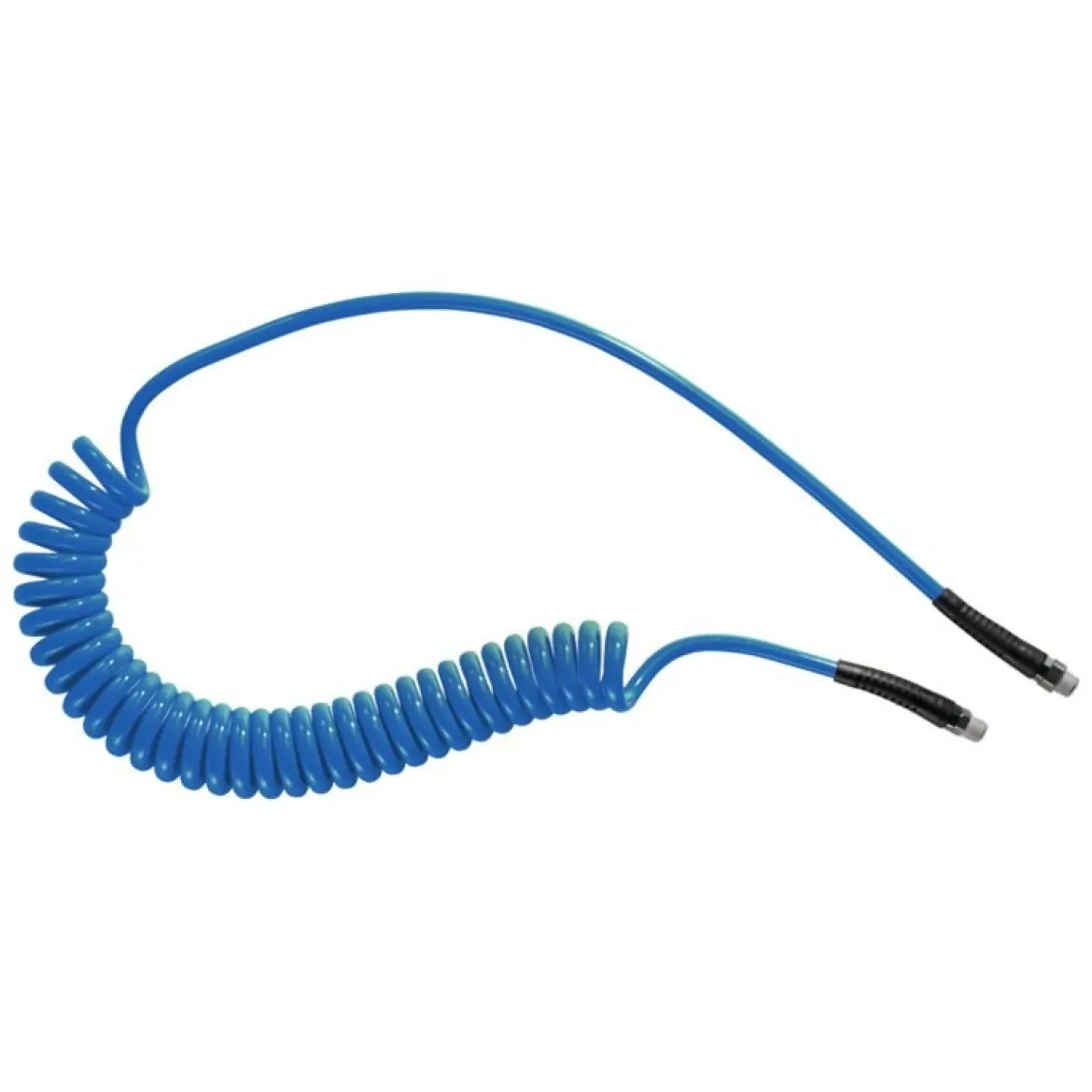

Prevost 5/16″ x 20′ Blue Coil Hose w/Fixed & Swivel Fittings (PUS266)

The Prevost 5/16″ x 20′ Blue Coil Hose w/Fixed & Swivel Fittings (PUS266) is a high-quality polyurethane air hose designed to provide efficient and reliable air delivery for a wide range of pneumatic applications. This blue coiled hose extends to nearly 20 feet, offering ample reach while retracting to a compact size for easy storage. It is equipped with robust 1/4″ NPT fixed and swivel fittings, ensuring secure and flexible connections to your air tools and compressors. Engineered with precision, the PUS266 is suitable for professional workshops, automotive garages, and home use, delivering consistent performance up to 116 PSI. Its thoughtful design incorporates features that enhance durability, user convenience, and the integrity of your air supply, making it an excellent choice for anyone needing a dependable and easy-to-manage air hose.

KEY FEATURES AND BENEFITS:

• Optimal Reach and Compact Storage: Expands to provide approximately 20 feet of working length for ample coverage, then recoils to a minimal 1.8 feet, saving space and reducing clutter in your workspace.
• Secure and Flexible Connections: Comes with a 1/4″ NPT fixed fitting and a swivel fitting, allowing for easy and secure attachment to air compressors and tools, while the swivel mechanism prevents hose twisting during use.
• Consistent Airflow: Capable of handling a maximum operating pressure of 116 PSI, ensuring a steady and reliable air supply for various pneumatic tools and tasks.
• Contamination Control: Manufactured silicone-free, preventing oil and residue contamination in the air stream, which is crucial for applications like painting and varnishing where air purity is essential.
• Static and Dust Reduction: Features anti-static construction that minimizes external dust attraction, contributing to a cleaner work environment and reducing imperfections on sensitive surfaces.
• User-Friendly Design: Lightweight and flexible, this hose is easy to handle and maneuver around objects, reducing user fatigue during prolonged use.

SPECIFICATIONS:

• Reference: PUS 266
• Net weight: 0.01 kg
• Coil Diameter: 2.05 inches
• Internal Diameter: 5/16 inches
• Male Thread: NPT1/4
• Retracted Length: 1.8 feet
• Extended Length: 19.68 feet
• Maximum Operating Pressure: 116 PSI
• Temperature Range: +5°F to +158°F
• Material: Polyurethane
• Color: Blue

HOW TO USE:

1. Unpack the Hose: Carefully remove the Prevost PUS266 coil hose from its packaging.
2. Connect to Air Compressor: Attach the 1/4″ NPT male fitting (either the fixed or swivel end, depending on your preference and setup) of the coil hose to the air outlet of your compressor or air supply system. Ensure the connection is hand-tight, then use an appropriate wrench to tighten it securely, but do not overtighten.
3. Connect to Air Tool: Attach the other 1/4″ NPT male fitting of the coil hose to the air inlet of your pneumatic tool (e.g., air nailer, impact wrench, blow gun). Tighten this connection securely as well.
4. Check for Leaks: Before operating, turn on your air compressor and allow it to build pressure. Listen and feel for any air leaks at the connection points. If leaks are detected, tighten the fittings further or use thread sealant if necessary.
5. Begin Operation: Once all connections are secure and leak-free, you can begin using your air tool. The coil hose will extend as you move and retract when tension is released.
6. Disconnect and Store: After use, turn off your air compressor and bleed any remaining air pressure from the hose. Disconnect the hose from both the air compressor and the tool. The hose will naturally coil back to its compact size for easy storage.

BENEFITS OF USING PREVOST 5/16″ X 20′ BLUE COIL HOSE W/FIXED & SWIVEL FITTINGS (PUS266):

• Enhanced workspace organization with a tangle-free coiled design.
• Reduced trip hazards by minimizing excess hose on the floor.
• Extended product lifespan with abrasion- and kink-resistant polyurethane material.
• Versatile for a wide range of pneumatic tools and workshop settings.
• Improved air quality due to silicone-free manufacturing.
• Lightweight and easy handling to reduce user fatigue.

FEATURES:

• Durable polyurethane construction for long-term flexibility.
• Teflon-coated threads for reliable sealing and leak prevention.
• Kink- and knot-resistant design for uninterrupted airflow.
• Non-scratch exterior to protect surfaces and workpieces.
• Anti-static properties to minimize dust attraction.
• Certified for use in specific industrial environments (ATEX compliant).
• Compact retractable design for convenient storage.
• Wide temperature tolerance for consistent performance in various conditions.
