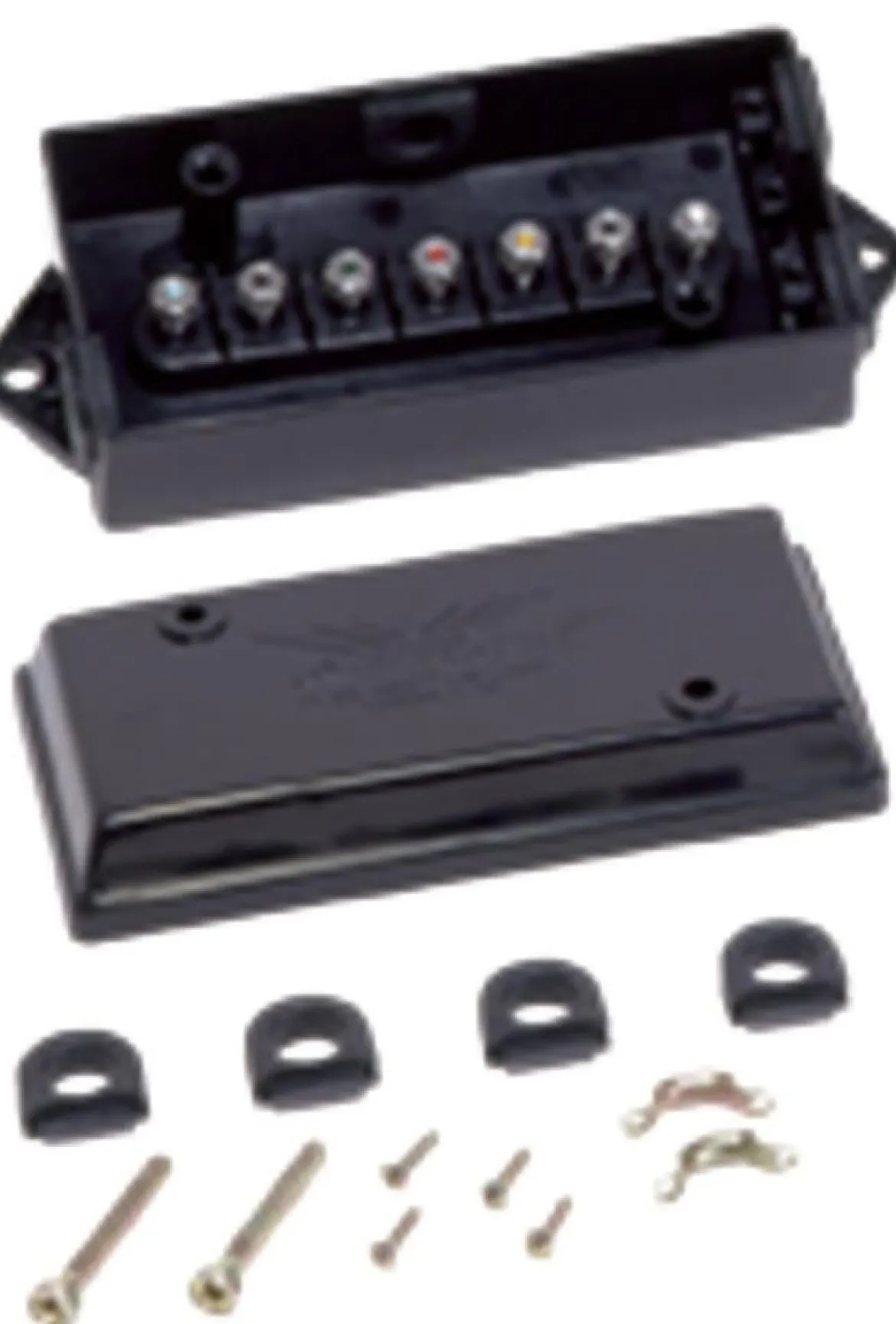

Phoenix USA 7-Pole Electrical Junction Box (PH1053)

The Phoenix USA 7-Pole Electrical Junction Box (PH1053) is an indispensable component for ensuring a reliable and organized electrical system for your trailer. Designed to serve as a central connection point, this junction box streamlines the wiring process between your towing vehicle and your trailer’s various electrical components, including essential lighting systems, braking mechanisms, and auxiliary power supplies. Its robust construction and thoughtful design make it a practical solution for both new trailer builds and for simplifying maintenance and troubleshooting of existing wiring. By consolidating all critical electrical connections into a single, protected unit, the Phoenix USA 7-Pole Junction Box enhances the safety and functionality of your trailer’s electrical system, contributing to a smoother and more secure towing experience.

KEY FEATURES AND BENEFITS:

• Central Connection Point: Provides a secure and consolidated location for all seven electrical connections required for standard trailer operation.
• Color-Coded Terminals: Facilitates accurate and straightforward wiring, reducing the risk of errors during installation or maintenance.
• Durable Construction: Typically made from resilient materials like ABS plastic, engineered to withstand road use and various environmental conditions.
• Two-Piece Design: Features a base and a secure cover that shields connections from moisture, dirt, and debris, enhancing reliability.
• Easy Mounting: Includes mounting provisions for stable attachment to the trailer frame, ensuring the junction box remains firmly in place during transit.

SPECIFICATIONS:

• Product Name: Phoenix USA 7-Pole Electrical Junction Box
• Manufacturer: Phoenix USA Inc.
• Part Number: PH1053
• Number of Terminals: 7
• Terminal Type: Stud with Nut
• Material: Typically ABS Plastic or similar durable plastic
• Color: Usually Black
• Mounting Holes: Typically 2 (approximately 5/16″ diameter)
• Dimensions (Approximate): Common dimensions are around 6.75″ (L) x 3.5″ (W) x 2.25″ (H) or 8″ (L) x 3.25″ (W) x 2.25″ (H)
• Compatibility: Compatible with standard 7-pole trailer connectors (blade style). Designed for wiring trailer lights, electric brakes, and auxiliary power.

HOW TO USE:

• Preparation: Identify the seven wires coming from your trailer’s electrical components and from your trailer’s 7-pole connector cable. Ensure all wires are properly stripped to expose the conductive core.
• Mounting the Junction Box: Choose a suitable location on your trailer frame to mount the junction box. Use appropriate mounting hardware to securely fasten the base using the provided holes.
• Connecting the Trailer Wires: Identify the function of each trailer wire and connect them to the corresponding terminal stud inside the junction box. Ensure to match the wire colors according to standard trailer wiring conventions.
• Connecting the Connector Cable Wires: Similarly, connect each wire in your trailer’s 7-pole connector cable to the remaining terminal studs in the junction box, ensuring proper matching.
• Securing the Cover: Once all connections are made, place the cover onto the base and secure it to protect the internal connections from the environment.
• Testing: After installation, test all trailer lights, brakes, and other connected electrical components to ensure proper functionality.

BENEFITS OF USING THE PHOENIX USA 7-POLE ELECTRICAL JUNCTION BOX (PH1053):

• Significantly simplifies the wiring process by providing a single, organized point for all electrical connections.
• Enhances organization, reducing clutter and the potential for loose or incorrect connections, contributing to a more reliable electrical system.
• Improves troubleshooting with all connections centrally located and easily accessible for inspection.
• Protects wiring from the elements, which helps prevent corrosion and damage, extending the lifespan of your trailer’s electrical system.
• Increases safety by ensuring proper and consistent functioning of essential components like lights and brakes.

FEATURES:

• Provides a central connection point for all 7 trailer electrical circuits.
• Features color-coded studs for easy and accurate wire identification.
• Constructed from impact-resistant plastic for longevity.
• Two-piece design with a base and a protective cover.
• Includes threaded studs and nuts for secure wire terminations.
• Equipped with mounting holes for stable attachment to the trailer frame.
• Offers a weatherproof enclosure to protect connections from moisture and debris.
• Streamlines the process of diagnosing and resolving trailer wiring issues.
• Facilitates easier replacement of trailer connector cables.
• Contributes to a safer and more reliable trailer electrical system.
