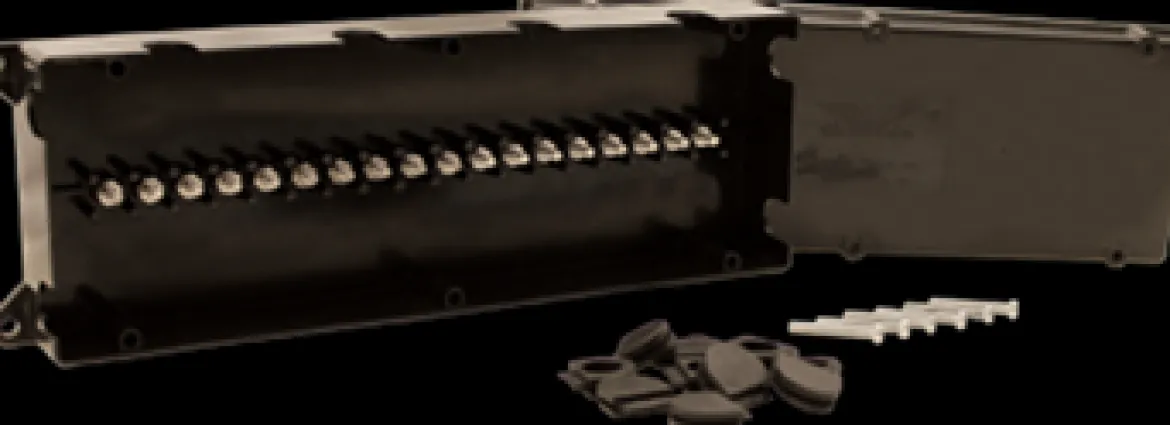

Phoenix USA 18-Pole Electrical Junction Box (PH4450)

The Phoenix USA 18-Pole Electrical Junction Box (PH4450) offers a practical and reliable solution for managing and organizing multiple electrical connections in a variety of vehicles, including cars, trucks, trailers, and recreational vehicles. This robust two-piece junction box provides a central point for connecting up to eighteen separate electrical circuits, ensuring a cleaner, safer, and more easily maintainable wiring system. Designed for ease of installation and long-lasting performance, this junction box is an essential component for anyone looking to streamline their vehicle’s electrical setup.

KEY FEATURES AND BENEFITS:

• Provides eighteen individual poles: For connecting multiple electrical circuits.
• Two-piece construction: Allows for easy access during installation and maintenance.
• Secure and protected environment: Reduces the risk of short circuits and damage.
• Simplifies wiring organization: Making it easier to trace circuits and troubleshoot electrical issues.
• Enhanced safety: Provides insulated and contained connection points for improved electrical system safety.
• Straightforward installation: With external mounting feet and often includes necessary mounting hardware.
• Improves vehicle wiring appearance: Contributes to a more professional and organized setup.

SPECIFICATIONS:

• Product Name: Electrical Junction Box 18 Pole 2 PC No words
• Manufacturer: Phoenix USA Inc.
• Part Number: PH4450
• Number of Poles: 18
• Construction: Two-piece
• Material (Likely): ABS Plastic
• Dimensions (Approximate): 14.5″ (Length) x 4.8″ (Width) x 2.6″ (Height)
• Weight (Approximate): 1.36 lbs
• Mounting: External mounting feet
• Compatibility: Suitable for use in cars, trucks, trailers, RVs, and other vehicles requiring multi-point electrical connections.

HOW TO USE:

1. Preparation: Identify the electrical wires that need to be connected within the junction box. Ensure all power sources are disconnected before beginning any wiring work.
2. Mounting: Position the junction box in a suitable location within the vehicle where the wiring can be easily routed. Use the external mounting feet and appropriate fasteners (often included) to securely attach the box to a flat surface.
3. Wire Routing: Carefully route the wires from the various electrical components into the junction box.
4. Connection: Connect each wire to one of the eighteen available poles within the junction box. Ensure a secure and proper connection using appropriate wiring connectors or terminals (these may be screw terminals, spade connectors, etc., depending on the specific design of the PH4450). Refer to the wiring diagrams of the connected components to ensure correct polarity and circuit connections.
5. Securing Connections: Once all wires are connected, double-check that each connection is tight and secure to prevent loose wires or short circuits.
6. Closing the Box: Carefully reattach the second piece of the junction box to enclose the wiring connections, providing protection from the environment.
7. Testing: After ensuring the box is securely closed, carefully restore power and test each connected electrical component to verify proper operation.

BENEFITS OF USING THE PHOENIX USA 18-POLE ELECTRICAL JUNCTION BOX (PH4450):

• Centralized and Organized Hub: Eliminates clutter and potential hazards of loose or exposed wires, streamlining the electrical setup.
• Protected Environment: Prevents corrosion, damage, and accidental short circuits, ensuring a more reliable and safer electrical system.
• Simplified Troubleshooting: Consolidated connections make it easier to diagnose and resolve electrical issues.
• Easy Installation: The straightforward installation process ensures long-lasting and dependable performance for your vehicle’s electrical needs.
• Durable Construction: Ensures longevity and reliability in demanding vehicle environments.

FEATURES:

• Ample Connection Capacity: Accommodates up to 18 individual electrical connections, suitable for complex wiring setups.
• Protective Enclosure: The two-piece design fully encloses and safeguards wiring from external elements.
• Streamlined Organization: Facilitates a neat and orderly arrangement of wires, simplifying identification and maintenance.
• Robust Construction: Built with quality materials to withstand the demands of vehicle environments.
• External Mounting: Features integrated feet for easy and secure attachment to various surfaces.
• Versatile Application: Ideal for use in a wide range of vehicles, including cars, trucks, trailers, and RVs.
• Enhanced Safety: Reduces the risk of electrical faults by providing insulated and secure connection points.
• Simplified Troubleshooting: Centralized connections make it easier to diagnose and resolve electrical issues.
