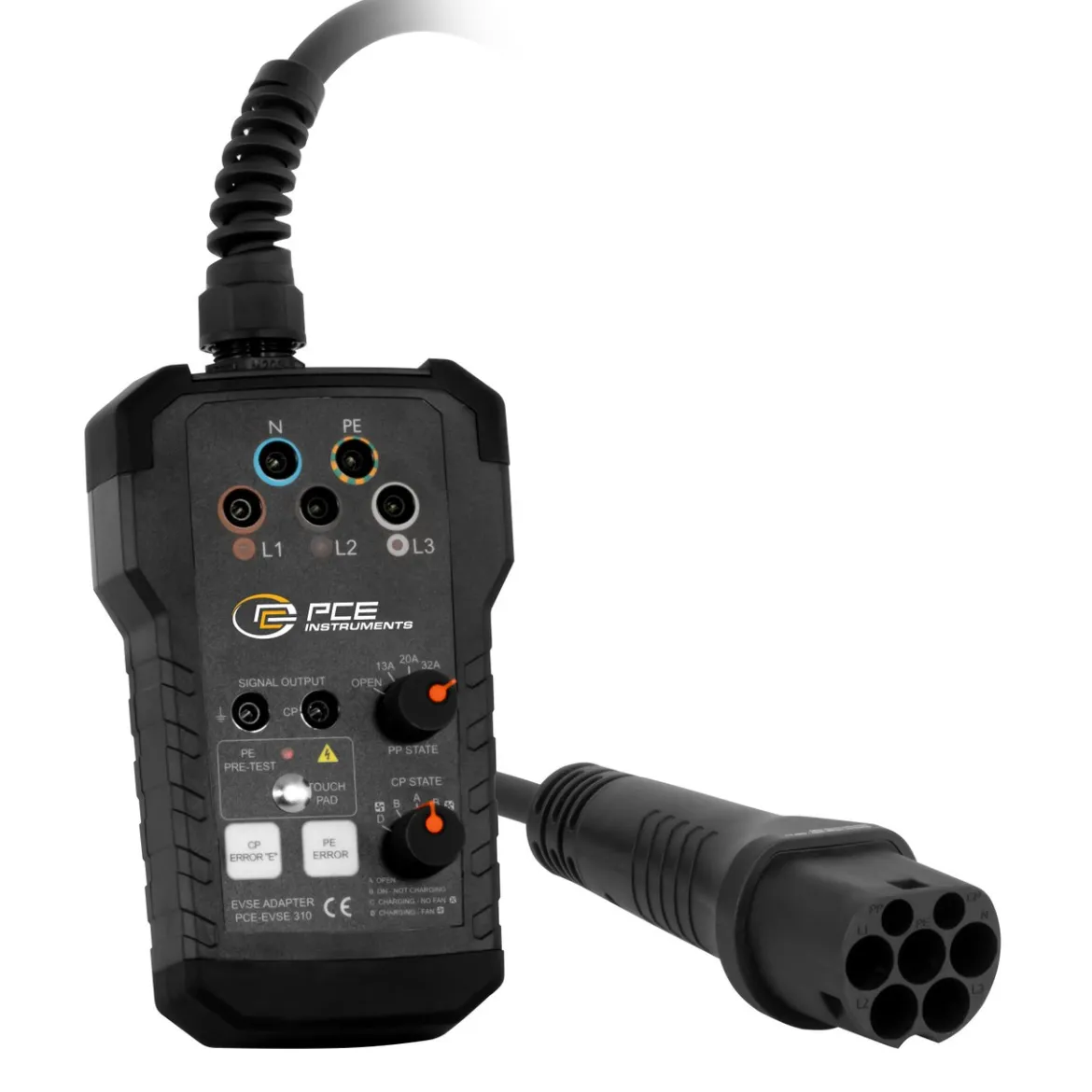

PCE Instruments EV Charging Station Tester (PCE-EVSE 310)

PCE Instruments EV Charging Station Tester (PCE-EVSE 310) is designed for testing and simulating vehicle and cable conditions in electric vehicle supply equipment (EVSE). It is compatible with VDE 0100 testers and allows for in-depth diagnostics of EV charging stations.

This EVSE tester enables quick troubleshooting of installation errors with LED indicators for voltage detection on all three phases. It features rotary switches to simulate different vehicle and cable states, helping technicians ensure proper charging station function.

• Specifications and Dimensions
  • Test Functions: PE pre-test, CP/PP state simulation, PE fault simulation
  • PP Simulation: Open, 13 A, 20 A, 32 A, 63 A
  • CP Status: A, B, C, D
  • Connections: L1, L2, L3, N, PE
  • Power Input: Max. 230V (1-phase) / 430V (3-phase); 50/60 Hz
  • Power Output: 10A / 250V
  • Standard Compliance: IEC62196-2 Type 2
  • Fuse: T10A / 250V
  • Protection Class: IP40
  • Dimensions: 600 x 105 x 73 mm
  • Weight: 643 g
  • Operating Conditions: 0 … 40°C, 80% RH
  • Storage Conditions: -10 … 50°C, 80% RH
  • Languages of Instructions: English, German
• Key Features and Benefits
  • Simulates vehicle charging states and cable conditions
  • Tests for installation errors with LED phase indicators
  • Compatible with VDE 0100 testers, including PCE-ITE 55B
  • Optional adapter available for Type 1 wallboxes
• Includes
  • 1 x Electric Vehicle EVSE Tester PCE-EVSE 310
  • 1 x Type 2 plug
  • 1 x Transport bag
  • 1 x Operating instructions
