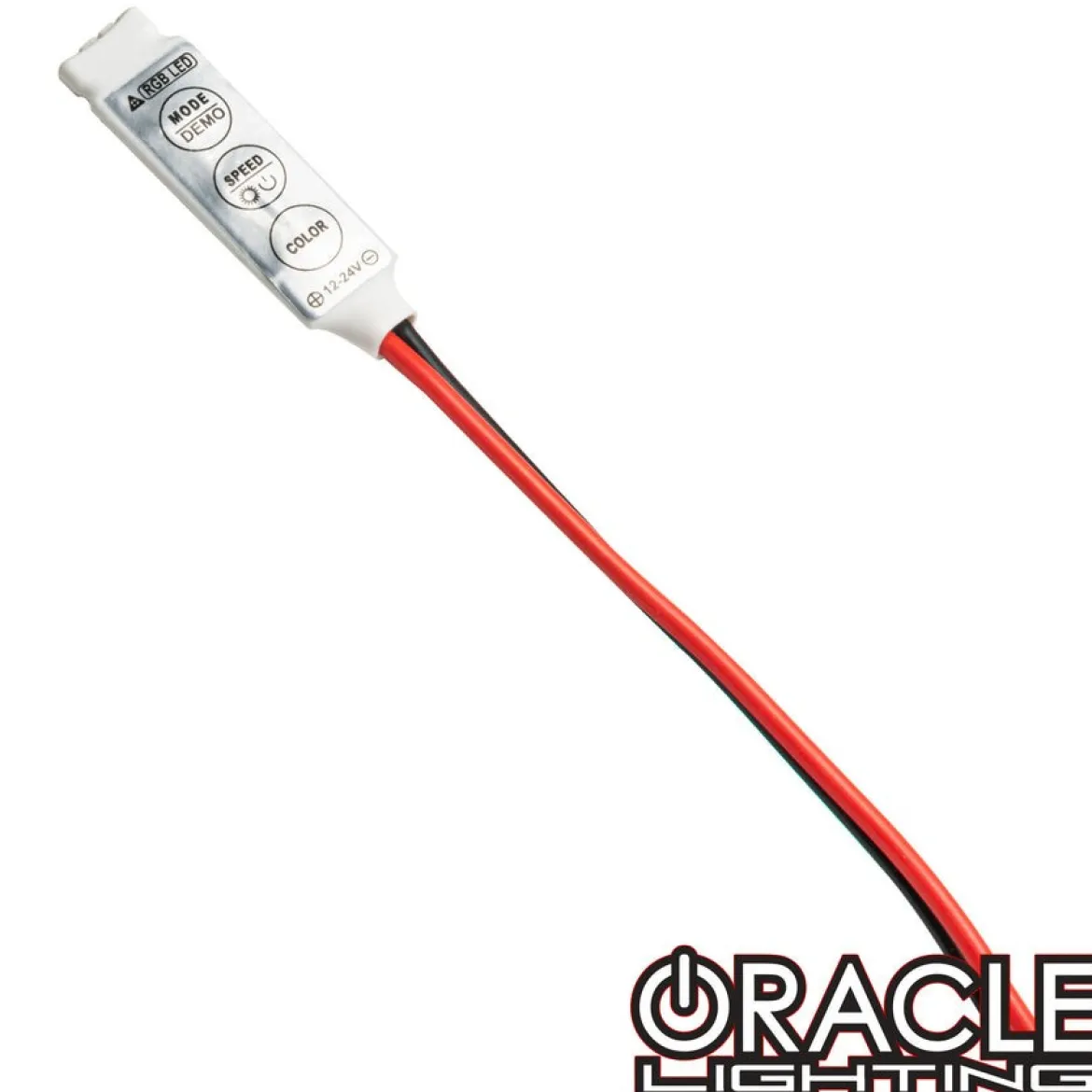

Oracle Lighting In-Line LED RGB Controller (1614-504)

Oracle Lighting In-Line LED RGB Controller (1614-504) is an easy-to-install solution for controlling your RGB LED products. This controller wires directly between a power source and an LED product, such as our Flex Strips, allowing simple control over RGB flex strips.

The Oracle Lighting In-Line LED RGB Controller includes various modes such as Breathing Mode, Heartbeat Mode, Primary and Secondary Strobe Modes, Control Dimming Mode, and Color Control. It also features a Speed Variable Button and visible markings for the + and – 12V and LED sources, ensuring a user-friendly setup.

• Specifications and Dimensions
  • Voltage: 8~16V
  • Length: 1.6 in
  • Width: 0.4 in
  • Height: 0.1 in
  • Max load current: 12 Amps
  • Output: 3 channels
  • Working temperature: -4~140F
  • Static power consumption: < 1 Watt
  • Output Power: 144 Watts
  • Color Control: 20 Static Colors
  • Dynamic Modes: 5
  • Levels of Control: 256
  • Levels of Speed: 6
  • Levels of Brightness of Static Color: 8
  • RoHS compliant, FCC, CE Certified, cULus Classified
  • 2 Year Warranty
• Key Features and Benefits
  • Easy installation and user-friendly operation
  • Multiple control modes for dynamic lighting effects
  • Compatible with various RGB LED products
  • Durable and reliable construction
  • 2 year warranty for peace of mind
