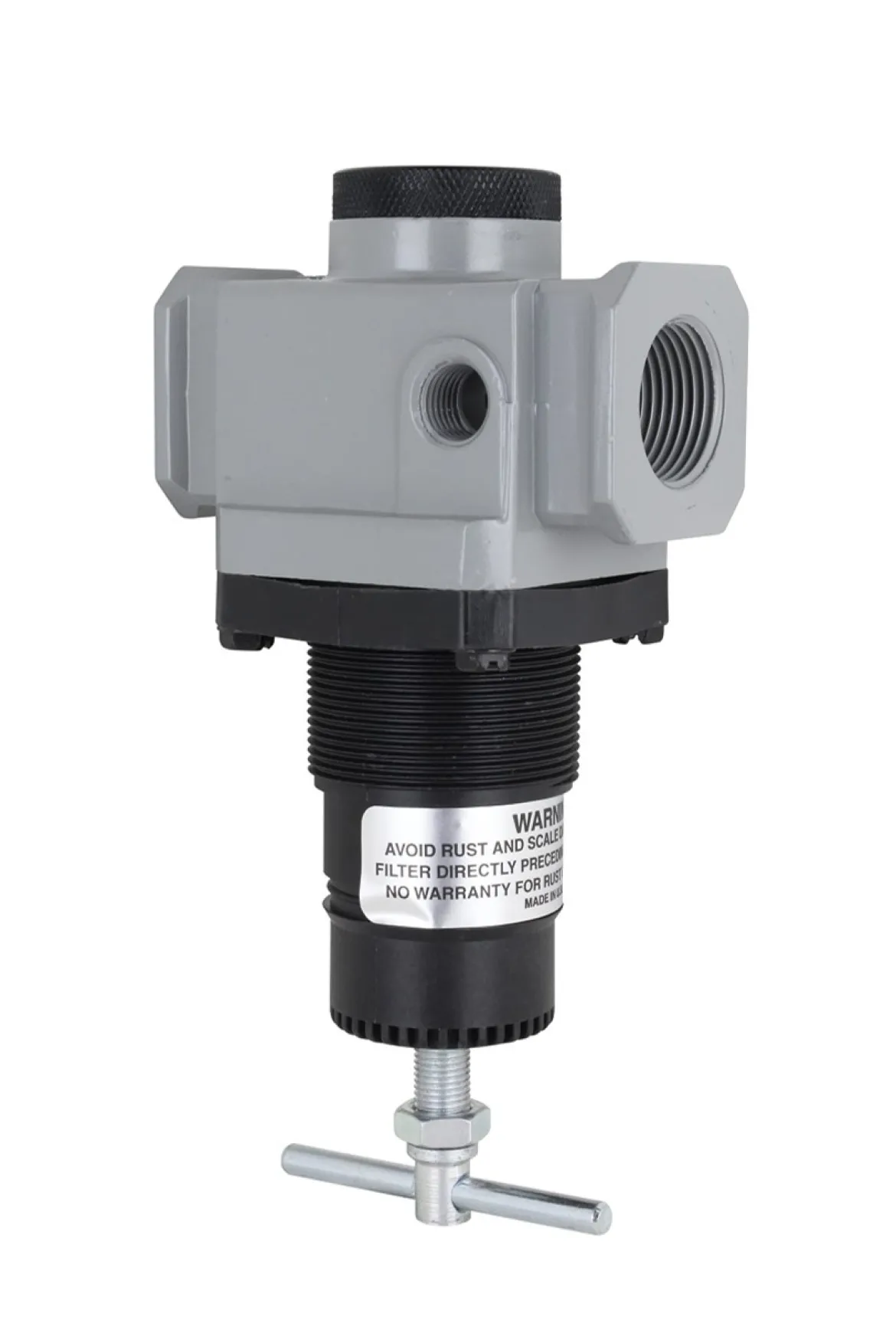

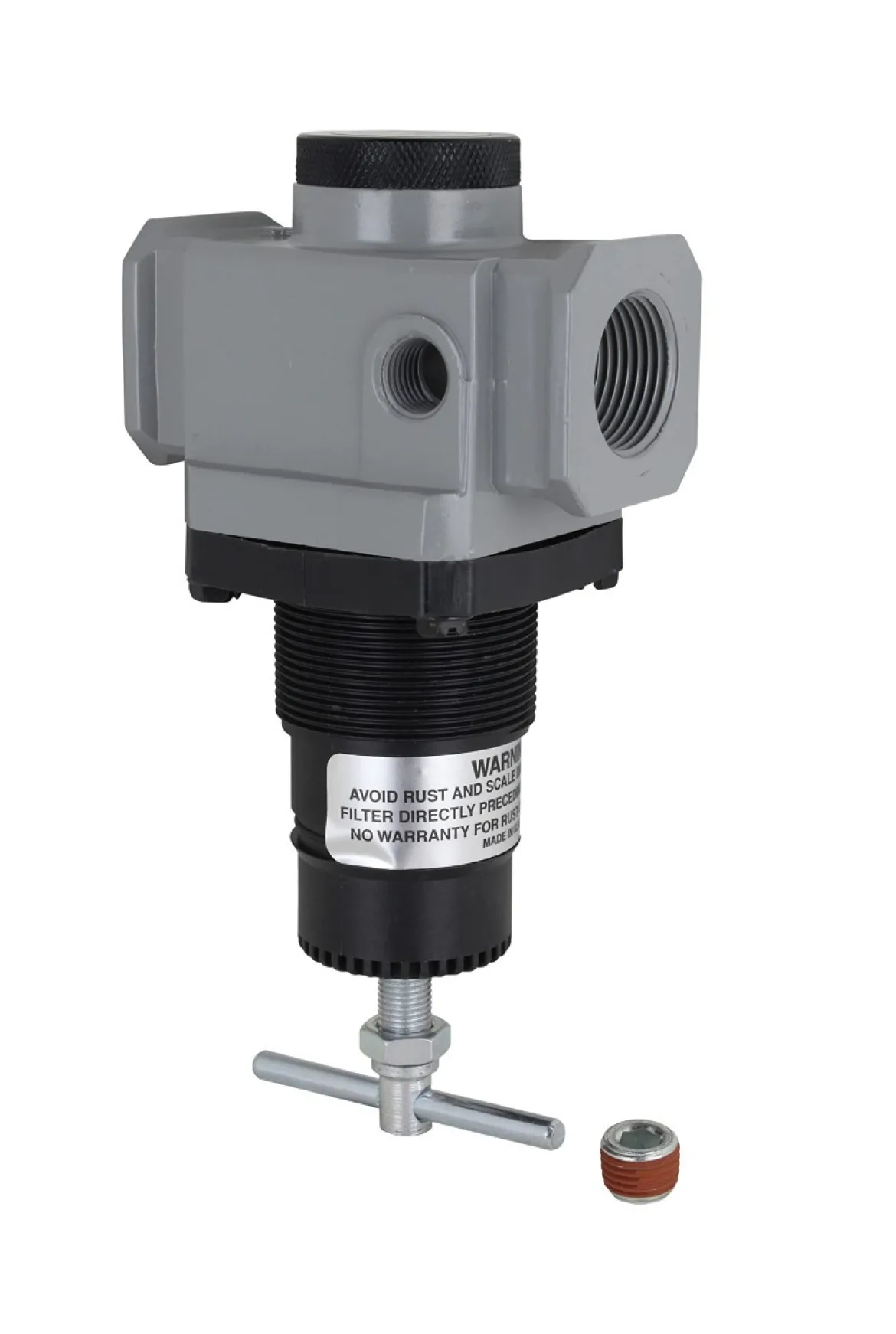

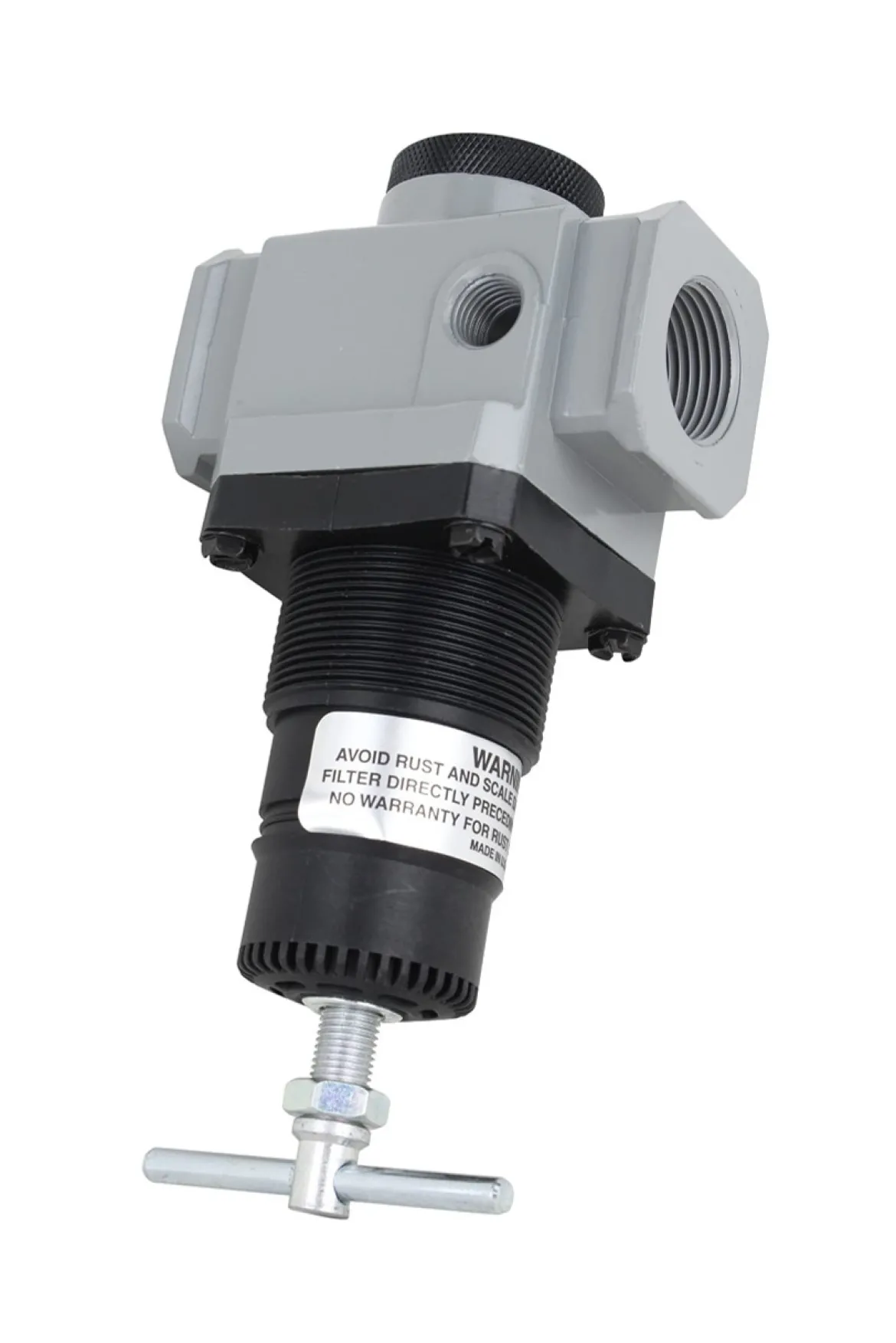

Milton 1026 3/4″ NPT Midsize Regulator

Milton 1026 3/4″ NPT Midsize Regulator

This 3/4″ NPT midsize regulator is the relieving type, offering stable downstream air pressure over a wide range of air flows for accurate control, fast response and minimal pressure drop. Offset gage ports can also serve as two 1/4″ NPT supply lines. Made up of an aluminum die cast body, balanced piston and molded rubber set, this regulator should be proceeded by a filter to eliminate damage. Maximum of 250 PSI and 220 SCFM.

• 3/4″ national pipe thread
• Maximum inlet pressure of 250 pounds per square inch
• Maximum of 220 standard cubic feet per minute at 100 pounds per square inch
• Operating temperature range of 40 degrees Fahrenheit to 120 degrees Fahrenheit
• Buna-N diaphragm

Specifications:

• Brand: Milton
• Model: 1026
• Size: 3/4″ NPT
• Length (cm): 21
• Width (cm): 10.4
• Height (cm): 9.5
• Weight (g): 45
